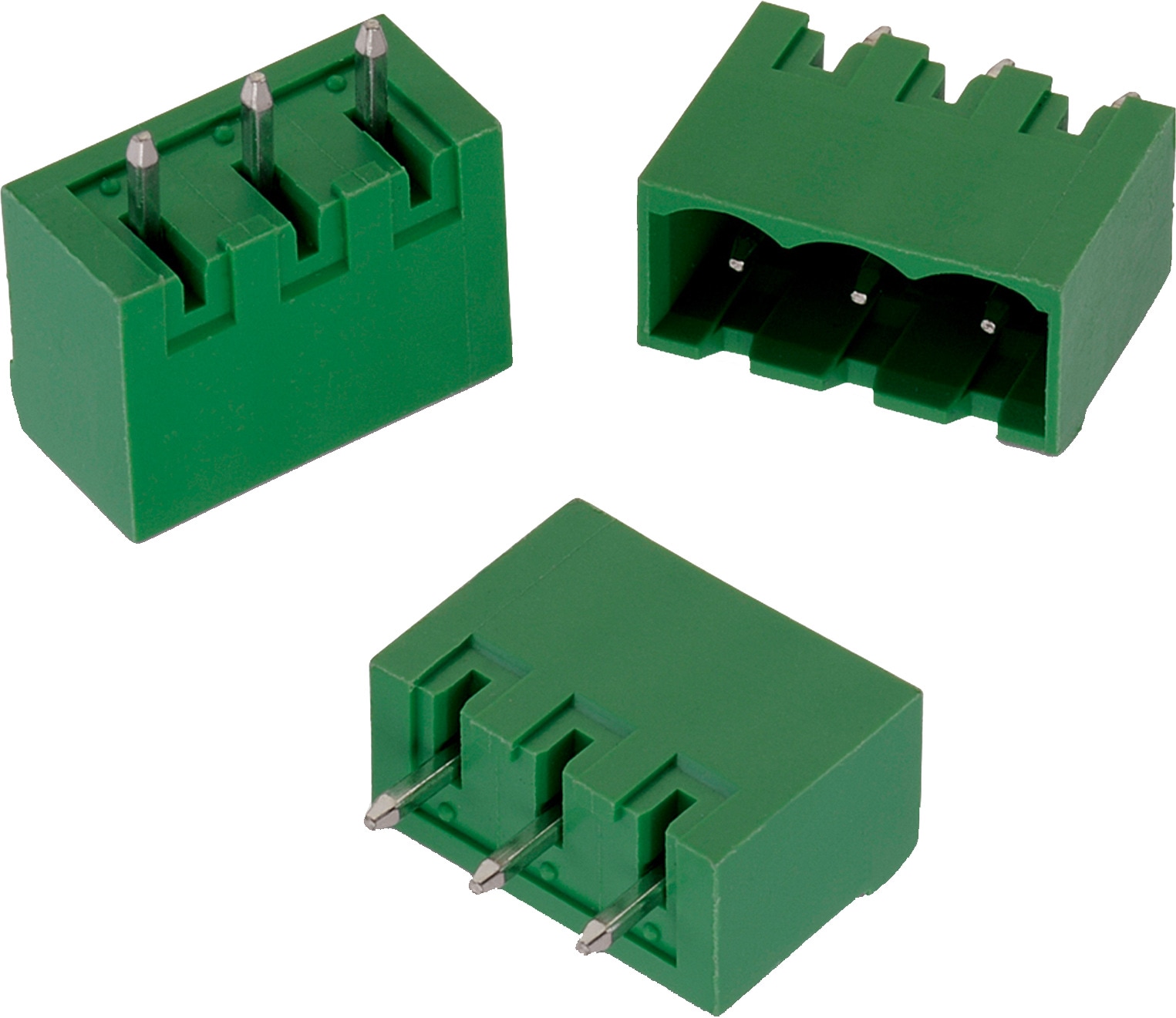

WR-TBL Series 3117 - 5.00 mm Close Vertical PCB Header | Electromechanical Components

General Information
Operating Temperature	-40 °C up to +105 °C
Compliance	RoHS
Pitch	5 mm

Material Properties
Insulator Material	PA66; PBT
Insulator Flammability Rating	UL94 V-0
Contact Material	Brass
Contact Plating	Tin

Electrical Properties
I_R	20 A
I_R[cULus]	20 A
I_R[VDE]	20 A
Working Voltage	300 V (AC)
Working Voltage [cULus]	300 V (AC)
Working Voltage [VDE]	300 V (AC)
Withstanding Voltage [cULus]	1600 V (AC)
Withstanding Voltage [VDE]	2500 V (AC)
R_C	20 mΩ
R_C	20 mΩ

Certification
cULus Approval	E315414
VDE Approval	40023195

Application Notes

Products

Order Code	Datasheet	Downloads	Status	Pins (pcs)	Application	PCB/Cable/Panel	Modularity	Type	Design Kit
691311700102	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Pluggable Connector (rev25b).IntLib \| 108.3 MB CDS Cadence_WR-TBL (rev25a).zip \| 360.6 MB EAG Eagle_WR-TBL Pluggable Connector (rev25a).lbr \| 4.2 MB CAD files ZIP 3D 691311700102_1 (rev1).pdf \| 70.3 KB IGS 691311700102 (rev1).igs \| 550.9 KB STP 691311700102 (rev1).stp \| 216.2 KB	Active i\| Production is active. Expected lifetime: >10 years.	2	Pluggable	PCB	No	Vertical	–
691311700103	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Pluggable Connector (rev25b).IntLib \| 108.3 MB CDS Cadence_WR-TBL (rev25a).zip \| 360.6 MB EAG Eagle_WR-TBL Pluggable Connector (rev25a).lbr \| 4.2 MB CAD files ZIP 3D 691311700103_1 (rev1).pdf \| 94.9 KB IGS 691311700103 (rev1).igs \| 769.5 KB STP 691311700103 (rev1).stp \| 296.6 KB	Active i\| Production is active. Expected lifetime: >10 years.	3	Pluggable	PCB	No	Vertical	691002
691311700104	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Pluggable Connector (rev25b).IntLib \| 108.3 MB CDS Cadence_WR-TBL (rev25a).zip \| 360.6 MB EAG Eagle_WR-TBL Pluggable Connector (rev25a).lbr \| 4.2 MB CAD files ZIP 3D 691311700104_1 (rev1).pdf \| 112.3 KB IGS 691311700104 (rev1).igs \| 980.9 KB STP 691311700104 (rev1).stp \| 376.9 KB	Active i\| Production is active. Expected lifetime: >10 years.	4	Pluggable	PCB	No	Vertical	–
691311700105	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Pluggable Connector (rev25b).IntLib \| 108.3 MB CDS Cadence_WR-TBL (rev25a).zip \| 360.6 MB EAG Eagle_WR-TBL Pluggable Connector (rev25a).lbr \| 4.2 MB CAD files ZIP 3D 691311700105_1 (rev1).pdf \| 129.8 KB IGS 691311700105 (rev1).igs \| 1.2 MB STP 691311700105 (rev1).stp \| 457.2 KB	Active i\| Production is active. Expected lifetime: >10 years.	5	Pluggable	PCB	No	Vertical	–
691311700106	SPEC PCN pending Due to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff. SPEC Datasheet valid to 13/07/2025 SPEC Datasheet valid from 14/07/2025	7 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Pluggable Connector (rev25b).IntLib \| 108.3 MB CDS Cadence_WR-TBL (rev25a).zip \| 360.6 MB EAG Eagle_WR-TBL Pluggable Connector (rev25a).lbr \| 4.2 MB CAD files ZIP 3D 691311700106_1 (rev1).pdf \| 149.7 KB IGS 691311700106 (rev1).igs \| 1.4 MB STP 691311700106 (rev1).stp \| 537.4 KB	Active i\| Production is active. Expected lifetime: >10 years.	6	Pluggable	PCB	No	Vertical	–
691311700107	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Pluggable Connector (rev25b).IntLib \| 108.3 MB CDS Cadence_WR-TBL (rev25a).zip \| 360.6 MB EAG Eagle_WR-TBL Pluggable Connector (rev25a).lbr \| 4.2 MB CAD files ZIP 3D 3D_691311700107 (rev1).pdf \| 163.5 KB IGS Download_IGES_691311700107 (rev1).iges \| 1.6 MB STP Download_STP_691311700107 (rev1).stp \| 619.2 KB	Active i\| Production is active. Expected lifetime: >10 years.	7	Pluggable	PCB	No	Vertical	–
691311700108	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Pluggable Connector (rev25b).IntLib \| 108.3 MB CDS Cadence_WR-TBL (rev25a).zip \| 360.6 MB EAG Eagle_WR-TBL Pluggable Connector (rev25a).lbr \| 4.2 MB CAD files ZIP 3D 691311700108_1 (rev1).pdf \| 173.6 KB IGS 691311700108 (rev1).igs \| 1.8 MB STP 691311700108 (rev1).stp \| 702.1 KB	Active i\| Production is active. Expected lifetime: >10 years.	8	Pluggable	PCB	No	Vertical	–
691311700112	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Pluggable Connector (rev25b).IntLib \| 108.3 MB CDS Cadence_WR-TBL (rev25a).zip \| 360.6 MB EAG Eagle_WR-TBL Pluggable Connector (rev25a).lbr \| 4.2 MB CAD files ZIP 3D 3D_691311700112 (rev1).pdf \| 284.2 KB IGS Download_IGES_691311700112 (rev1).iges \| 2.7 MB STP Download_STP_691311700112 (rev1).stp \| 1 MB	Active i\| Production is active. Expected lifetime: >10 years.	12	Pluggable	PCB	No	Vertical	–

Order Code	Datasheet
691311700102	SPEC
691311700103	SPEC
691311700104	SPEC
691311700105	SPEC
691311700106	SPEC PCN pending Due to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff. SPEC Datasheet valid to 13/07/2025 SPEC Datasheet valid from 14/07/2025
691311700107	SPEC
691311700108	SPEC
691311700112	SPEC
