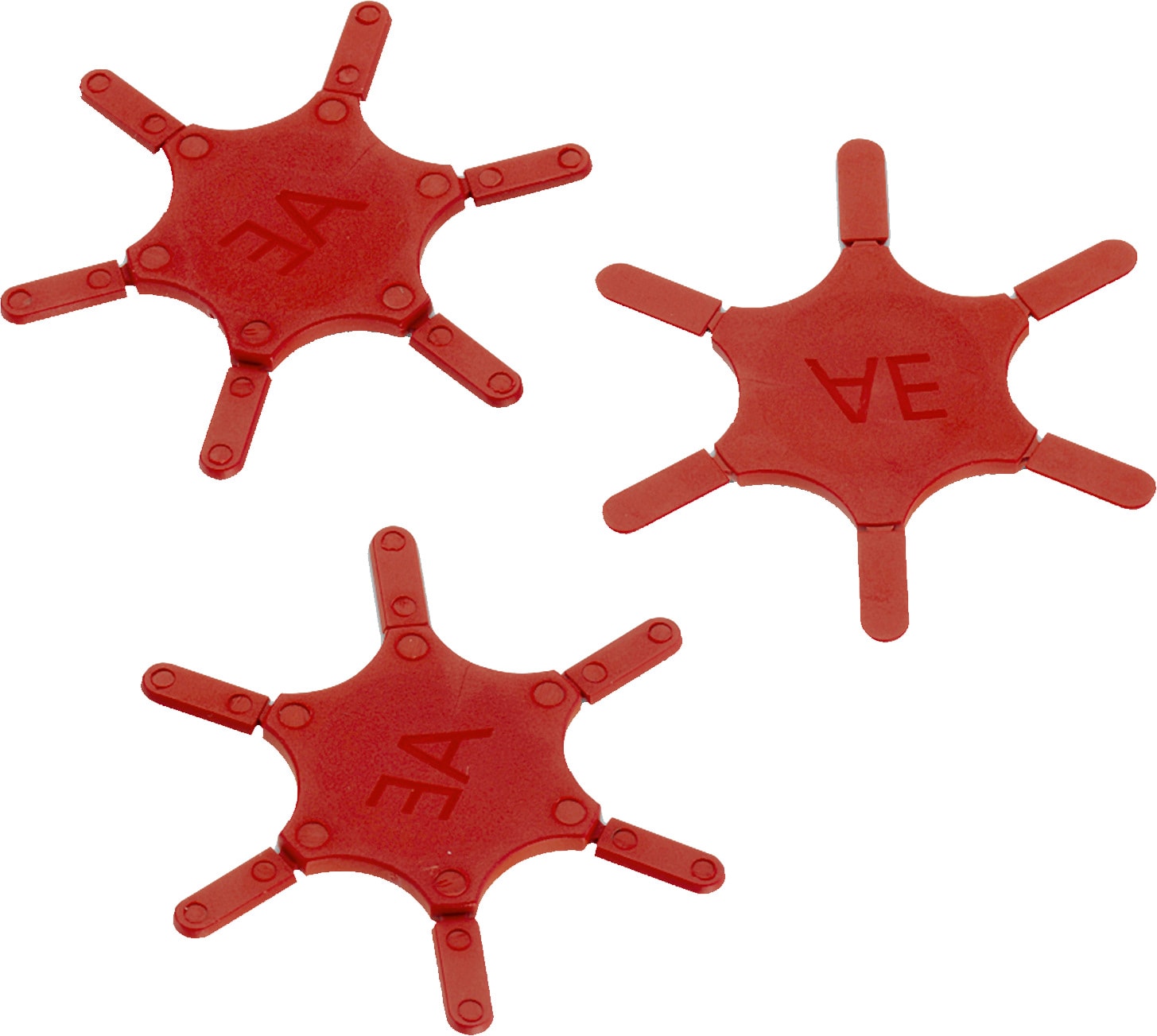

WR-TBL Coding Key for 5.00 mm, 5.08 mm and 7.62 mm Pitch

General Information
Operating Temperature	-40 °C up to +105 °C
Compliance	RoHS

Material Properties
Insulator Material	PA66
Insulator Flammability Rating	UL94 V-0

Application Notes

Products

Order Code	Datasheet	Downloads	Status	Design Kit	Samples
691399900001	SPEC	3 files CAD files ZIP 3D 691399900001_1 (rev1).pdf \| 147.7 KB IGS 691399900001 (rev1).igs \| 1.2 MB STP 691399900001 (rev1).stp \| 297.5 KB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	691002
691399900002	SPEC	3 files CAD files ZIP 3D 691399900002_1 (rev1).pdf \| 78.6 KB IGS 691399900002 (rev1).igs \| 1.2 MB STP 691399900002 (rev1).stp \| 368.1 KB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	691002

Order Code	Datasheet
691399900001	SPEC
691399900002	SPEC

Samples

Order Code	Datasheet	Downloads	Status	Design Kit	Samples

Suitable for

WR-TBL Series 3117 - 5.00 mm Close Vertical PCB Header

WR-TBL Series 3117 - 5.00 mm Open Vertical PCB Header

WR-TBL Series 3137 - 5.00 mm Close Horizontal PCB Header

WR-TBL Series 3127 - 5.00 mm Open Horizontal PCB Header

WR-TBL Series 3177 - 5.00 mm Close Horizontal PCB Header with Flanges

WR-TBL Series 3187 - 5.00 mm Close Vertical PCB Header with Flanges

WR-TBL Series 3055 - 5.08 mm - PCB Header Horizontal Entry with Plastic Latches

WR-TBL Series 3055 - 5,08 mm - PCB Header Vertical Entry with Plastic Latches

WR-TBL Series 3045 - 5.08 mm - Screwless Plug Vertical Entry with Plastic Latches

WR-TBL Series 3094 - 7.62 mm Reversed Gender Horizontal PCB Header

WR-TBL Series 3404 - 7.62 mm Vertical with Flanges

WR-TBL Series 3437 - 5.00 mm Vertical with Flanges

WR-TBL Series 3454 - 7.62 mm Horizontal w. Flanges and Hook on Back Side

WR-TBL Series 3524 - 7.62 mm Horizontal w. Hook on Wire Side

WR-TBL Series 3447 - 5.00 mm Horizontal CAB Entry Plug with Hook on Back Side

WR-TBL Series 3517 - 5.00 mm Horizontal with hook on wire Side

WR-TBL Series 3484 - 7.62 mm Reversed Gender Vertical

WR-TBL Series 3074 - 7.62 mm Reversed Gender Vertical PCB Header

WR-TBL Series 3434 - 7.62 mm Horizontal w. Flanges & Hook on Wire Side

WR-TBL Series 3457 - 5.00 mm Horizontal CAB Entry Plug with Flanges & Hook on Back Side

WR-TBL Series 3407 - 5.00 mm Horizontal with Flanges and hook on wire Side

WR-TBL Series 3527 - 5.00 mm Vertical

WR-TBL Series 3444 - 7.62 mm Horizontal w. Hook on Back Side
