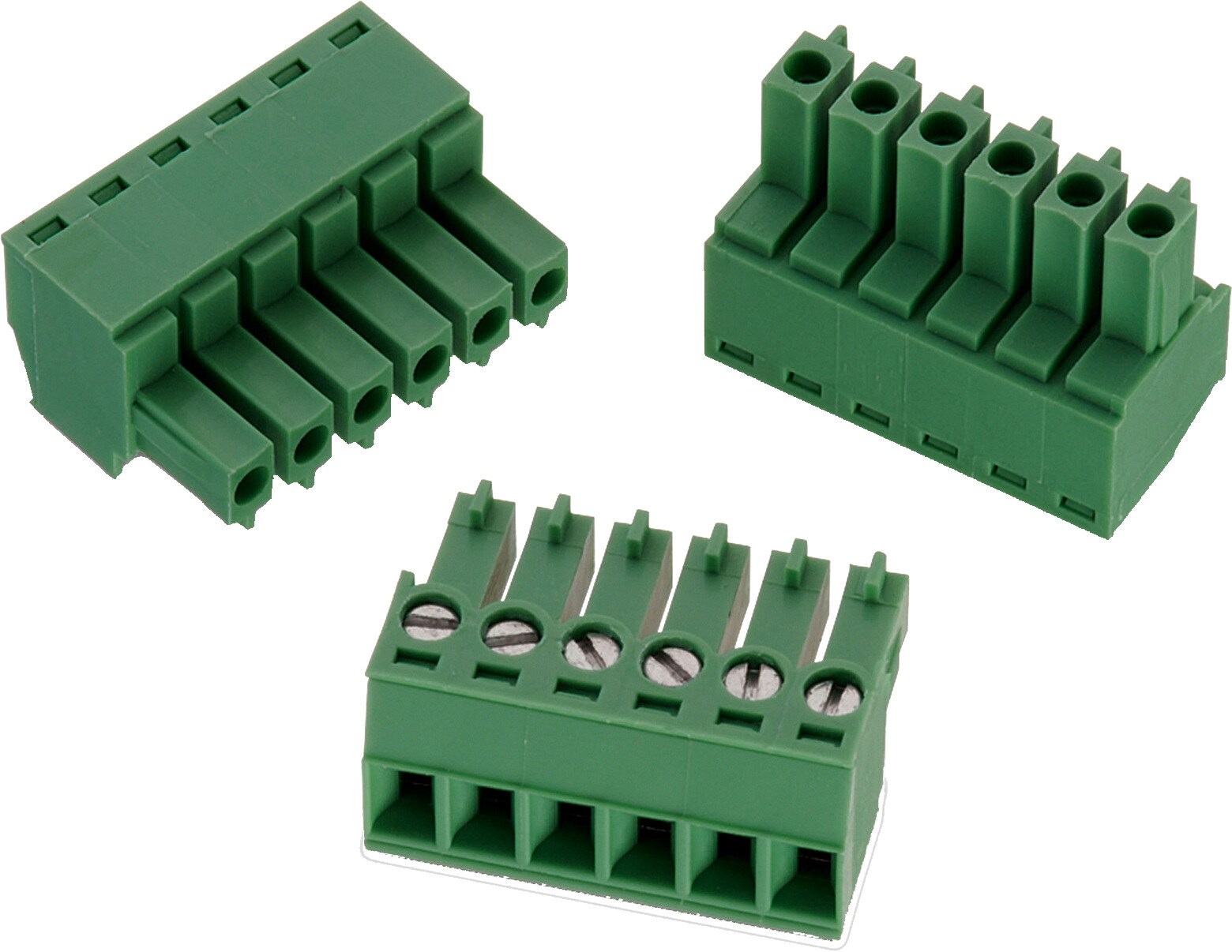

WR-TBL Series 361 - 3.81 mm Vertical | Electromechanical Components

General Information
Operating Temperature	-40 °C up to +105 °C
Compliance	RoHS
Pitch	3.81 mm

Material Properties
Insulator Material	PA66
Insulator Flammability Rating	UL94 V-0
Contact Material	Brass
Terminal Screw Material	Steel
Terminal Screw Plating	Zinc
Wire Guard Material	Phosphor Bronze

Electrical Properties
I_R	10 A; 10.5 A
I_R[cULus]	10 A
I_R[VDE]	10.5 A
Working Voltage	300 V (AC)
Working Voltage [cULus]	300 V (AC)
Working Voltage [VDE]	300 V (AC)
Withstanding Voltage [cULus]	1600 V (AC)
Withstanding Voltage [VDE]	2200 V (AC)
R_C	20 mΩ
R_C	20 mΩ

Mechanical Properties
Screw	M2

Wire Properties
Solid Wire Section (AWG)	16 to 26 (AWG)
Solid Wire Section (Metric)	1.31 to 0.129 (mm²)
Stranded Wire Section (AWG)	16 to 26 (AWG)
Stranded Wire Section (Metric)	1.31 to 0.129 (mm²)

Certification
cULus Approval	E315414
VDE Approval	40023195

Application Notes

Products

Filter article data

show article in 0 product lines

article in 0 product lines

Reset all

Order Code	Datasheet	Downloads	Status	Pins	PCB/Cable/Panel	Modularity	Type	Wire Section	Design Kit
691361300002	2, Pluggable, Cable	Downloads3 files CAD files ZIP 3D 691361300002_1 (rev1).pdf \| 177.1 KB IGS 691361300002 (rev1).igs \| 1.5 MB STP 691361300002 (rev1).stp \| 574.1 KB Download all 3 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins2	PCB/Cable/PanelCable	ModularityNo	TypeVertical	Wire Section 16 to 26 (AWG) 1.31 to 0.129 (mm²)	Design Kit 612690 691002
691361300003	3, Pluggable, Cable	Downloads3 files CAD files ZIP 3D 691361300003_1 (rev1).pdf \| 214 KB IGS 691361300003 (rev1).igs \| 2 MB STP 691361300003 (rev1).stp \| 738.2 KB Download all 3 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins3	PCB/Cable/PanelCable	ModularityNo	TypeVertical	Wire Section 16 to 26 (AWG) 1.31 to 0.129 (mm²)	Design Kit –
691361300004	4, Pluggable, Cable	Downloads3 files CAD files ZIP 3D 691361300004_1 (rev1).pdf \| 243.3 KB IGS 691361300004 (rev1).igs \| 2.4 MB STP 691361300004 (rev1).stp \| 903.4 KB Download all 3 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins4	PCB/Cable/PanelCable	ModularityNo	TypeVertical	Wire Section 16 to 26 (AWG) 1.31 to 0.129 (mm²)	Design Kit –
691361300005	5, Pluggable, Cable	Downloads3 files CAD files ZIP 3D 691361300005_1 (rev1).pdf \| 277.1 KB IGS 691361300005 (rev1).igs \| 2.8 MB STP 691361300005 (rev1).stp \| 1 MB Download all 3 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins5	PCB/Cable/PanelCable	ModularityNo	TypeVertical	Wire Section 16 to 26 (AWG) 1.31 to 0.129 (mm²)	Design Kit –
691361300006	6, Pluggable, Cable	Downloads3 files CAD files ZIP 3D 691361300006_1 (rev1).pdf \| 312.2 KB IGS 691361300006 (rev1).igs \| 3.2 MB STP 691361300006 (rev1).stp \| 1.2 MB Download all 3 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins6	PCB/Cable/PanelCable	ModularityNo	TypeVertical	Wire Section 16 to 26 (AWG) 1.31 to 0.129 (mm²)	Design Kit –
691361300007	7, Pluggable, Cable	Downloads4 files CAD files ZIP 3D 691361300007_1 (rev1).pdf \| 343.8 KB IGS 691361300007 (rev1).iges \| 3.6 MB IGS 691361300007 (rev1).igs \| 3.6 MB STP 691361300007 (rev1).stp \| 1.4 MB Download all 4 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins7	PCB/Cable/PanelCable	ModularityNo	TypeVertical	Wire Section 16 to 26 (AWG) 1.31 to 0.129 (mm²)	Design Kit –
691361300008	8, Pluggable, Cable	Downloads3 files CAD files ZIP 3D 691361300008_1 (rev1).pdf \| 372.3 KB IGS 691361300008 (rev1).igs \| 4.1 MB STP 691361300008 (rev1).stp \| 1.5 MB Download all 3 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins8	PCB/Cable/PanelCable	ModularityNo	TypeVertical	Wire Section 16 to 26 (AWG) 1.31 to 0.129 (mm²)	Design Kit –
691361300009	9, Pluggable, Cable	Downloads3 files CAD files ZIP 3D 691361300009_1 (rev1).pdf \| 402.8 KB IGS 691361300009 (rev1).igs \| 4.5 MB STP 691361300009 (rev1).stp \| 1.7 MB Download all 3 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins9	PCB/Cable/PanelCable	ModularityNo	TypeVertical	Wire Section 16 to 26 (AWG) 1.31 to 0.129 (mm²)	Design Kit –
691361300010	10, Pluggable, Cable	Downloads3 files CAD files ZIP 3D 691361300010_1 (rev1).pdf \| 433 KB IGS 691361300010 (rev1).igs \| 4.9 MB STP 691361300010 (rev1).stp \| 1.9 MB Download all 3 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins10	PCB/Cable/PanelCable	ModularityNo	TypeVertical	Wire Section 16 to 26 (AWG) 1.31 to 0.129 (mm²)	Design Kit –
691361300011	11, Pluggable, Cable	Downloads3 files CAD files ZIP 3D 691361300011_1 (rev1).pdf \| 463.5 KB IGS 691361300011 (rev1).igs \| 5.3 MB STP 691361300011 (rev1).stp \| 2 MB Download all 3 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins11	PCB/Cable/PanelCable	ModularityNo	TypeVertical	Wire Section 16 to 26 (AWG) 1.31 to 0.129 (mm²)	Design Kit –
691361300012	12, Pluggable, Cable	Downloads4 files CAD files ZIP 3D 691361300012_1 (rev1).pdf \| 496 KB IGS 691361300012 (rev1).iges \| 5.7 MB IGS 691361300012 (rev1).igs \| 5.8 MB STP 691361300012 (rev1).stp \| 2.2 MB Download all 4 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins12	PCB/Cable/PanelCable	ModularityNo	TypeVertical	Wire Section 16 to 26 (AWG) 1.31 to 0.129 (mm²)	Design Kit –
691361300013	13, Pluggable, Cable	Downloads3 files CAD files ZIP 3D 691361300013_1 (rev1).pdf \| 523.2 KB IGS 691361300013 (rev1).igs \| 6.2 MB STP 691361300013 (rev1).stp \| 2.3 MB Download all 3 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins13	PCB/Cable/PanelCable	ModularityNo	TypeVertical	Wire Section 16 to 26 (AWG) 1.31 to 0.129 (mm²)	Design Kit –
691361300014	14, Pluggable, Cable	Downloads3 files CAD files ZIP 3D 691361300014_1 (rev1).pdf \| 555.3 KB IGS 691361300014 (rev1).igs \| 6.6 MB STP 691361300014 (rev1).stp \| 2.5 MB Download all 3 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins14	PCB/Cable/PanelCable	ModularityNo	TypeVertical	Wire Section 16 to 26 (AWG) 1.31 to 0.129 (mm²)	Design Kit –
691361300015	15, Pluggable, Cable	Downloads3 files CAD files ZIP 3D 691361300015_1 (rev1).pdf \| 587.2 KB IGS 691361300015 (rev1).igs \| 7 MB STP 691361300015 (rev1).stp \| 2.7 MB Download all 3 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins15	PCB/Cable/PanelCable	ModularityNo	TypeVertical	Wire Section 16 to 26 (AWG) 1.31 to 0.129 (mm²)	Design Kit –
691361300016	16, Pluggable, Cable	Downloads3 files CAD files ZIP 3D 691361300016_1 (rev1).pdf \| 619.3 KB IGS 691361300016 (rev1).igs \| 7.5 MB STP 691361300016 (rev1).stp \| 2.8 MB Download all 3 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins16	PCB/Cable/PanelCable	ModularityNo	TypeVertical	Wire Section 16 to 26 (AWG) 1.31 to 0.129 (mm²)	Design Kit –
691361300017	17, Pluggable, Cable	Downloads3 files CAD files ZIP 3D 691361300017_1 (rev1).pdf \| 649.2 KB IGS 691361300017 (rev1).igs \| 7.9 MB STP 691361300017 (rev1).stp \| 3 MB Download all 3 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins17	PCB/Cable/PanelCable	ModularityNo	TypeVertical	Wire Section 16 to 26 (AWG) 1.31 to 0.129 (mm²)	Design Kit –
691361300018	18, Pluggable, Cable	Downloads3 files CAD files ZIP 3D 691361300018_1 (rev1).pdf \| 683 KB IGS 691361300018 (rev1).igs \| 8.3 MB STP 691361300018 (rev1).stp \| 3.1 MB Download all 3 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins18	PCB/Cable/PanelCable	ModularityNo	TypeVertical	Wire Section 16 to 26 (AWG) 1.31 to 0.129 (mm²)	Design Kit –
691361300019	19, Pluggable, Cable	Downloads3 files CAD files ZIP 3D 691361300019_1 (rev1).pdf \| 713.7 KB IGS 691361300019 (rev1).igs \| 8.7 MB STP 691361300019 (rev1).stp \| 3.3 MB Download all 3 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins19	PCB/Cable/PanelCable	ModularityNo	TypeVertical	Wire Section 16 to 26 (AWG) 1.31 to 0.129 (mm²)	Design Kit –
691361300020	20, Pluggable, Cable	Downloads3 files CAD files ZIP 3D 691361300020_1 (rev1).pdf \| 745.9 KB IGS 691361300020 (rev1).igs \| 9.2 MB STP 691361300020 (rev1).stp \| 3.5 MB Download all 3 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins20	PCB/Cable/PanelCable	ModularityNo	TypeVertical	Wire Section 16 to 26 (AWG) 1.31 to 0.129 (mm²)	Design Kit –
691361300021	21, Pluggable, Cable	Downloads3 files CAD files ZIP 3D 691361300021_1 (rev1).pdf \| 792.4 KB IGS 691361300021 (rev1).igs \| 9.6 MB STP 691361300021 (rev1).stp \| 3.6 MB Download all 3 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins21	PCB/Cable/PanelCable	ModularityNo	TypeVertical	Wire Section 16 to 26 (AWG) 1.31 to 0.129 (mm²)	Design Kit –
691361300022	22, Pluggable, Cable	Downloads3 files CAD files ZIP 3D 691361300022_1 (rev1).pdf \| 815.7 KB IGS 691361300022 (rev1).igs \| 10 MB STP 691361300022 (rev1).stp \| 3.8 MB Download all 3 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins22	PCB/Cable/PanelCable	ModularityNo	TypeVertical	Wire Section 16 to 26 (AWG) 1.31 to 0.129 (mm²)	Design Kit –
691361300023	23, Pluggable, Cable	Downloads3 files CAD files ZIP 3D 691361300023_1 (rev1).pdf \| 849 KB IGS 691361300023 (rev1).igs \| 10.4 MB STP 691361300023 (rev1).stp \| 3.9 MB Download all 3 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins23	PCB/Cable/PanelCable	ModularityNo	TypeVertical	Wire Section 16 to 26 (AWG) 1.31 to 0.129 (mm²)	Design Kit –
691361300024	24, Pluggable, Cable	Downloads3 files CAD files ZIP 3D 691361300024_1 (rev1).pdf \| 881.6 KB IGS 691361300024 (rev1).igs \| 10.9 MB STP 691361300024 (rev1).stp \| 4.1 MB Download all 3 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins24	PCB/Cable/PanelCable	ModularityNo	TypeVertical	Wire Section 16 to 26 (AWG) 1.31 to 0.129 (mm²)	Design Kit –
