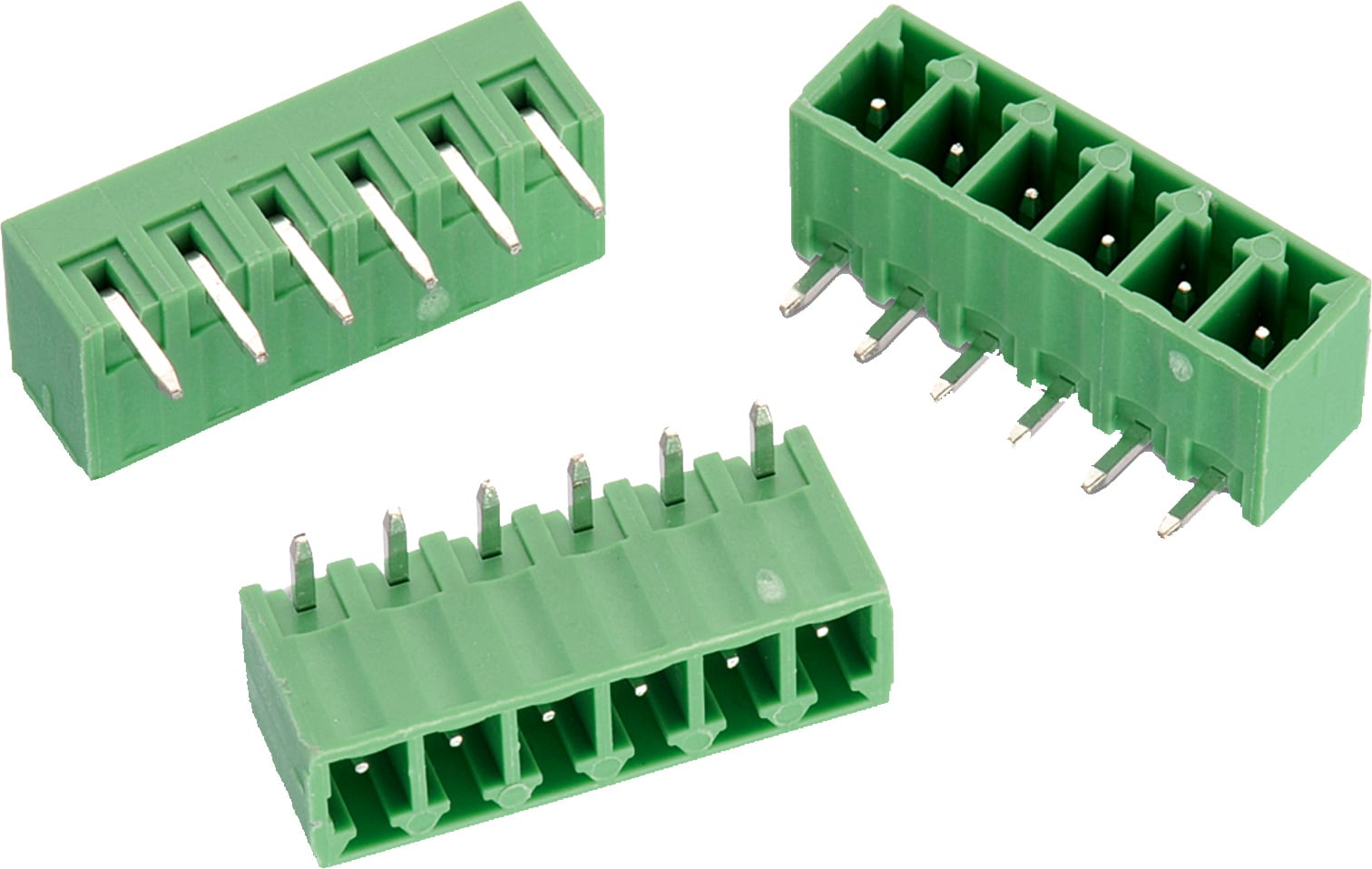

WR-TBL Series 322 - 3.81 mm Horizontal PCB Header | Electromechanical Components

General Information
Operating Temperature	-40 °C up to +105 °C
Compliance	RoHS
Pitch	3.81 mm

Material Properties
Insulator Material	PA66
Insulator Flammability Rating	UL94 V-0
Insulator Color	Green
Contact Material	Brass
Contact Plating	Tin
Pin Material	Brass
Pin Plating	Tin over Nickel

Electrical Properties
I_R	10 A; 10.5 A
I_R[cULus]	10 A
I_R[VDE]	10.5 A
Working Voltage	300 V (AC)
Working Voltage [cULus]	300 V (AC)
Working Voltage [VDE]	300 V (AC)
Withstanding Voltage [cULus]	1600 V (AC)
Withstanding Voltage [VDE]	2200 V (AC)
R_C	20 mΩ
R_C	20 mΩ

Certification
cULus Approval	E315414
UL Approval	E315414
VDE Approval	40023195
Glow Wire Approval	Conform [IEC 60335-1]

Application Notes

Products

Filter article data

show article in 0 product lines

article in 0 product lines

Reset all

Order Code	Datasheet	Downloads	Status	Pins	PCB/Cable/Panel	Modularity	Type	Design Kit	SamplesAvailability & Sample

Log in now to view availability and request availability forecasts. LOGIN
691322310002	SPEC2, PCB Header, Cable	Availability –	Downloads6 files EDA models: Components ZIP ALT Altium_WR-TBL_Pluggable Connector (rev26a).IntLib \| 118.9 MB CDS Cadence_WR-TBL (rev26a).zip \| 436.7 MB EAG Eagle_WR-TBL-Pluggable-Connector (rev26a).lbr \| 4.8 MB CAD files ZIP 3D 691322310002_1 (rev1).pdf \| 77.9 KB IGS 691322310002 (rev1).igs \| 747.9 KB STP 691322310002 (rev1).stp \| 292.7 KB	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins2	PCB/Cable/PanelCable	ModularityNo	TypePCB Header	Design Kit 691002	–Check availability
691322310003	SPEC3, PCB Header, Cable	Availability –	Downloads6 files EDA models: Components ZIP ALT Altium_WR-TBL_Pluggable Connector (rev26a).IntLib \| 118.9 MB CDS Cadence_WR-TBL (rev26a).zip \| 436.7 MB EAG Eagle_WR-TBL-Pluggable-Connector (rev26a).lbr \| 4.8 MB CAD files ZIP 3D 691322310003_1 (rev1).pdf \| 102.4 KB IGS 691322310003 (rev1).igs \| 998.8 KB STP 691322310003 (rev1).stp \| 393.1 KB	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins3	PCB/Cable/PanelCable	ModularityNo	TypePCB Header	Design Kit –	–Check availability
691322310004	SPEC4, PCB Header, Cable	Availability –	Downloads6 files EDA models: Components ZIP ALT Altium_WR-TBL_Pluggable Connector (rev26a).IntLib \| 118.9 MB CDS Cadence_WR-TBL (rev26a).zip \| 436.7 MB EAG Eagle_WR-TBL-Pluggable-Connector (rev26a).lbr \| 4.8 MB CAD files ZIP 3D 691322310004_1 (rev1).pdf \| 131.9 KB IGS 691322310004 (rev1).igs \| 1.2 MB STP 691322310004 (rev1).stp \| 493.3 KB	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins4	PCB/Cable/PanelCable	ModularityNo	TypePCB Header	Design Kit –	–Check availability
691322310005	SPEC5, PCB Header, Cable	Availability –	Downloads6 files EDA models: Components ZIP ALT Altium_WR-TBL_Pluggable Connector (rev26a).IntLib \| 118.9 MB CDS Cadence_WR-TBL (rev26a).zip \| 436.7 MB EAG Eagle_WR-TBL-Pluggable-Connector (rev26a).lbr \| 4.8 MB CAD files ZIP 3D 691322310005_1 (rev1).pdf \| 152.5 KB IGS 691322310005 (rev1).igs \| 1.5 MB STP 691322310005 (rev1).stp \| 593.9 KB	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins5	PCB/Cable/PanelCable	ModularityNo	TypePCB Header	Design Kit –	–Check availability
691322310006	SPEC6, PCB Header, Cable	Availability –	Downloads6 files EDA models: Components ZIP ALT Altium_WR-TBL_Pluggable Connector (rev26a).IntLib \| 118.9 MB CDS Cadence_WR-TBL (rev26a).zip \| 436.7 MB EAG Eagle_WR-TBL-Pluggable-Connector (rev26a).lbr \| 4.8 MB CAD files ZIP 3D 691322310006_1 (rev1).pdf \| 178.5 KB IGS 691322310006 (rev1).igs \| 1.7 MB STP 691322310006 (rev1).stp \| 697.5 KB	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins6	PCB/Cable/PanelCable	ModularityNo	TypePCB Header	Design Kit –	–Check availability
691322310007	SPEC7, PCB Header, Cable	Availability –	Downloads7 files EDA models: Components ZIP ALT Altium_WR-TBL_Pluggable Connector (rev26a).IntLib \| 118.9 MB CDS Cadence_WR-TBL (rev26a).zip \| 436.7 MB EAG Eagle_WR-TBL-Pluggable-Connector (rev26a).lbr \| 4.8 MB CAD files ZIP 3D 691322310007_1 (rev1).pdf \| 197.6 KB IGS 691322310007 (rev1).iges \| 2 MB IGS 691322310007 (rev1).igs \| 2 MB STP 691322310007 (rev1).stp \| 801.5 KB	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins7	PCB/Cable/PanelCable	ModularityNo	TypePCB Header	Design Kit –	–Check availability
691322310008	SPEC8, PCB Header, Cable	Availability –	Downloads6 files EDA models: Components ZIP ALT Altium_WR-TBL_Pluggable Connector (rev26a).IntLib \| 118.9 MB CDS Cadence_WR-TBL (rev26a).zip \| 436.7 MB EAG Eagle_WR-TBL-Pluggable-Connector (rev26a).lbr \| 4.8 MB CAD files ZIP 3D 691322310008_1 (rev1).pdf \| 216.4 KB IGS 691322310008 (rev1).igs \| 2.2 MB STP 691322310008 (rev1).stp \| 905.4 KB	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins8	PCB/Cable/PanelCable	ModularityNo	TypePCB Header	Design Kit –	–Check availability
691322310009	SPEC9, PCB Header, Cable	Availability –	Downloads6 files EDA models: Components ZIP ALT Altium_WR-TBL_Pluggable Connector (rev26a).IntLib \| 118.9 MB CDS Cadence_WR-TBL (rev26a).zip \| 436.7 MB EAG Eagle_WR-TBL-Pluggable-Connector (rev26a).lbr \| 4.8 MB CAD files ZIP 3D 691322310009_1 (rev1).pdf \| 238.7 KB IGS 691322310009 (rev1).igs \| 2.5 MB STP 691322310009 (rev1).stp \| 1009.9 KB	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins9	PCB/Cable/PanelCable	ModularityNo	TypePCB Header	Design Kit –	–Check availability
691322310010	SPEC10, PCB Header, Cable	Availability –	Downloads6 files EDA models: Components ZIP ALT Altium_WR-TBL_Pluggable Connector (rev26a).IntLib \| 118.9 MB CDS Cadence_WR-TBL (rev26a).zip \| 436.7 MB EAG Eagle_WR-TBL-Pluggable-Connector (rev26a).lbr \| 4.8 MB CAD files ZIP 3D 691322310010_1 (rev1).pdf \| 263.6 KB IGS 691322310010 (rev1).igs \| 2.7 MB STP 691322310010 (rev1).stp \| 1.1 MB	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins10	PCB/Cable/PanelCable	ModularityNo	TypePCB Header	Design Kit –	–Check availability
691322310011	SPEC11, PCB Header, Cable	Availability –	Downloads6 files EDA models: Components ZIP ALT Altium_WR-TBL_Pluggable Connector (rev26a).IntLib \| 118.9 MB CDS Cadence_WR-TBL (rev26a).zip \| 436.7 MB EAG Eagle_WR-TBL-Pluggable-Connector (rev26a).lbr \| 4.8 MB CAD files ZIP 3D 691322310011_1 (rev1).pdf \| 283.6 KB IGS 691322310011 (rev1).igs \| 3 MB STP 691322310011 (rev1).stp \| 1.2 MB	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins11	PCB/Cable/PanelCable	ModularityNo	TypePCB Header	Design Kit –	–Check availability
691322310012	SPEC12, PCB Header, Cable	Availability –	Downloads7 files EDA models: Components ZIP ALT Altium_WR-TBL_Pluggable Connector (rev26a).IntLib \| 118.9 MB CDS Cadence_WR-TBL (rev26a).zip \| 436.7 MB EAG Eagle_WR-TBL-Pluggable-Connector (rev26a).lbr \| 4.8 MB CAD files ZIP 3D 691322310012_1 (rev1).pdf \| 328.7 KB IGS 691322310012 (rev1).iges \| 3.3 MB IGS 691322310012 (rev1).igs \| 3.3 MB STP 691322310012 (rev1).stp \| 1.3 MB	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins12	PCB/Cable/PanelCable	ModularityNo	TypePCB Header	Design Kit –	–Check availability
691322310013	SPEC13, PCB Header, Cable	Availability –	Downloads6 files EDA models: Components ZIP ALT Altium_WR-TBL_Pluggable Connector (rev26a).IntLib \| 118.9 MB CDS Cadence_WR-TBL (rev26a).zip \| 436.7 MB EAG Eagle_WR-TBL-Pluggable-Connector (rev26a).lbr \| 4.8 MB CAD files ZIP 3D 691322310013_1 (rev1).pdf \| 353.4 KB IGS 691322310013 (rev1).igs \| 3.5 MB STP 691322310013 (rev1).stp \| 1.4 MB	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins13	PCB/Cable/PanelCable	ModularityNo	TypePCB Header	Design Kit –	–Check availability
691322310014	SPEC14, PCB Header, Cable	Availability –	Downloads6 files EDA models: Components ZIP ALT Altium_WR-TBL_Pluggable Connector (rev26a).IntLib \| 118.9 MB CDS Cadence_WR-TBL (rev26a).zip \| 436.7 MB EAG Eagle_WR-TBL-Pluggable-Connector (rev26a).lbr \| 4.8 MB CAD files ZIP 3D 691322310014_1 (rev1).pdf \| 381.2 KB IGS 691322310014 (rev1).igs \| 3.8 MB STP 691322310014 (rev1).stp \| 1.5 MB	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins14	PCB/Cable/PanelCable	ModularityNo	TypePCB Header	Design Kit –	–Check availability
691322310015	SPEC15, PCB Header, Cable	Availability –	Downloads6 files EDA models: Components ZIP ALT Altium_WR-TBL_Pluggable Connector (rev26a).IntLib \| 118.9 MB CDS Cadence_WR-TBL (rev26a).zip \| 436.7 MB EAG Eagle_WR-TBL-Pluggable-Connector (rev26a).lbr \| 4.8 MB CAD files ZIP 3D 691322310015_1 (rev1).pdf \| 390 KB IGS 691322310015 (rev1).igs \| 4 MB STP 691322310015 (rev1).stp \| 1.6 MB	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins15	PCB/Cable/PanelCable	ModularityNo	TypePCB Header	Design Kit –	–Check availability
691322310016	SPEC16, PCB Header, Cable	Availability –	Downloads6 files EDA models: Components ZIP ALT Altium_WR-TBL_Pluggable Connector (rev26a).IntLib \| 118.9 MB CDS Cadence_WR-TBL (rev26a).zip \| 436.7 MB EAG Eagle_WR-TBL-Pluggable-Connector (rev26a).lbr \| 4.8 MB CAD files ZIP 3D 691322310016_1 (rev1).pdf \| 416.4 KB IGS 691322310016 (rev1).igs \| 4.3 MB STP 691322310016 (rev1).stp \| 1.7 MB	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins16	PCB/Cable/PanelCable	ModularityNo	TypePCB Header	Design Kit –	–Check availability
691322310017	SPEC17, PCB Header, Cable	Availability –	Downloads6 files EDA models: Components ZIP ALT Altium_WR-TBL_Pluggable Connector (rev26a).IntLib \| 118.9 MB CDS Cadence_WR-TBL (rev26a).zip \| 436.7 MB EAG Eagle_WR-TBL-Pluggable-Connector (rev26a).lbr \| 4.8 MB CAD files ZIP 3D 691322310017_1 (rev1).pdf \| 439 KB IGS 691322310017 (rev1).igs \| 4.5 MB STP 691322310017 (rev1).stp \| 1.8 MB	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins17	PCB/Cable/PanelCable	ModularityNo	TypePCB Header	Design Kit –	–Check availability
691322310018	SPEC18, PCB Header, Cable	Availability –	Downloads6 files EDA models: Components ZIP ALT Altium_WR-TBL_Pluggable Connector (rev26a).IntLib \| 118.9 MB CDS Cadence_WR-TBL (rev26a).zip \| 436.7 MB EAG Eagle_WR-TBL-Pluggable-Connector (rev26a).lbr \| 4.8 MB CAD files ZIP 3D 691322310018_1 (rev1).pdf \| 462.1 KB IGS 691322310018 (rev1).igs \| 4.8 MB STP 691322310018 (rev1).stp \| 1.9 MB	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins18	PCB/Cable/PanelCable	ModularityNo	TypePCB Header	Design Kit –	–Check availability
691322310019	SPEC19, PCB Header, Cable	Availability –	Downloads6 files EDA models: Components ZIP ALT Altium_WR-TBL_Pluggable Connector (rev26a).IntLib \| 118.9 MB CDS Cadence_WR-TBL (rev26a).zip \| 436.7 MB EAG Eagle_WR-TBL-Pluggable-Connector (rev26a).lbr \| 4.8 MB CAD files ZIP 3D 691322310019_1 (rev1).pdf \| 484.9 KB IGS 691322310019 (rev1).igs \| 5 MB STP 691322310019 (rev1).stp \| 2 MB	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins19	PCB/Cable/PanelCable	ModularityNo	TypePCB Header	Design Kit –	–Check availability
691322310020	SPEC20, PCB Header, Cable	Availability –	Downloads6 files EDA models: Components ZIP ALT Altium_WR-TBL_Pluggable Connector (rev26a).IntLib \| 118.9 MB CDS Cadence_WR-TBL (rev26a).zip \| 436.7 MB EAG Eagle_WR-TBL-Pluggable-Connector (rev26a).lbr \| 4.8 MB CAD files ZIP 3D 691322310020_1 (rev1).pdf \| 507.4 KB IGS 691322310020 (rev1).igs \| 5.3 MB STP 691322310020 (rev1).stp \| 2.1 MB	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins20	PCB/Cable/PanelCable	ModularityNo	TypePCB Header	Design Kit –	–Check availability
691322310021	SPEC21, PCB Header, Cable	Availability –	Downloads6 files EDA models: Components ZIP ALT Altium_WR-TBL_Pluggable Connector (rev26a).IntLib \| 118.9 MB CDS Cadence_WR-TBL (rev26a).zip \| 436.7 MB EAG Eagle_WR-TBL-Pluggable-Connector (rev26a).lbr \| 4.8 MB CAD files ZIP 3D 691322310021_1 (rev1).pdf \| 530 KB IGS 691322310021 (rev1).igs \| 5.5 MB STP 691322310021 (rev1).stp \| 2.2 MB	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins21	PCB/Cable/PanelCable	ModularityNo	TypePCB Header	Design Kit –	–Check availability
691322310022	SPEC22, PCB Header, Cable	Availability –	Downloads6 files EDA models: Components ZIP ALT Altium_WR-TBL_Pluggable Connector (rev26a).IntLib \| 118.9 MB CDS Cadence_WR-TBL (rev26a).zip \| 436.7 MB EAG Eagle_WR-TBL-Pluggable-Connector (rev26a).lbr \| 4.8 MB CAD files ZIP 3D 691322310022_1 (rev1).pdf \| 557.5 KB IGS 691322310022 (rev1).igs \| 5.8 MB STP 691322310022 (rev1).stp \| 2.3 MB	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins22	PCB/Cable/PanelCable	ModularityNo	TypePCB Header	Design Kit –	–Check availability
691322310023	SPEC23, PCB Header, Cable	Availability –	Downloads6 files EDA models: Components ZIP ALT Altium_WR-TBL_Pluggable Connector (rev26a).IntLib \| 118.9 MB CDS Cadence_WR-TBL (rev26a).zip \| 436.7 MB EAG Eagle_WR-TBL-Pluggable-Connector (rev26a).lbr \| 4.8 MB CAD files ZIP 3D 691322310023_1 (rev1).pdf \| 579.7 KB IGS 691322310023 (rev1).igs \| 6 MB STP 691322310023 (rev1).stp \| 2.4 MB	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins23	PCB/Cable/PanelCable	ModularityNo	TypePCB Header	Design Kit –	–Check availability
691322310024	SPEC24, PCB Header, Cable	Availability –	Downloads6 files EDA models: Components ZIP ALT Altium_WR-TBL_Pluggable Connector (rev26a).IntLib \| 118.9 MB CDS Cadence_WR-TBL (rev26a).zip \| 436.7 MB EAG Eagle_WR-TBL-Pluggable-Connector (rev26a).lbr \| 4.8 MB CAD files ZIP 3D 691322310024_1 (rev1).pdf \| 607.4 KB IGS 691322310024 (rev1).igs \| 6.3 MB STP 691322310024 (rev1).stp \| 2.5 MB	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins24	PCB/Cable/PanelCable	ModularityNo	TypePCB Header	Design Kit –	–Check availability
