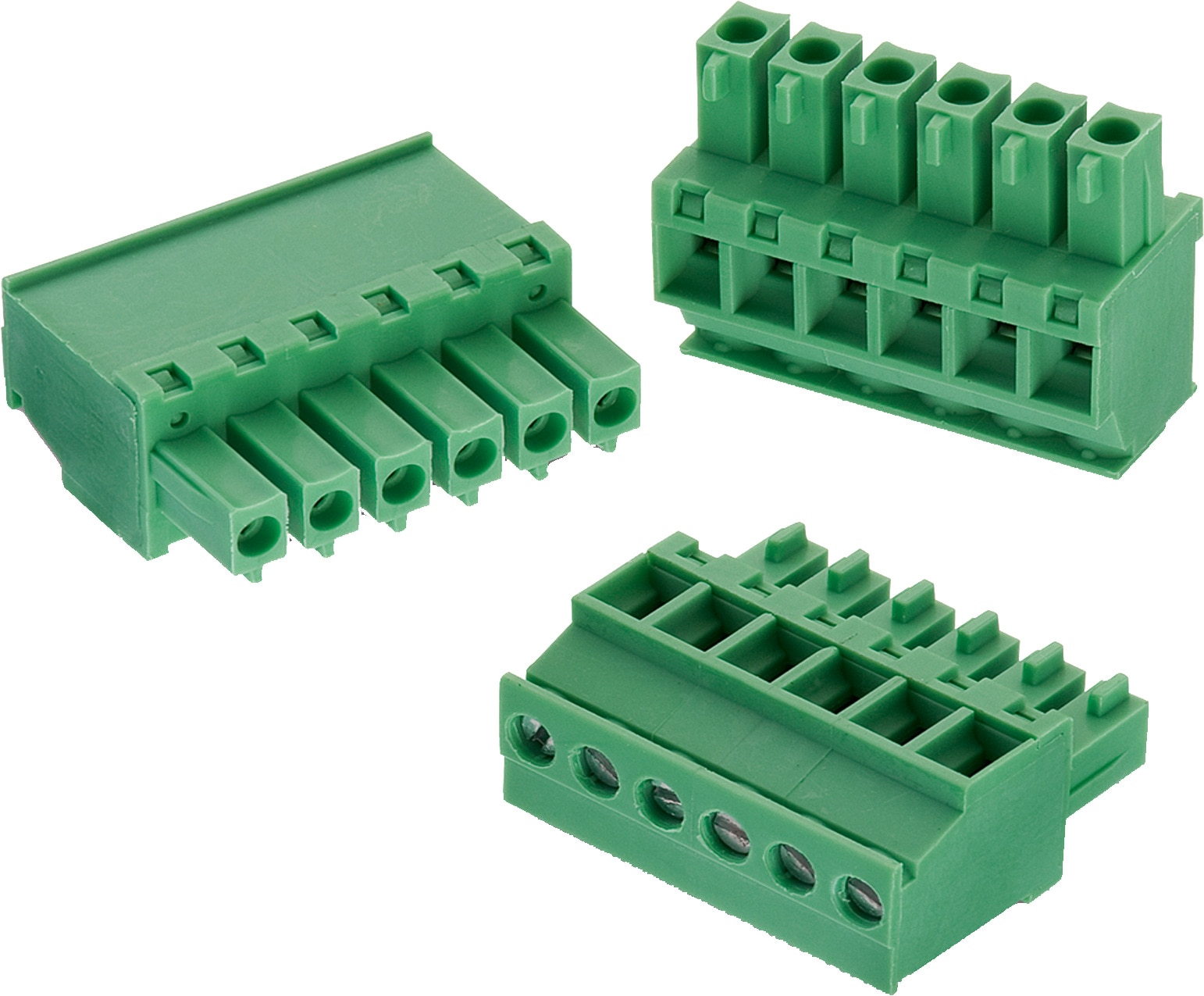

WR-TBL Series 3633 - 3.81 mm Horizontal with hook on Wire Side | Electromechanical Components

General Information
Operating Temperature	-40 °C up to +105 °C
Compliance	RoHS
Pitch	3.81 mm

Material Properties
Insulator Material	PA66
Insulator Flammability Rating	UL94 V-0
Contact Material	Brass
Terminal Screw Material	Steel
Terminal Screw Plating	Zinc
Wire Guard Material	Phosphor Bronze

Electrical Properties
I_R	8 A; 10.5 A
I_R[cULus]	8 A
I_R[VDE]	10.5 A
Working Voltage	300 V (AC)
Working Voltage [cULus]	300 V (AC)
Working Voltage [VDE]	300 V (AC)
Withstanding Voltage [cULus]	1600 V (AC)
Withstanding Voltage [VDE]	2500 V (AC)
R_C	20 mΩ
R_C	20 mΩ

Mechanical Properties
Screw	M2

Wire Properties
Solid Wire Section (AWG)	16 to 28 (AWG)
Solid Wire Section (Metric)	1.31 to 0.0810 (mm²)
Stranded Wire Section (AWG)	16 to 28 (AWG)
Stranded Wire Section (Metric)	1.31 to 0.0810 (mm²)

Certification
cULus Approval	E315414
VDE Approval	40023402

Application Notes

Products

Order Code	Datasheet	Downloads	Status	Pins (pcs)	Application	PCB/Cable/Panel	Modularity	Type	Wire Section	Design Kit
691363310002	SPEC	3 files CAD files ZIP 3D 691363310002_1 (rev1).pdf \| 220.2 KB IGS 691363310002 (rev1).igs \| 2.1 MB STP 691363310002 (rev1).stp \| 825.3 KB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	2	Pluggable	Cable	No	Horizontal	16 to 28 (AWG) 1.31 to 0.0810 (mm²)	–
691363310003	SPEC	3 files CAD files ZIP 3D 691363310003_1 (rev1).pdf \| 264.3 KB IGS 691363310003 (rev1).igs \| 2.7 MB STP 691363310003 (rev1).stp \| 1.1 MB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	3	Pluggable	Cable	No	Horizontal	16 to 28 (AWG) 1.31 to 0.0810 (mm²)	691002
691363310004	SPEC	3 files CAD files ZIP 3D 691363310004_1 (rev1).pdf \| 309.7 KB IGS 691363310004 (rev1).igs \| 3.4 MB STP 691363310004 (rev1).stp \| 1.3 MB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	4	Pluggable	Cable	No	Horizontal	16 to 28 (AWG) 1.31 to 0.0810 (mm²)	–
691363310005	SPEC	3 files CAD files ZIP 3D 691363310005_1 (rev1).pdf \| 353.6 KB IGS 691363310005 (rev1).igs \| 4 MB STP 691363310005 (rev1).stp \| 1.5 MB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	5	Pluggable	Cable	No	Horizontal	16 to 28 (AWG) 1.31 to 0.0810 (mm²)	–
691363310006	SPEC	3 files CAD files ZIP 3D 691363310006_1 (rev1).pdf \| 400.1 KB IGS 691363310006 (rev1).igs \| 4.6 MB STP 691363310006 (rev1).stp \| 1.8 MB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	6	Pluggable	Cable	No	Horizontal	16 to 28 (AWG) 1.31 to 0.0810 (mm²)	–
691363310007	SPEC	3 files CAD files ZIP 3D 3D_691363310007 (rev1).pdf \| 441.2 KB IGS Download_IGES_691363310007 (rev1).iges \| 5.2 MB STP Download_STP_691363310007 (rev1).stp \| 2 MB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	7	Pluggable	Cable	No	Horizontal	16 to 28 (AWG) 1.31 to 0.0810 (mm²)	–
691363310008	SPEC	3 files CAD files ZIP 3D 691363310008_1 (rev1).pdf \| 484.2 KB IGS 691363310008 (rev1).igs \| 5.9 MB STP 691363310008 (rev1).stp \| 2.3 MB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	8	Pluggable	Cable	No	Horizontal	16 to 28 (AWG) 1.31 to 0.0810 (mm²)	–
691363310012	SPEC	3 files CAD files ZIP 3D 3D_691363310012 (rev1).pdf \| 657.2 KB IGS Download_IGES_691363310012 (rev1).iges \| 8.3 MB STP Download_STP_691363310012 (rev1).stp \| 3.2 MB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	12	Pluggable	Cable	No	Horizontal	16 to 28 (AWG) 1.31 to 0.0810 (mm²)	–

Order Code	Datasheet
691363310002	SPEC
691363310003	SPEC
691363310004	SPEC
691363310005	SPEC
691363310006	SPEC
691363310007	SPEC
691363310008	SPEC
691363310012	SPEC

Samples

Order Code	Datasheet	Downloads	Status	Pins (pcs)	Application	PCB/Cable/Panel	Modularity	Type	Wire Section	Design Kit	Samples
