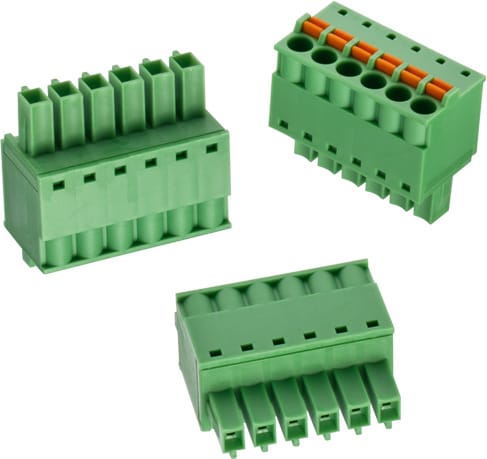

WR-TBL Series 368B - 3.81 mm Screwless Vertical | Electromechanical Components

General Information
Operating Temperature	-40 °C up to +115 °C
Compliance	RoHS
Pitch	3.81 mm

Material Properties
Insulator Material	PA66
Insulator Flammability Rating	UL94 V-0
Contact Material	Stainless Steel
Terminal Screw Material	Steel
Terminal Screw Plating	Zinc
Wire Guard Material	Phosphor Bronze

Electrical Properties
I_R	8 A
I_R[cULus]	8 A
Working Voltage	300 V (AC)
Working Voltage [cULus]	300 V (AC)
Withstanding Voltage [cULus]	2000 V (AC)
R_C	20 mΩ

Mechanical Properties
Screw	M2

Wire Properties
Solid Wire Section (AWG)	28 to 16 (AWG)
Solid Wire Section (Metric)	0.081 to 1.31 (mm²)
Stranded Wire Section (AWG)	28 to 16 (AWG)
Stranded Wire Section (Metric)	0.081 to 1.31 (mm²)

Certification
cULus Approval	E315414

Application Notes

Products

Filter article data

show article in 0 product lines

article in 0 product lines

Reset all

Order Code	Datasheet	Downloads	Status	Pins	PCB/Cable/Panel	Modularity	Type	Wire Section	SamplesAvailability & Sample
691368300002B	SPEC2, Pluggable, Cable	Availability –	Downloads3 files CAD files ZIP 3D 691368300002B_1 (rev1).pdf \| 180.9 KB IGS 691368300002B (rev1).iges \| 3 MB STP 691368300002B (rev1).stp \| 1.1 MB Download all 3 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins2	PCB/Cable/PanelCable	ModularityNo	TypeVertical	Wire Section 28 to 16 (AWG) 0.081 to 1.31 (mm²)	–Check availability
691368300003B	SPEC3, Pluggable, Cable	Availability –	Downloads3 files CAD files ZIP 3D 691368300003B (rev1).pdf \| 234.3 KB IGS 691368300003B (rev1).iges \| 3.9 MB STP 691368300003B (rev1).stp \| 1.5 MB Download all 3 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins3	PCB/Cable/PanelCable	ModularityNo	TypeVertical	Wire Section 28 to 16 (AWG) 0.081 to 1.31 (mm²)	–Check availability
691368300004B	SPEC4, Pluggable, Cable	Availability –	Downloads3 files CAD files ZIP 3D 691368300004B (rev1).pdf \| 287.1 KB IGS 691368300004B (rev1).iges \| 4.8 MB STP 691368300004B (rev1).stp \| 1.8 MB Download all 3 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins4	PCB/Cable/PanelCable	ModularityNo	TypeVertical	Wire Section 28 to 16 (AWG) 0.081 to 1.31 (mm²)	–Check availability
691368300005B	SPEC5, Pluggable, Cable	Availability –	Downloads3 files CAD files ZIP 3D 691368300005B (rev1).pdf \| 345.1 KB IGS 691368300005B (rev1).iges \| 5.7 MB STP 691368300005B (rev1).stp \| 2.2 MB Download all 3 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins5	PCB/Cable/PanelCable	ModularityNo	TypeVertical	Wire Section 28 to 16 (AWG) 0.081 to 1.31 (mm²)	–Check availability
691368300006B	SPEC6, Pluggable, Cable	Availability –	Downloads3 files CAD files ZIP 3D 691368300006B (rev1).pdf \| 407.4 KB IGS 691368300006B (rev1).iges \| 6.6 MB STP 691368300006B (rev1).stp \| 2.5 MB Download all 3 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins6	PCB/Cable/PanelCable	ModularityNo	TypeVertical	Wire Section 28 to 16 (AWG) 0.081 to 1.31 (mm²)	–Check availability
691368300007B	SPEC7, Pluggable, Cable	Availability –	Downloads3 files CAD files ZIP 3D 691368300007B (rev1).pdf \| 458.3 KB IGS 691368300007B (rev1).iges \| 7.5 MB STP 691368300007B (rev1).stp \| 2.9 MB Download all 3 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins7	PCB/Cable/PanelCable	ModularityNo	TypeVertical	Wire Section 28 to 16 (AWG) 0.081 to 1.31 (mm²)	–Check availability
691368300008B	SPEC8, Pluggable, Cable	Availability –	Downloads3 files CAD files ZIP 3D 691368300008B (rev1).pdf \| 507.2 KB IGS 691368300008B (rev1).iges \| 8.5 MB STP 691368300008B (rev1).stp \| 3.2 MB Download all 3 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins8	PCB/Cable/PanelCable	ModularityNo	TypeVertical	Wire Section 28 to 16 (AWG) 0.081 to 1.31 (mm²)	–Check availability
691368300009B	SPEC9, Pluggable, Cable	Availability –	Downloads3 files CAD files ZIP 3D 691368300009B (rev1).pdf \| 557.5 KB IGS 691368300009B (rev1).iges \| 9.4 MB STP 691368300009B (rev1).stp \| 3.6 MB Download all 3 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins9	PCB/Cable/PanelCable	ModularityNo	TypeVertical	Wire Section 28 to 16 (AWG) 0.081 to 1.31 (mm²)	–Check availability
691368300010B	SPEC10, Pluggable, Cable	Availability –	Downloads3 files CAD files ZIP 3D 691368300010B (rev1).pdf \| 610.9 KB IGS 691368300010B (rev1).iges \| 10.3 MB STP 691368300010B (rev1).stp \| 3.9 MB Download all 3 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins10	PCB/Cable/PanelCable	ModularityNo	TypeVertical	Wire Section 28 to 16 (AWG) 0.081 to 1.31 (mm²)	–Check availability
691368300011B	SPEC11, Pluggable, Cable	Availability –	Downloads3 files CAD files ZIP 3D 691368300011B (rev1).pdf \| 672.4 KB IGS 691368300011B (rev1).iges \| 11.2 MB STP 691368300011B (rev1).stp \| 4.3 MB Download all 3 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins11	PCB/Cable/PanelCable	ModularityNo	TypeVertical	Wire Section 28 to 16 (AWG) 0.081 to 1.31 (mm²)	–Check availability
691368300012B	SPEC12, Pluggable, Cable	Availability –	Downloads3 files CAD files ZIP 3D 691368300012B (rev1).pdf \| 725.2 KB IGS 691368300012B (rev1).iges \| 12.2 MB STP 691368300012B (rev1).stp \| 4.6 MB Download all 3 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins12	PCB/Cable/PanelCable	ModularityNo	TypeVertical	Wire Section 28 to 16 (AWG) 0.081 to 1.31 (mm²)	–Check availability
