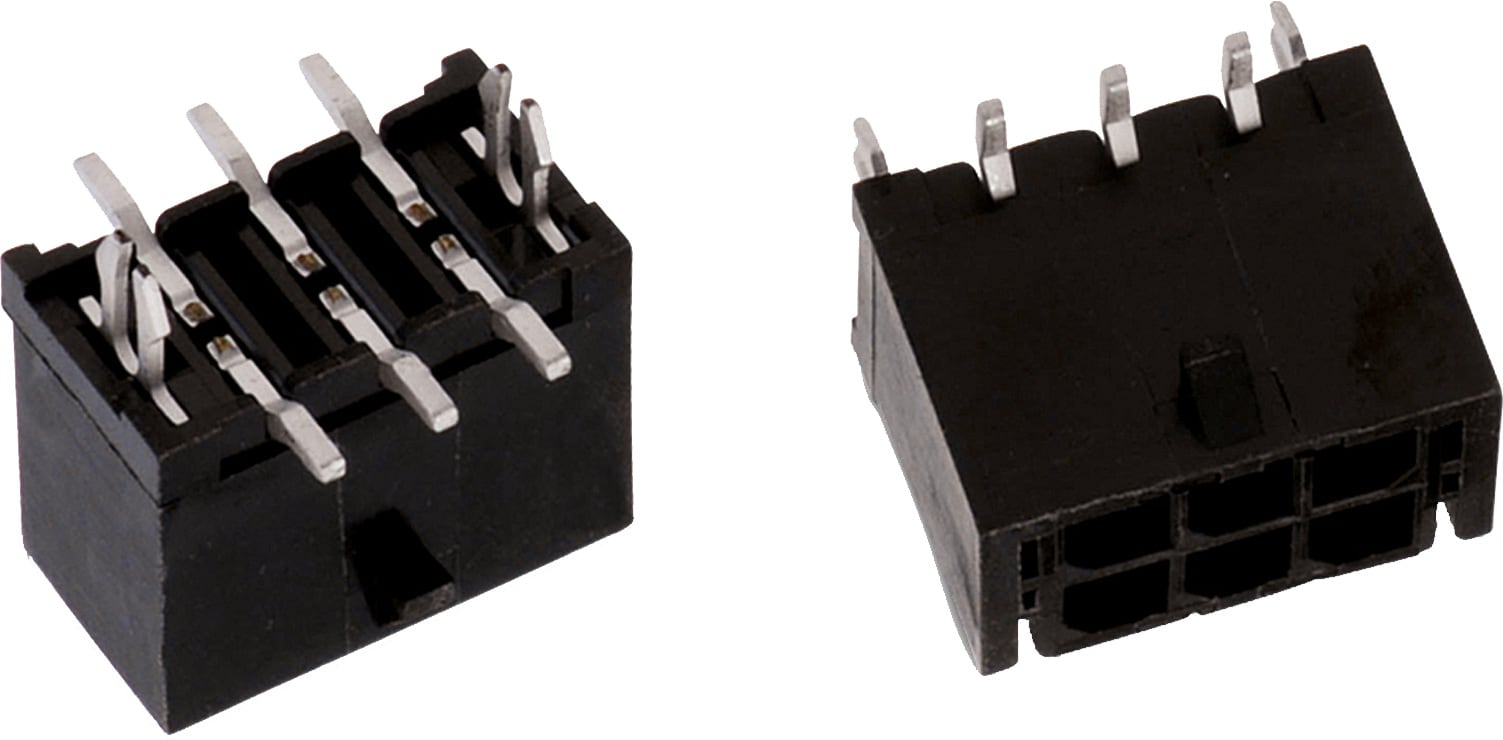

WR-MPC3 3.00 mm SMT Male Dual Row Vertical Header with THT Retention Clip

Kind Properties
Pitch3 mm
GenderMale
Material Properties
Insulator MaterialLCP
Insulator Flammability RatingUL94 V-0
ColorBlack
Contact MaterialCopper Alloy
Contact PlatingTin
Contact TypeStamped
General Information
Operating Temperature-40 up to +105 °C
ComplianceRoHS
Working Voltage250 V (AC)
Withstanding Voltage1500 V (AC)
Contact Resistance10 mΩ
RISO1000 MΩ
Certification
UL ApprovalE323964
Wire Properties
PackagingTube

Products

Order Code Data­sheet DownloadsPins
(mm)
Pitch
(mm)
GenderTypeRowsMountIR
(A)
Working Voltage
(V (AC))
PCB/Cable/PanelContact Resistance
(mΩ)
Tol. RL
(mm)
PackagingDesign Kit Samples
662002235922SPEC
6 files 2 3 Male Vertical Dual SMT 5 250 PCB 10 max. 6.7 Tube662001
662004235922SPEC
6 files 4 3 Male Vertical Dual SMT 5 250 PCB 10 max. 9.7 Tube662001
662006235922SPEC
6 files 6 3 Male Vertical Dual SMT 5 250 PCB 10 max. 12.7 Tube662001
662008235922SPEC
6 files 8 3 Male Vertical Dual SMT 5 250 PCB 10 max. 15.7 Tube612690
662001
662010235922SPEC
6 files 10 3 Male Vertical Dual SMT 5 250 PCB 10 max. 18.7 Tube662001
662012235922SPEC
6 files 12 3 Male Vertical Dual SMT 5 250 PCB 10 max. 21.7 Tube662001
662014235922SPEC
6 files 14 3 Male Vertical Dual SMT 5 250 PCB 10 max. 24.7 Tube662001
662016235922SPEC
6 files 16 3 Male Vertical Dual SMT 5 250 PCB 10 max. 27.7 Tube662001
662018235922SPEC
6 files 18 3 Male Vertical Dual SMT 5 250 PCB 10 max. 30.7 Tube662001
662020235922SPEC
6 files 20 3 Male Vertical Dual SMT 5 250 PCB 10 max. 33.7 Tube662001
662022235922SPEC
6 files 22 3 Male Vertical Dual SMT 5 250 PCB 10 max. 36.7 Tube662001
662024235922SPEC
6 files 24 3 Male Vertical Dual SMT 5 250 PCB 10 max. 39.7 Tube662001
Order Code Data­sheet
662002235922SPEC
662004235922SPEC
662006235922SPEC
662008235922SPEC
662010235922SPEC
662012235922SPEC
662014235922SPEC
662016235922SPEC
662018235922SPEC
662020235922SPEC
662022235922SPEC
662024235922SPEC
Samples
Order Code Data­sheet DownloadsPins
(mm)
Pitch
(mm)
GenderTypeRowsMountIR
(A)
Working Voltage
(V (AC))
PCB/Cable/PanelContact Resistance
(mΩ)
Tol. RL
(mm)
PackagingDesign Kit Samples
