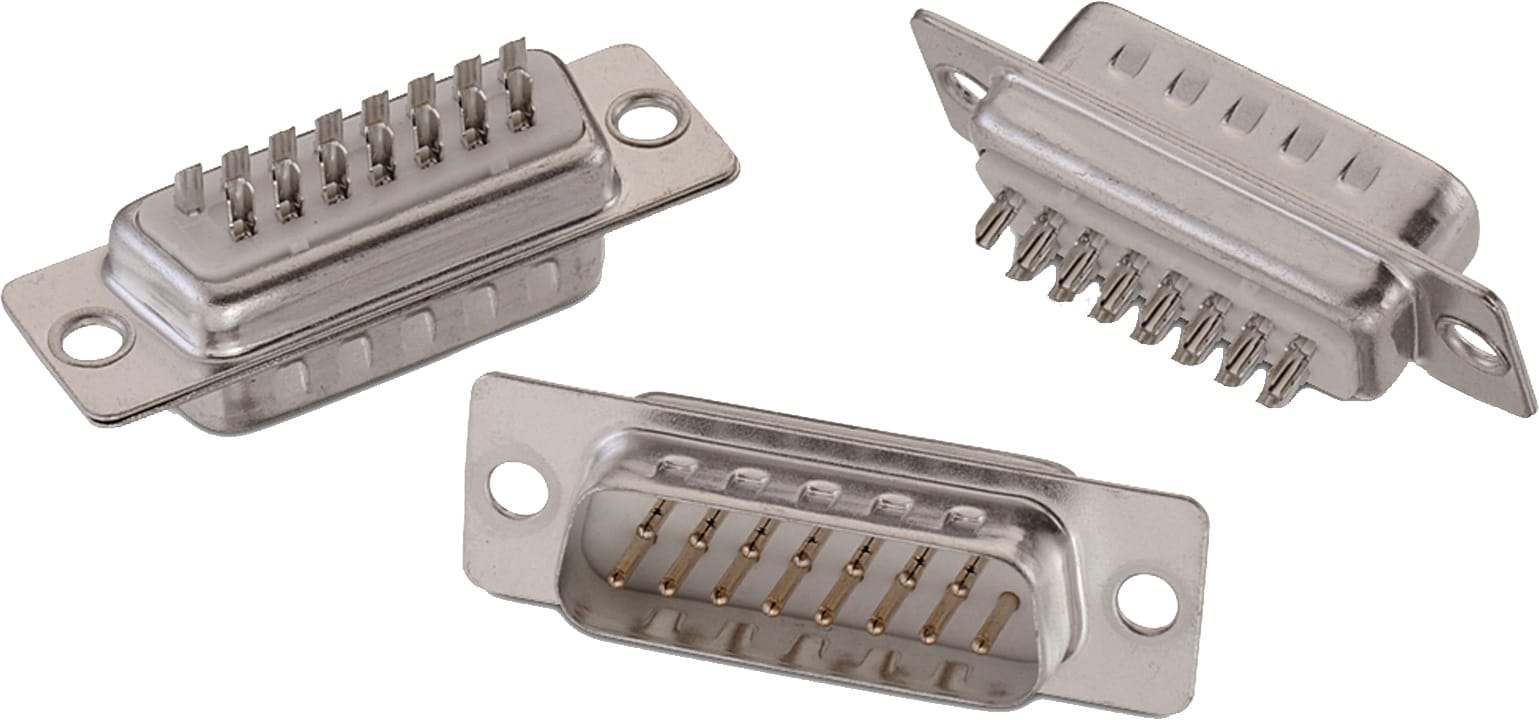

WR-DSUB Male Solder Bucket

General Information
Operating Temperature	-55 °C up to +105 °C
Quality Class	3 as per IEC 60 603-13
Gender	Male
Type	Solder bucket
Insulator Material	PBT
Insulator Flammability Rating	UL94 V-0
Insulator Color	White
Contact Material	Copper Alloy
Contact Plating	Selective Gold
Contact Type	Stamped
Shielding Material	Steel
Shielding Plating	Tin

Order Code	Datasheet	Downloads	Status	Pins (pcs)	Gender	Type	Operating Temperature	Working Voltage (V (AC))	Design Kit
61800924823	SPEC	3 files CAD files ZIP 3D 3D_61800924823 (rev1).pdf \| 354.5 KB IGS IGES_61800924823 (rev1).iges \| 2.6 MB STP STP_61800924823 (rev1).stp \| 503.5 KB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	9	Male	Solder bucket	-55 °C up to +105 °C	125	612690 614001
61801524823	SPEC	3 files CAD files ZIP 3D 3D_61801524823 (rev1).pdf \| 419.4 KB IGS IGES_61801524823 (rev1).iges \| 3.3 MB STP STP_61801524823 (rev1).stp \| 703.5 KB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	15	Male	Solder bucket	-55 °C up to +105 °C	125	–
61802524823	SPEC	3 files CAD files ZIP 3D 3D_61802524823 (rev1).pdf \| 517.9 KB IGS IGES_61802524823 (rev1).iges \| 4.3 MB STP STP_61802524823 (rev1).stp \| 979.2 KB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	25	Male	Solder bucket	-55 °C up to +105 °C	125	–
61803724823	SPEC	3 files CAD files ZIP 3D 3D_61803724823 (rev1).pdf \| 677.4 KB IGS IGES_61803724823 (rev1).iges \| 5.6 MB STP STP_61803724823 (rev1).stp \| 1.3 MB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	37	Male	Solder bucket	-55 °C up to +105 °C	125	–
