WL-SISW SMT Infrared Sideview LED Waterclear

Bauform	Maße	L (mm)	W (mm)	H (mm)	Montageart

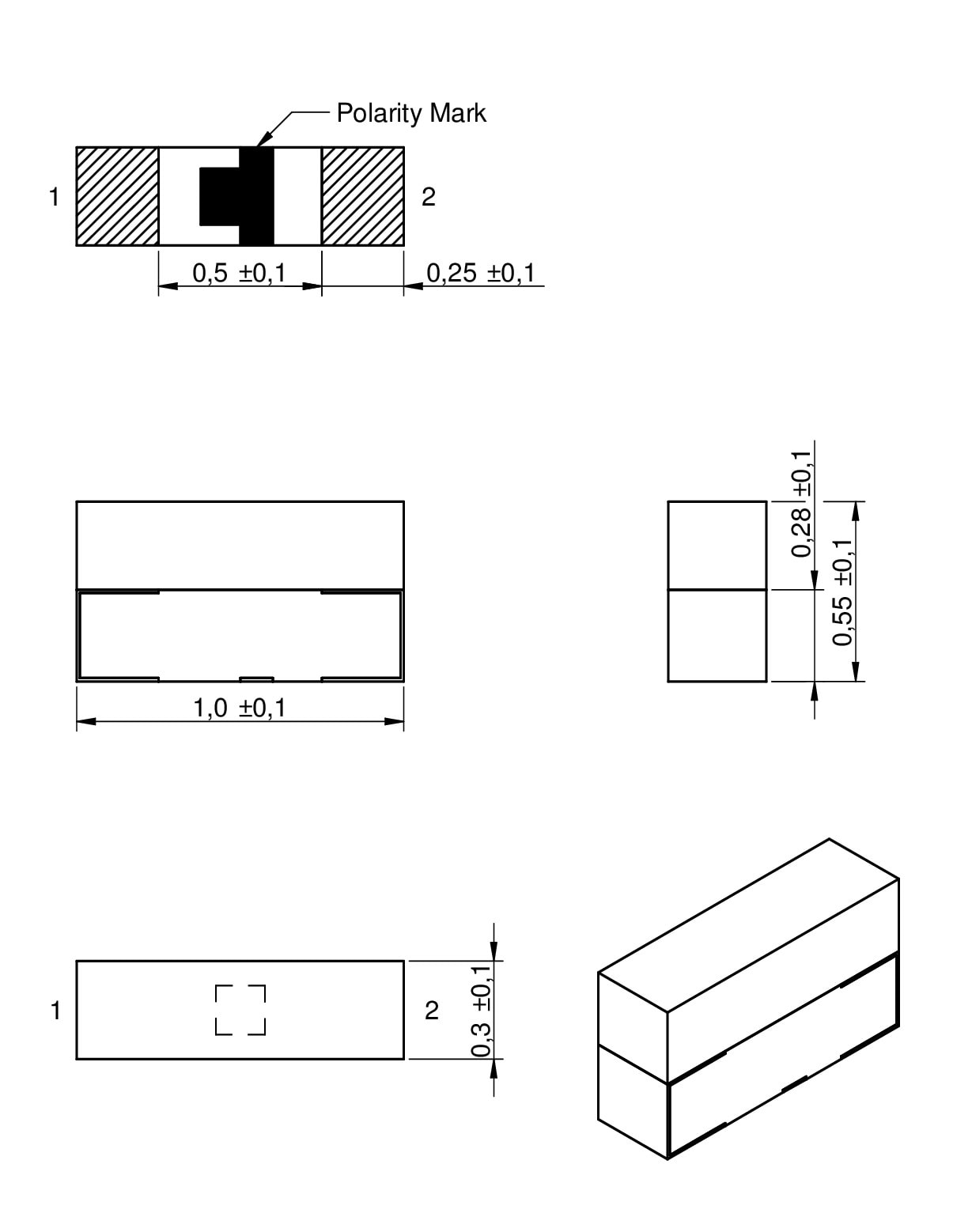

0402		1	0.3	0.55	SMT

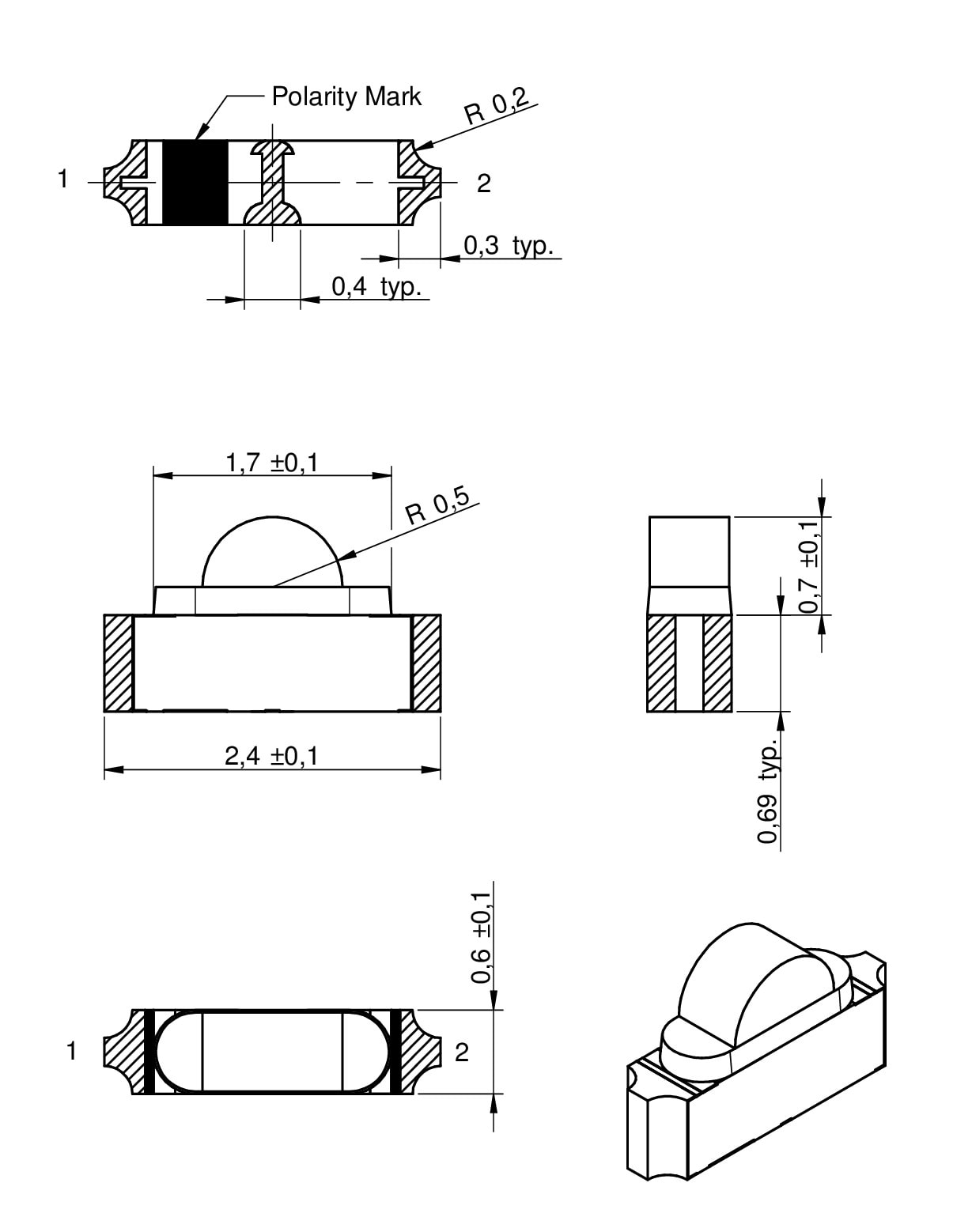

1002		2.4	0.6	1.39	SMT

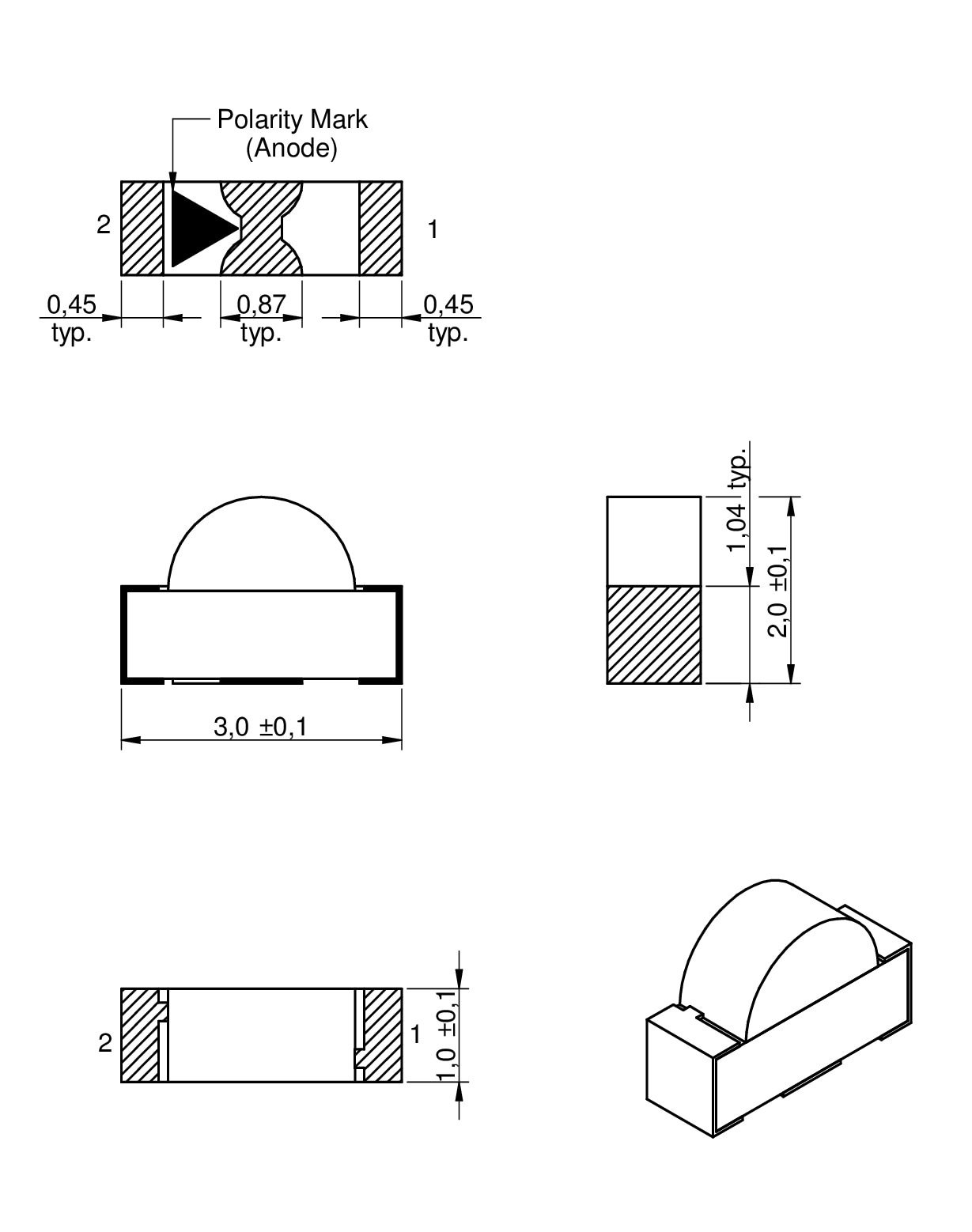

1104		3	2	1	SMT

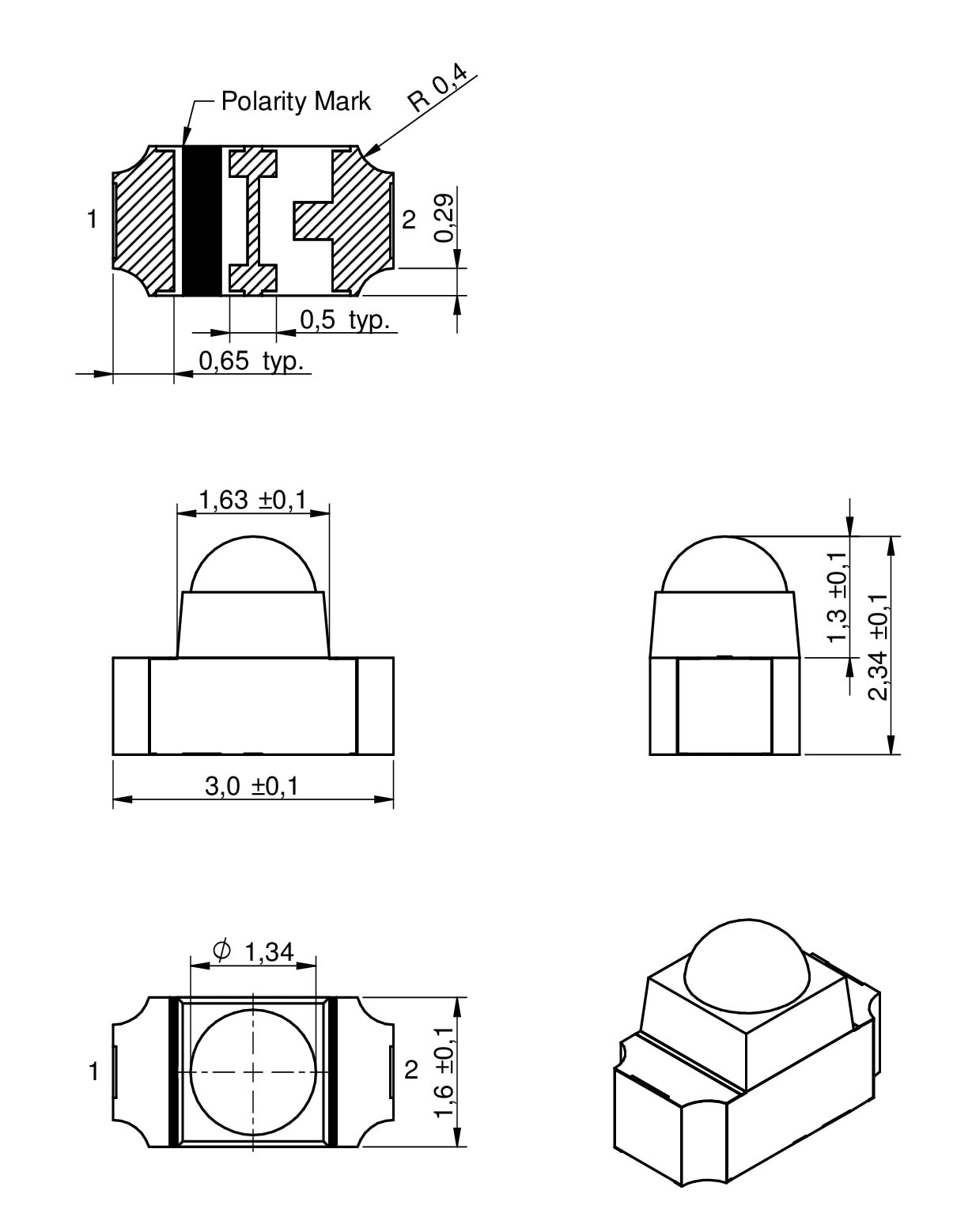

1106		3	1.6	2.34	SMT

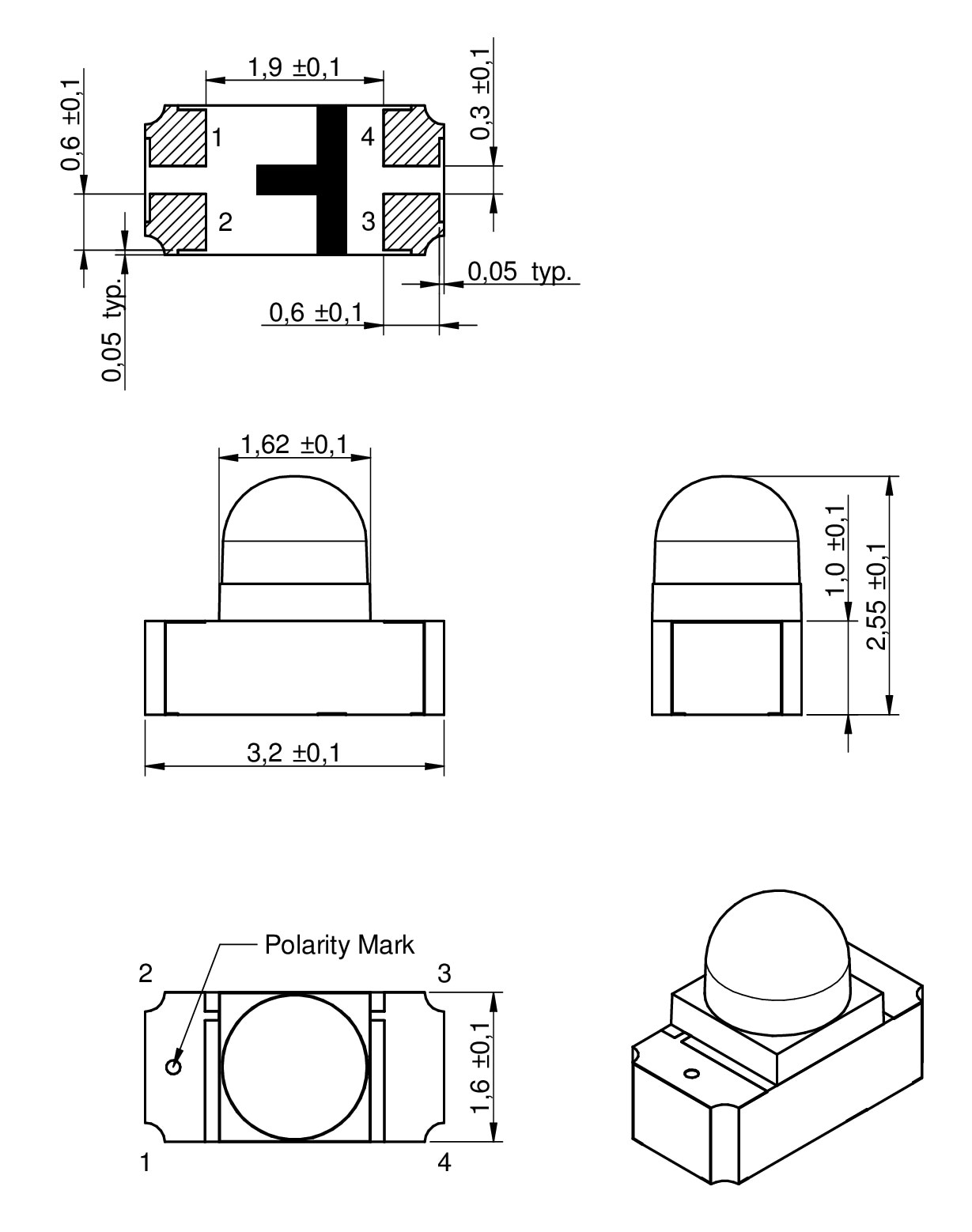

1206		3.2	1.6	2.55	SMT

LTSpice-Dateien

LT
LTSpice_WL-SISW (rev22a).zip
|
2 KB

Merkmale

Geringer Energieverbrauch
Hohe Zuverlässigkeit
Geringer Strombedarf
Schnelle Schaltzeiten
Infrarot Emitter
Standardgröße 1104
Kompakte Bauform

Anwendung

Infrarotsensor
Distanzmessung
Fernbedienung
IR Lichtschranke

Artikeldaten

Alle

0402

1002

1104

1106

1206

	Artikel Nr.	Datenblatt	Simulation	Downloads	Chiptechnologie	λ_{Centroid max.}	I_{e min.} (mW/sr)	I_{e typ.} (mW/sr)	V_{F typ.} (V)	V_{F max.} (V)	2θ_{50% typ.} (°)	Farbe	λ_{Peak typ.} (nm)	H (mm)	Design Kit	Muster
	15411485AA370	SPEC		6 Dateien EDA-Modelle: Bauteile ZIP ALT Altium_WL-SISW (rev22c).IntLib \| 187.5 KB CDS Cadence_WL-SISW (rev21a).zip \| 849.8 KB EAG Eagle_WL-SISW (rev20b).lbr \| 47.7 KB CAD-Dateien ZIP IGS Download_IGS-WL-SISW-15411485AA370 (rev1).igs \| 271.2 KB STP Download_STP_WL-SISW-15411485AA370 (rev1).stp \| 65.5 KB Elektrische Modelle ZIP PSP PSpice_WL-SISW (rev22a).zip \| 4.4 KB Alle 6 Dateien als ZIP herunterladen ZIP	AlGaAs	–	1	2	1.4	2	130	Infrarot	850	1	154150
	15411494AA570	SPEC		6 Dateien EDA-Modelle: Bauteile ZIP ALT Altium_WL-SISW (rev22c).IntLib \| 187.5 KB CDS Cadence_WL-SISW (rev21a).zip \| 849.8 KB EAG Eagle_WL-SISW (rev20b).lbr \| 47.7 KB CAD-Dateien ZIP IGS Download_IGS_WL-SISW-15411494AA570 (rev1).igs \| 271.2 KB STP Download_STP_WL-SISW-15411494AA570 (rev1).stp \| 65.5 KB Elektrische Modelle ZIP PSP PSpice_WL-SISW (rev22a).zip \| 4.4 KB Alle 6 Dateien als ZIP herunterladen ZIP	AlGaAs	940.0	0.5	1	1.2	1.7	150	Infrarot	940	1	154150
	15410285AA170	SPEC		25 Dateien EDA-Modelle: Bauteile ZIP ALT Altium_WL-SISW (rev22c).IntLib \| 187.5 KB CDS Cadence_WL-SISW (rev21a).zip \| 849.8 KB EAG Eagle_WL-SISW (rev20b).lbr \| 47.7 KB CAD-Dateien ZIP IGS Download_IGS_WL-SISW_1002 (rev1).igs \| 1.1 MB STP Download_STP_WL-SISW_1002 (rev1).stp \| 275.3 KB Elektrische Modelle ZIP PSP PSpice_WL-SISW (rev22a).zip \| 4.4 KB Strahldaten RIR Photopia_rir_15410285AA170_5M (rev1p0).zip \| 119.5 MB SRC Lucaray-maker_src_15410285AA170_5M (rev1p0).zip \| 119.5 MB ASA ASAP-and-APEX_dis_15410285AA170_5M (rev1p0).zip \| 119.5 MB COD CodeV_ray_15410285AA170_5M (rev1p0).zip \| 119.5 MB FRE Fred_dat_15410285AA170_5M (rev1p0).zip \| 119.5 MB FRE Fred_txt_15410285AA170_5M (rev1p0).zip \| 186.7 MB LIG LightTools_ray_15410285AA170_5M (rev1p0).zip \| 119.5 MB LIG LightTools_txt_15410285AA170_5M (rev1p0).zip \| 186.7 MB LUC LucidShape_ray_15410285AA170_5M (rev1p0).zip \| 119.5 MB LUC LucidShape_txt_15410285AA170_5M (rev1p0).zip \| 186.6 MB OPT optalix_DIS_15410285AA170_5M (rev1p0).zip \| 119.5 MB OPT OpTaliX_txt_15410285AA170_5M (rev1p0).zip \| 186.6 MB OPT OptiCAD_dat_15410285AA170_5M (rev1p0).zip \| 119.5 MB OPT OptiCAD_txt_15410285AA170_5M (rev1p0).zip \| 186.6 MB SIM Simulux_ray_15410285AA170_5M (rev1p0).zip \| 119.5 MB SPE Speos_ray_15410285AA170_5M (rev1p0).zip \| 123.7 MB TRA TracePro_txt_15410285AA170_5M (rev1p0).zip \| 186.7 MB ZEM Zemax_dat_15410285AA170_5M (rev1p0).zip \| 186.6 MB ZEM ZemaxBin_dat_15410285AA170_5M (rev1p0).zip \| 119.5 MB	AlGaAs	–	2	5	1.4	1.8	110	Infrarot	850	1.39	–
	15410294AA570	SPEC		6 Dateien EDA-Modelle: Bauteile ZIP ALT Altium_WL-SISW (rev22c).IntLib \| 187.5 KB CDS Cadence_WL-SISW (rev21a).zip \| 849.8 KB EAG Eagle_WL-SISW (rev20b).lbr \| 47.7 KB CAD-Dateien ZIP IGS Download_IGS_WL-SISW_1002 (rev1).igs \| 1.1 MB STP Download_STP_WL-SISW_1002 (rev1).stp \| 275.3 KB Elektrische Modelle ZIP PSP PSpice_WL-SISW (rev22a).zip \| 4.4 KB Alle 6 Dateien als ZIP herunterladen ZIP	AlGaAs	940.0	1	1.5	1.2	1.8	150	Infrarot	940	1.39	–
	15411094A6070	SPEC		6 Dateien EDA-Modelle: Bauteile ZIP ALT Altium_WL-SISW (rev22c).IntLib \| 187.5 KB CDS Cadence_WL-SISW (rev21a).zip \| 849.8 KB EAG Eagle_WL-SISW (rev20b).lbr \| 47.7 KB CAD-Dateien ZIP IGS Download_IGS_WL-SISW_1106 (rev1).igs \| 989 KB STP Download_STP_WL-SISW_1106 (rev1).stp \| 251.7 KB Elektrische Modelle ZIP PSP PSpice_WL-SISW (rev22a).zip \| 4.4 KB Alle 6 Dateien als ZIP herunterladen ZIP	AlGaAs	–	4	6	1.2	1.8	60	Infrarot	940	2.34	–
	15411085A4570	SPEC		25 Dateien EDA-Modelle: Bauteile ZIP ALT Altium_WL-SISW (rev22c).IntLib \| 187.5 KB CDS Cadence_WL-SISW (rev21a).zip \| 849.8 KB EAG Eagle_WL-SISW (rev20b).lbr \| 47.7 KB CAD-Dateien ZIP IGS Download_IGS_WL-SISW_1106 (rev1).igs \| 989 KB STP Download_STP_WL-SISW_1106 (rev1).stp \| 251.7 KB Elektrische Modelle ZIP PSP PSpice_WL-SISW (rev22a).zip \| 4.4 KB Strahldaten RIR Photopia_rir_15411085A4570_5M (rev1p1).zip \| 119.6 MB SRC Lucaray-maker_src_15411085A4570_5M (rev1p1).zip \| 119.6 MB ASA ASAP-and-APEX_dis_15411085A4570_5M (rev1p1).zip \| 119.6 MB COD CodeV_ray_15411085A4570_5M (rev1p1).zip \| 119.6 MB FRE Fred_dat_15411085A4570_5M (rev1p1).zip \| 119.6 MB FRE Fred_txt_15411085A4570_5M (rev1p1).zip \| 187.3 MB LIG LightTools_ray_15411085A4570_5M (rev1p1).zip \| 119.6 MB LIG LightTools_txt_15411085A4570_5M (rev1).zip \| 187.7 MB LUC LucidShape_ray_15411085A4570_5M (rev1p1).zip \| 119.6 MB LUC LucidShape_txt_15411085A4570_5M (rev1p1).zip \| 187.2 MB OPT OpTaliX_dis_15411085A4570_5M (rev1p1).zip \| 119.6 MB OPT OpTaliX_txt_15411085A4570_5M (rev1p1).zip \| 187.2 MB OPT OptiCAD_dat_15411085A4570_5M (rev1p1).zip \| 119.6 MB OPT OptiCAD_txt_15411085A4570_5M (rev1p1).zip \| 187.2 MB SIM Simulux_ray_15411085A4570_5M (rev1p1).zip \| 119.6 MB SPE Speos_ray_15411085A4570_5M (rev1p1).zip \| 123.3 MB TRA TracePro_txt_15411085A4570_5M (rev1p1).zip \| 187.2 MB ZEM Zemax_dat_15411085A4570_5M (rev1p1).zip \| 187.2 MB ZEM ZemaxBin_dat_15411085A4570_5M (rev1p1).zip \| 119.6 MB	AlGaAs	845.0	6	11	1.4	1.8	45	Infrarot	850	2.34	–
	15404085BA470	SPEC		25 Dateien EDA-Modelle: Bauteile ZIP ALT Altium_WL-SISW (rev22c).IntLib \| 187.5 KB CDS Cadence_WL-SISW (rev21a).zip \| 849.8 KB EAG Eagle_WL-SISW (rev20b).lbr \| 47.7 KB CAD-Dateien ZIP IGS Download_IGS_WL-SISW_0402 (rev1).igs \| 331.8 KB STP Download_STP_WL-SISW_0402 (rev1).stp \| 112.6 KB Elektrische Modelle ZIP PSP PSpice_WL-SISW (rev22a).zip \| 4.4 KB Strahldaten RIR Photopia_rir_15404085BA470_5M (rev1p0).zip \| 120.9 MB SRC Lucaray-maker_src_15404085BA470_5M (rev1p0).zip \| 120.9 MB ASA ASAP-and-APEX_dis_15404085BA470_5M (rev1p0).zip \| 120.9 MB COD CodeV_ray_15404085BA470_5M (rev1p0).zip \| 120.9 MB FRE Fred_dat_15404085BA470_5M (rev1p0).zip \| 120.9 MB FRE Fred_txt_15404085BA470_5M (rev1p0).zip \| 188.8 MB LIG LightTools_ray_15404085BA470_5M (rev1p0).zip \| 120.9 MB LIG LightTools_txt_15404085BA470_5M (rev1p0).zip \| 188.8 MB LUC LucidShape_ray_15404085BA470_5M (rev1p0).zip \| 120.9 MB LUC LucidShape_txt_15404085BA470_5M (rev1p0).zip \| 188.8 MB OPT optalix_DIS_15404085BA470_5M (rev1p0).zip \| 120.9 MB OPT OpTaliX_txt_15404085BA470_5M (rev1p0).zip \| 188.8 MB OPT OptiCAD_dat_15404085BA470_5M (rev1p0).zip \| 120.9 MB OPT OptiCAD_txt_15404085BA470_5M (rev1p0).zip \| 188.8 MB SIM Simulux_ray_15404085BA470_5M (rev1p0).zip \| 120.9 MB SPE Speos_ray_15404085BA470_5M (rev1p0).zip \| 125.1 MB TRA TracePro_txt_15404085BA470_5M (rev1p0).zip \| 188.8 MB ZEM Zemax_dat_15404085BA470_5M (rev1p0).zip \| 188.8 MB ZEM ZemaxBin_dat_15404085BA470_5M (rev1p0).zip \| 120.9 MB	AlGaAs	845.0	0.1	1.5	1.6	2	140	Infrarot	850	0.55	–
	15404094BA470	SPEC		6 Dateien EDA-Modelle: Bauteile ZIP ALT Altium_WL-SISW (rev22c).IntLib \| 187.5 KB CDS Cadence_WL-SISW (rev21a).zip \| 849.8 KB EAG Eagle_WL-SISW (rev20b).lbr \| 47.7 KB CAD-Dateien ZIP IGS Download_IGS_WL-SISW_0402 (rev1).igs \| 331.8 KB STP Download_STP_WL-SISW_0402 (rev1).stp \| 112.6 KB Elektrische Modelle ZIP PSP PSpice_WL-SISW (rev22a).zip \| 4.4 KB Alle 6 Dateien als ZIP herunterladen ZIP	AlGaAs	940.0	0.1	1	1.4	2	140	Infrarot	940	0.55	–
	15412085A2070	SPEC		6 Dateien EDA-Modelle: Bauteile ZIP ALT Altium_WL-SISW (rev22c).IntLib \| 187.5 KB CDS Cadence_WL-SISW (rev21a).zip \| 849.8 KB EAG Eagle_WL-SISW (rev20b).lbr \| 47.7 KB CAD-Dateien ZIP IGS Download_IGS_WL-SISW_1206 (rev1).igs \| 969.7 KB STP Download_STP_WL-SISW_1206 (rev1).stp \| 245.1 KB Elektrische Modelle ZIP PSP PSpice_WL-SISW (rev22a).zip \| 4.4 KB Alle 6 Dateien als ZIP herunterladen ZIP	AlGaAs	845.0	7	12	1.4	2	20	Infrarot	850	2.55	–
	15412094A2070	SPEC		25 Dateien EDA-Modelle: Bauteile ZIP ALT Altium_WL-SISW (rev22c).IntLib \| 187.5 KB CDS Cadence_WL-SISW (rev21a).zip \| 849.8 KB EAG Eagle_WL-SISW (rev20b).lbr \| 47.7 KB CAD-Dateien ZIP IGS Download_IGS_WL-SISW_1206 (rev1).igs \| 969.7 KB STP Download_STP_WL-SISW_1206 (rev1).stp \| 245.1 KB Elektrische Modelle ZIP PSP PSpice_WL-SISW (rev22a).zip \| 4.4 KB Strahldaten RIR Photopia_rir_15412094A2070_5M (rev1p0).zip \| 120 MB SRC Lucaray-maker_src_15412094A2070_5M (rev1p0).zip \| 120 MB ASA ASAP-and-APEX_dis_15412094A2070_5M (rev1p0).zip \| 120 MB COD CodeV_ray_15412094A2070_5M (rev1p0).zip \| 120 MB FRE Fred_dat_15412094A2070_5M (rev1p0).zip \| 120 MB FRE Fred_txt_15412094A2070_5M (rev1p0).zip \| 186.4 MB LIG LightTools_ray_15412094A2070_5M (rev1p0).zip \| 120 MB LIG LightTools_txt_15412094A2070_5M (rev1p0).zip \| 186.4 MB LUC LucidShape_ray_15412094A2070_5M (rev1p0).zip \| 120 MB LUC LucidShape_txt_15412094A2070_5M (rev1p0).zip \| 186.4 MB OPT optalix_DIS_15412094A2070_5M (rev1p0).zip \| 120 MB OPT OpTaliX_txt_15412094A2070_5M (rev1p0).zip \| 186.4 MB OPT OptiCAD_dat_15412094A2070_5M (rev1p0).zip \| 120 MB OPT OptiCAD_txt_15412094A2070_5M (rev1p0).zip \| 186.4 MB SIM Simulux_ray_15412094A2070_5M (rev1p0).zip \| 120 MB SPE Speos_ray_15412094A2070_5M (rev1p0).zip \| 123.4 MB TRA TracePro_txt_15412094A2070_5M (rev1p0).zip \| 186.4 MB ZEM Zemax_dat_15412094A2070_5M (rev1p0).zip \| 186.4 MB ZEM ZemaxBin_dat_15412094A2070_5M (rev1p0).zip \| 120 MB	AlGaAs	940.0	3	6	1.2	2	20	Infrarot	940	2.55	–

	Artikel Nr.	Datenblatt	Simulation
	15411485AA370	SPEC
	15411494AA570	SPEC
	15410285AA170	SPEC
	15410294AA570	SPEC
	15411094A6070	SPEC
	15411085A4570	SPEC
	15404085BA470	SPEC
	15404094BA470	SPEC
	15412085A2070	SPEC
	15412094A2070	SPEC

Muster

	Artikel Nr.	Datenblatt	Simulation	Downloads	Chiptechnologie	λ_{Centroid max.}	I_{e min.} (mW/sr)	I_{e typ.} (mW/sr)	V_{F typ.} (V)	V_{F max.} (V)	2θ_{50% typ.} (°)	Farbe	λ_{Peak typ.} (nm)	H (mm)	Design Kit	Muster

Passend zu

WL-SDSB SMT Photodiode Sideview Black

WL-STSW SMT Phototransistor Sideview Waterclear

Sortimente

Artikel dieser Produktserie finden Sie in den folgenden Sortimenten:

Design Kit Infrarot LEDs & Phototransistoren
