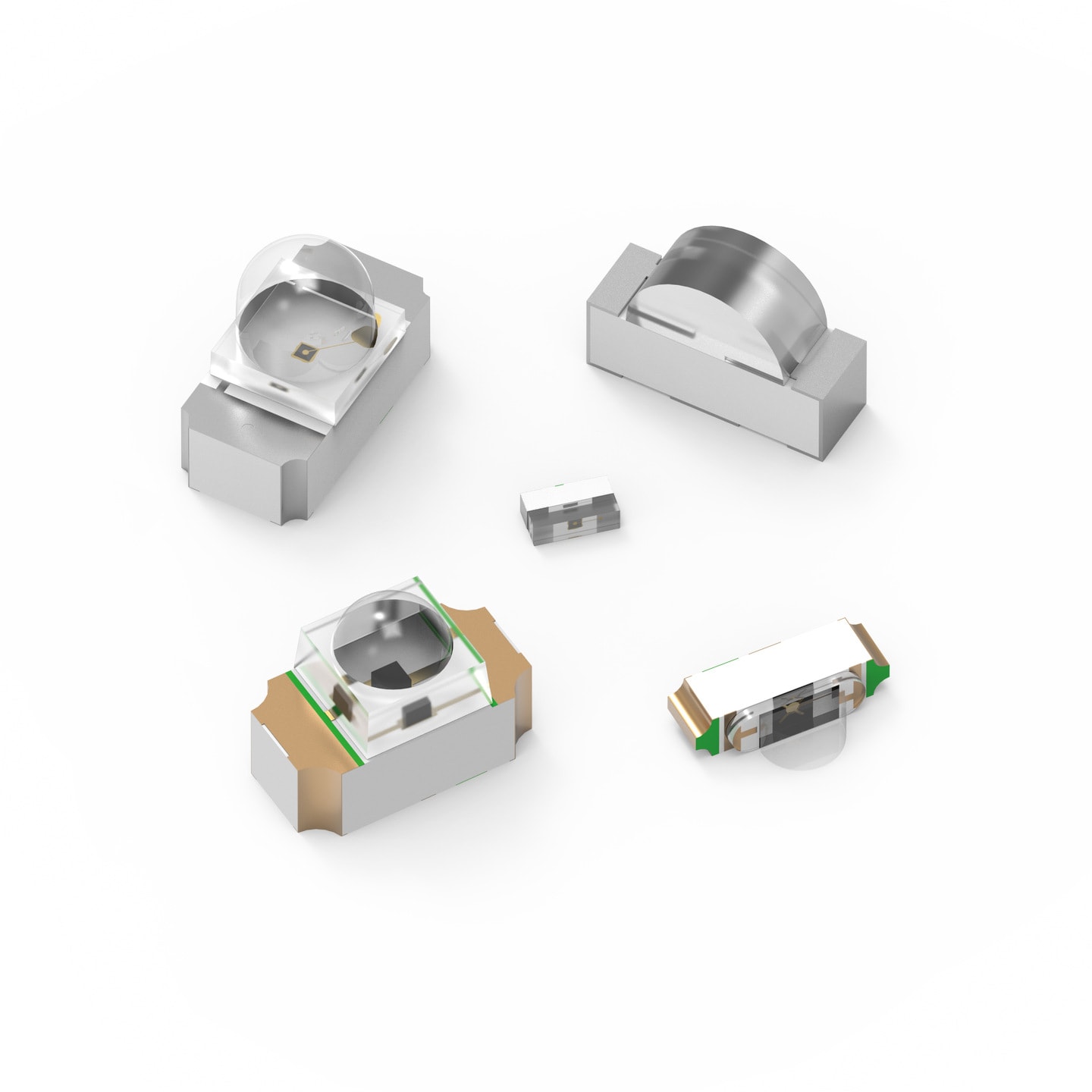

WL-SISW SMT Infrared Sideview LED Waterclear

Size	Dimensions	L (mm)	W (mm)	H (mm)	Mount
0402		1	0.3	0.55	SMT
1002		2.4	0.6	1.39	SMT
1104		3	2	1	SMT
1106		3	1.6	2.34	SMT
1206		3.2	1.6	2.55	SMT

LTSpice files

LT
LTSpice_WL-SISW (rev22a).zip
|
2 KB

Characteristics

Low energy consumption
High reliability
Low current requirement
Fast switching
IR Emitter - Side view
standard size 1104
Compact package outline

Applications

Infrared sensor
Distance measure
Remote control
IR Lightbarrier

Products

All

0402

1002

1104

1106

1206

	Order Code	Datasheet	Simulation	Downloads	Status	λ_{Peak typ.} (nm)	λ_{Centroid max.}	I_{e typ.} (mW/sr)	V_{F typ.} (V)	2θ_{50% typ.} (°)	Chip Technology	Design Kit	Samples
	15411485AA370	SPEC		7 files EDA models: Components ZIP ALT Altium_WL-SISW (rev22c).IntLib \| 187.5 KB CDS Cadence_WL-SISW (rev21a).zip \| 849.8 KB EAG Eagle_WL-SISW (rev20b).lbr \| 47.7 KB CAD files ZIP IGS Download_IGS-WL-SISW-15411485AA370 (rev1).igs \| 271.2 KB STP Download_STP_WL-SISW-15411485AA370 (rev1).stp \| 65.5 KB Electric models ZIP PSP PSpice_WL-SISW (rev22a).zip \| 4.4 KB Certificates ZIP CER IR_LED_certificate_WL-SISW-1104 (rev1).pdf \| 1.2 MB Download all 7 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	850	845.0	2	1.4	130	AlGaAs	154150
	15410285AA170	SPEC		25 files EDA models: Components ZIP ALT Altium_WL-SISW (rev22c).IntLib \| 187.5 KB CDS Cadence_WL-SISW (rev21a).zip \| 849.8 KB EAG Eagle_WL-SISW (rev20b).lbr \| 47.7 KB CAD files ZIP IGS Download_IGS_WL-SISW_1002 (rev1).igs \| 1.1 MB STP Download_STP_WL-SISW_1002 (rev1).stp \| 275.3 KB Electric models ZIP PSP PSpice_WL-SISW (rev22a).zip \| 4.4 KB RAY files ASA ASAP-and-APEX_dis_15410285AA170_5M (rev1p0).zip \| 119.5 MB COD CodeV_ray_15410285AA170_5M (rev1p0).zip \| 119.5 MB FRE Fred_dat_15410285AA170_5M (rev1p0).zip \| 119.5 MB FRE Fred_txt_15410285AA170_5M (rev1p0).zip \| 186.7 MB LIG LightTools_ray_15410285AA170_5M (rev1p0).zip \| 119.5 MB LIG LightTools_txt_15410285AA170_5M (rev1p0).zip \| 186.7 MB LUC LucidShape_ray_15410285AA170_5M (rev1p0).zip \| 119.5 MB LUC LucidShape_txt_15410285AA170_5M (rev1p0).zip \| 186.6 MB OPT OpTaliX_txt_15410285AA170_5M (rev1p0).zip \| 186.6 MB OPT OptiCAD_dat_15410285AA170_5M (rev1p0).zip \| 119.5 MB OPT OptiCAD_txt_15410285AA170_5M (rev1p0).zip \| 186.6 MB OPT optalix_DIS_15410285AA170_5M (rev1p0).zip \| 119.5 MB RIR Photopia_rir_15410285AA170_5M (rev1p0).zip \| 119.5 MB SIM Simulux_ray_15410285AA170_5M (rev1p0).zip \| 119.5 MB SPE Speos_ray_15410285AA170_5M (rev1p0).zip \| 123.7 MB SRC Lucaray-maker_src_15410285AA170_5M (rev1p0).zip \| 119.5 MB TRA TracePro_txt_15410285AA170_5M (rev1p0).zip \| 186.7 MB ZEM ZemaxBin_dat_15410285AA170_5M (rev1p0).zip \| 119.5 MB ZEM Zemax_dat_15410285AA170_5M (rev1p0).zip \| 186.6 MB	Active i\| Production is active. Expected lifetime: >10 years.	850	845.0	5	1.4	110	AlGaAs	–
	15411085A4570	SPEC		26 files EDA models: Components ZIP ALT Altium_WL-SISW (rev22c).IntLib \| 187.5 KB CDS Cadence_WL-SISW (rev21a).zip \| 849.8 KB EAG Eagle_WL-SISW (rev20b).lbr \| 47.7 KB CAD files ZIP IGS Download_IGS_WL-SISW_1106 (rev1).igs \| 989 KB STP Download_STP_WL-SISW_1106 (rev1).stp \| 251.7 KB Electric models ZIP PSP PSpice_WL-SISW (rev22a).zip \| 4.4 KB RAY files ASA ASAP-and-APEX_dis_15411085A4570_5M (rev1p1).zip \| 119.6 MB COD CodeV_ray_15411085A4570_5M (rev1p1).zip \| 119.6 MB FRE Fred_dat_15411085A4570_5M (rev1p1).zip \| 119.6 MB FRE Fred_txt_15411085A4570_5M (rev1p1).zip \| 187.3 MB LIG LightTools_ray_15411085A4570_5M (rev1p1).zip \| 119.6 MB LIG LightTools_txt_15411085A4570_5M (rev1).zip \| 187.7 MB LUC LucidShape_ray_15411085A4570_5M (rev1p1).zip \| 119.6 MB LUC LucidShape_txt_15411085A4570_5M (rev1p1).zip \| 187.2 MB OPT OpTaliX_dis_15411085A4570_5M (rev1p1).zip \| 119.6 MB OPT OpTaliX_txt_15411085A4570_5M (rev1p1).zip \| 187.2 MB OPT OptiCAD_dat_15411085A4570_5M (rev1p1).zip \| 119.6 MB OPT OptiCAD_txt_15411085A4570_5M (rev1p1).zip \| 187.2 MB RIR Photopia_rir_15411085A4570_5M (rev1p1).zip \| 119.6 MB SIM Simulux_ray_15411085A4570_5M (rev1p1).zip \| 119.6 MB SPE Speos_ray_15411085A4570_5M (rev1p1).zip \| 123.3 MB SRC Lucaray-maker_src_15411085A4570_5M (rev1p1).zip \| 119.6 MB TRA TracePro_txt_15411085A4570_5M (rev1p1).zip \| 187.2 MB ZEM ZemaxBin_dat_15411085A4570_5M (rev1p1).zip \| 119.6 MB ZEM Zemax_dat_15411085A4570_5M (rev1p1).zip \| 187.2 MB Certificates ZIP CER IR_LED_certificate_WL-SISW-1106 (rev1).pdf \| 1012.6 KB	Active i\| Production is active. Expected lifetime: >10 years.	850	845.0	11	1.4	45	AlGaAs	–
	15404085BA470	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document		26 files EDA models: Components ZIP ALT Altium_WL-SISW (rev22c).IntLib \| 187.5 KB CDS Cadence_WL-SISW (rev21a).zip \| 849.8 KB EAG Eagle_WL-SISW (rev20b).lbr \| 47.7 KB CAD files ZIP IGS Download_IGS_WL-SISW_0402 (rev1).igs \| 331.8 KB STP Download_STP_WL-SISW_0402 (rev1).stp \| 112.6 KB Electric models ZIP PSP PSpice_WL-SISW (rev22a).zip \| 4.4 KB RAY files ASA ASAP-and-APEX_dis_15404085BA470_5M (rev1p0).zip \| 120.9 MB COD CodeV_ray_15404085BA470_5M (rev1p0).zip \| 120.9 MB FRE Fred_dat_15404085BA470_5M (rev1p0).zip \| 120.9 MB FRE Fred_txt_15404085BA470_5M (rev1p0).zip \| 188.8 MB LIG LightTools_ray_15404085BA470_5M (rev1p0).zip \| 120.9 MB LIG LightTools_txt_15404085BA470_5M (rev1p0).zip \| 188.8 MB LUC LucidShape_ray_15404085BA470_5M (rev1p0).zip \| 120.9 MB LUC LucidShape_txt_15404085BA470_5M (rev1p0).zip \| 188.8 MB OPT OpTaliX_txt_15404085BA470_5M (rev1p0).zip \| 188.8 MB OPT OptiCAD_dat_15404085BA470_5M (rev1p0).zip \| 120.9 MB OPT OptiCAD_txt_15404085BA470_5M (rev1p0).zip \| 188.8 MB OPT optalix_DIS_15404085BA470_5M (rev1p0).zip \| 120.9 MB RIR Photopia_rir_15404085BA470_5M (rev1p0).zip \| 120.9 MB SIM Simulux_ray_15404085BA470_5M (rev1p0).zip \| 120.9 MB SPE Speos_ray_15404085BA470_5M (rev1p0).zip \| 125.1 MB SRC Lucaray-maker_src_15404085BA470_5M (rev1p0).zip \| 120.9 MB TRA TracePro_txt_15404085BA470_5M (rev1p0).zip \| 188.8 MB ZEM ZemaxBin_dat_15404085BA470_5M (rev1p0).zip \| 120.9 MB ZEM Zemax_dat_15404085BA470_5M (rev1p0).zip \| 188.8 MB Certificates ZIP CER IR_LED_certificate_WL-SISW-0402 (rev1).pdf \| 1 MB	Active i\| Production is active. Expected lifetime: >10 years.	850	845.0	1.5	1.6	140	AlGaAs	–
	15412085A2070	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document		7 files EDA models: Components ZIP ALT Altium_WL-SISW (rev22c).IntLib \| 187.5 KB CDS Cadence_WL-SISW (rev21a).zip \| 849.8 KB EAG Eagle_WL-SISW (rev20b).lbr \| 47.7 KB CAD files ZIP IGS Download_IGS_WL-SISW_1206 (rev1).igs \| 969.7 KB STP Download_STP_WL-SISW_1206 (rev1).stp \| 245.1 KB Electric models ZIP PSP PSpice_WL-SISW (rev22a).zip \| 4.4 KB Certificates ZIP CER IR_LED_certificatesWL-SISW-1206 (rev1).pdf \| 1 MB Download all 7 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	850	845.0	12	1.4	20	AlGaAs	–
	15411494AA570	SPEC		7 files EDA models: Components ZIP ALT Altium_WL-SISW (rev22c).IntLib \| 187.5 KB CDS Cadence_WL-SISW (rev21a).zip \| 849.8 KB EAG Eagle_WL-SISW (rev20b).lbr \| 47.7 KB CAD files ZIP IGS Download_IGS_WL-SISW-15411494AA570 (rev1).igs \| 271.2 KB STP Download_STP_WL-SISW-15411494AA570 (rev1).stp \| 65.5 KB Electric models ZIP PSP PSpice_WL-SISW (rev22a).zip \| 4.4 KB Certificates ZIP CER IR_LED_certificate_WL-SISW-1104 (rev1).pdf \| 1.2 MB Download all 7 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	940	940.0	1	1.2	150	AlGaAs	154150
	15410294AA570	SPEC		7 files EDA models: Components ZIP ALT Altium_WL-SISW (rev22c).IntLib \| 187.5 KB CDS Cadence_WL-SISW (rev21a).zip \| 849.8 KB EAG Eagle_WL-SISW (rev20b).lbr \| 47.7 KB CAD files ZIP IGS Download_IGS_WL-SISW_1002 (rev1).igs \| 1.1 MB STP Download_STP_WL-SISW_1002 (rev1).stp \| 275.3 KB Electric models ZIP PSP PSpice_WL-SISW (rev22a).zip \| 4.4 KB Certificates ZIP CER IR_LED_certificate_WL-SISW-1002 (rev1).pdf \| 1 MB Download all 7 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	940	940.0	1.5	1.2	150	AlGaAs	–
	15411094A6070	SPEC		6 files EDA models: Components ZIP ALT Altium_WL-SISW (rev22c).IntLib \| 187.5 KB CDS Cadence_WL-SISW (rev21a).zip \| 849.8 KB EAG Eagle_WL-SISW (rev20b).lbr \| 47.7 KB CAD files ZIP IGS Download_IGS_WL-SISW_1106 (rev1).igs \| 989 KB STP Download_STP_WL-SISW_1106 (rev1).stp \| 251.7 KB Electric models ZIP PSP PSpice_WL-SISW (rev22a).zip \| 4.4 KB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	940	940.0	6	1.2	60	AlGaAs	–
	15404094BA470	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document		7 files EDA models: Components ZIP ALT Altium_WL-SISW (rev22c).IntLib \| 187.5 KB CDS Cadence_WL-SISW (rev21a).zip \| 849.8 KB EAG Eagle_WL-SISW (rev20b).lbr \| 47.7 KB CAD files ZIP IGS Download_IGS_WL-SISW_0402 (rev1).igs \| 331.8 KB STP Download_STP_WL-SISW_0402 (rev1).stp \| 112.6 KB Electric models ZIP PSP PSpice_WL-SISW (rev22a).zip \| 4.4 KB Certificates ZIP CER IR_LED_certificate_WL-SISW-0402 (rev1).pdf \| 1.2 MB Download all 7 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	940	940.0	1	1.4	140	AlGaAs	–
	15412094A2070	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document		25 files EDA models: Components ZIP ALT Altium_WL-SISW (rev22c).IntLib \| 187.5 KB CDS Cadence_WL-SISW (rev21a).zip \| 849.8 KB EAG Eagle_WL-SISW (rev20b).lbr \| 47.7 KB CAD files ZIP IGS Download_IGS_WL-SISW_1206 (rev1).igs \| 969.7 KB STP Download_STP_WL-SISW_1206 (rev1).stp \| 245.1 KB Electric models ZIP PSP PSpice_WL-SISW (rev22a).zip \| 4.4 KB RAY files ASA ASAP-and-APEX_dis_15412094A2070_5M (rev1p0).zip \| 120 MB COD CodeV_ray_15412094A2070_5M (rev1p0).zip \| 120 MB FRE Fred_dat_15412094A2070_5M (rev1p0).zip \| 120 MB FRE Fred_txt_15412094A2070_5M (rev1p0).zip \| 186.4 MB LIG LightTools_ray_15412094A2070_5M (rev1p0).zip \| 120 MB LIG LightTools_txt_15412094A2070_5M (rev1p0).zip \| 186.4 MB LUC LucidShape_ray_15412094A2070_5M (rev1p0).zip \| 120 MB LUC LucidShape_txt_15412094A2070_5M (rev1p0).zip \| 186.4 MB OPT OpTaliX_txt_15412094A2070_5M (rev1p0).zip \| 186.4 MB OPT OptiCAD_dat_15412094A2070_5M (rev1p0).zip \| 120 MB OPT OptiCAD_txt_15412094A2070_5M (rev1p0).zip \| 186.4 MB OPT optalix_DIS_15412094A2070_5M (rev1p0).zip \| 120 MB RIR Photopia_rir_15412094A2070_5M (rev1p0).zip \| 120 MB SIM Simulux_ray_15412094A2070_5M (rev1p0).zip \| 120 MB SPE Speos_ray_15412094A2070_5M (rev1p0).zip \| 123.4 MB SRC Lucaray-maker_src_15412094A2070_5M (rev1p0).zip \| 120 MB TRA TracePro_txt_15412094A2070_5M (rev1p0).zip \| 186.4 MB ZEM ZemaxBin_dat_15412094A2070_5M (rev1p0).zip \| 120 MB ZEM Zemax_dat_15412094A2070_5M (rev1p0).zip \| 186.4 MB	Active i\| Production is active. Expected lifetime: >10 years.	940	940.0	6	1.2	20	AlGaAs	–
