| Bauform | Maße | Montageart | ||
|---|---|---|---|---|

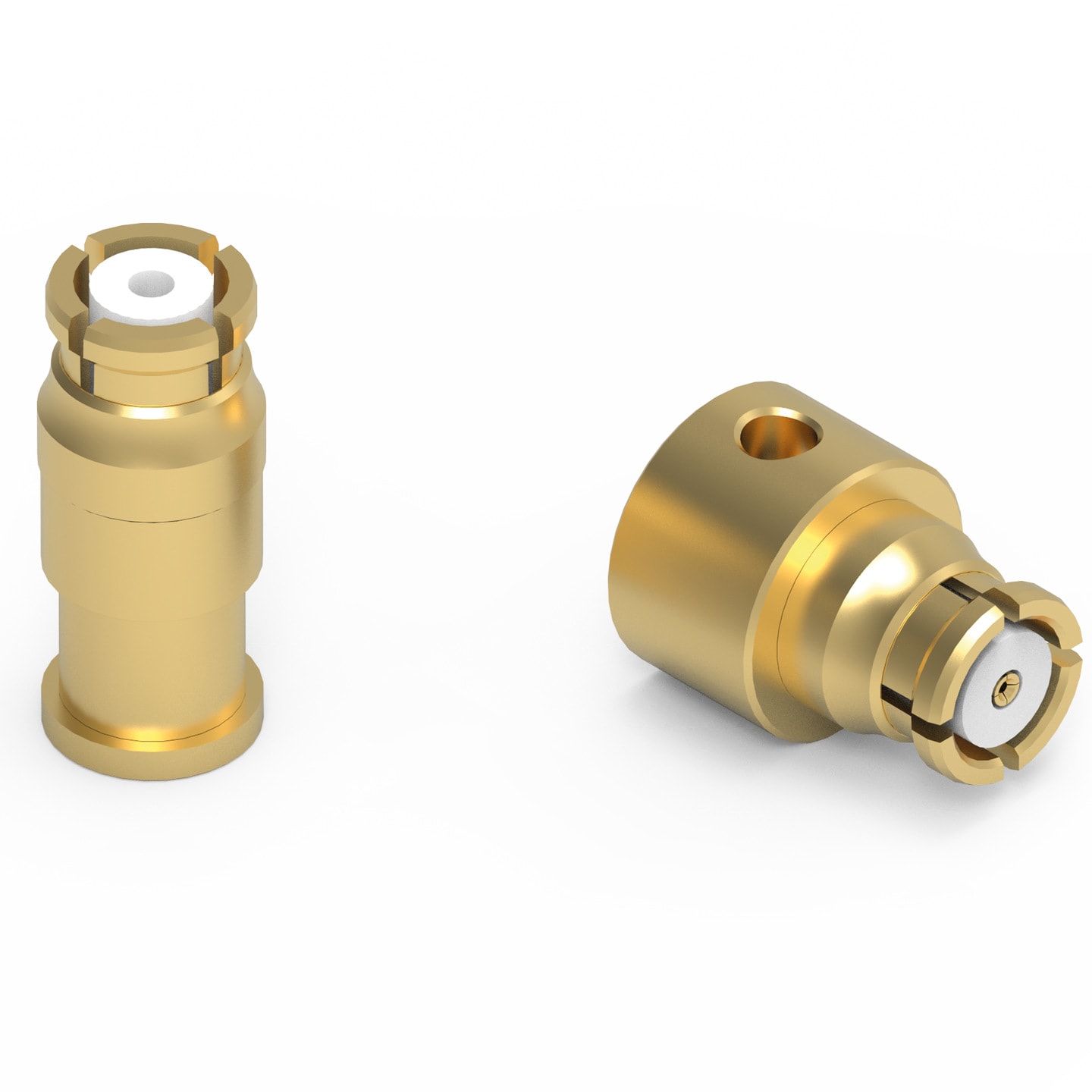

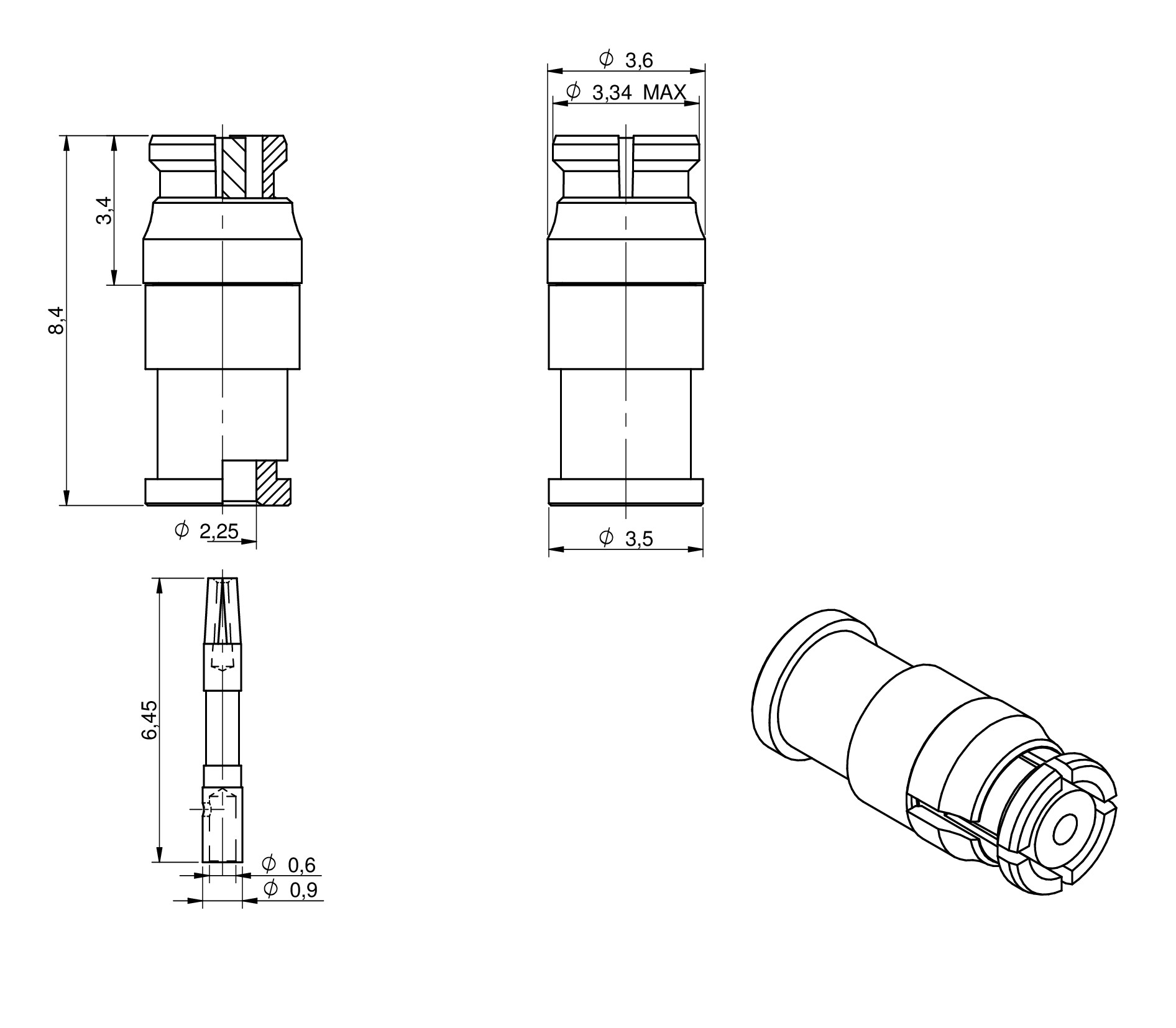

| NEU | Straight Jack | Solder | ||

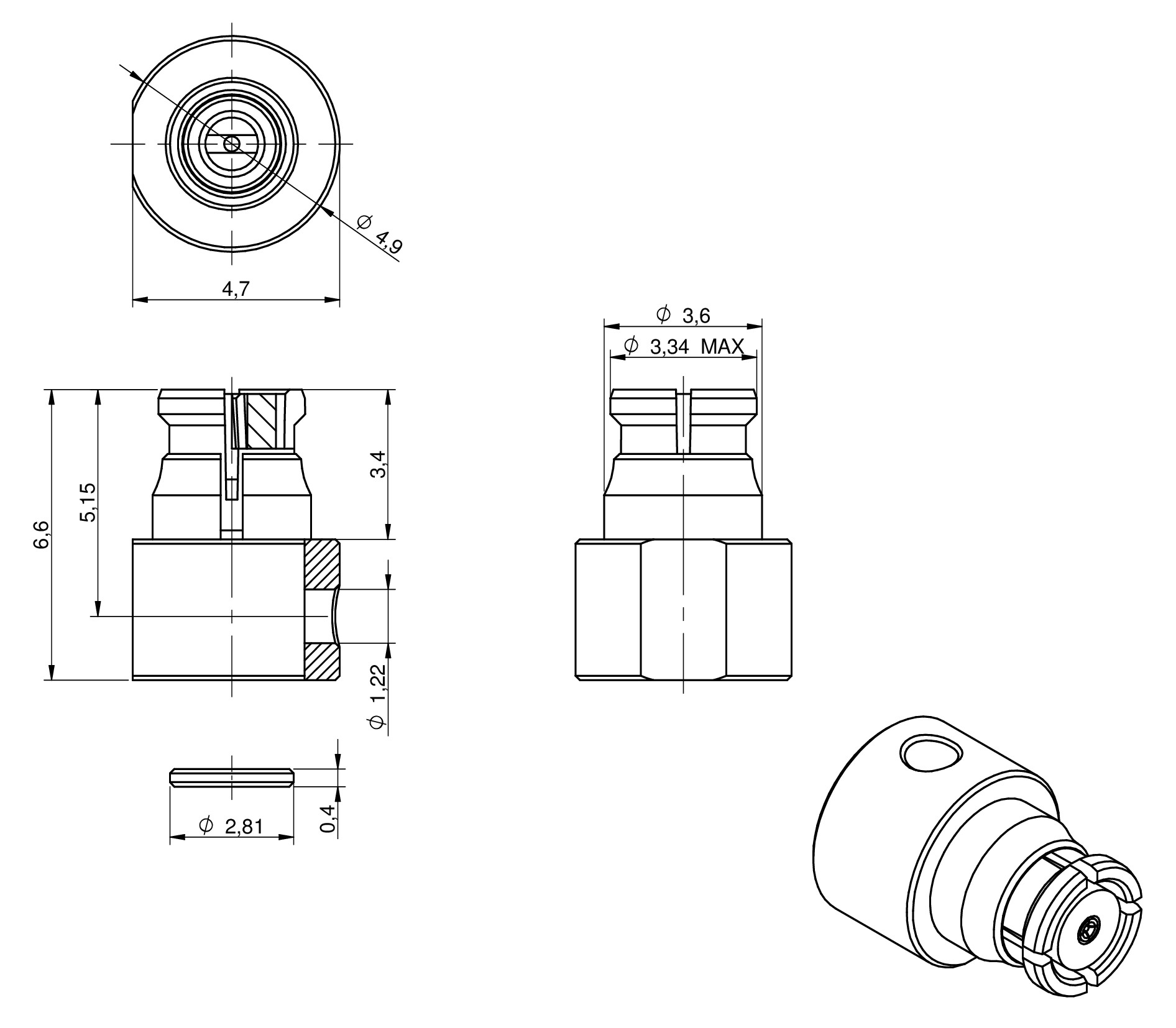

| NEU | Right Angle Jack | Solder |
Merkmale
- Interface: MIL-STD-348
- Mating Cycle: 100 Cycles(mated with full detent), 500 Cycles(mated with limited detent), 1000 Cycles(mated with smooth bore)
- Impedance: 50Ω
- Insulation Resistance: 5000MΩ(min.)
- Withstanding Voltage: 260Vrms (min.)
- Mating: Snap on
Anwendung
- Network and communications
- RF Test and measurement equipment
- Industrial application
- Electronic consumers and device
Application Notes
Artikeldaten
Alle
Straight Jack
Right Angle Jack
| Artikel Nr. | Datenblatt | Manual | Downloads | Kabel | Kabeltyp | f | Montageart | Mittelkontakt | Passend zu | Design Kit | Muster | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 | 60129011120920 | 3 Dateien | .047" | Flexible/Hand Formable | DC~18 GHz | Solder | Ø 0.35 | WR-ToolRF SMP Extraction Tool | 601001 | |||
 | 60129011120820 | 3 Dateien | .085"/.086" | Flexible/Hand Formable | DC~18 GHz | Solder | Ø 0.6 | WR-ToolRF SMP Extraction Tool | 601001 | |||
 | 60119011120920 | SPEC | 3 Dateien | .047" | – | DC~18 GHz | Solder | – | WR-ToolRF SMP Extraction Tool | 601001 | ||
 | 60119011120820 | 3 Dateien | .085"/.086" | Flexible/Hand Formable | DC~18 GHz | Solder | – | WR-ToolRF SMP Extraction Tool | 601001 |
| Artikel Nr. | Datenblatt | |
|---|---|---|
| 60129011120920 | – |
| 60129011120820 | – |
| 60119011120920 | SPEC |
| 60119011120820 | – |
| Muster |
|---|
| Artikel Nr. | Datenblatt | Manual | Downloads | Kabel | Kabeltyp | f | Montageart | Mittelkontakt | Passend zu | Design Kit | Muster |
|---|
