| Topologie | RF signals / communications |
| IC-Revision | 1 |
Beschreibung

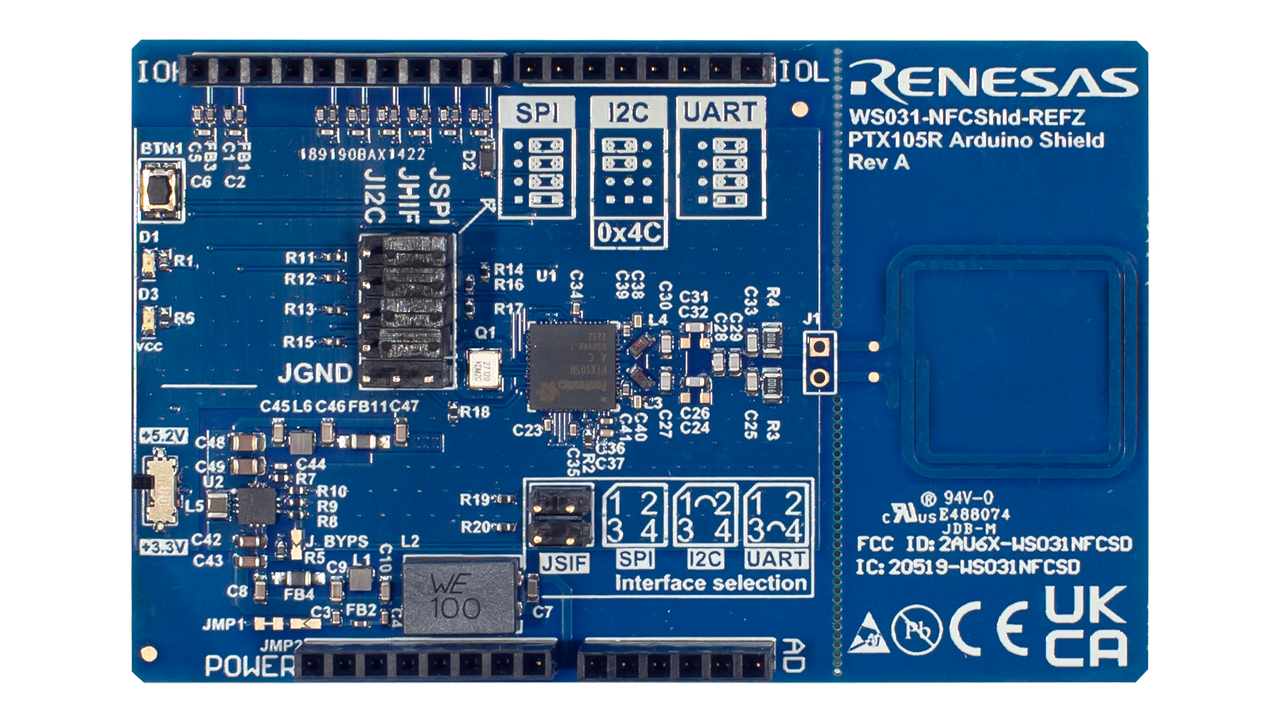

The PTX105R NFC Reader Arduino Shield reference design adds Near Field Communication (NFC) reader, writer, and card emulation capabilities to the Arduino platform, streamlining prototyping and development for IoT applications requiring secure, contactless communication. With multi-protocol support, ready-to-use Arduino IDE libraries, and pre-certification for FCC, CE, UKCA, and ISED standards, it simplifies integration and reduces time to market for connected designs.
Typische Anwendungen
- NFC Wireless Connectivity
Weiterführende Informationen
Artikeldaten
| Artikel Nr. | Datenblatt | Simulation | Downloads | Status | Produktserie | λDom typ. (nm) | Farbe | λPeak typ. (nm) | IV typ. (mcd) | VF typ. (V) | Chiptechnologie | 2θ50% typ. (°) | Z @ 100 MHz (Ω) | RDC (Ω) | f | Tol. f | Stabilität (ppm) | Cload (pF) | Betriebstemperatur | ISAT1 (A) | ISAT2 (A) | fres (MHz) | IRP,40K (A) | ISAT,30% (A) | RDC typ. (mΩ) | VOP (V) | Montageart | Wicklungstyp | Wicklungsanzahl | L (µH) | Zmax (Ω) | IR (mA) | RDC max. (Ω) | VR (V) | Anwendung | Pins (pcs) | Reihen | H (mm) | Gender | Typ | Verpackung | Muster | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 | 150060YS75000 | SPEC | 26 Dateien Strahldaten
| Aktiv i| Produktion ist aktiv. Erwartete Lebenszeit: >10 Jahre. | WL-SMCW SMT Mono-color Chip LED Waterclear | 590 | Gelb | 595 | 120 | 2 | AlInGaP | 140 | – | – | – | – | – | – | -40 °C up to +85 °C | – | – | – | – | – | – | – | SMT | – | – | – | – | – | – | – | – | – | – | 0.7 | – | – | Tape and Reel | ||
 | 782422102 | SPEC | 9 Dateien | Aktiv i| Produktion ist aktiv. Erwartete Lebenszeit: >10 Jahre. | WE-CBA SMT EMI Suppression Ferrite Bead | – | – | – | – | – | – | – | 1000 | 1 | – | – | – | – | -55 °C up to +125 °C | – | – | – | – | – | – | – | SMT | – | 1 | – | 1200 | 200 | – | – | – | – | – | 0.5 | – | Breitband | – | ||
| 782853561 | SPEC | 9 Dateien | Aktiv i| Produktion ist aktiv. Erwartete Lebenszeit: >10 Jahre. | WE-CBA SMT EMI Suppression Ferrite Bead | – | – | – | – | – | – | – | 560 | 0.1 | – | – | – | – | -55 °C up to +125 °C | – | – | – | – | – | – | – | SMT | – | 1 | – | 600 | 1500 | – | – | – | – | – | 0.9 | – | High Current | – | ||
 | 744226S | SPEC | 8 Dateien | Aktiv i| Produktion ist aktiv. Erwartete Lebenszeit: >10 Jahre. | WE-SL2 Stromkompensierter SMT Line Filter | – | – | – | – | – | – | – | – | – | – | – | – | – | -40 °C up to +125 °C | – | – | – | – | – | – | – | SMT | sectional | 2 | 10 | 920 | 1600 | 0.08 | 80 | – | 4 | – | 5 | – | – | – | ||
 | 744383130068 | SPEC | 10 Dateien | Aktiv i| Produktion ist aktiv. Erwartete Lebenszeit: >10 Jahre. | WE-MAPI SMT-Speicherdrossel | – | – | – | – | – | – | – | – | – | – | – | – | – | -40 °C up to +125 °C | – | – | 135 | 2.55 | 4.8 | 101 | 80 | SMT | bifilar | 8 | 0.68 | – | 0 | 0.126 | – | – | 2 | – | 1 | – | – | – | ||
 | 74479276210 | SPEC | 10 Dateien | Aktiv i| Produktion ist aktiv. Erwartete Lebenszeit: >10 Jahre. | WE-PMCI Power Molded Chip Induktivität | – | – | – | – | – | – | – | – | – | – | – | – | – | -40 °C up to +125 °C | 1.95 | 4.25 | 95 | 3.15 | 4.25 | 55 | – | SMT | – | 1 | 1 | – | 3150 | 0.06 | – | – | 2 | – | 1 | – | – | – | ||
 | 61300311121 | SPEC | – | 7 Dateien | Aktiv i| Produktion ist aktiv. Erwartete Lebenszeit: >10 Jahre. | WR-PHD 2.54 mm THT Pin Header | – | – | – | – | – | – | – | – | – | – | – | – | – | -40 °C up to +105 °C | – | – | – | – | – | – | – | THT | – | – | – | – | 3000 | – | – | – | 3 | Single | – | Pin Header | Gerade | Beutel | |
 | 61300411121 | SPEC | – | 7 Dateien | Aktiv i| Produktion ist aktiv. Erwartete Lebenszeit: >10 Jahre. | WR-PHD 2.54 mm THT Pin Header | – | – | – | – | – | – | – | – | – | – | – | – | – | -40 °C up to +105 °C | – | – | – | – | – | – | – | THT | – | – | – | – | 3000 | – | – | – | 4 | Single | – | Pin Header | Gerade | Beutel | |
 | 61300421121 | SPEC | – | 7 Dateien | Aktiv i| Produktion ist aktiv. Erwartete Lebenszeit: >10 Jahre. | WR-PHD 2.54 mm THT Dual Pin Header | – | – | – | – | – | – | – | – | – | – | – | – | – | -40 °C up to +105 °C | – | – | – | – | – | – | – | THT | – | – | – | – | 3000 | – | – | – | 4 | Dual | – | Pin Header | Gerade | Beutel | |
 | 830053099 | SPEC | 5 Dateien | Aktiv i| Produktion ist aktiv. Erwartete Lebenszeit: >10 Jahre. | WE-XTAL Schwingquarz | – | – | – | – | – | – | – | – | – | 27.12 MHz | ±10ppm | 10 | 10 | -20 °C up to +70 °C | – | – | – | – | – | – | – | SMT | – | – | – | – | – | – | – | NFC, RFID | – | – | 0.8 | – | – | – |
