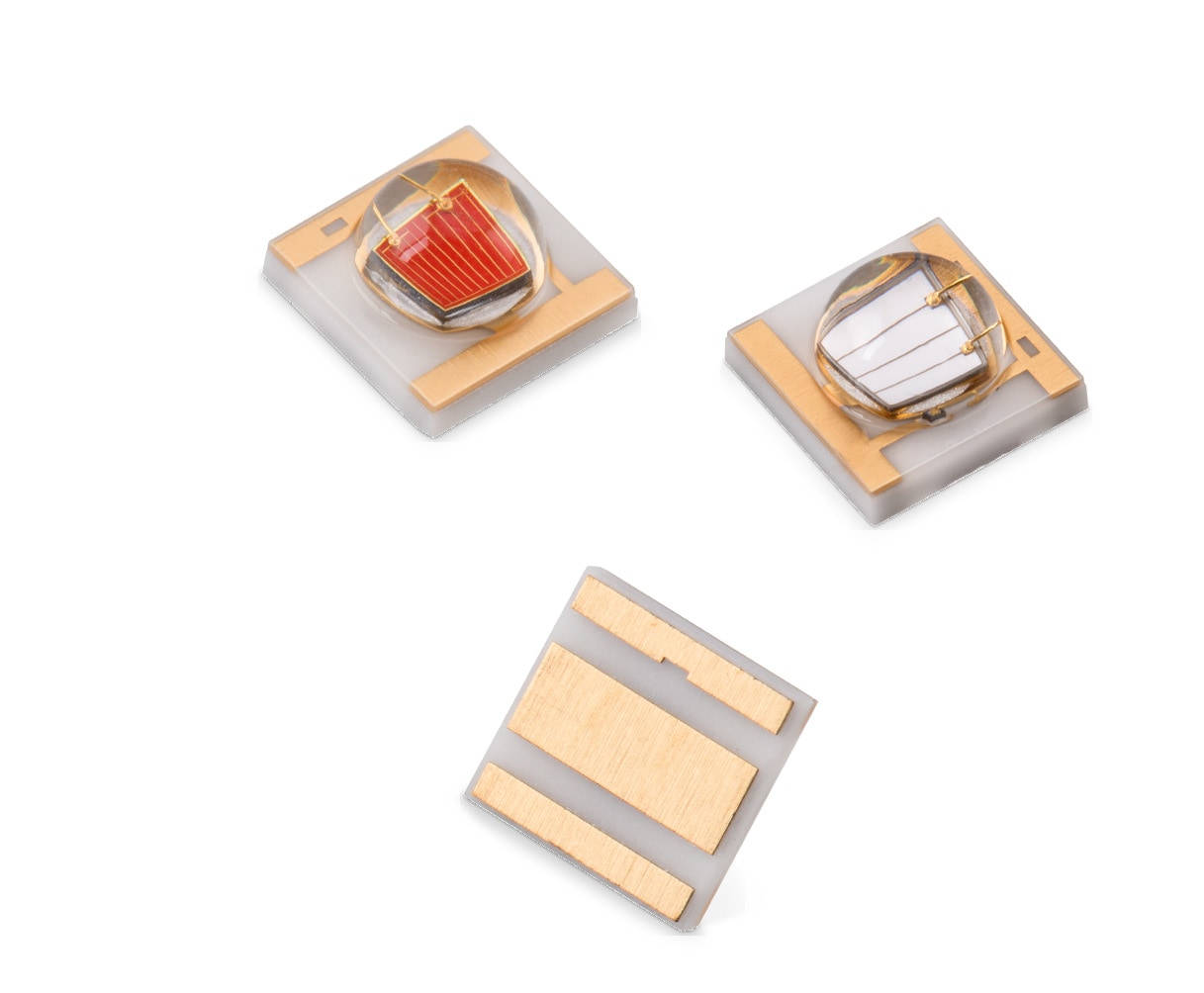

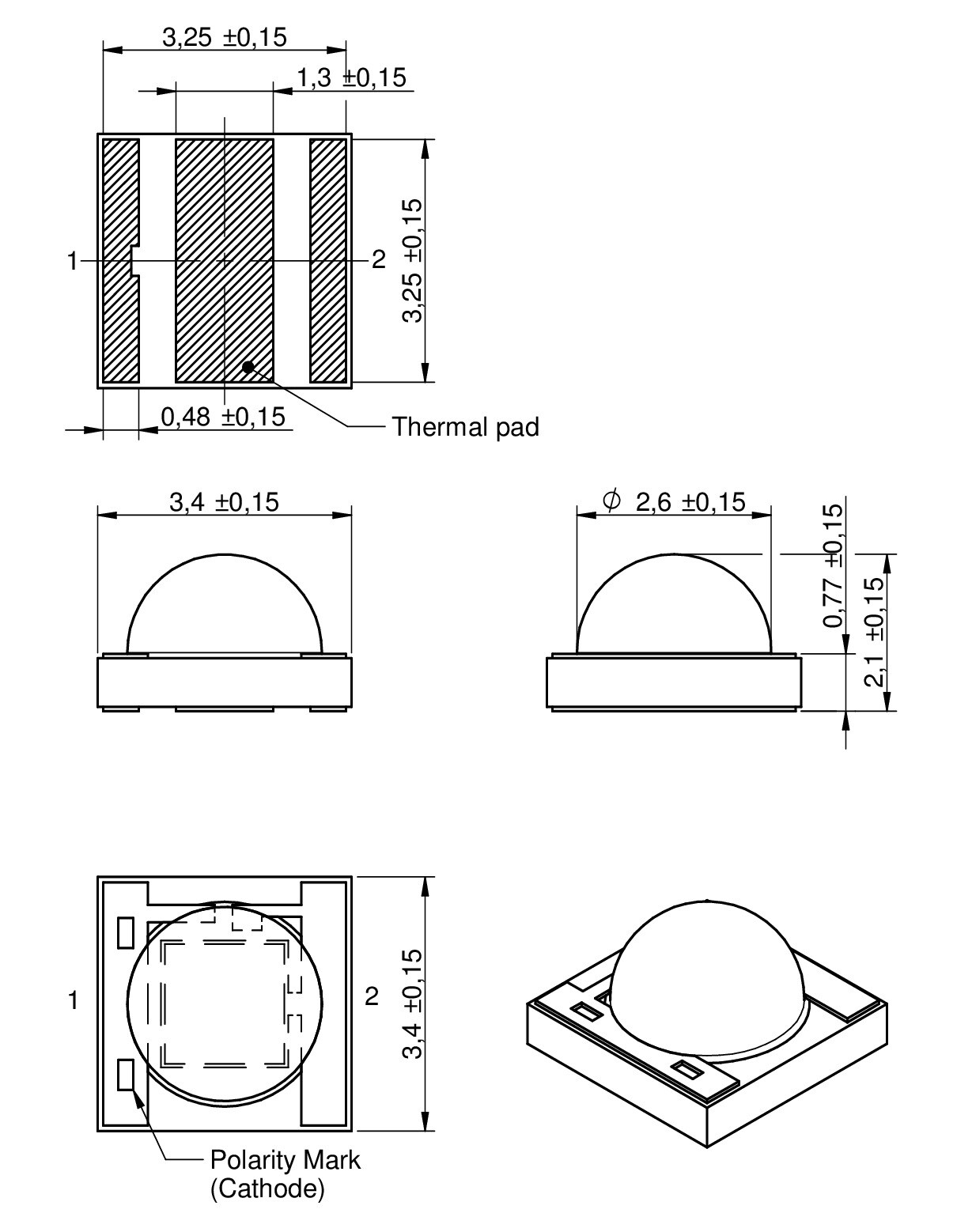

WL-SMDC SMT Mono-color Ceramic LED Waterclear

LTSpice files

LT
LTSpice_WL-SMDC (rev22a).zip
|
2 KB

Characteristics

SMT ceramic package with high efficiency
Waterclear silicone lense
High brightness with minimal side emission
Flexible coupling with secondary optic
Viewing angle: 125°
Moisture Sensitivity Level: 2
Electrically neutral thermal path
Low thermal resistance: 8/10 K/W
LED junction temperature: 125°C/ 150°C

Applications

Horticultural lighting
Aquarium lighting
Grow box lamps
Vertical indoor farming

Application Notes

Products

3535

Reset all

Filter article data

show article in 1 product lines

article in 1 product lines

Reset all

Order Code	Datasheet	Simulation	Downloads	Status	Emitting Color	λ_{Peak typ.}(nm)	Φ_{e typ.}(mW)	V_{F typ.}(V)	Chip Technology	2θ_{50% typ.}(°)
150353DS74500	Deep Blue, 450 nm, 600 mW	Simulation	Downloads26 files EDA models: Components ZIP ALT Altium_WL-SMDC (rev25a).IntLib \| 55.5 KB CDS Cadence_WL-SMDC (rev25a).zip \| 376 KB EAG Eagle_WL-SMDC (rev22a).lbr \| 22.1 KB KIC KiCad_WL-SMDC (rev26a).zip \| 559.2 KB CAD files ZIP IGS Download_IGS_WL-SMDC-3535 (rev1).igs \| 777.8 KB STP Download_STP_WL-SMDC-3535 (rev1).stp \| 316.1 KB Electric models ZIP PSP PSpice_WL-SMDC (rev22a).zip \| 3.7 KB RAY files ASA ASAP-and-APEX_dis_150353DS74500_5M (rev1p1).zip \| 120.5 MB COD CodeV_ray_150353DS74500_5M (rev1p1).zip \| 120.5 MB FRE Fred_dat_150353DS74500_5M (rev1p1).zip \| 120.5 MB FRE Fred_txt_150353DS74500_5M (rev1p1).zip \| 188.4 MB LIG LightTools_ray_150353DS74500_5M (rev1p1).zip \| 120.5 MB LIG LightTools_txt_150353DS74500_5M (rev1).zip \| 189.3 MB LUC LucidShape_ray_150353DS74500_5M (rev1p1).zip \| 120.5 MB LUC LucidShape_txt_150353DS74500_5M (rev1p1).zip \| 188.4 MB OPT OpTaliX_dis_150353DS74500_5M (rev1p1).zip \| 120.5 MB OPT OpTaliX_txt_150353DS74500_5M (rev1p1).zip \| 188.4 MB OPT OptiCAD_dat_150353DS74500_5M (rev1p1).zip \| 120.5 MB OPT OptiCAD_txt_150353DS74500_5M (rev1p1).zip \| 188.4 MB RIR Photopia_rir_150353DS74500_5M (rev1p1).zip \| 120.5 MB SIM Simulux_ray_150353DS74500_5M (rev1p1).zip \| 120.5 MB SPE Speos_ray_150353DS74500_5M (rev1p1).zip \| 125 MB SRC Lucaray-maker_src_150353DS74500_5M (rev1p1).zip \| 120.5 MB TRA TracePro_txt_150353DS74500_5M (rev1p1).zip \| 188.3 MB ZEM ZemaxBin_dat_150353DS74500_5M (rev1p1).zip \| 120.5 MB ZEM Zemax_dat_150353DS74500_5M (rev1p1).zip \| 188.4 MB	Status Activei\| Production is active. Expected lifetime: >10 years.	Emitting ColorDeep Blue	Peak Wavelength [typ.]450 nm	Radiant Flux [typ.]600 mW	Forward Voltage [typ.]3.2 V	Chip TechnologyInGaN	Viewing Angle Phi 0° [typ.]125 °
150353DS74500A	Deep Blue, 450 nm, 1400 mW	Simulation	Downloads4 files EDA models: Components ZIP KIC KiCad_WL-SMDC (rev26a).zip \| 559.2 KB CAD files ZIP 3D 150353DS74500A_3D (rev1).pdf \| 83 KB IGS 150353DS74500A (rev1).igs \| 140 KB STP 150353DS74500A (rev1).stp \| 45.1 KB Download all 4 files as zip archive ZIP	Status Newi\| Product is new in our portfolio and production is active. Expected lifetime: >10 years.	Emitting ColorDeep Blue	Peak Wavelength [typ.]450 nm	Radiant Flux [typ.]1400 mW	Forward Voltage [typ.]2.9 V	–	Viewing Angle Phi 0° [typ.]125 °
150353FS74500	Far Red, 730 nm, 350 mW	Simulation	Downloads26 files EDA models: Components ZIP ALT Altium_WL-SMDC (rev25a).IntLib \| 55.5 KB CDS Cadence_WL-SMDC (rev25a).zip \| 376 KB EAG Eagle_WL-SMDC (rev22a).lbr \| 22.1 KB KIC KiCad_WL-SMDC (rev26a).zip \| 559.2 KB CAD files ZIP IGS Download_IGS_WL-SMDC-3535 (rev1).igs \| 777.8 KB STP Download_STP_WL-SMDC-3535 (rev1).stp \| 316.1 KB Electric models ZIP PSP PSpice_WL-SMDC (rev22a).zip \| 3.7 KB RAY files ASA ASAP-and-APEX_dis_150353FS74500_5M (rev1p1).zip \| 120.6 MB COD CodeV_ray_150353FS74500_5M (rev1p1).zip \| 120.6 MB FRE Fred_dat_150353FS74500_5M (rev1p1).zip \| 120.6 MB FRE Fred_txt_150353FS74500_5M (rev1p1).zip \| 189.4 MB LIG LightTools_ray_150353FS74500_5M (rev1p1).zip \| 120.6 MB LIG LightTools_txt_150353FS74500_5M (rev1).zip \| 188.7 MB LUC LucidShape_ray_150353FS74500_5M (rev1p1).zip \| 120.6 MB LUC LucidShape_txt_150353FS74500_5M (rev1p1).zip \| 189.4 MB OPT OpTaliX_dis_150353FS74500_5M (rev1p1).zip \| 120.6 MB OPT OpTaliX_txt_150353FS74500_5M (rev1p1).zip \| 189.4 MB OPT OptiCAD_dat_150353FS74500_5M (rev1p1).zip \| 120.6 MB OPT OptiCAD_txt_150353FS74500_5M (rev1p1).zip \| 189.4 MB RIR Photopia_rir_150353FS74500_5M (rev1p1).zip \| 120.6 MB SIM Simulux_ray_150353FS74500_5M (rev1p1).zip \| 120.6 MB SPE Speos_ray_150353FS74500_5M (rev1p1).zip \| 125.1 MB SRC Lucaray-maker_src_150353FS74500_5M (rev1p1).zip \| 120.6 MB TRA TracePro_txt_150353FS74500_5M (rev1p1).zip \| 189.3 MB ZEM ZemaxBin_dat_150353FS74500_5M (rev1p1).zip \| 120.6 MB ZEM Zemax_dat_150353FS74500_5M (rev1p1).zip \| 189.4 MB	Status Activei\| Production is active. Expected lifetime: >10 years.	Emitting ColorFar Red	Peak Wavelength [typ.]730 nm	Radiant Flux [typ.]350 mW	Forward Voltage [typ.]1.8 V	Chip TechnologyAlInGaP	Viewing Angle Phi 0° [typ.]125 °
150353FS74500A	Far Red, 730 nm, 390 mW	Simulation	Downloads4 files EDA models: Components ZIP KIC KiCad_WL-SMDC (rev26a).zip \| 559.2 KB CAD files ZIP 3D 150353FS74500A_3D (rev1).pdf \| 95.8 KB IGS 150353FS74500A (rev1).igs \| 184.5 KB STP 150353FS74500A (rev1).stp \| 45.8 KB Download all 4 files as zip archive ZIP	Status Newi\| Product is new in our portfolio and production is active. Expected lifetime: >10 years.	Emitting ColorFar Red	Peak Wavelength [typ.]730 nm	Radiant Flux [typ.]390 mW	Forward Voltage [typ.]2.1 V	–	Viewing Angle Phi 0° [typ.]125 °
150353HS74500	Hyper Red, 660 nm, 440 mW	Simulation	Downloads26 files EDA models: Components ZIP ALT Altium_WL-SMDC (rev25a).IntLib \| 55.5 KB CDS Cadence_WL-SMDC (rev25a).zip \| 376 KB EAG Eagle_WL-SMDC (rev22a).lbr \| 22.1 KB KIC KiCad_WL-SMDC (rev26a).zip \| 559.2 KB CAD files ZIP IGS Download_IGS_WL-SMDC-3535 (rev1).igs \| 777.8 KB STP Download_STP_WL-SMDC-3535 (rev1).stp \| 316.1 KB Electric models ZIP PSP PSpice_WL-SMDC (rev22a).zip \| 3.7 KB RAY files ASA ASAP-and-APEX_dis_150353HS74500_5M (rev1p1).zip \| 120.5 MB COD CodeV_ray_150353HS74500_5M (rev1p1).zip \| 120.5 MB FRE Fred_dat_150353HS74500_5M (rev1p1).zip \| 120.5 MB FRE Fred_txt_150353HS74500_5M (rev1p1).zip \| 189.4 MB LIG LightTools_ray_150353HS74500_5M (rev1p1).zip \| 120.5 MB LIG LightTools_txt_150353HS74500_5M (rev1).zip \| 189.2 MB LUC LucidShape_ray_150353HS74500_5M (rev1p1).zip \| 120.5 MB LUC LucidShape_txt_150353HS74500_5M (rev1p1).zip \| 189.4 MB OPT OpTaliX_dis_150353HS74500_5M (rev1p1).zip \| 120.5 MB OPT OpTaliX_txt_150353HS74500_5M (rev1p1).zip \| 189.4 MB OPT OptiCAD_dat_150353HS74500_5M (rev1p1).zip \| 120.5 MB OPT OptiCAD_txt_150353HS74500_5M (rev1p1).zip \| 189.4 MB RIR Photopia_rir_150353HS74500_5M (rev1p1).zip \| 120.5 MB SIM Simulux_ray_150353HS74500_5M (rev1p1).zip \| 120.5 MB SPE Speos_ray_150353HS74500_5M (rev1p1).zip \| 124.8 MB SRC Lucaray-maker_src_150353HS74500_5M (rev1p1).zip \| 120.5 MB TRA TracePro_txt_150353HS74500_5M (rev1p1).zip \| 189.4 MB ZEM ZemaxBin_dat_150353HS74500_5M (rev1p1).zip \| 120.5 MB ZEM Zemax_dat_150353HS74500_5M (rev1p1).zip \| 189.4 MB	Status Activei\| Production is active. Expected lifetime: >10 years.	Emitting ColorHyper Red	Peak Wavelength [typ.]660 nm	Radiant Flux [typ.]440 mW	Forward Voltage [typ.]2.2 V	Chip TechnologyAlInGaP	Viewing Angle Phi 0° [typ.]125 °
150353HS74500A	Hyper Red, 660 nm, 1050 mW	Simulation	Downloads4 files EDA models: Components ZIP KIC KiCad_WL-SMDC (rev26a).zip \| 559.2 KB CAD files ZIP 3D 150353HS74500A_3D (rev1).pdf \| 85.2 KB IGS 150353HS74500A (rev1).igs \| 205.4 KB STP 150353HS74500A (rev1).stp \| 56.7 KB Download all 4 files as zip archive ZIP	Status Newi\| Product is new in our portfolio and production is active. Expected lifetime: >10 years.	Emitting ColorHyper Red	Peak Wavelength [typ.]660 nm	Radiant Flux [typ.]1050 mW	Forward Voltage [typ.]1.9 V	–	Viewing Angle Phi 0° [typ.]125 °

HortiCoolture. LED it grow!

Horticulture LED Lighting

New Horticulture LEDs from the High Power Ceramic series. The wavelengths (450 nm, 660 nm, 730 nm) specially selected for plant cultivation promote photosynthesis and optimize plant development. The superior PPF values, small size and low power dissipation make the WL-SMDC series perfect as a future selection for Horticulture lighting. Item available from stock. Samples available free of charge.

Advantages:
