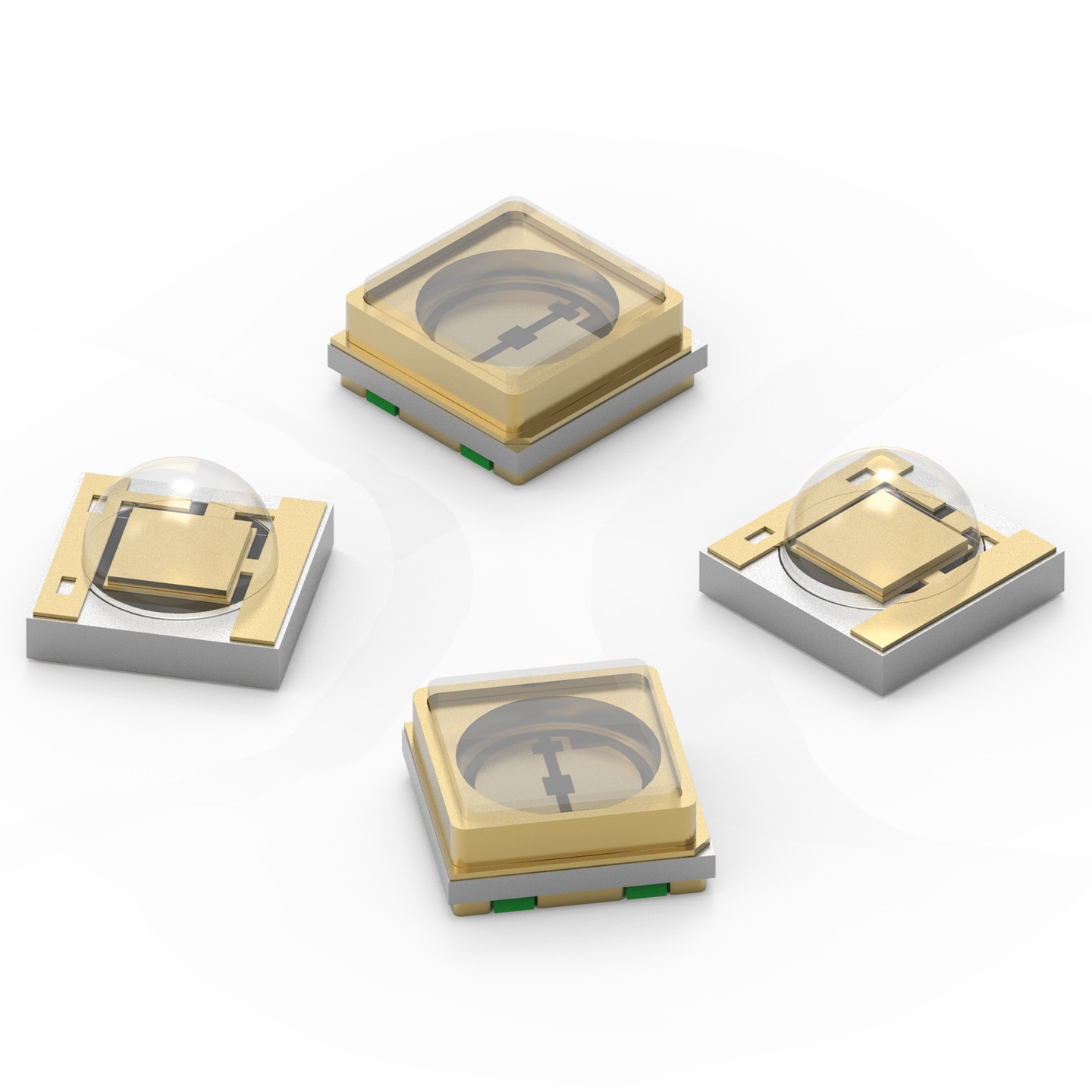

WL-SUMW SMT Ultraviolet Ceramic Waterclear

Size	Dimensions	3D	L (mm)	W (mm)	H (mm)	Mount
3535 UV-A			3.45	3.45	2	SMT
3535 UV-C			-	-	-	SMT

LTSpice files

LT
LTSpice_WL-SUMW (rev22a).zip
|
2 KB

Characteristics

High power output UV LEDs
Low thermal resistance
Peak wavelengths: 275, 365, 385, 395, 405 nm
Standard soldering pad footprint

Applications

UV-A:
UV-Curing
Printing / coating Adhesive
Counterfeit detection
Security Forensic
Special lighting
UV-C:
Sterilization
Surface disinfection
Water purification
Air purification

Application Notes

ANO008: Disinfection with UV-C LEDs
PDF

Products

All

3535 UV-A

3535 UV-C

Filter article data

show articles in 2 product lines

articles in 2 product lines

Log in now to view availability and request availability forecasts. LOGIN

	Order Code	Datasheet	Simulation	Downloads	Status	λ_{Peak typ.}(nm)	Φ_{e min.}(mW)	Φ_{e typ.}(mW)	Φ_{e max.}(mW)	V_{F typ.}(V)	Chip Technology	2θ_{50% typ.}(°)	SamplesAvailability & Sample

Log in now to view availability and request availability forecasts. LOGIN
	15335327BA250	SPEC275 nm, 1.5 mW, 3 mW	Simulation	Availability –	Downloads26 files ALT Altium_WL-SUMW (rev25a).IntLib \| 111 KB CDS CADENCE_WL-SUMW (rev25a).zip \| 871 KB EAG Eagle_WL-SUMW (rev25a).lbr \| 32.7 KB KIC KiCad_WL-SUMW (rev26a).zip \| 143.1 KB IGS IGS_153353xxBA25x (rev1).igs \| 711.8 KB STP STP_153353xxBA25x (rev1).stp \| 164.3 KB PSP PSpice_WL-SUMW (rev22a).zip \| 3.9 KB RAY files ASA ASAP-and-APEX_dis_15335327BA250_5M (rev1p1).zip \| 120.9 MB COD CodeV_ray_15335327BA250_5M (rev1p1).zip \| 121 MB FRE Fred_dat_15335327BA250_5M (rev1p1).zip \| 121 MB FRE Fred_txt_15335327BA250_5M (rev1p1).zip \| 188.7 MB LIG LightTools_ray_15335327BA250_5M (rev1p1).zip \| 121 MB LIG LightTools_txt_15335327BA250_5M (rev1p1).zip \| 188.9 MB LUC LucidShape_ray_15335327BA250_5M (rev1p1).zip \| 121 MB LUC LucidShape_txt_15335327BA250_5M (rev1p1).zip \| 188.7 MB OPT OpTaliX_dis_15335327BA250_5M (rev1p1).zip \| 121 MB OPT OpTaliX_txt_15335327BA250_5M (rev1p1).zip \| 188.7 MB OPT OptiCAD_dat_15335327BA250_5M (rev1p1).zip \| 121 MB OPT OptiCAD_txt_15335327BA250_5M (rev1p1).zip \| 188.7 MB RIR Photopia_rir_15335327BA250_5M (rev1p1).zip \| 121 MB SIM Simulux_ray_15335327BA250_5M (rev1p1).zip \| 121 MB SPE Speos_ray_15335327BA250_5M (rev1p1).zip \| 125.3 MB SRC Lucaray-maker_src_15335327BA250_5M (rev1p1).zip \| 121 MB TRA TracePro_txt_15335327BA250_5M (rev1p1).zip \| 188.9 MB ZEM ZemaxBin_dat_15335327BA250_5M (rev1p1).zip \| 121 MB ZEM Zemax_dat_15335327BA250_5M (rev1p1).zip \| 188.7 MB	Status ActiveProduction is active. Expected lifetime: >10 years. iProduction is active. Expected lifetime: >10 years.	Peak Wavelength [typ.]275 nm	Radiant Flux [min.]1.5 mW	Radiant Flux [typ.]3 mW	–	Forward Voltage [typ.]6.5 V	Chip TechnologyAlGaN	Viewing Angle Phi 0° [typ.]120 °	–Check availability
	15335327BA252	SPEC275 nm, 8 mW, 15 mW	Simulation	Availability –	Downloads26 files ALT Altium_WL-SUMW (rev25a).IntLib \| 111 KB CDS CADENCE_WL-SUMW (rev25a).zip \| 871 KB EAG Eagle_WL-SUMW (rev25a).lbr \| 32.7 KB KIC KiCad_WL-SUMW (rev26a).zip \| 143.1 KB IGS IGS_153353xxBA25x (rev1).igs \| 711.8 KB STP STP_153353xxBA25x (rev1).stp \| 164.3 KB PSP PSpice_WL-SUMW (rev22a).zip \| 3.9 KB RAY files ASA ASAP-and-APEX_dis_15335327BA252_5M (rev1p0).zip \| 121 MB COD CodeV_ray_15335327BA252_5M (rev1p0).zip \| 121 MB FRE Fred_dat_15335327BA252_5M (rev1p0).zip \| 121 MB FRE Fred_txt_15335327BA252_5M (rev1p0).zip \| 188.2 MB LIG LightTools_ray_15335327BA252_5M (rev1p0).zip \| 121 MB LIG LightTools_txt_15335327BA252_5M (rev1p0).zip \| 188.2 MB LUC LucidShape_ray_15335327BA252_5M (rev1p0).zip \| 121 MB LUC LucidShape_txt_15335327BA252_5M (rev1p0).zip \| 188.2 MB OPT OpTaliX_dis_15335327BA252_5M (rev1p0).zip \| 121 MB OPT OpTaliX_txt_15335327BA252_5M (rev1p0).zip \| 188.2 MB OPT OptiCAD_dat_15335327BA252_5M (rev1p0).zip \| 121 MB OPT OptiCAD_txt_15335327BA252_5M (rev1p0).zip \| 188.2 MB RIR Photopia_rir_15335327BA252_5M (rev1p0).zip \| 121 MB SIM Simulux_ray_15335327BA252_5M (rev1p0).zip \| 121 MB SPE Speos_ray_15335327BA252_5M (rev1p0).zip \| 125.3 MB SRC Lucaray-maker_src_15335327BA252_5M (rev1p0).zip \| 121 MB TRA TracePro_txt_15335327BA252_5M (rev1p0).zip \| 188.2 MB ZEM ZemaxBin_dat_15335327BA252_5M (rev1p0).zip \| 121 MB ZEM Zemax_dat_15335327BA252_5M (rev1p0).zip \| 188.2 MB	Status ActiveProduction is active. Expected lifetime: >10 years. iProduction is active. Expected lifetime: >10 years.	Peak Wavelength [typ.]275 nm	Radiant Flux [min.]8 mW	Radiant Flux [typ.]15 mW	–	Forward Voltage [typ.]6 V	Chip TechnologyAlGaN	Viewing Angle Phi 0° [typ.]120 °	–Check availability
	15335327CA452	SPEC275 nm, 13 mW, 20 mW	Simulation	Availability –	Downloads30 files ALT Altium_WL-SUMW (rev25a).IntLib \| 111 KB CDS CADENCE_WL-SUMW (rev25a).zip \| 871 KB EAG Eagle_WL-SUMW (rev25a).lbr \| 32.7 KB KIC KiCad_WL-SUMW (rev26a).zip \| 143.1 KB 3D 15335327CA452_3D (rev1).pdf \| 47.2 KB 3D 3D_15335327CA452 (rev1).pdf \| 83.9 KB IGS 15335327CA452 (rev1).igs \| 611.1 KB IGS IGS_15335327CA452 (rev1).igs \| 1 MB STP 15335327CA452 (rev1).stp \| 171.9 KB STP STP_15335327CA452 (rev1).stp \| 241.7 KB PSP PSpice_WL-SUMW (rev22a).zip \| 3.9 KB RAY files ASA ASAP-and-APEX_dis_15335327CA452_5M (rev1p0).zip \| 121.9 MB COD CodeV_ray_15335327CA452_5M (rev1p0).zip \| 121.9 MB FRE Fred_dat_15335327CA452_5M (rev1p0).zip \| 121.9 MB FRE Fred_txt_15335327CA452_5M (rev1p0).zip \| 189 MB LIG LightTools_ray_15335327CA452_5M (rev1p0).zip \| 121.9 MB LIG LightTools_txt_15335327CA452_5M (rev1p0).zip \| 189 MB LUC LucidShape_ray_15335327CA452_5M (rev1p0).zip \| 121.9 MB LUC LucidShape_txt_15335327CA452_5M (rev1p0).zip \| 189 MB OPT OpTaliX_dis_15335327CA452_5M (rev1p0).zip \| 121.9 MB OPT OpTaliX_txt_15335327CA452_5M (rev1p0).zip \| 189 MB OPT OptiCAD_dat_15335327CA452_5M (rev1p0).zip \| 121.9 MB OPT OptiCAD_txt_15335327CA452_5M (rev1p0).zip \| 189 MB RIR Photopia_rir_15335327CA452_5M (rev1p0).zip \| 121.9 MB SIM Simulux_ray_15335327CA452_5M (rev1p0).zip \| 121.9 MB SPE Speos_ray_15335327CA452_5M (rev1p0).zip \| 126.4 MB SRC Lucaray-maker_src_15335327CA452_5M (rev1p0).zip \| 121.9 MB TRA TracePro_txt_15335327CA452_5M (rev1p0).zip \| 189.3 MB ZEM ZemaxBin_dat_15335327CA452_5M (rev1p0).zip \| 121.9 MB ZEM Zemax_dat_15335327CA452_5M (rev1p0).zip \| 189 MB	Status ActiveProduction is active. Expected lifetime: >10 years. iProduction is active. Expected lifetime: >10 years.	Peak Wavelength [typ.]275 nm	Radiant Flux [min.]13 mW	Radiant Flux [typ.]20 mW	–	Forward Voltage [typ.]6 V	Chip TechnologyAlGaN	Viewing Angle Phi 0° [typ.]120 °	–Check availability
	15335327CA554	SPEC275 nm, 40 mW, 50 mW	Simulation	Availability –	Downloads30 files ALT Altium_WL-SUMW (rev25a).IntLib \| 111 KB CDS CADENCE_WL-SUMW (rev25a).zip \| 871 KB EAG Eagle_WL-SUMW (rev25a).lbr \| 32.7 KB KIC KiCad_WL-SUMW (rev26a).zip \| 143.1 KB 3D 15335327CA554_3D (rev1).pdf \| 46.9 KB 3D 3D_15335327CA554 (rev1).pdf \| 87 KB IGS 15335327CA554 (rev1).igs \| 610.9 KB IGS IGS_15335327CA554 (rev1).igs \| 1 MB STP 15335327CA554 (rev1).stp \| 172 KB STP STP_15335327CA554 (rev1).stp \| 241.7 KB PSP PSpice_WL-SUMW (rev22a).zip \| 3.9 KB RAY files ASA ASAP-and-APEX_dis_15335327CA554_5M (rev1p0).zip \| 121.8 MB COD CodeV_ray_15335327CA554_5M (rev1p0).zip \| 121.8 MB FRE Fred_dat_15335327CA554_5M (rev1p0).zip \| 121.8 MB FRE Fred_txt_15335327CA554_5M (rev1p0).zip \| 188.1 MB LIG LightTools_ray_15335327CA554_5M (rev1p0).zip \| 121.8 MB LIG LightTools_txt_15335327CA554_5M (rev1p0).zip \| 188.1 MB LUC LucidShape_ray_15335327CA554_5M (rev1p0).zip \| 121.8 MB LUC LucidShape_txt_15335327CA554_5M (rev1p0).zip \| 188 MB OPT OpTaliX_dis_15335327CA554_5M (rev1p0).zip \| 121.8 MB OPT OpTaliX_txt_15335327CA554_5M (rev1p0).zip \| 188.1 MB OPT OptiCAD_dat_15335327CA554_5M (rev1p0).zip \| 121.8 MB OPT OptiCAD_txt_15335327CA554_5M (rev1p0).zip \| 188 MB RIR Photopia_rir_15335327CA554_5M (rev1p0).zip \| 121.8 MB SIM Simulux_ray_15335327CA554_5M (rev1p0).zip \| 121.8 MB SPE Speos_ray_15335327CA554_5M (rev1p0).zip \| 126.3 MB SRC Lucaray-maker_src_15335327CA554_5M (rev1p0).zip \| 121.8 MB TRA TracePro_txt_15335327CA554_5M (rev1p0).zip \| 188.1 MB ZEM ZemaxBin_dat_15335327CA554_5M (rev1p0).zip \| 121.8 MB ZEM Zemax_dat_15335327CA554_5M (rev1p0).zip \| 188 MB	Status ActiveProduction is active. Expected lifetime: >10 years. iProduction is active. Expected lifetime: >10 years.	Peak Wavelength [typ.]275 nm	Radiant Flux [min.]40 mW	Radiant Flux [typ.]50 mW	–	Forward Voltage [typ.]6 V	Chip TechnologyAlGaN	Viewing Angle Phi 0° [typ.]120 °	–Check availability
	15335337AA350	SPEC365 nm, 700 mW, –	Simulation	Availability –	Downloads26 files ALT Altium_WL-SUMW (rev25a).IntLib \| 111 KB CDS CADENCE_WL-SUMW (rev25a).zip \| 871 KB EAG Eagle_WL-SUMW (rev25a).lbr \| 32.7 KB KIC KiCad_WL-SUMW (rev26a).zip \| 143.1 KB IGS Download_IGS_WL-SUMW-3535 (rev1).igs \| 739.2 KB STP Download_STP_WL-SUMW-3535 (rev1).stp \| 221.5 KB PSP PSpice_WL-SUMW (rev22a).zip \| 3.9 KB RAY files ASA ASAP-and-APEX_dis_15335337AA350_5M (rev1p1).zip \| 120.6 MB COD CodeV_ray_15335337AA350_5M (rev1p1).zip \| 120.6 MB FRE Fred_dat_15335337AA350_5M (rev1p1).zip \| 120.6 MB FRE Fred_txt_15335337AA350_5M (rev1p1).zip \| 188.4 MB LIG LightTools_ray_15335337AA350_5M (rev1p1).zip \| 120.6 MB LIG LightTools_txt_15335337AA350_5M (rev1).zip \| 188.8 MB LUC LucidShape_ray_15335337AA350_5M (rev1p1).zip \| 120.6 MB LUC LucidShape_txt_15335337AA350_5M (rev1p1).zip \| 188.6 MB OPT OpTaliX_dis_15335337AA350_5M (rev1p1).zip \| 120.6 MB OPT OpTaliX_txt_15335337AA350_5M (rev1p1).zip \| 188.6 MB OPT OptiCAD_dat_15335337AA350_5M (rev1p1).zip \| 120.6 MB OPT OptiCAD_txt_15335337AA350_5M (rev1p1).zip \| 188.6 MB RIR Photopia_rir_15335337AA350_5M (rev1p1).zip \| 120.6 MB SIM Simulux_ray_15335337AA350_5M (rev1p1).zip \| 120.6 MB SPE Speos_ray_15335337AA350_5M (rev1p1).zip \| 125.1 MB SRC Lucaray-maker_src_15335337AA350_5M (rev1p1).zip \| 120.6 MB TRA TracePro_txt_15335337AA350_5M (rev1p1).zip \| 188.5 MB ZEM ZemaxBin_dat_15335337AA350_5M (rev1p1).zip \| 120.6 MB ZEM Zemax_dat_15335337AA350_5M (rev1p1).zip \| 188.6 MB	Status ActiveProduction is active. Expected lifetime: >10 years. iProduction is active. Expected lifetime: >10 years.	Peak Wavelength [typ.]365 nm	Radiant Flux [min.]700 mW	–	Radiant Flux [max.]1300 mW	Forward Voltage [typ.]3.8 V	Chip TechnologyAlInGaN	Viewing Angle Phi 0° [typ.]130 °	–Check availability
	15335338AA350	SPEC385 nm, 800 mW, –	Simulation	Availability –	Downloads26 files ALT Altium_WL-SUMW (rev25a).IntLib \| 111 KB CDS CADENCE_WL-SUMW (rev25a).zip \| 871 KB EAG Eagle_WL-SUMW (rev25a).lbr \| 32.7 KB KIC KiCad_WL-SUMW (rev26a).zip \| 143.1 KB IGS Download_IGS_WL-SUMW-3535 (rev1).igs \| 739.2 KB STP Download_STP_WL-SUMW-3535 (rev1).stp \| 221.5 KB PSP PSpice_WL-SUMW (rev22a).zip \| 3.9 KB RAY files ASA ASAP-and-APEX_dis_15335338AA350_5M (rev1p1).zip \| 120 MB COD CodeV_ray_15335338AA350_5M (rev1p1).zip \| 120 MB FRE Fred_dat_15335338AA350_5M (rev1p1).zip \| 120 MB FRE Fred_txt_15335338AA350_5M (rev1p1).zip \| 187.7 MB LIG LightTools_ray_15335338AA350_5M (rev1p1).zip \| 120 MB LIG LightTools_txt_15335338AA350_5M (rev1).zip \| 187.7 MB LUC LucidShape_ray_15335338AA350_5M (rev1p1).zip \| 120 MB LUC LucidShape_txt_15335338AA350_5M (rev1p1).zip \| 187.7 MB OPT OpTaliX_dis_15335338AA350_5M (rev1p1).zip \| 120 MB OPT OpTaliX_txt_15335338AA350_5M (rev1p1).zip \| 187.7 MB OPT OptiCAD_dat_15335338AA350_5M (rev1p1).zip \| 120 MB OPT OptiCAD_txt_15335338AA350_5M (rev1p1).zip \| 187.7 MB RIR Photopia_rir_15335338AA350_5M (rev1p1).zip \| 120 MB SIM Simulux_ray_15335338AA350_5M (rev1p1).zip \| 120 MB SPE Speos_ray_15335338AA350_5M (rev1p1).zip \| 124.6 MB SRC Lucaray-maker_src_15335338AA350_5M (rev1p1).zip \| 120 MB TRA TracePro_txt_15335338AA350_5M (rev1p1).zip \| 187.7 MB ZEM ZemaxBin_dat_15335338AA350_5M (rev1p1).zip \| 120 MB ZEM Zemax_dat_15335338AA350_5M (rev1p1).zip \| 187.7 MB	Status ActiveProduction is active. Expected lifetime: >10 years. iProduction is active. Expected lifetime: >10 years.	Peak Wavelength [typ.]385 nm	Radiant Flux [min.]800 mW	–	Radiant Flux [max.]1300 mW	Forward Voltage [typ.]3.5 V	Chip TechnologyAlInGaN	Viewing Angle Phi 0° [typ.]130 °	–Check availability
	15335339AA350	SPEC395 nm, 800 mW, –	Simulation	Availability –	Downloads26 files ALT Altium_WL-SUMW (rev25a).IntLib \| 111 KB CDS CADENCE_WL-SUMW (rev25a).zip \| 871 KB EAG Eagle_WL-SUMW (rev25a).lbr \| 32.7 KB KIC KiCad_WL-SUMW (rev26a).zip \| 143.1 KB IGS Download_IGS_WL-SUMW-3535 (rev1).igs \| 739.2 KB STP Download_STP_WL-SUMW-3535 (rev1).stp \| 221.5 KB PSP PSpice_WL-SUMW (rev22a).zip \| 3.9 KB RAY files ASA ASAP-and-APEX_dis_15335339AA350_5M (rev1p1).zip \| 120.5 MB COD CodeV_ray_15335339AA350_5M (rev1p1).zip \| 120.5 MB FRE Fred_dat_15335339AA350_5M (rev1p1).zip \| 120.5 MB FRE Fred_txt_15335339AA350_5M (rev1p1).zip \| 188.7 MB LIG LightTools_ray_15335339AA350_5M (rev1p1).zip \| 120.5 MB LIG LightTools_txt_15335339AA350_5M (rev1).zip \| 189 MB LUC LucidShape_ray_15335339AA350_5M (rev1p1).zip \| 120.5 MB LUC LucidShape_txt_15335339AA350_5M (rev1p1).zip \| 188.6 MB OPT OpTaliX_dis_15335339AA350_5M (rev1p1).zip \| 120.5 MB OPT OpTaliX_txt_15335339AA350_5M (rev1p1).zip \| 188.6 MB OPT OptiCAD_dat_15335339AA350_5M (rev1p1).zip \| 120.5 MB OPT OptiCAD_txt_15335339AA350_5M (rev1p1).zip \| 188.6 MB RIR Photopia_rir_15335339AA350_5M (rev1p1).zip \| 120.5 MB SIM Simulux_ray_15335339AA350_5M (rev1p1).zip \| 120.5 MB SPE Speos_ray_15335339AA350_5M (rev1p1).zip \| 125.1 MB SRC Lucaray-maker_src_15335339AA350_5M (rev1p1).zip \| 120.5 MB TRA TracePro_txt_15335339AA350_5M (rev1p1).zip \| 188.6 MB ZEM ZemaxBin_dat_15335339AA350_5M (rev1p1).zip \| 120.5 MB ZEM Zemax_dat_15335339AA350_5M (rev1p1).zip \| 188.6 MB	Status ActiveProduction is active. Expected lifetime: >10 years. iProduction is active. Expected lifetime: >10 years.	Peak Wavelength [typ.]395 nm	Radiant Flux [min.]800 mW	–	Radiant Flux [max.]1300 mW	Forward Voltage [typ.]3.5 V	Chip TechnologyAlInGaN	Viewing Angle Phi 0° [typ.]130 °	–Check availability
	15335340AA350	SPEC405 nm, 800 mW, –	Simulation	Availability –	Downloads26 files ALT Altium_WL-SUMW (rev25a).IntLib \| 111 KB CDS CADENCE_WL-SUMW (rev25a).zip \| 871 KB EAG Eagle_WL-SUMW (rev25a).lbr \| 32.7 KB KIC KiCad_WL-SUMW (rev26a).zip \| 143.1 KB IGS Download_IGS_WL-SUMW-3535 (rev1).igs \| 739.2 KB STP Download_STP_WL-SUMW-3535 (rev1).stp \| 221.5 KB PSP PSpice_WL-SUMW (rev22a).zip \| 3.9 KB RAY files ASA ASAP-and-APEX_dis_15335340AA350_5M (rev1p1).zip \| 120.8 MB COD CodeV_ray_15335340AA350_5M (rev1p1).zip \| 120.8 MB FRE Fred_dat_15335340AA350_5M (rev1p1).zip \| 120.8 MB FRE Fred_txt_15335340AA350_5M (rev1p1).zip \| 188.9 MB LIG LightTools_ray_15335340AA350_5M (rev1p1).zip \| 120.8 MB LIG LightTools_txt_15335340AA350_5M (rev1).zip \| 189.7 MB LUC LucidShape_ray_15335340AA350_5M (rev1p1).zip \| 120.8 MB LUC LucidShape_txt_15335340AA350_5M (rev1p1).zip \| 188.9 MB OPT OpTaliX_dis_15335340AA350_5M (rev1p1).zip \| 120.8 MB OPT OpTaliX_txt_15335340AA350_5M (rev1p1).zip \| 188.9 MB OPT OptiCAD_dat_15335340AA350_5M (rev1p1).zip \| 120.8 MB OPT OptiCAD_txt_15335340AA350_5M (rev1p1).zip \| 188.9 MB RIR Photopia_rir_15335340AA350_5M (rev1p1).zip \| 120.8 MB SIM Simulux_ray_15335340AA350_5M (rev1p1).zip \| 120.8 MB SPE Speos_ray_15335340AA350_5M (rev1p1).zip \| 125.4 MB SRC Lucaray-maker_src_15335340AA350_5M (rev1p1).zip \| 120.8 MB TRA TracePro_txt_15335340AA350_5M (rev1p1).zip \| 189 MB ZEM ZemaxBin_dat_15335340AA350_5M (rev1p1).zip \| 120.8 MB ZEM Zemax_dat_15335340AA350_5M (rev1p1).zip \| 51 MB	Status ActiveProduction is active. Expected lifetime: >10 years. iProduction is active. Expected lifetime: >10 years.	Peak Wavelength [typ.]405 nm	Radiant Flux [min.]800 mW	–	Radiant Flux [max.]1300 mW	Forward Voltage [typ.]3.5 V	Chip TechnologyAlInGaN	Viewing Angle Phi 0° [typ.]130 °	–Check availability
