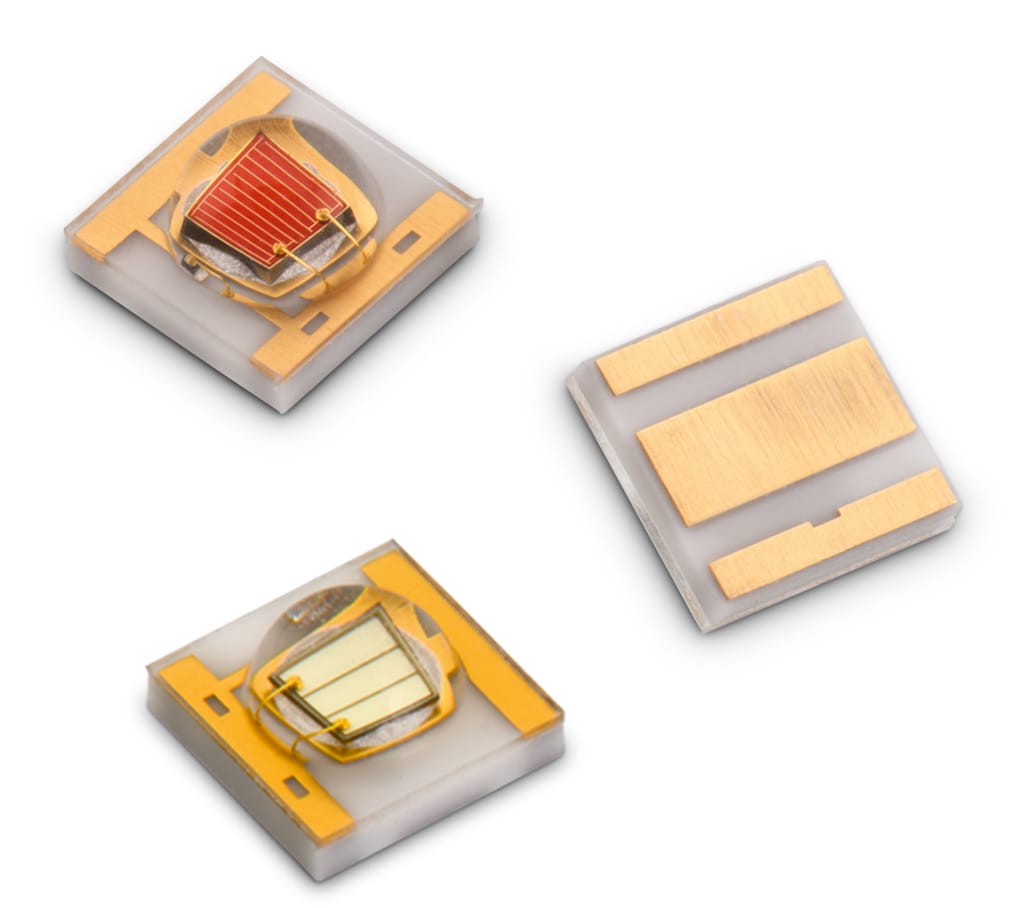

WL-SMDC SMT Mono-color Ceramic LED Waterclear

Size	Dimensions	L (mm)	W (mm)	H (mm)	Mount
3535		3.45	3.45	0.71	SMT

LTSpice files

LT
LTSpice_WL-SMDC (rev22a).zip
|
2 KB

Characteristics

SMD LED ceramic package with high efficiency
Waterclear silicone lense
High brightness with minimal side emission
Flexible coupling with secondary optic
Narrow viewing angle: 60°
Moisture Sensitivity Level: 1
Electrically neutral thermal path
Low thermal resistance: 125°C / 150°C

Applications

Architectural LED lighting indoor
Entertainment and stage lighting
Indoor smart lights
Horticultural lighting
Aquarium lighting
Traffic and signal lights

Application Notes

Products

3535

Filter article data

show article in 1 product lines

article in 1 product lines

Order Code	Datasheet	Simulation	Downloads	Status	λ_{Dom typ.}(nm)	Emitting Color	λ_{Peak typ.}(nm)	Φ_{V typ.}(lm)	V_{F typ.}(V)	Chip Technology	2θ_{50% typ.}(°)	Design Kit	Samples
150353BS74500	460 nm, Blue, 455 nm	Simulation	Downloads30 files EDA models: Components ZIP ALT Altium_WL-SMDC (rev25a).IntLib \| 55.5 KB CDS Cadence_WL-SMDC (rev25a).zip \| 376 KB EAG Eagle_WL-SMDC (rev22a).lbr \| 22.1 KB KIC KiCad_WL-SMDC (rev26a).zip \| 559.2 KB CAD files ZIP 3D 3D_WL-SMDC-3535 (rev1).pdf \| 166.6 KB IGS Download_IGS_WL-SMDC-3535 (rev1).igs \| 777.8 KB STP Download_STP_WL-SMDC-3535 (rev1).stp \| 316.1 KB Electric models ZIP PSP PSpice_WL-SMDC (rev22a).zip \| 3.7 KB RAY files ASA asap-and-apex_dis_150353BS74500_5M (rev1).zip \| 120.5 MB COD CodeV_ray_150353BS74500_5M (rev1).zip \| 120.5 MB FRE Fred_dat_150353BS74500_5M (rev1).zip \| 120.5 MB FRE Fred_txt_150353BS74500_5M (rev1).zip \| 199.6 MB LIG LightTools_ray_150353BS74500_5M (rev1).zip \| 120.5 MB LIG LightTools_txt_150353BS74500_5M (rev1).zip \| 199.6 MB LUC LucidShape_ray_150353BS74500_5M (rev1).zip \| 120.5 MB LUC LucidShape_txt_150353BS74500_5M (rev1).zip \| 199.6 MB OPT OpTaliX_dis_150353BS74500_5M (rev1).zip \| 120.5 MB OPT OpTaliX_txt_150353BS74500_5M (rev1).zip \| 199.6 MB OPT OptiCAD_dat_150353BS74500_5M (rev1).zip \| 120.5 MB OPT OptiCAD_txt_150353BS74500_5M (rev1).zip \| 199.6 MB OPT optisWorks_ray_150353BS74500_5M (rev1).zip \| 126.4 MB RIR photopia_rir_150353BS74500_5M (rev1).zip \| 120.5 MB SIM simulux_ray_150353BS74500_5M (rev1).zip \| 120.5 MB SPE speosCAA_ray_150353BS74500_5M (rev1).zip \| 126.4 MB SPE speosProEng_ray_150353BS74500_5M (rev1).zip \| 126.4 MB SPE speos_ray_150353BS74500_5M (rev1).zip \| 126.4 MB SRC LucidShape_ray_150353BS74500_5M (rev1).src \| 133.2 MB TRA TracePro_txt_150353BS74500_5M (rev1).zip \| 199.6 MB ZEM zemaxBin_dat_150353BS74500_5M (rev1).zip \| 120.5 MB ZEM zemax_dat_150353BS74500_5M (rev1).zip \| 199.6 MB	Status Activei\| Production is active. Expected lifetime: >10 years.	Dominant Wavelength [typ.]460 nm	Emitting ColorBlue	Peak Wavelength [typ.]455 nm	Luminous Flux [typ.]25 lm	Forward Voltage [typ.]3.2 V	Chip TechnologyInGaN	Viewing Angle Phi 0° [typ.]125 °	Design Kit 150151
150353GS74500	525 nm, Green, 520 nm	Simulation	Downloads27 files EDA models: Components ZIP ALT Altium_WL-SMDC (rev25a).IntLib \| 55.5 KB CDS Cadence_WL-SMDC (rev25a).zip \| 376 KB EAG Eagle_WL-SMDC (rev22a).lbr \| 22.1 KB KIC KiCad_WL-SMDC (rev26a).zip \| 559.2 KB CAD files ZIP 3D 3D_WL-SMDC-3535 (rev1).pdf \| 166.6 KB IGS Download_IGS_WL-SMDC-3535 (rev1).igs \| 777.8 KB STP Download_STP_WL-SMDC-3535 (rev1).stp \| 316.1 KB Electric models ZIP PSP PSpice_WL-SMDC (rev22a).zip \| 3.7 KB RAY files ASA ASAP-and-APEX_dis_150353GS74500_5M (rev1p0).zip \| 120.6 MB COD CodeV_ray_150353GS74500_5M (rev1p0).zip \| 120.6 MB FRE Fred_dat_150353GS74500_5M (rev1p0).zip \| 120.6 MB FRE Fred_txt_150353GS74500_5M (rev1p0).zip \| 188.6 MB LIG LightTools_ray_150353GS74500_5M (rev1p0).zip \| 120.6 MB LIG LightTools_txt_150353GS74500_5M (rev1p0).zip \| 188.6 MB LUC LucidShape_ray_150353GS74500_5M (rev1p0).zip \| 120.6 MB LUC LucidShape_txt_150353GS74500_5M (rev1p0).zip \| 188.6 MB OPT OpTaliX_txt_150353GS74500_5M (rev1p0).zip \| 188.6 MB OPT OptiCAD_dat_150353GS74500_5M (rev1p0).zip \| 120.6 MB OPT OptiCAD_txt_150353GS74500_5M (rev1p0).zip \| 188.6 MB OPT optalix_DIS_150353GS74500_5M (rev1p0).zip \| 120.6 MB RIR Photopia_rir_150353GS74500_5M (rev1p0).zip \| 120.6 MB SIM Simulux_ray_150353GS74500_5M (rev1p0).zip \| 120.6 MB SPE Speos_ray_150353GS74500_5M (rev1p0).zip \| 124.7 MB SRC Lucaray-maker_src_150353GS74500_5M (rev1p0).zip \| 120.6 MB TRA TracePro_txt_150353GS74500_5M (rev1p0).zip \| 188.6 MB ZEM ZemaxBin_dat_150353GS74500_5M (rev1p0).zip \| 120.6 MB ZEM Zemax_dat_150353GS74500_5M (rev1p0).zip \| 188.6 MB	Status Activei\| Production is active. Expected lifetime: >10 years.	Dominant Wavelength [typ.]525 nm	Emitting ColorGreen	Peak Wavelength [typ.]520 nm	Luminous Flux [typ.]85 lm	Forward Voltage [typ.]3.4 V	Chip TechnologyInGaN	Viewing Angle Phi 0° [typ.]125 °	Design Kit 150151
150353YS74500	590 nm, Yellow, 593 nm	Simulation	Downloads30 files EDA models: Components ZIP ALT Altium_WL-SMDC (rev25a).IntLib \| 55.5 KB CDS Cadence_WL-SMDC (rev25a).zip \| 376 KB EAG Eagle_WL-SMDC (rev22a).lbr \| 22.1 KB KIC KiCad_WL-SMDC (rev26a).zip \| 559.2 KB CAD files ZIP 3D 3D_WL-SMDC-3535 (rev1).pdf \| 166.6 KB IGS Download_IGS_WL-SMDC-3535 (rev1).igs \| 777.8 KB STP Download_STP_WL-SMDC-3535 (rev1).stp \| 316.1 KB Electric models ZIP PSP PSpice_WL-SMDC (rev22a).zip \| 3.7 KB RAY files ASA asap-and-apex_dis_150353YS74500_5M (rev1).zip \| 120.4 MB COD CodeV_ray_150353YS74500_5M (rev1).zip \| 120.4 MB FRE Fred_dat_150353YS74500_5M (rev1).zip \| 120.4 MB FRE Fred_txt_150353YS74500_5M (rev1).zip \| 189.4 MB LIG LightTools_ray_150353YS74500_5M (rev1).zip \| 120.4 MB LIG LightTools_txt_150353YS74500_5M (rev1).zip \| 189.4 MB LUC LucidShape_ray_150353YS74500_5M (rev1).zip \| 120.4 MB LUC LucidShape_txt_150353YS74500_5M (rev1).zip \| 189.4 MB OPT OpTaliX_dis_150353YS74500_5M (rev1).zip \| 120.4 MB OPT OpTaliX_txt_150353YS74500_5M (rev1).zip \| 189.4 MB OPT OptiCAD_dat_150353YS74500_5M (rev1).zip \| 120.4 MB OPT OptiCAD_txt_150353YS74500_5M (rev1).zip \| 189.4 MB OPT optisWorks_ray_150353YS74500_5M (rev1).zip \| 124.9 MB RIR photopia_rir_150353YS74500_5M (rev1).zip \| 120.4 MB SIM simulux_ray_150353YS74500_5M (rev1).zip \| 120.4 MB SPE speosCAA_ray_150353YS74500_5M (rev1).zip \| 124.9 MB SPE speosProEng_ray_150353YS74500_5M (rev1).zip \| 124.9 MB SPE speos_ray_150353YS74500_5M (rev1).zip \| 124.9 MB SRC Lucaray-maker_src_150353YS74500_5M (rev1).zip \| 120.4 MB TRA TracePro_txt_150353YS74500_5M (rev1).zip \| 189.3 MB ZEM zemaxBin_dat_150353YS74500_5M (rev1).zip \| 120.4 MB ZEM zemax_dat_150353YS74500_5M (rev1).zip \| 189.4 MB	Status Activei\| Production is active. Expected lifetime: >10 years.	Dominant Wavelength [typ.]590 nm	Emitting ColorYellow	Peak Wavelength [typ.]593 nm	Luminous Flux [typ.]90 lm	Forward Voltage [typ.]2.2 V	Chip TechnologyAlInGaP	Viewing Angle Phi 0° [typ.]125 °	Design Kit 150151
150353RS74500	625 nm, Red, 635 nm	Simulation	Downloads27 files EDA models: Components ZIP ALT Altium_WL-SMDC (rev25a).IntLib \| 55.5 KB CDS Cadence_WL-SMDC (rev25a).zip \| 376 KB EAG Eagle_WL-SMDC (rev22a).lbr \| 22.1 KB KIC KiCad_WL-SMDC (rev26a).zip \| 559.2 KB CAD files ZIP 3D 3D_WL-SMDC-3535 (rev1).pdf \| 166.6 KB IGS Download_IGS_WL-SMDC-3535 (rev1).igs \| 777.8 KB STP Download_STP_WL-SMDC-3535 (rev1).stp \| 316.1 KB Electric models ZIP PSP PSpice_WL-SMDC (rev22a).zip \| 3.7 KB RAY files ASA ASAP-and-APEX_dis_150353RS74500_5M (rev1p0).zip \| 120.8 MB COD CodeV_ray_150353RS74500_5M (rev1p0).zip \| 120.8 MB FRE Fred_dat_150353RS74500_5M (rev1p0).zip \| 120.8 MB FRE Fred_txt_150353RS74500_5M (rev1p0).zip \| 188.2 MB LIG LightTools_ray_150353RS74500_5M (rev1p0).zip \| 120.8 MB LIG LightTools_txt_150353RS74500_5M (rev1p0).zip \| 188.2 MB LUC LucidShape_ray_150353RS74500_5M (rev1p0).zip \| 120.8 MB LUC LucidShape_txt_150353RS74500_5M (rev1p0).zip \| 188.2 MB OPT OpTaliX_txt_150353RS74500_5M (rev1p0).zip \| 188.2 MB OPT OptiCAD_dat_150353RS74500_5M (rev1p0).zip \| 120.8 MB OPT OptiCAD_txt_150353RS74500_5M (rev1p0).zip \| 188.2 MB OPT optalix_DIS_150353RS74500_5M (rev1p0).zip \| 120.8 MB RIR Photopia_rir_150353RS74500_5M (rev1p0).zip \| 120.8 MB SIM Simulux_ray_150353RS74500_5M (rev1p0).zip \| 120.8 MB SPE Speos_ray_150353RS74500_5M (rev1p0).zip \| 125.3 MB SRC Lucaray-maker_src_150353RS74500_5M (rev1p0).zip \| 120.8 MB TRA TracePro_txt_150353RS74500_5M (rev1p0).zip \| 188.2 MB ZEM ZemaxBin_dat_150353RS74500_5M (rev1p0).zip \| 120.8 MB ZEM Zemax_dat_150353RS74500_5M (rev1p0).zip \| 188.2 MB	Status Activei\| Production is active. Expected lifetime: >10 years.	Dominant Wavelength [typ.]625 nm	Emitting ColorRed	Peak Wavelength [typ.]635 nm	Luminous Flux [typ.]70 lm	Forward Voltage [typ.]2.2 V	Chip TechnologyAlInGaP	Viewing Angle Phi 0° [typ.]125 °	Design Kit 150151
