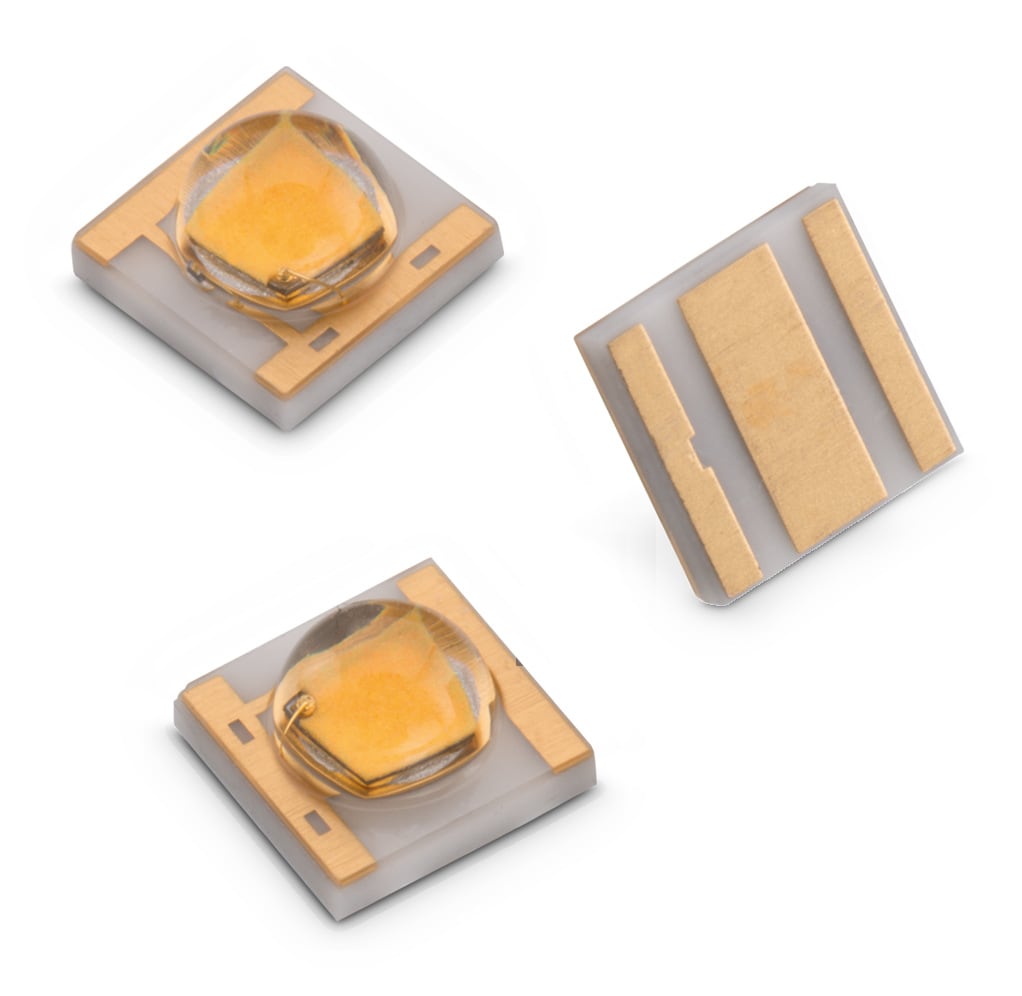

WL-SWTC SMT White Top view Ceramic LED

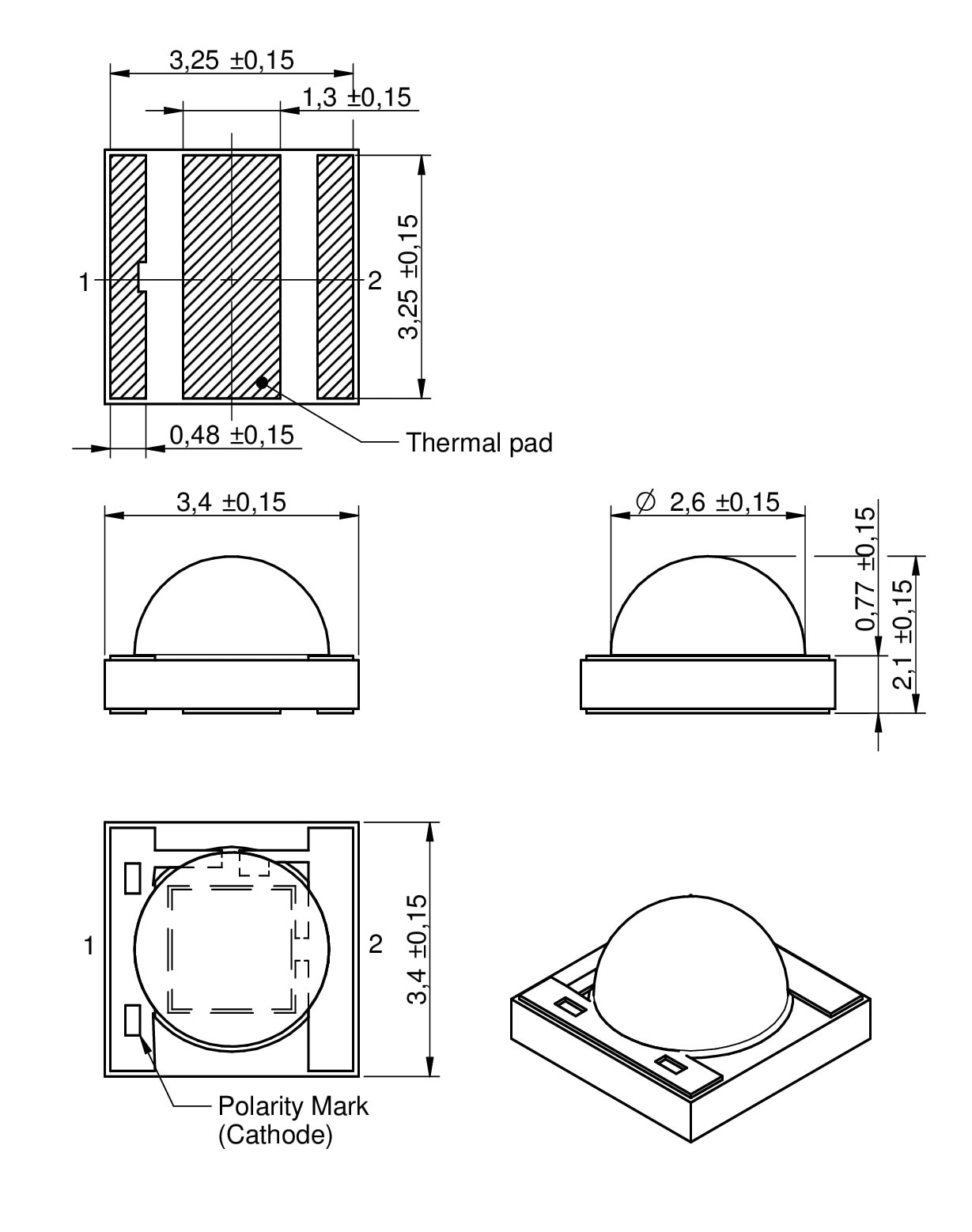

Size	Dimensions	L (mm)	W (mm)	H (mm)	Mount
3535		3.45	3.45	0.71	SMT

LTSpice files

LT

LTSpice_WL-SWTC (rev22a).zip

|

1.8 KB

Characteristics

Fast switching
No IR radiation
High brightness
Minimal side emission
Waterclear silicone lens
Top view
Flexible coupling with secondary optic
Various of color temperatures
Compact footprint
Thermal resistance junction to solder point: 8 K/W
LED junction temperature: 150°C
Moisture Sensitivity Level: 2

Applications

Interior lighting: Spot light, Down light, Shelf light
Outdoor lighting: Street light, Security light, Tunnel light, Parking lot light, Pedestrian light
Industrial lighting: High-bay light, Low-bay light
Consumer lighting: Torch light
Agricultural equipment lighting
LED Signal and Symbol luminaries

Application Notes

DNS001 LED Driver with MagI³C Power Module
PDF

Products

3535

Reset all

Filter article data

show article in 1 product lines

article in 1 product lines

Order Code	Datasheet	Simulation	Downloads	Status	Emitting Color	CRI typ.	Φ_{V typ.} (lm)	V_{F typ.} (V)	Chip Technology	2θ_{50% typ.} (°)	Size	Design Kit	Samples
158353060	Cool White, 70, 135 lm	Simulation	Downloads 6 files EDA models: Components ZIP ALT WL-SWTC (rev22c).IntLib \| 51.5 KB CDS Cadence_WL-SWTC (rev25a).zip \| 299.9 KB EAG Eagle_WL-SWTC (rev22a).lbr \| 18.4 KB CAD files ZIP IGS Download_IGS_WL-SWTC-3535 (rev1).igs \| 667.4 KB STP Download_STP_WL-SWTC-3535 (rev1).stp \| 251.8 KB Electric models ZIP PSP PSpice_WL-SWTC (rev22a).zip \| 3.2 KB Download all 6 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Emitting Color Cool White	Color Rendering Index [typ.] 70	Luminous Flux [typ.] 135 lm	Forward Voltage [typ.] 3.2 V	Chip Technology InGaN	Viewing Angle Phi 0° [typ.] 120 °	Size 3535	Design Kit 158300
158353050	Daylight, 70, 135 lm	Simulation	Downloads 25 files EDA models: Components ZIP ALT WL-SWTC (rev22c).IntLib \| 51.5 KB CDS Cadence_WL-SWTC (rev25a).zip \| 299.9 KB EAG Eagle_WL-SWTC (rev22a).lbr \| 18.4 KB CAD files ZIP IGS Download_IGS_WL-SWTC-3535 (rev1).igs \| 667.4 KB STP Download_STP_WL-SWTC-3535 (rev1).stp \| 251.8 KB Electric models ZIP PSP PSpice_WL-SWTC (rev22a).zip \| 3.2 KB RAY files ASA ASAP-and-APEX_dis_158353050_5M (rev1p0).zip \| 120.9 MB COD CodeV_ray_158353050_5M (rev1p0).zip \| 120.9 MB FRE Fred_dat_158353050_5M (rev1p0).zip \| 120.9 MB FRE Fred_txt_158353050_5M (rev1p0).zip \| 188.9 MB LIG LightTools_ray_158353050_5M (rev1p0).zip \| 120.9 MB LIG LightTools_txt_158353050_5M (rev1p0).zip \| 188.9 MB LUC LucidShape_ray_158353050_5M (rev1p0).zip \| 120.9 MB LUC LucidShape_txt_158353050_5M (rev1p0).zip \| 188.9 MB OPT OpTaliX_dis_158353050_5M (rev1p0).zip \| 120.9 MB OPT OpTaliX_txt_158353050_5M (rev1p0).zip \| 188.9 MB OPT OptiCAD_dat_158353050_5M (rev1p0).zip \| 120.9 MB OPT OptiCAD_txt_158353050_5M (rev1p0).zip \| 188.9 MB RIR Photopia_rir_158353050_5M (rev1p0).zip \| 120.9 MB SIM Simulux_ray_158353050_5M (rev1p0).zip \| 120.9 MB SPE Speos_ray_158353050_5M (rev1p0).zip \| 125 MB SRC Lucaray-maker_src_158353050_5M (rev1p0).zip \| 120.9 MB TRA TracePro_txt_158353050_5M (rev1p0).zip \| 188.9 MB ZEM ZemaxBin_dat_158353050_5M (rev1p0).zip \| 120.9 MB ZEM Zemax_dat_158353050_5M (rev1p0).zip \| 188.9 MB	Status Active i \| Production is active. Expected lifetime: >10 years.	Emitting Color Daylight	Color Rendering Index [typ.] 70	Luminous Flux [typ.] 135 lm	Forward Voltage [typ.] 3.2 V	Chip Technology InGaN	Viewing Angle Phi 0° [typ.] 120 °	Size 3535	Design Kit 158300
158353040	Moonlight, 75, 121 lm	Simulation	Downloads 6 files EDA models: Components ZIP ALT WL-SWTC (rev22c).IntLib \| 51.5 KB CDS Cadence_WL-SWTC (rev25a).zip \| 299.9 KB EAG Eagle_WL-SWTC (rev22a).lbr \| 18.4 KB CAD files ZIP IGS Download_IGS_WL-SWTC-3535 (rev1).igs \| 667.4 KB STP Download_STP_WL-SWTC-3535 (rev1).stp \| 251.8 KB Electric models ZIP PSP PSpice_WL-SWTC (rev22a).zip \| 3.2 KB Download all 6 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Emitting Color Moonlight	Color Rendering Index [typ.] 75	Luminous Flux [typ.] 121 lm	Forward Voltage [typ.] 3.2 V	Chip Technology InGaN	Viewing Angle Phi 0° [typ.] 120 °	Size 3535	Design Kit 158300
