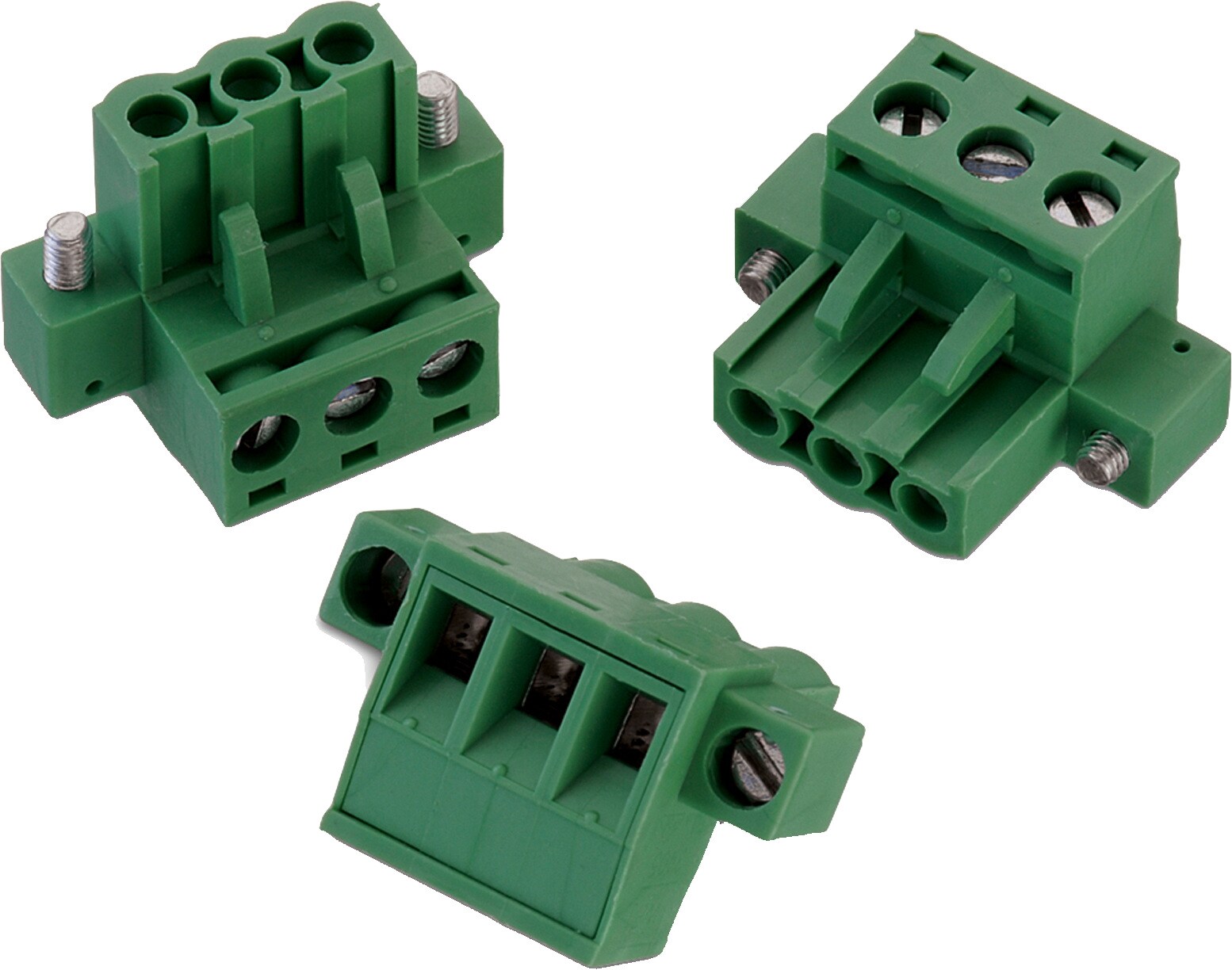

WR-TBL Series 3405 - 5.08 mm Vertical with Flanges

Kind Properties
Pitch 5.08 mm
Material Properties
Insulator Material PA66
Insulator Flammability Rating UL94 V-0
Contact Material Brass
Terminal Screw Material Steel
Terminal Screw Plating Zinc
Wire Guard Material Phosphor Bronze
General Information
Operating Temperature -40 up to +105 °C
Compliance RoHS
Electrical Properties
IR cULus 20 A
IR VDE 20 A
Working Voltage 300 V (AC)
Working Voltage [cULus] 300 V (AC)
Working Voltage [VDE] 300 V (AC)
Withstanding Voltage [cULus] 1600 V (AC)
Withstanding Voltage [VDE] 2500 V (AC)
Contact Resistance [cULus] 20 mΩ
Contact Resistance [VDE] 20 mΩ
Mechanical Properties
Wire Strip Length 7 up to 8 (mm)
Screw M3
Wire Properties
Solid Wire Section (AWG) 12 to 24 (AWG)
Solid Wire Section (Metric) 3.31 to 0.205 (mm²)
Stranded Wire Section (AWG) 12 to 24 (AWG)
Stranded Wire Section (Metric) 3.31 to 0.205 (mm²)
Certification
cULus Approval E315414
VDE Approval 40023195

Products

Order Code Data­sheet Downloads Application PCB/Cable/Panel Modularity Type Pins Wire Section Samples
691340500002
IGE STE STE STE 3D IGS Pluggable Cable No Vertical 2 12 to 24 (AWG) 3.31 to 0.205 (mm²)
691340500003
STE STE STE 3D IGS IGS Pluggable Cable No Vertical 3 12 to 24 (AWG) 3.31 to 0.205 (mm²)
691340500004
STE STE STE 3D IGS IGS Pluggable Cable No Vertical 4 12 to 24 (AWG) 3.31 to 0.205 (mm²)
691340500005
STE STE STE 3D IGS IGS Pluggable Cable No Vertical 5 12 to 24 (AWG) 3.31 to 0.205 (mm²)
691340500006
STE STE STE 3D IGS IGS Pluggable Cable No Vertical 6 12 to 24 (AWG) 3.31 to 0.205 (mm²)
691340500008
STE STE STE 3D IGS IGS Pluggable Cable No Vertical 8 12 to 24 (AWG) 3.31 to 0.205 (mm²)
691340500007
IGE STE STE STE 3D IGS Pluggable Cable No Vertical 7 12 to 24 (AWG) 3.31 to 0.205 (mm²)
691340500012
IGE STE STE STE 3D IGS Pluggable Cable No Vertical 12 12 to 24 (AWG) 3.31 to 0.205 (mm²)
