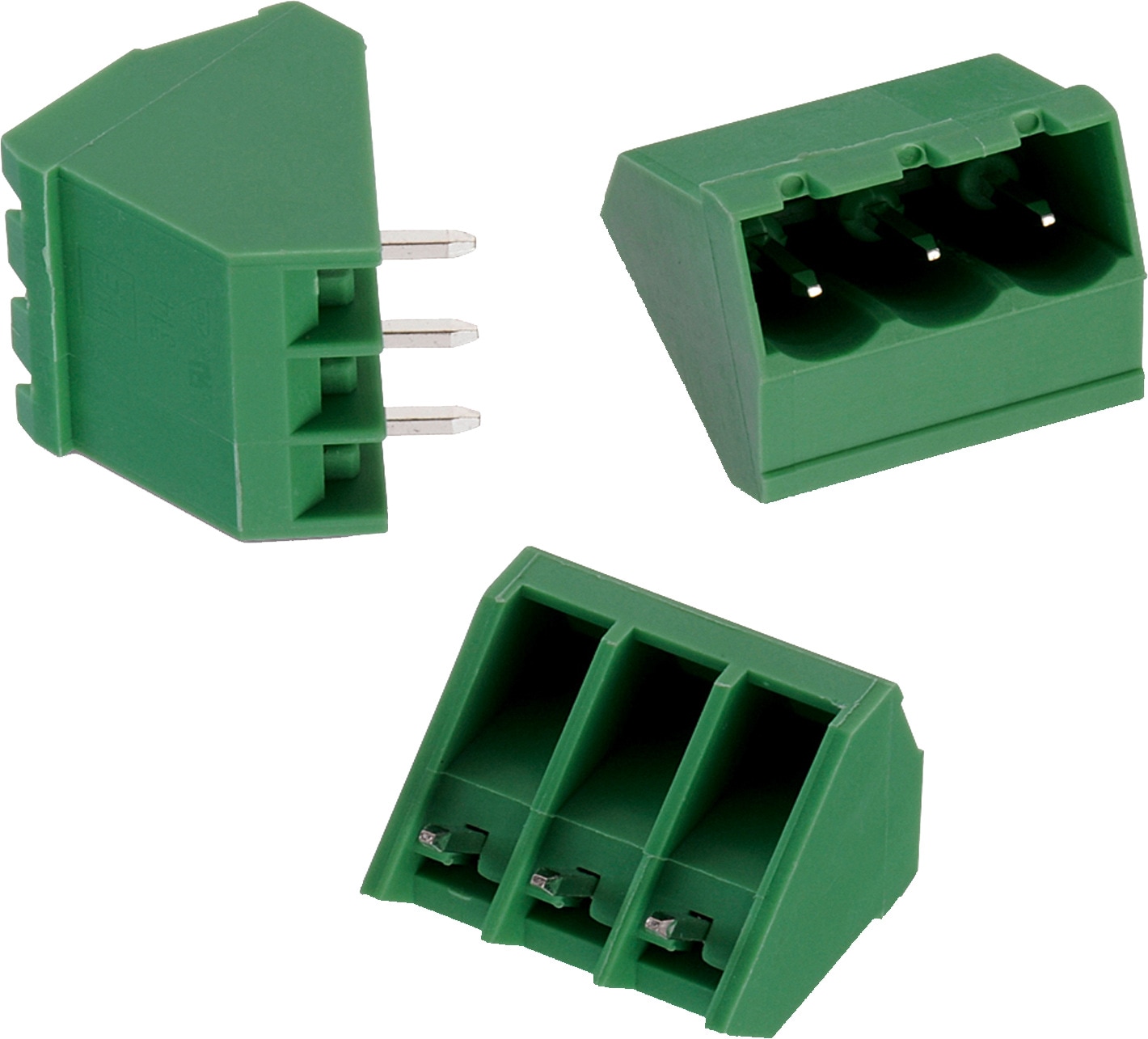

WR-TBL Series 314 - 5.08 mm Close PCB Header | Electromechanical Components

General Information
Operating Temperature	-40 °C up to +105 °C
Compliance	RoHS
Pitch	5.08 mm

Material Properties
Insulator Material	PA66
Insulator Flammability Rating	UL94 V-0
Insulator Color	Green
Contact Material	Brass
Contact Plating	Tin
Pin Material	Brass
Pin Plating	Tin over Nickel

Electrical Properties
I_R	15 A
I_R[cULus]	15 A
I_R[VDE]	15 A
Working Voltage	300 V; 320 V
Working Voltage [cULus]	300 V
Working Voltage [VDE]	320 V
Withstanding Voltage [cULus]	1600 V (AC)
Withstanding Voltage [VDE]	2200 V (AC)
R_C	20 mΩ
R_C	20 mΩ

Certification
cULus Approval	E315414
VDE Approval	40061301

Application Notes

Products

Filter article data

show article in 0 product lines

article in 0 product lines

Reset all

Order Code	Datasheet	Downloads	Status	Pins	PCB/Cable/Panel	Modularity	Type	Design Kit	SamplesAvailability & Sample
691314520102	SPEC2, PCB Header, PCB	Availability –	Downloads6 files EDA models: Components ZIP ALT Altium_WR-TBL_Pluggable Connector (rev26a).IntLib \| 118.9 MB CDS Cadence_WR-TBL (rev26a).zip \| 436.7 MB EAG Eagle_WR-TBL-Pluggable-Connector (rev26a).lbr \| 4.8 MB CAD files ZIP 3D 691314520102_1 (rev1).pdf \| 73.4 KB IGS 691314520102 (rev1).igs \| 845.1 KB STP 691314520102 (rev1).stp \| 289.8 KB	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins2	PCB/Cable/PanelPCB	ModularityNo	TypeClosed 45° Plug entry	Design Kit 691002	–Check availability
691314520103	SPEC3, PCB Header, PCB	Availability –	Downloads6 files EDA models: Components ZIP ALT Altium_WR-TBL_Pluggable Connector (rev26a).IntLib \| 118.9 MB CDS Cadence_WR-TBL (rev26a).zip \| 436.7 MB EAG Eagle_WR-TBL-Pluggable-Connector (rev26a).lbr \| 4.8 MB CAD files ZIP 3D 691314520103_1 (rev1).pdf \| 100.1 KB IGS 691314520103 (rev1).igs \| 1.1 MB STP 691314520103 (rev1).stp \| 388.9 KB	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins3	PCB/Cable/PanelPCB	ModularityNo	TypeClosed 45° Plug entry	Design Kit –	–Check availability
691314520104	SPEC4, PCB Header, PCB	Availability –	Downloads6 files EDA models: Components ZIP ALT Altium_WR-TBL_Pluggable Connector (rev26a).IntLib \| 118.9 MB CDS Cadence_WR-TBL (rev26a).zip \| 436.7 MB EAG Eagle_WR-TBL-Pluggable-Connector (rev26a).lbr \| 4.8 MB CAD files ZIP 3D 691314520104_1 (rev1).pdf \| 124.7 KB IGS 691314520104 (rev1).igs \| 1.4 MB STP 691314520104 (rev1).stp \| 487.7 KB	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins4	PCB/Cable/PanelPCB	ModularityNo	TypeClosed 45° Plug entry	Design Kit –	–Check availability
691314520105	SPEC5, PCB Header, PCB	Availability –	Downloads6 files EDA models: Components ZIP ALT Altium_WR-TBL_Pluggable Connector (rev26a).IntLib \| 118.9 MB CDS Cadence_WR-TBL (rev26a).zip \| 436.7 MB EAG Eagle_WR-TBL-Pluggable-Connector (rev26a).lbr \| 4.8 MB CAD files ZIP 3D 691314520105_1 (rev1).pdf \| 143.1 KB IGS 691314520105 (rev1).igs \| 1.7 MB STP 691314520105 (rev1).stp \| 586.9 KB	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins5	PCB/Cable/PanelPCB	ModularityNo	TypeClosed 45° Plug entry	Design Kit –	–Check availability
691314520106	SPEC6, PCB Header, PCB	Availability –	Downloads6 files EDA models: Components ZIP ALT Altium_WR-TBL_Pluggable Connector (rev26a).IntLib \| 118.9 MB CDS Cadence_WR-TBL (rev26a).zip \| 436.7 MB EAG Eagle_WR-TBL-Pluggable-Connector (rev26a).lbr \| 4.8 MB CAD files ZIP 3D 691314520106_1 (rev1).pdf \| 162.3 KB IGS 691314520106 (rev1).igs \| 2 MB STP 691314520106 (rev1).stp \| 689 KB	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins6	PCB/Cable/PanelPCB	ModularityNo	TypeClosed 45° Plug entry	Design Kit –	–Check availability
691314520107	SPEC7, PCB Header, PCB	Availability –	Downloads7 files EDA models: Components ZIP ALT Altium_WR-TBL_Pluggable Connector (rev26a).IntLib \| 118.9 MB CDS Cadence_WR-TBL (rev26a).zip \| 436.7 MB EAG Eagle_WR-TBL-Pluggable-Connector (rev26a).lbr \| 4.8 MB CAD files ZIP 3D 691314520107_1 (rev1).pdf \| 183.4 KB IGS 691314520107 (rev1).iges \| 2.3 MB IGS 691314520107 (rev1).igs \| 2.3 MB STP 691314520107 (rev1).stp \| 791.5 KB	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins7	PCB/Cable/PanelPCB	ModularityNo	TypeClosed 45° Plug entry	Design Kit –	–Check availability
691314520108	SPEC8, PCB Header, PCB	Availability –	Downloads6 files EDA models: Components ZIP ALT Altium_WR-TBL_Pluggable Connector (rev26a).IntLib \| 118.9 MB CDS Cadence_WR-TBL (rev26a).zip \| 436.7 MB EAG Eagle_WR-TBL-Pluggable-Connector (rev26a).lbr \| 4.8 MB CAD files ZIP 3D 691314520108_1 (rev1).pdf \| 207.7 KB IGS 691314520108 (rev1).igs \| 2.6 MB STP 691314520108 (rev1).stp \| 894 KB	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins8	PCB/Cable/PanelPCB	ModularityNo	TypeClosed 45° Plug entry	Design Kit –	–Check availability
691314520109	SPEC9, PCB Header, PCB	Availability –	Downloads6 files EDA models: Components ZIP ALT Altium_WR-TBL_Pluggable Connector (rev26a).IntLib \| 118.9 MB CDS Cadence_WR-TBL (rev26a).zip \| 436.7 MB EAG Eagle_WR-TBL-Pluggable-Connector (rev26a).lbr \| 4.8 MB CAD files ZIP 3D 691314520109_1 (rev1).pdf \| 225.7 KB IGS 691314520109 (rev1).igs \| 3 MB STP 691314520109 (rev1).stp \| 997.9 KB	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins9	PCB/Cable/PanelPCB	ModularityNo	TypeClosed 45° Plug entry	Design Kit –	–Check availability
691314520110	SPEC10, PCB Header, PCB	Availability –	Downloads6 files EDA models: Components ZIP ALT Altium_WR-TBL_Pluggable Connector (rev26a).IntLib \| 118.9 MB CDS Cadence_WR-TBL (rev26a).zip \| 436.7 MB EAG Eagle_WR-TBL-Pluggable-Connector (rev26a).lbr \| 4.8 MB CAD files ZIP 3D 691314520110_1 (rev1).pdf \| 249.4 KB IGS 691314520110 (rev1).igs \| 3.3 MB STP 691314520110 (rev1).stp \| 1.1 MB	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins10	PCB/Cable/PanelPCB	ModularityNo	TypeClosed 45° Plug entry	Design Kit –	–Check availability
691314520111	SPEC11, PCB Header, PCB	Availability –	Downloads6 files EDA models: Components ZIP ALT Altium_WR-TBL_Pluggable Connector (rev26a).IntLib \| 118.9 MB CDS Cadence_WR-TBL (rev26a).zip \| 436.7 MB EAG Eagle_WR-TBL-Pluggable-Connector (rev26a).lbr \| 4.8 MB CAD files ZIP 3D 691314520111_1 (rev1).pdf \| 273.2 KB IGS 691314520111 (rev1).igs \| 3.6 MB STP 691314520111 (rev1).stp \| 1.2 MB	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins11	PCB/Cable/PanelPCB	ModularityNo	TypeClosed 45° Plug entry	Design Kit –	–Check availability
691314520112	SPEC12, PCB Header, PCB	Availability –	Downloads7 files EDA models: Components ZIP ALT Altium_WR-TBL_Pluggable Connector (rev26a).IntLib \| 118.9 MB CDS Cadence_WR-TBL (rev26a).zip \| 436.7 MB EAG Eagle_WR-TBL-Pluggable-Connector (rev26a).lbr \| 4.8 MB CAD files ZIP 3D 691314520112_1 (rev1).pdf \| 294.4 KB IGS 691314520112 (rev1).iges \| 3.9 MB IGS 691314520112 (rev1).igs \| 3.9 MB STP 691314520112 (rev1).stp \| 1.3 MB	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins12	PCB/Cable/PanelPCB	ModularityNo	TypeClosed 45° Plug entry	Design Kit –	–Check availability
691314520113	SPEC13, PCB Header, PCB	Availability –	Downloads6 files EDA models: Components ZIP ALT Altium_WR-TBL_Pluggable Connector (rev26a).IntLib \| 118.9 MB CDS Cadence_WR-TBL (rev26a).zip \| 436.7 MB EAG Eagle_WR-TBL-Pluggable-Connector (rev26a).lbr \| 4.8 MB CAD files ZIP 3D 691314520113_1 (rev1).pdf \| 315.1 KB IGS 691314520113 (rev1).igs \| 4.2 MB STP 691314520113 (rev1).stp \| 1.4 MB	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins13	PCB/Cable/PanelPCB	ModularityNo	TypeClosed 45° Plug entry	Design Kit –	–Check availability
691314520114	SPEC14, PCB Header, PCB	Availability –	Downloads6 files EDA models: Components ZIP ALT Altium_WR-TBL_Pluggable Connector (rev26a).IntLib \| 118.9 MB CDS Cadence_WR-TBL (rev26a).zip \| 436.7 MB EAG Eagle_WR-TBL-Pluggable-Connector (rev26a).lbr \| 4.8 MB CAD files ZIP 3D 691314520114_1 (rev1).pdf \| 335.5 KB IGS 691314520114 (rev1).igs \| 4.5 MB STP 691314520114 (rev1).stp \| 1.5 MB	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins14	PCB/Cable/PanelPCB	ModularityNo	TypeClosed 45° Plug entry	Design Kit –	–Check availability
691314520115	SPEC15, PCB Header, PCB	Availability –	Downloads6 files EDA models: Components ZIP ALT Altium_WR-TBL_Pluggable Connector (rev26a).IntLib \| 118.9 MB CDS Cadence_WR-TBL (rev26a).zip \| 436.7 MB EAG Eagle_WR-TBL-Pluggable-Connector (rev26a).lbr \| 4.8 MB CAD files ZIP 3D 691314520115_1 (rev1).pdf \| 352.7 KB IGS 691314520115 (rev1).igs \| 4.8 MB STP 691314520115 (rev1).stp \| 1.6 MB	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins15	PCB/Cable/PanelPCB	ModularityNo	TypeClosed 45° Plug entry	Design Kit –	–Check availability
691314520116	SPEC16, PCB Header, PCB	Availability –	Downloads6 files EDA models: Components ZIP ALT Altium_WR-TBL_Pluggable Connector (rev26a).IntLib \| 118.9 MB CDS Cadence_WR-TBL (rev26a).zip \| 436.7 MB EAG Eagle_WR-TBL-Pluggable-Connector (rev26a).lbr \| 4.8 MB CAD files ZIP 3D 691314520116_1 (rev1).pdf \| 392.8 KB IGS 691314520116 (rev1).igs \| 5.1 MB STP 691314520116 (rev1).stp \| 1.7 MB	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins16	PCB/Cable/PanelPCB	ModularityNo	TypeClosed 45° Plug entry	Design Kit –	–Check availability
691314520117	SPEC17, PCB Header, PCB	Availability –	Downloads6 files EDA models: Components ZIP ALT Altium_WR-TBL_Pluggable Connector (rev26a).IntLib \| 118.9 MB CDS Cadence_WR-TBL (rev26a).zip \| 436.7 MB EAG Eagle_WR-TBL-Pluggable-Connector (rev26a).lbr \| 4.8 MB CAD files ZIP 3D 691314520117_1 (rev1).pdf \| 416.9 KB IGS 691314520117 (rev1).igs \| 5.4 MB STP 691314520117 (rev1).stp \| 1.8 MB	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins17	PCB/Cable/PanelPCB	ModularityNo	TypeClosed 45° Plug entry	Design Kit –	–Check availability
691314520118	SPEC18, PCB Header, PCB	Availability –	Downloads6 files EDA models: Components ZIP ALT Altium_WR-TBL_Pluggable Connector (rev26a).IntLib \| 118.9 MB CDS Cadence_WR-TBL (rev26a).zip \| 436.7 MB EAG Eagle_WR-TBL-Pluggable-Connector (rev26a).lbr \| 4.8 MB CAD files ZIP 3D 691314520118_1 (rev1).pdf \| 440.7 KB IGS 691314520118 (rev1).igs \| 5.7 MB STP 691314520118 (rev1).stp \| 1.9 MB	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins18	PCB/Cable/PanelPCB	ModularityNo	TypeClosed 45° Plug entry	Design Kit –	–Check availability
691314520119	SPEC19, PCB Header, PCB	Availability –	Downloads6 files EDA models: Components ZIP ALT Altium_WR-TBL_Pluggable Connector (rev26a).IntLib \| 118.9 MB CDS Cadence_WR-TBL (rev26a).zip \| 436.7 MB EAG Eagle_WR-TBL-Pluggable-Connector (rev26a).lbr \| 4.8 MB CAD files ZIP 3D 691314520119_1 (rev1).pdf \| 464.6 KB IGS 691314520119 (rev1).igs \| 6 MB STP 691314520119 (rev1).stp \| 2 MB	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins19	PCB/Cable/PanelPCB	ModularityNo	TypeClosed 45° Plug entry	Design Kit –	–Check availability
691314520120	SPEC20, PCB Header, PCB	Availability –	Downloads6 files EDA models: Components ZIP ALT Altium_WR-TBL_Pluggable Connector (rev26a).IntLib \| 118.9 MB CDS Cadence_WR-TBL (rev26a).zip \| 436.7 MB EAG Eagle_WR-TBL-Pluggable-Connector (rev26a).lbr \| 4.8 MB CAD files ZIP 3D 691314520120_1 (rev1).pdf \| 488.7 KB IGS 691314520120 (rev1).igs \| 6.3 MB STP 691314520120 (rev1).stp \| 2.1 MB	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins20	PCB/Cable/PanelPCB	ModularityNo	TypeClosed 45° Plug entry	Design Kit –	–Check availability
691314520121	SPEC21, PCB Header, PCB	Availability –	Downloads6 files EDA models: Components ZIP ALT Altium_WR-TBL_Pluggable Connector (rev26a).IntLib \| 118.9 MB CDS Cadence_WR-TBL (rev26a).zip \| 436.7 MB EAG Eagle_WR-TBL-Pluggable-Connector (rev26a).lbr \| 4.8 MB CAD files ZIP 3D 691314520121_1 (rev1).pdf \| 512.9 KB IGS 691314520121 (rev1).igs \| 6.6 MB STP 691314520121 (rev1).stp \| 2.2 MB	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins21	PCB/Cable/PanelPCB	ModularityNo	TypeClosed 45° Plug entry	Design Kit –	–Check availability
691314520122	SPEC22, PCB Header, PCB	Availability –	Downloads6 files EDA models: Components ZIP ALT Altium_WR-TBL_Pluggable Connector (rev26a).IntLib \| 118.9 MB CDS Cadence_WR-TBL (rev26a).zip \| 436.7 MB EAG Eagle_WR-TBL-Pluggable-Connector (rev26a).lbr \| 4.8 MB CAD files ZIP 3D 691314520122_1 (rev1).pdf \| 532.4 KB IGS 691314520122 (rev1).igs \| 6.9 MB STP 691314520122 (rev1).stp \| 2.3 MB	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins22	PCB/Cable/PanelPCB	ModularityNo	TypeClosed 45° Plug entry	Design Kit –	–Check availability
691314520123	SPEC23, PCB Header, PCB	Availability –	Downloads6 files EDA models: Components ZIP ALT Altium_WR-TBL_Pluggable Connector (rev26a).IntLib \| 118.9 MB CDS Cadence_WR-TBL (rev26a).zip \| 436.7 MB EAG Eagle_WR-TBL-Pluggable-Connector (rev26a).lbr \| 4.8 MB CAD files ZIP 3D 691314520123_1 (rev1).pdf \| 551.5 KB IGS 691314520123 (rev1).igs \| 7.2 MB STP 691314520123 (rev1).stp \| 2.4 MB	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins23	PCB/Cable/PanelPCB	ModularityNo	TypeClosed 45° Plug entry	Design Kit –	–Check availability
691314520124	SPEC24, PCB Header, PCB	Availability –	Downloads6 files EDA models: Components ZIP ALT Altium_WR-TBL_Pluggable Connector (rev26a).IntLib \| 118.9 MB CDS Cadence_WR-TBL (rev26a).zip \| 436.7 MB EAG Eagle_WR-TBL-Pluggable-Connector (rev26a).lbr \| 4.8 MB CAD files ZIP 3D 691314520124_1 (rev1).pdf \| 575.4 KB IGS 691314520124 (rev1).igs \| 7.5 MB STP 691314520124 (rev1).stp \| 2.5 MB	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins24	PCB/Cable/PanelPCB	ModularityNo	TypeClosed 45° Plug entry	Design Kit –	–Check availability
