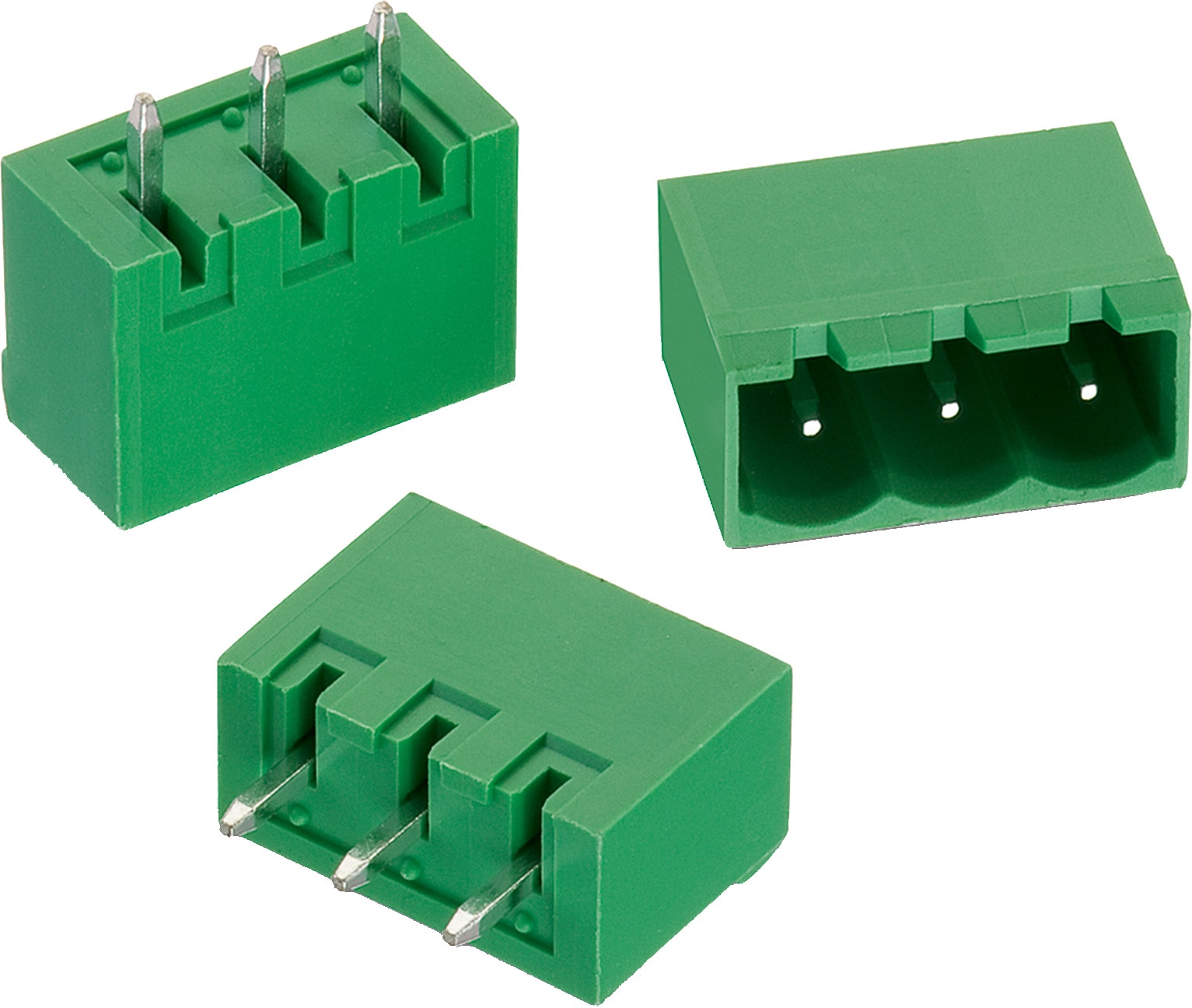

WR-TBL Series 311 - 5.08 mm Close Vertical PCB Header | Electromechanical Components

General Information
Operating Temperature	-40 °C up to +105 °C
Pitch	5.08 mm

Material Properties
Insulator Material	PA66
Insulator Flammability Rating	UL94 V-0
Insulator Color	Green
Contact Material	Brass
Contact Plating	Tin
Pin Material	Brass
Pin Plating	Tin over Nickel

Electrical Properties
I_R	15 A
I_R[cULus]	15 A
I_R[VDE]	15 A
Working Voltage	300 V; 320 V
Working Voltage [cULus]	300 V
Working Voltage [VDE]	320 V
Withstanding Voltage [cULus]	1600 V (AC)
Withstanding Voltage [VDE]	2200 V (AC)
R_C	20 mΩ
R_C	20 mΩ

Certification
cULus Approval	E315414
VDE Approval	40061301

Application Notes

Products

Filter article data

show article in 0 product lines

article in 0 product lines

Reset all

Order Code	Datasheet	Downloads	Status	Pins	PCB/Cable/Panel	Modularity	Type	Design Kit	SamplesAvailability & Sample
691311500102	SPEC2, PCB Header, PCB	Availability –	Downloads6 files EDA models: Components ZIP ALT Altium_WR-TBL_Pluggable Connector (rev25d).IntLib \| 121.1 MB CDS Cadence_WR-TBL (rev25b).zip \| 422.6 MB EAG Eagle_WR-TBL-Pluggable-Connector (rev25b).lbr \| 4.8 MB CAD files ZIP 3D 691311500102_1 (rev1).pdf \| 70 KB IGS 691311500102 (rev1).igs \| 569.7 KB STP 691311500102 (rev1).stp \| 218.4 KB	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins2	PCB/Cable/PanelPCB	ModularityNo	TypeClosed Vertical Plug entry	Design Kit 612690 691002	–Check availability
691311500103	SPEC3, PCB Header, PCB	Availability –	Downloads6 files EDA models: Components ZIP ALT Altium_WR-TBL_Pluggable Connector (rev25d).IntLib \| 121.1 MB CDS Cadence_WR-TBL (rev25b).zip \| 422.6 MB EAG Eagle_WR-TBL-Pluggable-Connector (rev25b).lbr \| 4.8 MB CAD files ZIP 3D 691311500103_1 (rev1).pdf \| 89 KB IGS 691311500103 (rev1).igs \| 778.8 KB STP 691311500103 (rev1).stp \| 296.6 KB	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins3	PCB/Cable/PanelPCB	ModularityNo	TypeClosed Vertical Plug entry	Design Kit –	–Check availability
691311500104	SPEC4, PCB Header, PCB	Availability –	Downloads6 files EDA models: Components ZIP ALT Altium_WR-TBL_Pluggable Connector (rev25d).IntLib \| 121.1 MB CDS Cadence_WR-TBL (rev25b).zip \| 422.6 MB EAG Eagle_WR-TBL-Pluggable-Connector (rev25b).lbr \| 4.8 MB CAD files ZIP 3D 691311500104_1 (rev1).pdf \| 109.6 KB IGS 691311500104 (rev1).igs \| 990.6 KB STP 691311500104 (rev1).stp \| 374.3 KB	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins4	PCB/Cable/PanelPCB	ModularityNo	TypeClosed Vertical Plug entry	Design Kit –	–Check availability
691311500105	SPEC5, PCB Header, PCB	Availability –	Downloads6 files EDA models: Components ZIP ALT Altium_WR-TBL_Pluggable Connector (rev25d).IntLib \| 121.1 MB CDS Cadence_WR-TBL (rev25b).zip \| 422.6 MB EAG Eagle_WR-TBL-Pluggable-Connector (rev25b).lbr \| 4.8 MB CAD files ZIP 3D 691311500105_1 (rev1).pdf \| 129.5 KB IGS 691311500105 (rev1).igs \| 1.2 MB STP 691311500105 (rev1).stp \| 452.3 KB	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins5	PCB/Cable/PanelPCB	ModularityNo	TypeClosed Vertical Plug entry	Design Kit –	–Check availability
691311500106	SPEC6, PCB Header, PCB	Availability –	Downloads6 files EDA models: Components ZIP ALT Altium_WR-TBL_Pluggable Connector (rev25d).IntLib \| 121.1 MB CDS Cadence_WR-TBL (rev25b).zip \| 422.6 MB EAG Eagle_WR-TBL-Pluggable-Connector (rev25b).lbr \| 4.8 MB CAD files ZIP 3D 691311500106_1 (rev1).pdf \| 141.4 KB IGS 691311500106 (rev1).igs \| 1.4 MB STP 691311500106 (rev1).stp \| 530.2 KB	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins6	PCB/Cable/PanelPCB	ModularityNo	TypeClosed Vertical Plug entry	Design Kit –	–Check availability
691311500107	SPEC7, PCB Header, PCB	Availability –	Downloads6 files EDA models: Components ZIP ALT Altium_WR-TBL_Pluggable Connector (rev25d).IntLib \| 121.1 MB CDS Cadence_WR-TBL (rev25b).zip \| 422.6 MB EAG Eagle_WR-TBL-Pluggable-Connector (rev25b).lbr \| 4.8 MB CAD files ZIP 3D 691311500107_1 (rev1).pdf \| 161.5 KB IGS 691311500107 (rev1).igs \| 1.6 MB STP 691311500107 (rev1).stp \| 609.7 KB	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins7	PCB/Cable/PanelPCB	ModularityNo	TypeClosed Vertical Plug entry	Design Kit –	–Check availability
691311500108	SPEC8, PCB Header, PCB	Availability –	Downloads6 files EDA models: Components ZIP ALT Altium_WR-TBL_Pluggable Connector (rev25d).IntLib \| 121.1 MB CDS Cadence_WR-TBL (rev25b).zip \| 422.6 MB EAG Eagle_WR-TBL-Pluggable-Connector (rev25b).lbr \| 4.8 MB CAD files ZIP 3D 691311500108_1 (rev1).pdf \| 177.9 KB IGS 691311500108 (rev1).igs \| 1.8 MB STP 691311500108 (rev1).stp \| 689.8 KB	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins8	PCB/Cable/PanelPCB	ModularityNo	TypeClosed Vertical Plug entry	Design Kit –	–Check availability
691311500109	SPEC9, PCB Header, PCB	Availability –	Downloads6 files EDA models: Components ZIP ALT Altium_WR-TBL_Pluggable Connector (rev25d).IntLib \| 121.1 MB CDS Cadence_WR-TBL (rev25b).zip \| 422.6 MB EAG Eagle_WR-TBL-Pluggable-Connector (rev25b).lbr \| 4.8 MB CAD files ZIP 3D 691311500109_1 (rev1).pdf \| 190.2 KB IGS 691311500109 (rev1).igs \| 2 MB STP 691311500109 (rev1).stp \| 770.3 KB	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins9	PCB/Cable/PanelPCB	ModularityNo	TypeClosed Vertical Plug entry	Design Kit –	–Check availability
691311500110	SPEC10, PCB Header, PCB	Availability –	Downloads6 files EDA models: Components ZIP ALT Altium_WR-TBL_Pluggable Connector (rev25d).IntLib \| 121.1 MB CDS Cadence_WR-TBL (rev25b).zip \| 422.6 MB EAG Eagle_WR-TBL-Pluggable-Connector (rev25b).lbr \| 4.8 MB CAD files ZIP 3D 691311500110_1 (rev1).pdf \| 210.2 KB IGS 691311500110 (rev1).igs \| 2.2 MB STP 691311500110 (rev1).stp \| 851 KB	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins10	PCB/Cable/PanelPCB	ModularityNo	TypeClosed Vertical Plug entry	Design Kit –	–Check availability
691311500111	SPEC11, PCB Header, PCB	Availability –	Downloads6 files EDA models: Components ZIP ALT Altium_WR-TBL_Pluggable Connector (rev25d).IntLib \| 121.1 MB CDS Cadence_WR-TBL (rev25b).zip \| 422.6 MB EAG Eagle_WR-TBL-Pluggable-Connector (rev25b).lbr \| 4.8 MB CAD files ZIP 3D 691311500111_1 (rev1).pdf \| 230.1 KB IGS 691311500111 (rev1).igs \| 2.4 MB STP 691311500111 (rev1).stp \| 932.1 KB	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins11	PCB/Cable/PanelPCB	ModularityNo	TypeClosed Vertical Plug entry	Design Kit –	–Check availability
691311500112	SPEC12, PCB Header, PCB	Availability –	Downloads6 files EDA models: Components ZIP ALT Altium_WR-TBL_Pluggable Connector (rev25d).IntLib \| 121.1 MB CDS Cadence_WR-TBL (rev25b).zip \| 422.6 MB EAG Eagle_WR-TBL-Pluggable-Connector (rev25b).lbr \| 4.8 MB CAD files ZIP 3D 691311500112_1 (rev1).pdf \| 272.3 KB IGS 691311500112 (rev1).igs \| 2.7 MB STP 691311500112 (rev1).stp \| 1013.7 KB	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins12	PCB/Cable/PanelPCB	ModularityNo	TypeClosed Vertical Plug entry	Design Kit –	–Check availability
691311500113	SPEC13, PCB Header, PCB	Availability –	Downloads6 files EDA models: Components ZIP ALT Altium_WR-TBL_Pluggable Connector (rev25d).IntLib \| 121.1 MB CDS Cadence_WR-TBL (rev25b).zip \| 422.6 MB EAG Eagle_WR-TBL-Pluggable-Connector (rev25b).lbr \| 4.8 MB CAD files ZIP 3D 691311500113_1 (rev1).pdf \| 291.6 KB IGS 691311500113 (rev1).igs \| 2.9 MB STP 691311500113 (rev1).stp \| 1.1 MB	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins13	PCB/Cable/PanelPCB	ModularityNo	TypeClosed Vertical Plug entry	Design Kit –	–Check availability
691311500114	SPEC14, PCB Header, PCB	Availability –	Downloads6 files EDA models: Components ZIP ALT Altium_WR-TBL_Pluggable Connector (rev25d).IntLib \| 121.1 MB CDS Cadence_WR-TBL (rev25b).zip \| 422.6 MB EAG Eagle_WR-TBL-Pluggable-Connector (rev25b).lbr \| 4.8 MB CAD files ZIP 3D 691311500114_1 (rev1).pdf \| 303.6 KB IGS 691311500114 (rev1).igs \| 3.1 MB STP 691311500114 (rev1).stp \| 1.1 MB	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins14	PCB/Cable/PanelPCB	ModularityNo	TypeClosed Vertical Plug entry	Design Kit –	–Check availability
691311500115	SPEC15, PCB Header, PCB	Availability –	Downloads6 files EDA models: Components ZIP ALT Altium_WR-TBL_Pluggable Connector (rev25d).IntLib \| 121.1 MB CDS Cadence_WR-TBL (rev25b).zip \| 422.6 MB EAG Eagle_WR-TBL-Pluggable-Connector (rev25b).lbr \| 4.8 MB CAD files ZIP 3D 691311500115_1 (rev1).pdf \| 324.7 KB IGS 691311500115 (rev1).igs \| 3.3 MB STP 691311500115 (rev1).stp \| 1.2 MB	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins15	PCB/Cable/PanelPCB	ModularityNo	TypeClosed Vertical Plug entry	Design Kit –	–Check availability
691311500116	SPEC16, PCB Header, PCB	Availability –	Downloads6 files EDA models: Components ZIP ALT Altium_WR-TBL_Pluggable Connector (rev25d).IntLib \| 121.1 MB CDS Cadence_WR-TBL (rev25b).zip \| 422.6 MB EAG Eagle_WR-TBL-Pluggable-Connector (rev25b).lbr \| 4.8 MB CAD files ZIP 3D 691311500116_1 (rev1).pdf \| 331.1 KB IGS 691311500116 (rev1).igs \| 3.5 MB STP 691311500116 (rev1).stp \| 1.3 MB	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins16	PCB/Cable/PanelPCB	ModularityNo	TypeClosed Vertical Plug entry	Design Kit –	–Check availability
691311500117	SPEC17, PCB Header, PCB	Availability –	Downloads6 files EDA models: Components ZIP ALT Altium_WR-TBL_Pluggable Connector (rev25d).IntLib \| 121.1 MB CDS Cadence_WR-TBL (rev25b).zip \| 422.6 MB EAG Eagle_WR-TBL-Pluggable-Connector (rev25b).lbr \| 4.8 MB CAD files ZIP 3D 691311500117_1 (rev1).pdf \| 351.4 KB IGS 691311500117 (rev1).igs \| 3.7 MB STP 691311500117 (rev1).stp \| 1.4 MB	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins17	PCB/Cable/PanelPCB	ModularityNo	TypeClosed Vertical Plug entry	Design Kit –	–Check availability
691311500118	SPEC18, PCB Header, PCB	Availability –	Downloads6 files EDA models: Components ZIP ALT Altium_WR-TBL_Pluggable Connector (rev25d).IntLib \| 121.1 MB CDS Cadence_WR-TBL (rev25b).zip \| 422.6 MB EAG Eagle_WR-TBL-Pluggable-Connector (rev25b).lbr \| 4.8 MB CAD files ZIP 3D 691311500118_1 (rev1).pdf \| 371.8 KB IGS 691311500118 (rev1).igs \| 4 MB STP 691311500118 (rev1).stp \| 1.5 MB	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins18	PCB/Cable/PanelPCB	ModularityNo	TypeClosed Vertical Plug entry	Design Kit –	–Check availability
691311500119	SPEC19, PCB Header, PCB	Availability –	Downloads6 files EDA models: Components ZIP ALT Altium_WR-TBL_Pluggable Connector (rev25d).IntLib \| 121.1 MB CDS Cadence_WR-TBL (rev25b).zip \| 422.6 MB EAG Eagle_WR-TBL-Pluggable-Connector (rev25b).lbr \| 4.8 MB CAD files ZIP 3D 691311500119_1 (rev1).pdf \| 392 KB IGS 691311500119 (rev1).igs \| 4.2 MB STP 691311500119 (rev1).stp \| 1.5 MB	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins19	PCB/Cable/PanelPCB	ModularityNo	TypeClosed Vertical Plug entry	Design Kit –	–Check availability
691311500120	SPEC20, PCB Header, PCB	Availability –	Downloads6 files EDA models: Components ZIP ALT Altium_WR-TBL_Pluggable Connector (rev25d).IntLib \| 121.1 MB CDS Cadence_WR-TBL (rev25b).zip \| 422.6 MB EAG Eagle_WR-TBL-Pluggable-Connector (rev25b).lbr \| 4.8 MB CAD files ZIP 3D 691311500120_1 (rev1).pdf \| 412.8 KB IGS 691311500120 (rev1).igs \| 4.4 MB STP 691311500120 (rev1).stp \| 1.6 MB	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins20	PCB/Cable/PanelPCB	ModularityNo	TypeClosed Vertical Plug entry	Design Kit –	–Check availability
691311500121	SPEC21, PCB Header, PCB	Availability –	Downloads6 files EDA models: Components ZIP ALT Altium_WR-TBL_Pluggable Connector (rev25d).IntLib \| 121.1 MB CDS Cadence_WR-TBL (rev25b).zip \| 422.6 MB EAG Eagle_WR-TBL-Pluggable-Connector (rev25b).lbr \| 4.8 MB CAD files ZIP 3D 691311500121_1 (rev1).pdf \| 428.3 KB IGS 691311500121 (rev1).igs \| 4.6 MB STP 691311500121 (rev1).stp \| 1.7 MB	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins21	PCB/Cable/PanelPCB	ModularityNo	TypeClosed Vertical Plug entry	Design Kit –	–Check availability
691311500122	SPEC22, PCB Header, PCB	Availability –	Downloads6 files EDA models: Components ZIP ALT Altium_WR-TBL_Pluggable Connector (rev25d).IntLib \| 121.1 MB CDS Cadence_WR-TBL (rev25b).zip \| 422.6 MB EAG Eagle_WR-TBL-Pluggable-Connector (rev25b).lbr \| 4.8 MB CAD files ZIP 3D 691311500122_1 (rev1).pdf \| 448.5 KB IGS 691311500122 (rev1).igs \| 4.8 MB STP 691311500122 (rev1).stp \| 1.8 MB	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins22	PCB/Cable/PanelPCB	ModularityNo	TypeClosed Vertical Plug entry	Design Kit –	–Check availability
691311500123	SPEC23, PCB Header, PCB	Availability –	Downloads6 files EDA models: Components ZIP ALT Altium_WR-TBL_Pluggable Connector (rev25d).IntLib \| 121.1 MB CDS Cadence_WR-TBL (rev25b).zip \| 422.6 MB EAG Eagle_WR-TBL-Pluggable-Connector (rev25b).lbr \| 4.8 MB CAD files ZIP 3D 691311500123_1 (rev1).pdf \| 467.9 KB IGS 691311500123 (rev1).igs \| 5 MB STP 691311500123 (rev1).stp \| 1.9 MB	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins23	PCB/Cable/PanelPCB	ModularityNo	TypeClosed Vertical Plug entry	Design Kit –	–Check availability
691311500124	SPEC24, PCB Header, PCB	Availability –	Downloads6 files EDA models: Components ZIP ALT Altium_WR-TBL_Pluggable Connector (rev25d).IntLib \| 121.1 MB CDS Cadence_WR-TBL (rev25b).zip \| 422.6 MB EAG Eagle_WR-TBL-Pluggable-Connector (rev25b).lbr \| 4.8 MB CAD files ZIP 3D 691311500124_1 (rev1).pdf \| 488.8 KB IGS 691311500124 (rev1).igs \| 5.3 MB STP 691311500124 (rev1).stp \| 1.9 MB	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins24	PCB/Cable/PanelPCB	ModularityNo	TypeClosed Vertical Plug entry	Design Kit –	–Check availability
