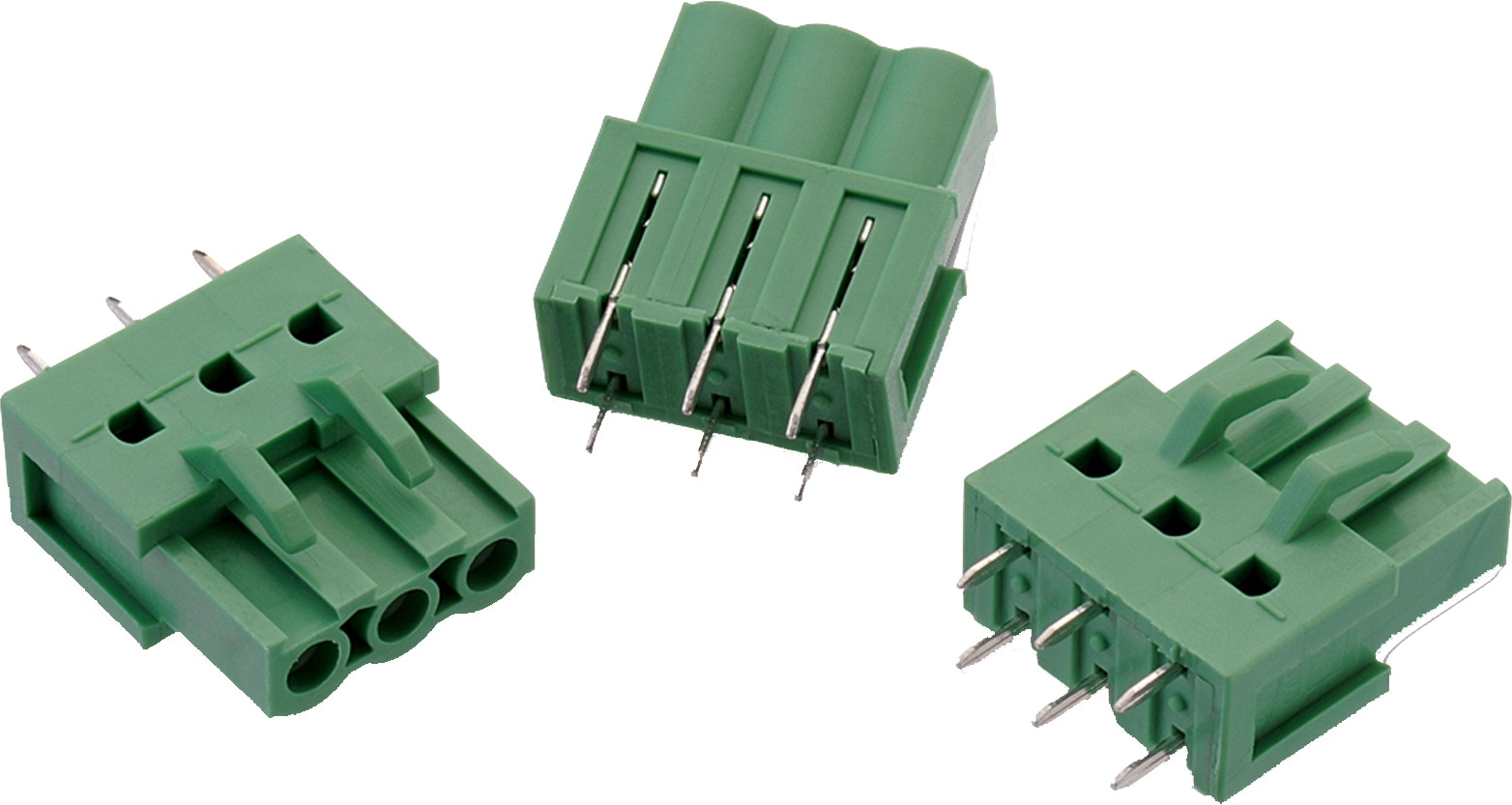

WR-TBL Series 3075 - 5.08 mm Reversed Gender Vertical PCB Header

Kind Properties
Pitch 5.08 mm
Material Properties
Insulator Material PA66
Insulator Flammability Rating UL94 V-0
Contact Material Brass
Contact Plating Tin
General Information
Operating Temperature -40 up to +105 °C
Compliance RoHS
Electrical Properties
IR cULus 20 A
Working Voltage 300 V (AC)
Working Voltage [cULus] 300 V (AC)
Withstanding Voltage [cULus] 1600 V (AC)
Contact Resistance [cULus] 20 mΩ
Certification
cULus Approval E315414

Products

Order Code Data­sheet Downloads Application PCB/Cable/Panel Modularity Type IR
(A)
Design Kit Samples
691307500003
STE 3D ALT EAG IGS CAD Pluggable PCB No Vertical 20
691307500004
STE 3D ALT EAG IGS CAD Pluggable PCB No Vertical 20
691307500005
STE 3D ALT EAG IGS CAD Pluggable PCB No Vertical 20
691307500008
STE 3D ALT EAG IGS CAD Pluggable PCB No Vertical 20
691307500002
IGE STE 3D ALT EAG CAD Pluggable PCB No Vertical 20 691001
691307500006
IGE STE 3D ALT EAG CAD Pluggable PCB No Vertical 20
691307500007
IGE STE 3D ALT EAG CAD Pluggable PCB No Vertical 20
691307500012
IGE STE 3D ALT EAG CAD Pluggable PCB No Vertical 20
Order Code Data­sheet
691307500003
691307500004
691307500005
691307500008
691307500002
691307500006
691307500007
691307500012
Samples
Order Code Data­sheet Downloads Application PCB/Cable/Panel Modularity Type IR
(A)
Design Kit Samples

Assortments

Articles from this product series can be found in the following assortments:
