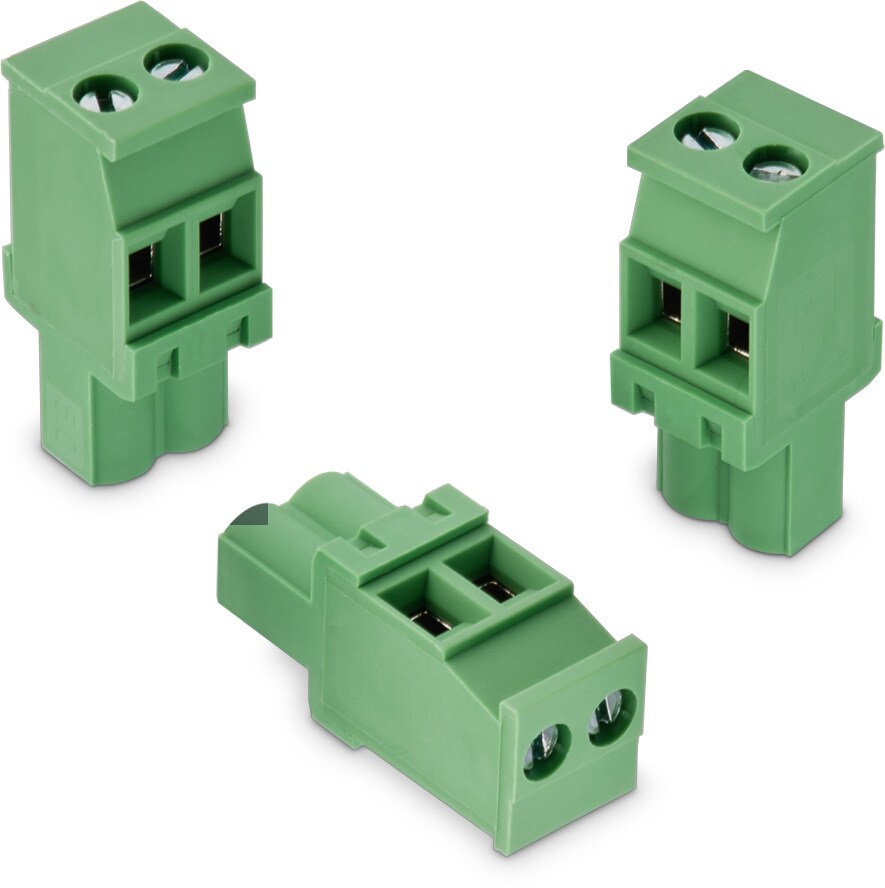

WR-TBL Series 3447 - 5.00 mm Horizontal CAB Entry Plug with Hook on Back Side

Kind Properties
Pitch5 mm
Material Properties
Insulator MaterialPA66
Insulator Flammability RatingUL94 V-0
Contact MaterialBrass
Terminal Screw MaterialSteel
Terminal Screw PlatingZinc
Wire Guard MaterialPhosphor Bronze
General Information
Operating Temperature-40 up to +105 °C
ComplianceRoHS
Electrical Properties
IR UL15 A
IR VDE17 A
Working Voltage300 V (AC)
Working Voltage [UL]300 V (AC)
Working Voltage [VDE]300 V (AC)
Withstanding Voltage [UL]1600 V (AC)
Withstanding Voltage [VDE]1600 V (AC)
Contact Resistance [UL]20 mΩ
Contact Resistance [VDE]20 mΩ
Mechanical Properties
Wire Strip Length6 up to 7 (mm)
ScrewM3
Wire Properties
Solid Wire Section (AWG)12 to 24 (AWG)
Solid Wire Section (Metric)3.31 to 0.205 (mm²)
Stranded Wire Section (AWG)12 to 24 (AWG)
Stranded Wire Section (Metric)3.31 to 0.205 (mm²)
Certification
cULus ApprovalE315414
VDE Approval40023402

Products

Order Code Data­sheet DownloadsPinsApplicationPCB/Cable/PanelModularityTypeWire SectionIR
(A)
Design Kit Samples
691344710002
STE 3D IGS 2 Pluggable Cable No Horizontal 12 to 24 (AWG) 3.31 to 0.205 (mm²) 17612690
691344710003
STE 3D IGS 3 Pluggable Cable No Horizontal 12 to 24 (AWG) 3.31 to 0.205 (mm²) 17
691344710004
STE 3D IGS 4 Pluggable Cable No Horizontal 12 to 24 (AWG) 3.31 to 0.205 (mm²) 17
691344710005
STE 3D IGS 5 Pluggable Cable No Horizontal 12 to 24 (AWG) 3.31 to 0.205 (mm²) 17
691344710006
STE 3D IGS 6 Pluggable Cable No Horizontal 12 to 24 (AWG) 3.31 to 0.205 (mm²) 17
691344710007
IGE STE 3D 7 Pluggable Cable No Horizontal 12 to 24 (AWG) 3.31 to 0.205 (mm²) 17
691344710008
STE 3D IGS 8 Pluggable Cable No Horizontal 12 to 24 (AWG) 3.31 to 0.205 (mm²) 17
691344710012
IGE STE 3D 12 Pluggable Cable No Horizontal 12 to 24 (AWG) 3.31 to 0.205 (mm²) 17
Order Code Data­sheet
691344710002
691344710003
691344710004
691344710005
691344710006
691344710007
691344710008
691344710012
Samples
Order Code Data­sheet DownloadsPinsApplicationPCB/Cable/PanelModularityTypeWire SectionIR
(A)
Design Kit Samples

Assortments

Articles from this product series can be found in the following assortments:
