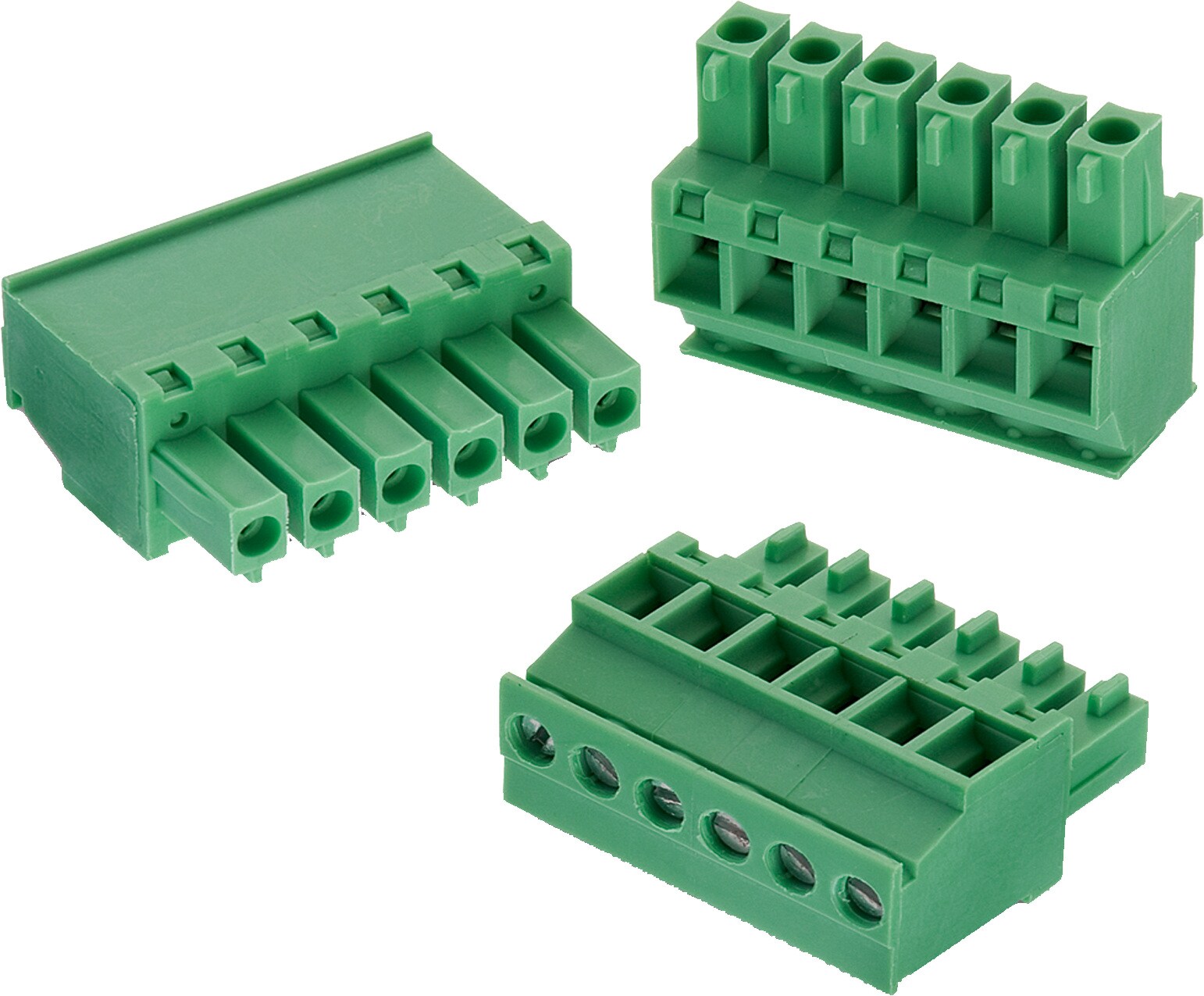

WR-TBL Series 3633 - 3.81 mm Horizontal with hook on wire Side

Kind Properties
Pitch3.81 mm
Material Properties
Insulator MaterialPA66
Insulator Flammability RatingUL94 V-0
Contact MaterialBrass
Terminal Screw MaterialSteel
Terminal Screw PlatingZinc
Wire Guard MaterialPhosphor Bronze
General Information
Operating Temperature-40 up to +105 °C
ComplianceRoHS
Electrical Properties
IR cULus8 A
IR VDE10.5 A
Working Voltage300 V (AC)
Working Voltage [cULus]300 V (AC)
Working Voltage [VDE]300 V (AC)
Withstanding Voltage [cULus]1600 V (AC)
Withstanding Voltage [VDE]2500 V (AC)
Contact Resistance [cULus]20 mΩ
Contact Resistance [VDE]20 mΩ
Mechanical Properties
Wire Strip Length6 up to 7 (mm)
ScrewM2
Wire Properties
Solid Wire Section (AWG)16 to 28 (AWG)
Solid Wire Section (Metric)1.31 to 0.0810 (mm²)
Stranded Wire Section (AWG)16 to 28 (AWG)
Stranded Wire Section (Metric)1.31 to 0.0810 (mm²)
Certification
cULus ApprovalE315414
VDE Approval40023402

Products

Order Code Data­sheet DownloadsPins
(mm)
ApplicationPCB/Cable/PanelModularityTypeWire SectionDesign Kit Samples
691363310002SPEC
3 files 2 Pluggable Cable No Horizontal 16 to 28 (AWG) 1.31 to 0.0810 (mm²)
691363310003SPEC
3 files 3 Pluggable Cable No Horizontal 16 to 28 (AWG) 1.31 to 0.0810 (mm²)691001
691363310004SPEC
3 files 4 Pluggable Cable No Horizontal 16 to 28 (AWG) 1.31 to 0.0810 (mm²)
691363310005SPEC
3 files 5 Pluggable Cable No Horizontal 16 to 28 (AWG) 1.31 to 0.0810 (mm²)
691363310006SPEC
3 files 6 Pluggable Cable No Horizontal 16 to 28 (AWG) 1.31 to 0.0810 (mm²)
691363310007SPEC
3 files 7 Pluggable Cable No Horizontal 16 to 28 (AWG) 1.31 to 0.0810 (mm²)
691363310008SPEC
3 files 8 Pluggable Cable No Horizontal 16 to 28 (AWG) 1.31 to 0.0810 (mm²)
691363310012SPEC
3 files 12 Pluggable Cable No Horizontal 16 to 28 (AWG) 1.31 to 0.0810 (mm²)
