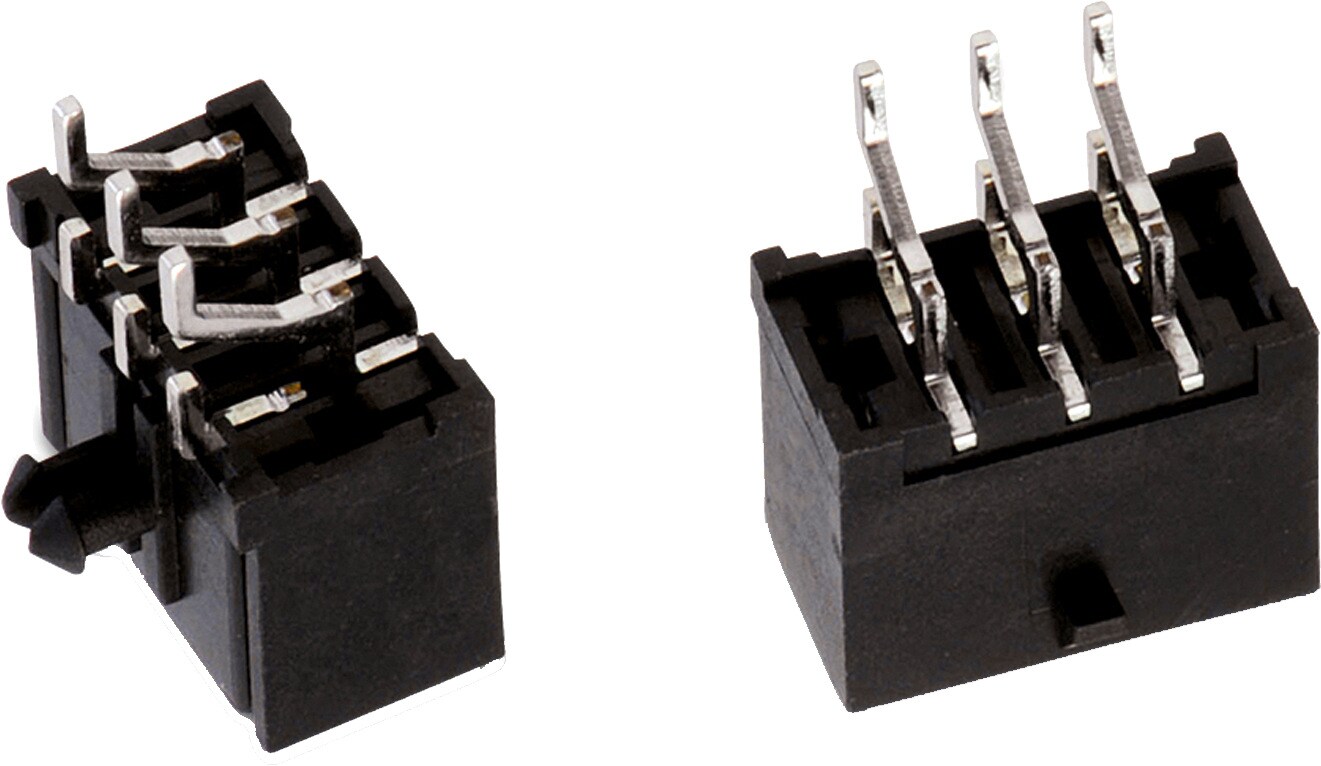

WR-MPC3 3.00 mm SMT Male Dual Row Angled Header w. Plastic Pegs

Kind Properties
Pitch 3 mm
Gender Male
Material Properties
Insulator Material LCP
Insulator Flammability Rating UL94 V-0
Color Black
Contact Material Copper Alloy
Contact Plating Tin
Contact Type Stamped
General Information
Operating Temperature -40 up to +105 °C
Compliance RoHS
Working Voltage 250 V (AC)
Withstanding Voltage 1500 V (AC)
Contact Resistance 10 mΩ
RISO 1000 MΩ
Certification
UL Approval E323964
Wire Properties
Packaging Tube

Products

Order Code SPEC Downloads Pins Pitch
(mm)
Gender Type Rows Mount IR 1
(A)
Working Voltage
(V (AC))
PCB/Cable/Panel Contact Resistance
(mΩ)
Tol. R L
(mm)
Packaging Design Kit Samples
662002236022
IGE STE 3D ALT EAG CAD 2 3 Male Right Angled Dual SMT 5 250 PCB 10 max. 6.7 Tube 662001
662004236022
IGE STE 3D ALT EAG CAD 4 3 Male Right Angled Dual SMT 5 250 PCB 10 max. 9.7 Tube 662001
662006236022
IGE STE 3D ALT EAG CAD 6 3 Male Right Angled Dual SMT 5 250 PCB 10 max. 12.7 Tube 662001
662008236022
IGE STE 3D ALT EAG CAD 8 3 Male Right Angled Dual SMT 5 250 PCB 10 max. 15.7 Tube 612690
662001
662010236022
IGE STE 3D ALT EAG CAD 10 3 Male Right Angled Dual SMT 5 250 PCB 10 max. 18.7 Tube 662001
662012236022
IGE STE 3D ALT EAG CAD 12 3 Male Right Angled Dual SMT 5 250 PCB 10 max. 21.7 Tube 662001
662014236022
IGE STE 3D ALT EAG CAD 14 3 Male Right Angled Dual SMT 5 250 PCB 10 max. 24.7 Tube 662001
662016236022
IGE STE 3D ALT EAG CAD 16 3 Male Right Angled Dual SMT 5 250 PCB 10 max. 27.7 Tube 662001
662018236022
IGE STE 3D ALT EAG CAD 18 3 Male Right Angled Dual SMT 5 250 PCB 10 max. 30.7 Tube 662001
662020236022
IGE STE 3D ALT EAG CAD 20 3 Male Right Angled Dual SMT 5 250 PCB 10 max. 33.7 Tube 662001
662022236022
IGE STE 3D ALT EAG CAD 22 3 Male Right Angled Dual SMT 5 250 PCB 10 max. 36.7 Tube 662001
662024236022
IGE STE 3D ALT EAG CAD 24 3 Male Right Angled Dual SMT 5 250 PCB 10 max. 39.7 Tube 662001
Order Code SPEC
662002236022
662004236022
662006236022
662008236022
662010236022
662012236022
662014236022
662016236022
662018236022
662020236022
662022236022
662024236022
