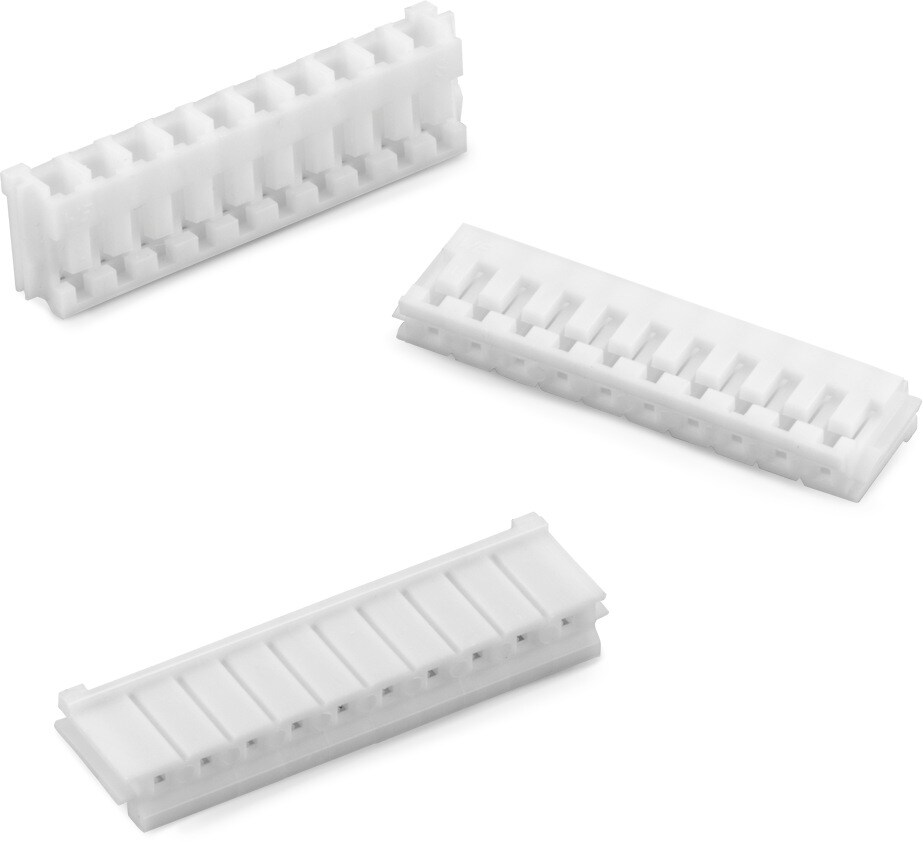

WR-WTB 2.50 mm “J” Type Female Terminal Housing

Kind Properties
Pitch2.5 mm
GenderFemale
Material Properties
Insulator MaterialPA66
Insulator Flammability RatingUL94 V-0
ColorWhite
General Information
Operating Temperature-25 up to +85 °C
ComplianceRoHS
Withstanding Voltage800 V (AC)
RISO1000 MΩ
Certification
UL ApprovalE323964
Packaging Properties
PackagingBag

Products

Order Code Data­sheet DownloadsPins
(mm)
Pitch
(mm)
GenderTypePCB/Cable/PanelL
(mm)
PackagingDesign Kit Samples
688002113322SPEC
3 files 2 2.5 Female Terminal Housing Cable 7 Bag645001
688003113322SPEC
3 files 3 2.5 Female Terminal Housing Cable 9.5 Bag645001
688004113322SPEC
3 files 4 2.5 Female Terminal Housing Cable 12 Bag645001
688005113322SPEC
3 files 5 2.5 Female Terminal Housing Cable 14.5 Bag645001
688006113322SPEC
3 files 6 2.5 Female Terminal Housing Cable 17 Bag645001
688007113322SPEC
3 files 7 2.5 Female Terminal Housing Cable 19.5 Bag645001
688008113322SPEC
3 files 8 2.5 Female Terminal Housing Cable 22 Bag612690
645001
688009113322SPEC
3 files 9 2.5 Female Terminal Housing Cable 24.5 Bag645001
688010113322SPEC
3 files 10 2.5 Female Terminal Housing Cable 27 Bag645001
Order Code Data­sheet
688002113322SPEC
688003113322SPEC
688004113322SPEC
688005113322SPEC
688006113322SPEC
688007113322SPEC
688008113322SPEC
688009113322SPEC
688010113322SPEC
Samples
Order Code Data­sheet DownloadsPins
(mm)
Pitch
(mm)
GenderTypePCB/Cable/PanelL
(mm)
PackagingDesign Kit Samples

Assortments

Articles from this product series can be found in the following assortments:
