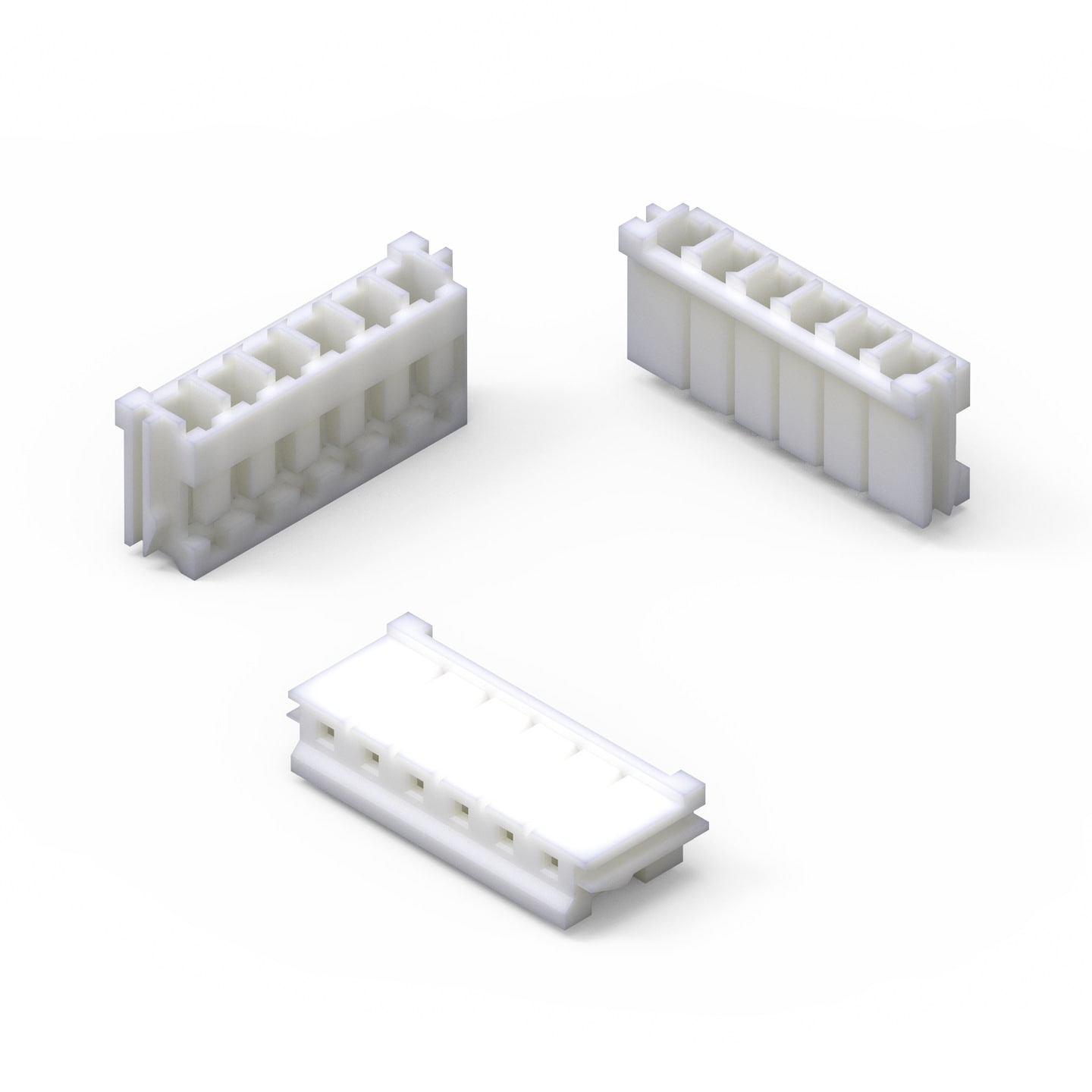

WR-WTB 2.50 mm “J” Type Female Terminal Housing

Material Properties
Insulator Material	PA66
Insulator Flammability Rating	UL94 V-0
Color	White

General Information
Operating Temperature	-25 °C up to +85 °C
Compliance	RoHS
Withstanding Voltage	800 V (AC)
R_ISO	1000 MΩ
Pitch	2.5 mm
Gender	Female
Type	Terminal Housing

Certification
UL Approval	E323964

Packaging Properties
Packaging	Bag

Products

	Order Code	Datasheet	Downloads	Status	Gender	Pins (pcs)	Type	Packaging	Design Kit	Samples
	688002113322	SPEC	3 files CAD files ZIP 3D 688002113322 (rev1).pdf \| 40.8 KB IGS Download_IGES_688002113322 (rev1).iges \| 657.7 KB STP 688002113322 (rev1).stp \| 279.8 KB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	Female	2	Terminal Housing	Bag	645001
	688003113322	SPEC	3 files CAD files ZIP 3D 688003113322 (rev1).pdf \| 52.1 KB IGS Download_IGES_688003113322 (rev1).iges \| 897.7 KB STP 688003113322 (rev1).stp \| 377.7 KB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	Female	3	Terminal Housing	Bag	645001
	688004113322	SPEC	3 files CAD files ZIP 3D 688004113322 (rev1).pdf \| 63.5 KB IGS Download_IGES_688004113322 (rev1).iges \| 1.1 MB STP 688004113322 (rev1).stp \| 476 KB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	Female	4	Terminal Housing	Bag	645001
	688005113322	SPEC	3 files CAD files ZIP 3D 688005113322 (rev1).pdf \| 75.2 KB IGS Download_IGES_688005113322 (rev1).iges \| 1.3 MB STP 688005113322 (rev1).stp \| 573.8 KB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	Female	5	Terminal Housing	Bag	645001
	688006113322	SPEC	3 files CAD files ZIP 3D 688006113322 (rev1).pdf \| 87.6 KB IGS Download_IGES_688006113322 (rev1).iges \| 1.6 MB STP 688006113322 (rev1).stp \| 674.8 KB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	Female	6	Terminal Housing	Bag	645001
	688007113322	SPEC	3 files CAD files ZIP 3D 688007113322 (rev1).pdf \| 99.2 KB IGS Download_IGES_688007113322 (rev1).iges \| 1.8 MB STP 688007113322 (rev1).stp \| 776.1 KB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	Female	7	Terminal Housing	Bag	645001
	688008113322	SPEC	3 files CAD files ZIP 3D 688008113322 (rev1).pdf \| 110.9 KB IGS Download_IGES_688008113322 (rev1).iges \| 2 MB STP 688008113322 (rev1).stp \| 877.8 KB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	Female	8	Terminal Housing	Bag	612690 645001
	688009113322	SPEC	3 files CAD files ZIP 3D 688009113322 (rev1).pdf \| 122.6 KB IGS Download_IGES_688009113322 (rev1).iges \| 2.3 MB STP 688009113322 (rev1).stp \| 980.5 KB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	Female	9	Terminal Housing	Bag	645001
	688010113322	SPEC	3 files CAD files ZIP 3D 688010113322 (rev1).pdf \| 134.2 KB IGS Download_IGES_688010113322 (rev1).iges \| 2.5 MB STP 688010113322 (rev1).stp \| 1.1 MB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	Female	10	Terminal Housing	Bag	645001

	Order Code	Datasheet
	688002113322	SPEC
	688003113322	SPEC
	688004113322	SPEC
	688005113322	SPEC
	688006113322	SPEC
	688007113322	SPEC
	688008113322	SPEC
	688009113322	SPEC
	688010113322	SPEC

Samples

	Order Code	Datasheet	Downloads	Status	Gender	Pins (pcs)	Type	Packaging	Design Kit	Samples

Use with

WR-WTB 2.50 mm “J” Type Female Crimp Contact

WR-WTB Pre-crimped wire
