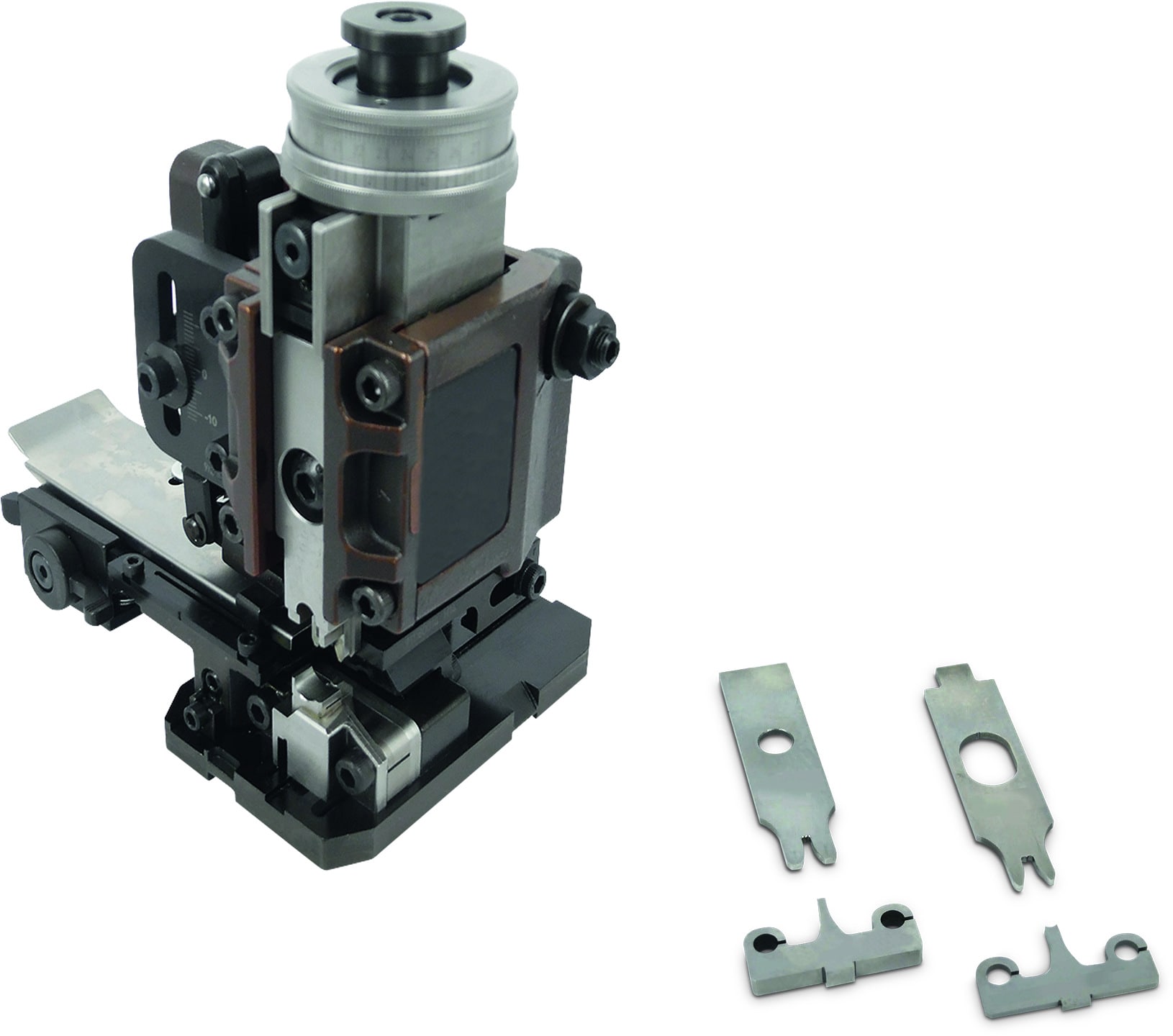

WR-WTB Automatic Crimping Tool

WR-WTB Automatic Crimping Tool

Characteristics

  • Mechanical
  • Shut height: 135.8 mm
  • Stroke: 40/30 mm
  • Features
  • Feeding system: Mechanical
  • Configuration: Pre- and post-feed cams
  • Conductor punch setting resolution: 0.01 mm
  • Conductor punch setting range: 2.7 mm
  • Counter: 7-digit, digital
General Information
Pitch2.5 mm
GenderTool
TypeMini Applicator; Wear Parts

Products

Filter article data
Filter by
Delete all
 show  article in 0 product lines
 article in 0 product lines
Reset all
Order Code
Data­sheet
Downloads
Status
Type
Use with
Samples
600688401001
Wear Parts
Downloads–
Status Activei| Production is active. Expected lifetime: >10 years.
TypeWear Parts
Use with –
600688401
Mini Applicator
Downloads3 files

CAD files ZIP

Download all 3 files as zip archive
ZIP

Status Activei| Production is active. Expected lifetime: >10 years.
TypeMini Applicator
Use with
WR-WTB 2.50 mm “J” Type Female Crimp Contact
