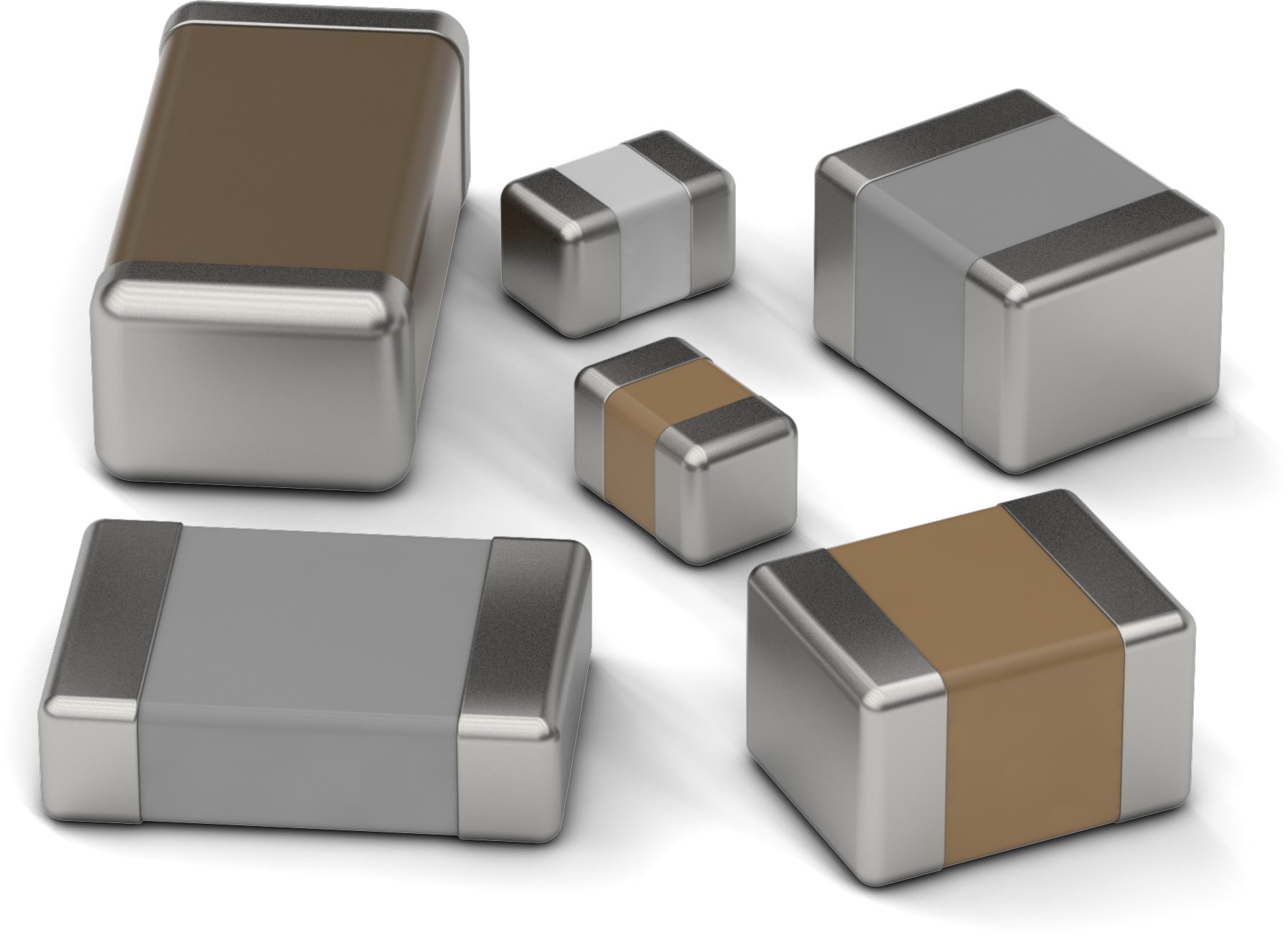

WCAP-CSGP MLCCs 16 V(DC)
EXTENDEDGeneral Purpose
LTSpice files
Characteristics
- General purpose product series
- High performance ceramic
- High electrical precision and stability ceramic especially for NP0
- Ceramic: NP0 (Class I), X5R (Class II), X7R (Class II)
- Temperature coefficient:
±30 ppm/°C; ±0.54 % for NP0
±15 % for X5R and X7R - Termination: Cu/Ni/Sn
- Reference Designs
- RD001 6 W Bipolar isolated auxiliary supply for SiC-MOSFET and IGBT gate driver
- RD002 6 W Unipolar isolated auxiliary supply for SiC-MOSFET and IGBT gate driver
- RD006 3 W Dual-output isolated auxiliary supply for communication interfaces and measurement systems
- RD022 GB PoE+-Ethernet-USB“ adapter for industrial use with an EMC perspective
Applications
- Temperature compensation (NP0)
- Coupling
- Decoupling
- Bypass
- Smoothing
- Filtering
- Resonant circuit
Application Notes
- ANP007 Effective USB 3.1 filtering and protection
- ANP062 LC Filter Design With MLCCs: Why The Applied Voltage Matters
- ANP085 Single Pair Ethernet for Industrial Applications
- ANP098 Effect of layout, vias and design on the blocking quality of filter capacitors
- ANP109 Impedance Spectra of Different Capacitor Technologies
- ANP114 Voltage and Frequency Dependence of Ferroelectric Class 2 Multilayer Ceramic Capacitors
- ANP117 Impact of output capacitor on feedback loop stability of a power supply
- ANP122 Gigabit PoE Interface from an EMC perspective
- ANP123 Long- and Short-Term Voltage Dependence of Ferroelectric Class 2 MLCCs
- ANS018 EMI Filter Design for Non-Isolated DC/DC Converters
- SN011 Why does the capacity of MLCCs change
Products
All
0201
0402
0603
0805
1206
1210
1812
Filter by
show in
article in 7 product lines
Reset allOrder Code | Datasheet | Simulation | Downloads | Status | C | Tol. C | VR(V (DC)) | Size | Operating Temperature | Q(%) | DF(%) | RISO | Ceramic Type | L(mm) | W(mm) | H(mm) | Fl(mm) | Packaging | Demoboard | Design Kit | Filter Bag | Filter Stick | Samples |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
885012005019 | SPEC | Status Activei| Production is active. Expected lifetime: >10 years. | Capacitance1 pF | Capacitance±0.5pF | Rated Voltage16 V (DC) | Size0402 | Operating Temperature -55 °C up to +125 °C | Q-Factor420 % | – | Insulation Resistance10 GΩ | Ceramic TypeNP0 Class I | Length1 mm | Width0.5 mm | Height0.5 mm | Pad Dimension0.25 mm | Packaging7" Tape & Reel | Demoboard – | Design Kit – | Filter Bag – | Filter Stick – | |||
885012005020 | SPEC | Status Activei| Production is active. Expected lifetime: >10 years. | Capacitance1.5 pF | Capacitance±0.5pF | Rated Voltage16 V (DC) | Size0402 | Operating Temperature -55 °C up to +125 °C | Q-Factor430 % | – | Insulation Resistance10 GΩ | Ceramic TypeNP0 Class I | Length1 mm | Width0.5 mm | Height0.5 mm | Pad Dimension0.25 mm | Packaging7" Tape & Reel | Demoboard – | Design Kit – | Filter Bag – | Filter Stick – | |||
885012005021 | SPEC | Status Activei| Production is active. Expected lifetime: >10 years. | Capacitance2.2 pF | Capacitance±0.5pF | Rated Voltage16 V (DC) | Size0402 | Operating Temperature -55 °C up to +125 °C | Q-Factor444 % | – | Insulation Resistance10 GΩ | Ceramic TypeNP0 Class I | Length1 mm | Width0.5 mm | Height0.5 mm | Pad Dimension0.25 mm | Packaging7" Tape & Reel | Demoboard – | Design Kit – | Filter Bag – | Filter Stick – | |||
885012005022 | SPEC | Status Activei| Production is active. Expected lifetime: >10 years. | Capacitance3.3 pF | Capacitance±0.5pF | Rated Voltage16 V (DC) | Size0402 | Operating Temperature -55 °C up to +125 °C | Q-Factor466 % | – | Insulation Resistance10 GΩ | Ceramic TypeNP0 Class I | Length1 mm | Width0.5 mm | Height0.5 mm | Pad Dimension0.25 mm | Packaging7" Tape & Reel | Demoboard – | Design Kit – | Filter Bag – | Filter Stick – | |||
885012005023 | SPEC | Status Activei| Production is active. Expected lifetime: >10 years. | Capacitance4.7 pF | Capacitance±0.5pF | Rated Voltage16 V (DC) | Size0402 | Operating Temperature -55 °C up to +125 °C | Q-Factor494 % | – | Insulation Resistance10 GΩ | Ceramic TypeNP0 Class I | Length1 mm | Width0.5 mm | Height0.5 mm | Pad Dimension0.25 mm | Packaging7" Tape & Reel | Demoboard – | Design Kit – | Filter Bag – | Filter Stick – | |||
885012005024 | SPEC | Status Activei| Production is active. Expected lifetime: >10 years. | Capacitance6.8 pF | Capacitance±0.5pF | Rated Voltage16 V (DC) | Size0402 | Operating Temperature -55 °C up to +125 °C | Q-Factor536 % | – | Insulation Resistance10 GΩ | Ceramic TypeNP0 Class I | Length1 mm | Width0.5 mm | Height0.5 mm | Pad Dimension0.25 mm | Packaging7" Tape & Reel | Demoboard – | Design Kit – | Filter Bag – | Filter Stick – | |||
885012005025 | SPEC | Status Activei| Production is active. Expected lifetime: >10 years. | Capacitance10 pF | Capacitance±5% | Rated Voltage16 V (DC) | Size0402 | Operating Temperature -55 °C up to +125 °C | Q-Factor600 % | – | Insulation Resistance10 GΩ | Ceramic TypeNP0 Class I | Length1 mm | Width0.5 mm | Height0.5 mm | Pad Dimension0.25 mm | Packaging7" Tape & Reel | Demoboard – | Design Kit – | Filter Bag – | Filter Stick – | |||
885012006017 | SPEC | Status Activei| Production is active. Expected lifetime: >10 years. | Capacitance10 pF | Capacitance±5% | Rated Voltage16 V (DC) | Size0603 | Operating Temperature -55 °C up to +125 °C | Q-Factor600 % | – | Insulation Resistance10 GΩ | Ceramic TypeNP0 Class I | Length1.6 mm | Width0.8 mm | Height0.8 mm | Pad Dimension0.4 mm | Packaging7" Tape & Reel | Demoboard – | Design Kit – | Filter Bag – | Filter Stick – | |||
885012007010 | SPEC | Status Activei| Production is active. Expected lifetime: >10 years. | Capacitance10 pF | Capacitance±5% | Rated Voltage16 V (DC) | Size0805 | Operating Temperature -55 °C up to +125 °C | Q-Factor600 % | – | Insulation Resistance10 GΩ | Ceramic TypeNP0 Class I | Length2 mm | Width1.25 mm | Height0.6 mm | Pad Dimension0.5 mm | Packaging7" Tape & Reel | Demoboard – | Design Kit – | Filter Bag – | Filter Stick – | |||
885012005026 | SPEC | Status Activei| Production is active. Expected lifetime: >10 years. | Capacitance15 pF | Capacitance±5% | Rated Voltage16 V (DC) | Size0402 | Operating Temperature -55 °C up to +125 °C | Q-Factor700 % | – | Insulation Resistance10 GΩ | Ceramic TypeNP0 Class I | Length1 mm | Width0.5 mm | Height0.5 mm | Pad Dimension0.25 mm | Packaging7" Tape & Reel | Demoboard – | Design Kit – | Filter Bag – | Filter Stick – | |||
885012006018 | SPEC | Status Activei| Production is active. Expected lifetime: >10 years. | Capacitance15 pF | Capacitance±5% | Rated Voltage16 V (DC) | Size0603 | Operating Temperature -55 °C up to +125 °C | Q-Factor700 % | – | Insulation Resistance10 GΩ | Ceramic TypeNP0 Class I | Length1.6 mm | Width0.8 mm | Height0.8 mm | Pad Dimension0.4 mm | Packaging7" Tape & Reel | Demoboard – | Design Kit – | Filter Bag – | Filter Stick – | |||
885012007011 | SPEC | Status Activei| Production is active. Expected lifetime: >10 years. | Capacitance15 pF | Capacitance±5% | Rated Voltage16 V (DC) | Size0805 | Operating Temperature -55 °C up to +125 °C | Q-Factor700 % | – | Insulation Resistance10 GΩ | Ceramic TypeNP0 Class I | Length2 mm | Width1.25 mm | Height0.6 mm | Pad Dimension0.5 mm | Packaging7" Tape & Reel | Demoboard – | Design Kit – | Filter Bag – | Filter Stick – | |||
885012005027 | SPEC | Status Activei| Production is active. Expected lifetime: >10 years. | Capacitance22 pF | Capacitance±5% | Rated Voltage16 V (DC) | Size0402 | Operating Temperature -55 °C up to +125 °C | Q-Factor840 % | – | Insulation Resistance10 GΩ | Ceramic TypeNP0 Class I | Length1 mm | Width0.5 mm | Height0.5 mm | Pad Dimension0.25 mm | Packaging7" Tape & Reel | Demoboard – | Design Kit – | Filter Bag – | Filter Stick – | |||
885012006019 | SPEC | Status Activei| Production is active. Expected lifetime: >10 years. | Capacitance22 pF | Capacitance±5% | Rated Voltage16 V (DC) | Size0603 | Operating Temperature -55 °C up to +125 °C | Q-Factor840 % | – | Insulation Resistance10 GΩ | Ceramic TypeNP0 Class I | Length1.6 mm | Width0.8 mm | Height0.8 mm | Pad Dimension0.4 mm | Packaging7" Tape & Reel | Demoboard – | Design Kit – | Filter Bag – | Filter Stick – | |||
885012007012 | SPEC | Status Activei| Production is active. Expected lifetime: >10 years. | Capacitance22 pF | Capacitance±5% | Rated Voltage16 V (DC) | Size0805 | Operating Temperature -55 °C up to +125 °C | Q-Factor840 % | – | Insulation Resistance10 GΩ | Ceramic TypeNP0 Class I | Length2 mm | Width1.25 mm | Height0.6 mm | Pad Dimension0.5 mm | Packaging7" Tape & Reel | Demoboard – | Design Kit – | Filter Bag – | Filter Stick – | |||
885012008011 | SPEC | Status Activei| Production is active. Expected lifetime: >10 years. | Capacitance22 pF | Capacitance±5% | Rated Voltage16 V (DC) | Size1206 | Operating Temperature -55 °C up to +125 °C | Q-Factor840 % | – | Insulation Resistance10 GΩ | Ceramic TypeNP0 Class I | Length3.2 mm | Width1.6 mm | Height0.8 mm | Pad Dimension0.6 mm | Packaging7" Tape & Reel | Demoboard – | Design Kit – | Filter Bag – | Filter Stick – | |||
885012005028 | SPEC | Status Activei| Production is active. Expected lifetime: >10 years. | Capacitance33 pF | Capacitance±5% | Rated Voltage16 V (DC) | Size0402 | Operating Temperature -55 °C up to +125 °C | Q-Factor1000 % | – | Insulation Resistance10 GΩ | Ceramic TypeNP0 Class I | Length1 mm | Width0.5 mm | Height0.5 mm | Pad Dimension0.25 mm | Packaging7" Tape & Reel | Demoboard – | Design Kit – | Filter Bag – | Filter Stick – | |||
885012006020 | SPEC | Status Activei| Production is active. Expected lifetime: >10 years. | Capacitance33 pF | Capacitance±5% | Rated Voltage16 V (DC) | Size0603 | Operating Temperature -55 °C up to +125 °C | Q-Factor1000 % | – | Insulation Resistance10 GΩ | Ceramic TypeNP0 Class I | Length1.6 mm | Width0.8 mm | Height0.8 mm | Pad Dimension0.4 mm | Packaging7" Tape & Reel | Demoboard – | Design Kit – | Filter Bag – | Filter Stick – | |||
885012007013 | SPEC | Status Activei| Production is active. Expected lifetime: >10 years. | Capacitance33 pF | Capacitance±5% | Rated Voltage16 V (DC) | Size0805 | Operating Temperature -55 °C up to +125 °C | Q-Factor1000 % | – | Insulation Resistance10 GΩ | Ceramic TypeNP0 Class I | Length2 mm | Width1.25 mm | Height0.6 mm | Pad Dimension0.5 mm | Packaging7" Tape & Reel | Demoboard – | Design Kit – | Filter Bag – | Filter Stick – | |||
885012005029 | SPEC | Status Activei| Production is active. Expected lifetime: >10 years. | Capacitance47 pF | Capacitance±5% | Rated Voltage16 V (DC) | Size0402 | Operating Temperature -55 °C up to +125 °C | Q-Factor1000 % | – | Insulation Resistance10 GΩ | Ceramic TypeNP0 Class I | Length1 mm | Width0.5 mm | Height0.5 mm | Pad Dimension0.25 mm | Packaging7" Tape & Reel | Demoboard – | Design Kit – | Filter Bag – | Filter Stick – | |||
885012006021 | SPEC | Status Activei| Production is active. Expected lifetime: >10 years. | Capacitance47 pF | Capacitance±5% | Rated Voltage16 V (DC) | Size0603 | Operating Temperature -55 °C up to +125 °C | Q-Factor1000 % | – | Insulation Resistance10 GΩ | Ceramic TypeNP0 Class I | Length1.6 mm | Width0.8 mm | Height0.8 mm | Pad Dimension0.4 mm | Packaging7" Tape & Reel | Demoboard – | Design Kit – | Filter Bag – | Filter Stick – | |||
885012007014 | SPEC | Status Activei| Production is active. Expected lifetime: >10 years. | Capacitance47 pF | Capacitance±5% | Rated Voltage16 V (DC) | Size0805 | Operating Temperature -55 °C up to +125 °C | Q-Factor1000 % | – | Insulation Resistance10 GΩ | Ceramic TypeNP0 Class I | Length2 mm | Width1.25 mm | Height0.6 mm | Pad Dimension0.5 mm | Packaging7" Tape & Reel | Demoboard – | Design Kit – | Filter Bag – | Filter Stick – | |||
885012005030 | SPEC | Status Activei| Production is active. Expected lifetime: >10 years. | Capacitance68 pF | Capacitance±5% | Rated Voltage16 V (DC) | Size0402 | Operating Temperature -55 °C up to +125 °C | Q-Factor1000 % | – | Insulation Resistance10 GΩ | Ceramic TypeNP0 Class I | Length1 mm | Width0.5 mm | Height0.5 mm | Pad Dimension0.25 mm | Packaging7" Tape & Reel | Demoboard – | Design Kit – | Filter Bag – | Filter Stick – | |||
885012006022 | SPEC | Status Activei| Production is active. Expected lifetime: >10 years. | Capacitance68 pF | Capacitance±5% | Rated Voltage16 V (DC) | Size0603 | Operating Temperature -55 °C up to +125 °C | Q-Factor1000 % | – | Insulation Resistance10 GΩ | Ceramic TypeNP0 Class I | Length1.6 mm | Width0.8 mm | Height0.8 mm | Pad Dimension0.4 mm | Packaging7" Tape & Reel | Demoboard – | Design Kit – | Filter Bag – | Filter Stick – | |||
885012007015 | SPEC | Status Activei| Production is active. Expected lifetime: >10 years. | Capacitance68 pF | Capacitance±5% | Rated Voltage16 V (DC) | Size0805 | Operating Temperature -55 °C up to +125 °C | Q-Factor1000 % | – | Insulation Resistance10 GΩ | Ceramic TypeNP0 Class I | Length2 mm | Width1.25 mm | Height0.6 mm | Pad Dimension0.5 mm | Packaging7" Tape & Reel | Demoboard – | Design Kit – | Filter Bag – | Filter Stick – | |||
885012005031 | SPEC | Status Activei| Production is active. Expected lifetime: >10 years. | Capacitance100 pF | Capacitance±5% | Rated Voltage16 V (DC) | Size0402 | Operating Temperature -55 °C up to +125 °C | Q-Factor1000 % | – | Insulation Resistance10 GΩ | Ceramic TypeNP0 Class I | Length1 mm | Width0.5 mm | Height0.5 mm | Pad Dimension0.25 mm | Packaging7" Tape & Reel | Demoboard – | Design Kit – | Filter Bag – | Filter Stick – | |||
885012205019 | SPEC | Status Activei| Production is active. Expected lifetime: >10 years. | Capacitance100 pF | Capacitance±10% | Rated Voltage16 V (DC) | Size0402 | Operating Temperature -55 °C up to +125 °C | – | Dissipation Factor3.5 % | Insulation Resistance10 GΩ | Ceramic TypeX7R Class II | Length1 mm | Width0.5 mm | Height0.5 mm | Pad Dimension0.25 mm | Packaging7" Tape & Reel | Demoboard – | Design Kit – | Filter Bag – | Filter Stick – | |||
885012006023 | SPEC | Status Activei| Production is active. Expected lifetime: >10 years. | Capacitance100 pF | Capacitance±5% | Rated Voltage16 V (DC) | Size0603 | Operating Temperature -55 °C up to +125 °C | Q-Factor1000 % | – | Insulation Resistance10 GΩ | Ceramic TypeNP0 Class I | Length1.6 mm | Width0.8 mm | Height0.8 mm | Pad Dimension0.4 mm | Packaging7" Tape & Reel | Demoboard – | Design Kit – | Filter Bag – | Filter Stick – | |||
885012206028 | SPEC | Status Activei| Production is active. Expected lifetime: >10 years. | Capacitance100 pF | Capacitance±10% | Rated Voltage16 V (DC) | Size0603 | Operating Temperature -55 °C up to +125 °C | – | Dissipation Factor3.5 % | Insulation Resistance10 GΩ | Ceramic TypeX7R Class II | Length1.6 mm | Width0.8 mm | Height0.8 mm | Pad Dimension0.4 mm | Packaging7" Tape & Reel | Demoboard – | Design Kit – | Filter Bag – | Filter Stick – | |||
885012007016 | SPEC | Status Activei| Production is active. Expected lifetime: >10 years. | Capacitance100 pF | Capacitance±5% | Rated Voltage16 V (DC) | Size0805 | Operating Temperature -55 °C up to +125 °C | Q-Factor1000 % | – | Insulation Resistance10 GΩ | Ceramic TypeNP0 Class I | Length2 mm | Width1.25 mm | Height0.6 mm | Pad Dimension0.5 mm | Packaging7" Tape & Reel | Demoboard – | Design Kit – | Filter Bag – | Filter Stick – | |||
885012207027 | SPEC | Status Activei| Production is active. Expected lifetime: >10 years. | Capacitance100 pF | Capacitance±10% | Rated Voltage16 V (DC) | Size0805 | Operating Temperature -55 °C up to +125 °C | – | Dissipation Factor3.5 % | Insulation Resistance10 GΩ | Ceramic TypeX7R Class II | Length2 mm | Width1.25 mm | Height0.8 mm | Pad Dimension0.5 mm | Packaging7" Tape & Reel | Demoboard – | Design Kit – | Filter Bag – | Filter Stick – | |||
885012008012 | SPEC | Status Activei| Production is active. Expected lifetime: >10 years. | Capacitance100 pF | Capacitance±5% | Rated Voltage16 V (DC) | Size1206 | Operating Temperature -55 °C up to +125 °C | Q-Factor1000 % | – | Insulation Resistance10 GΩ | Ceramic TypeNP0 Class I | Length3.2 mm | Width1.6 mm | Height0.8 mm | Pad Dimension0.6 mm | Packaging7" Tape & Reel | Demoboard – | Design Kit – | Filter Bag – | Filter Stick – | |||
885012005032 | SPEC | Status Activei| Production is active. Expected lifetime: >10 years. | Capacitance150 pF | Capacitance±5% | Rated Voltage16 V (DC) | Size0402 | Operating Temperature -55 °C up to +125 °C | Q-Factor1000 % | – | Insulation Resistance10 GΩ | Ceramic TypeNP0 Class I | Length1 mm | Width0.5 mm | Height0.5 mm | Pad Dimension0.25 mm | Packaging7" Tape & Reel | Demoboard – | Design Kit – | Filter Bag – | Filter Stick – | |||
885012205020 | SPEC | Status Activei| Production is active. Expected lifetime: >10 years. | Capacitance150 pF | Capacitance±10% | Rated Voltage16 V (DC) | Size0402 | Operating Temperature -55 °C up to +125 °C | – | Dissipation Factor3.5 % | Insulation Resistance10 GΩ | Ceramic TypeX7R Class II | Length1 mm | Width0.5 mm | Height0.5 mm | Pad Dimension0.25 mm | Packaging7" Tape & Reel | Demoboard – | Design Kit – | Filter Bag – | Filter Stick – | |||
885012006024 | SPEC | Status Activei| Production is active. Expected lifetime: >10 years. | Capacitance150 pF | Capacitance±5% | Rated Voltage16 V (DC) | Size0603 | Operating Temperature -55 °C up to +125 °C | Q-Factor1000 % | – | Insulation Resistance10 GΩ | Ceramic TypeNP0 Class I | Length1.6 mm | Width0.8 mm | Height0.8 mm | Pad Dimension0.4 mm | Packaging7" Tape & Reel | Demoboard – | Design Kit – | Filter Bag – | Filter Stick – | |||
885012206029 | SPEC | Status Activei| Production is active. Expected lifetime: >10 years. | Capacitance150 pF | Capacitance±10% | Rated Voltage16 V (DC) | Size0603 | Operating Temperature -55 °C up to +125 °C | – | Dissipation Factor3.5 % | Insulation Resistance10 GΩ | Ceramic TypeX7R Class II | Length1.6 mm | Width0.8 mm | Height0.8 mm | Pad Dimension0.4 mm | Packaging7" Tape & Reel | Demoboard – | Design Kit – | Filter Bag – | Filter Stick – | |||
885012007017 | SPEC | Status Activei| Production is active. Expected lifetime: >10 years. | Capacitance150 pF | Capacitance±5% | Rated Voltage16 V (DC) | Size0805 | Operating Temperature -55 °C up to +125 °C | Q-Factor1000 % | – | Insulation Resistance10 GΩ | Ceramic TypeNP0 Class I | Length2 mm | Width1.25 mm | Height0.6 mm | Pad Dimension0.5 mm | Packaging7" Tape & Reel | Demoboard – | Design Kit – | Filter Bag – | Filter Stick – | |||
885012207028 | SPEC | Status Activei| Production is active. Expected lifetime: >10 years. | Capacitance150 pF | Capacitance±10% | Rated Voltage16 V (DC) | Size0805 | Operating Temperature -55 °C up to +125 °C | – | Dissipation Factor3.5 % | Insulation Resistance10 GΩ | Ceramic TypeX7R Class II | Length2 mm | Width1.25 mm | Height0.8 mm | Pad Dimension0.5 mm | Packaging7" Tape & Reel | Demoboard – | Design Kit – | Filter Bag – | Filter Stick – | |||
885012008013 | SPEC | Status Activei| Production is active. Expected lifetime: >10 years. | Capacitance150 pF | Capacitance±5% | Rated Voltage16 V (DC) | Size1206 | Operating Temperature -55 °C up to +125 °C | Q-Factor1000 % | – | Insulation Resistance10 GΩ | Ceramic TypeNP0 Class I | Length3.2 mm | Width1.6 mm | Height0.8 mm | Pad Dimension0.6 mm | Packaging7" Tape & Reel | Demoboard – | Design Kit – | Filter Bag – | Filter Stick – | |||
885012005033 | SPEC | Status Activei| Production is active. Expected lifetime: >10 years. | Capacitance220 pF | Capacitance±5% | Rated Voltage16 V (DC) | Size0402 | Operating Temperature -55 °C up to +125 °C | Q-Factor1000 % | – | Insulation Resistance10 GΩ | Ceramic TypeNP0 Class I | Length1 mm | Width0.5 mm | Height0.5 mm | Pad Dimension0.25 mm | Packaging7" Tape & Reel | Demoboard – | Design Kit – | Filter Bag – | Filter Stick – | |||
885012205021 | SPEC | Status Activei| Production is active. Expected lifetime: >10 years. | Capacitance220 pF | Capacitance±10% | Rated Voltage16 V (DC) | Size0402 | Operating Temperature -55 °C up to +125 °C | – | Dissipation Factor3.5 % | Insulation Resistance10 GΩ | Ceramic TypeX7R Class II | Length1 mm | Width0.5 mm | Height0.5 mm | Pad Dimension0.25 mm | Packaging7" Tape & Reel | Demoboard – | Design Kit – | Filter Bag – | Filter Stick – | |||
885012006025 | SPEC | Status Activei| Production is active. Expected lifetime: >10 years. | Capacitance220 pF | Capacitance±5% | Rated Voltage16 V (DC) | Size0603 | Operating Temperature -55 °C up to +125 °C | Q-Factor1000 % | – | Insulation Resistance10 GΩ | Ceramic TypeNP0 Class I | Length1.6 mm | Width0.8 mm | Height0.8 mm | Pad Dimension0.4 mm | Packaging7" Tape & Reel | Demoboard – | Design Kit – | Filter Bag – | Filter Stick – | |||
885012206030 | SPEC | Status Activei| Production is active. Expected lifetime: >10 years. | Capacitance220 pF | Capacitance±10% | Rated Voltage16 V (DC) | Size0603 | Operating Temperature -55 °C up to +125 °C | – | Dissipation Factor3.5 % | Insulation Resistance10 GΩ | Ceramic TypeX7R Class II | Length1.6 mm | Width0.8 mm | Height0.8 mm | Pad Dimension0.4 mm | Packaging7" Tape & Reel | Demoboard – | Design Kit – | Filter Bag – | Filter Stick – | |||
885012007018 | SPEC | Status Activei| Production is active. Expected lifetime: >10 years. | Capacitance220 pF | Capacitance±5% | Rated Voltage16 V (DC) | Size0805 | Operating Temperature -55 °C up to +125 °C | Q-Factor1000 % | – | Insulation Resistance10 GΩ | Ceramic TypeNP0 Class I | Length2 mm | Width1.25 mm | Height0.6 mm | Pad Dimension0.5 mm | Packaging7" Tape & Reel | Demoboard – | Design Kit – | Filter Bag – | Filter Stick – | |||
885012207029 | SPEC | Status Activei| Production is active. Expected lifetime: >10 years. | Capacitance220 pF | Capacitance±10% | Rated Voltage16 V (DC) | Size0805 | Operating Temperature -55 °C up to +125 °C | – | Dissipation Factor3.5 % | Insulation Resistance10 GΩ | Ceramic TypeX7R Class II | Length2 mm | Width1.25 mm | Height0.8 mm | Pad Dimension0.5 mm | Packaging7" Tape & Reel | Demoboard – | Design Kit – | Filter Bag – | Filter Stick – | |||
885012008014 | SPEC | Status Activei| Production is active. Expected lifetime: >10 years. | Capacitance220 pF | Capacitance±5% | Rated Voltage16 V (DC) | Size1206 | Operating Temperature -55 °C up to +125 °C | Q-Factor1000 % | – | Insulation Resistance10 GΩ | Ceramic TypeNP0 Class I | Length3.2 mm | Width1.6 mm | Height0.8 mm | Pad Dimension0.6 mm | Packaging7" Tape & Reel | Demoboard – | Design Kit – | Filter Bag – | Filter Stick – | |||
885012208020 | SPEC | Status Activei| Production is active. Expected lifetime: >10 years. | Capacitance220 pF | Capacitance±10% | Rated Voltage16 V (DC) | Size1206 | Operating Temperature -55 °C up to +125 °C | – | Dissipation Factor3.5 % | Insulation Resistance10 GΩ | Ceramic TypeX7R Class II | Length3.2 mm | Width1.6 mm | Height0.8 mm | Pad Dimension0.6 mm | Packaging7" Tape & Reel | Demoboard – | Design Kit – | Filter Bag – | Filter Stick – | |||
885012205022 | SPEC | Status Activei| Production is active. Expected lifetime: >10 years. | Capacitance330 pF | Capacitance±10% | Rated Voltage16 V (DC) | Size0402 | Operating Temperature -55 °C up to +125 °C | – | Dissipation Factor3.5 % | Insulation Resistance10 GΩ | Ceramic TypeX7R Class II | Length1 mm | Width0.5 mm | Height0.5 mm | Pad Dimension0.25 mm | Packaging7" Tape & Reel | Demoboard – | Design Kit – | Filter Bag – | Filter Stick – | |||
885012006026 | SPEC | Status Activei| Production is active. Expected lifetime: >10 years. | Capacitance330 pF | Capacitance±5% | Rated Voltage16 V (DC) | Size0603 | Operating Temperature -55 °C up to +125 °C | Q-Factor1000 % | – | Insulation Resistance10 GΩ | Ceramic TypeNP0 Class I | Length1.6 mm | Width0.8 mm | Height0.8 mm | Pad Dimension0.4 mm | Packaging7" Tape & Reel | Demoboard – | Design Kit – | Filter Bag – | Filter Stick – | |||
885012206031 | SPEC | Status Activei| Production is active. Expected lifetime: >10 years. | Capacitance330 pF | Capacitance±10% | Rated Voltage16 V (DC) | Size0603 | Operating Temperature -55 °C up to +125 °C | – | Dissipation Factor3.5 % | Insulation Resistance10 GΩ | Ceramic TypeX7R Class II | Length1.6 mm | Width0.8 mm | Height0.8 mm | Pad Dimension0.4 mm | Packaging7" Tape & Reel | Demoboard – | Design Kit – | Filter Bag – | Filter Stick – | |||
885012007019 | SPEC | Status Activei| Production is active. Expected lifetime: >10 years. | Capacitance330 pF | Capacitance±5% | Rated Voltage16 V (DC) | Size0805 | Operating Temperature -55 °C up to +125 °C | Q-Factor1000 % | – | Insulation Resistance10 GΩ | Ceramic TypeNP0 Class I | Length2 mm | Width1.25 mm | Height0.6 mm | Pad Dimension0.5 mm | Packaging7" Tape & Reel | Demoboard – | Design Kit – | Filter Bag – | Filter Stick – | |||
885012207030 | SPEC | Status Activei| Production is active. Expected lifetime: >10 years. | Capacitance330 pF | Capacitance±10% | Rated Voltage16 V (DC) | Size0805 | Operating Temperature -55 °C up to +125 °C | – | Dissipation Factor3.5 % | Insulation Resistance10 GΩ | Ceramic TypeX7R Class II | Length2 mm | Width1.25 mm | Height0.8 mm | Pad Dimension0.5 mm | Packaging7" Tape & Reel | Demoboard – | Design Kit – | Filter Bag – | Filter Stick – | |||
885012205023 | SPEC | Status Activei| Production is active. Expected lifetime: >10 years. | Capacitance470 pF | Capacitance±10% | Rated Voltage16 V (DC) | Size0402 | Operating Temperature -55 °C up to +125 °C | – | Dissipation Factor3.5 % | Insulation Resistance10 GΩ | Ceramic TypeX7R Class II | Length1 mm | Width0.5 mm | Height0.5 mm | Pad Dimension0.25 mm | Packaging7" Tape & Reel | Demoboard – | Design Kit – | Filter Bag – | Filter Stick – | |||
885012006027 | SPEC | Status Activei| Production is active. Expected lifetime: >10 years. | Capacitance470 pF | Capacitance±5% | Rated Voltage16 V (DC) | Size0603 | Operating Temperature -55 °C up to +125 °C | Q-Factor1000 % | – | Insulation Resistance10 GΩ | Ceramic TypeNP0 Class I | Length1.6 mm | Width0.8 mm | Height0.8 mm | Pad Dimension0.4 mm | Packaging7" Tape & Reel | Demoboard – | Design Kit – | Filter Bag – | Filter Stick – | |||
885012206032 | SPEC | Status Activei| Production is active. Expected lifetime: >10 years. | Capacitance470 pF | Capacitance±10% | Rated Voltage16 V (DC) | Size0603 | Operating Temperature -55 °C up to +125 °C | – | Dissipation Factor3.5 % | Insulation Resistance10 GΩ | Ceramic TypeX7R Class II | Length1.6 mm | Width0.8 mm | Height0.8 mm | Pad Dimension0.4 mm | Packaging7" Tape & Reel | Demoboard – | Design Kit – | Filter Bag – | Filter Stick – | |||
885012007020 | SPEC | Status Activei| Production is active. Expected lifetime: >10 years. | Capacitance470 pF | Capacitance±5% | Rated Voltage16 V (DC) | Size0805 | Operating Temperature -55 °C up to +125 °C | Q-Factor1000 % | – | Insulation Resistance10 GΩ | Ceramic TypeNP0 Class I | Length2 mm | Width1.25 mm | Height0.8 mm | Pad Dimension0.5 mm | Packaging7" Tape & Reel | Demoboard – | Design Kit – | Filter Bag – | Filter Stick – | |||
885012207031 | SPEC | Status Activei| Production is active. Expected lifetime: >10 years. | Capacitance470 pF | Capacitance±10% | Rated Voltage16 V (DC) | Size0805 | Operating Temperature -55 °C up to +125 °C | – | Dissipation Factor3.5 % | Insulation Resistance10 GΩ | Ceramic TypeX7R Class II | Length2 mm | Width1.25 mm | Height0.8 mm | Pad Dimension0.5 mm | Packaging7" Tape & Reel | Demoboard – | Design Kit – | Filter Bag – | Filter Stick – | |||
885012208021 | SPEC | Status Activei| Production is active. Expected lifetime: >10 years. | Capacitance470 pF | Capacitance±10% | Rated Voltage16 V (DC) | Size1206 | Operating Temperature -55 °C up to +125 °C | – | Dissipation Factor3.5 % | Insulation Resistance10 GΩ | Ceramic TypeX7R Class II | Length3.2 mm | Width1.6 mm | Height0.8 mm | Pad Dimension0.6 mm | Packaging7" Tape & Reel | Demoboard – | Design Kit – | Filter Bag – | Filter Stick – | |||
885012205024 | SPEC | Status Activei| Production is active. Expected lifetime: >10 years. | Capacitance680 pF | Capacitance±10% | Rated Voltage16 V (DC) | Size0402 | Operating Temperature -55 °C up to +125 °C | – | Dissipation Factor3.5 % | Insulation Resistance10 GΩ | Ceramic TypeX7R Class II | Length1 mm | Width0.5 mm | Height0.5 mm | Pad Dimension0.25 mm | Packaging7" Tape & Reel | Demoboard – | Design Kit – | Filter Bag – | Filter Stick – | |||
885012006028 | SPEC | Status Activei| Production is active. Expected lifetime: >10 years. | Capacitance680 pF | Capacitance±5% | Rated Voltage16 V (DC) | Size0603 | Operating Temperature -55 °C up to +125 °C | Q-Factor1000 % | – | Insulation Resistance10 GΩ | Ceramic TypeNP0 Class I | Length1.6 mm | Width0.8 mm | Height0.8 mm | Pad Dimension0.4 mm | Packaging7" Tape & Reel | Demoboard – | Design Kit – | Filter Bag – | Filter Stick – | |||
885012206033 | SPEC | Status Activei| Production is active. Expected lifetime: >10 years. | Capacitance680 pF | Capacitance±10% | Rated Voltage16 V (DC) | Size0603 | Operating Temperature -55 °C up to +125 °C | – | Dissipation Factor3.5 % | Insulation Resistance10 GΩ | Ceramic TypeX7R Class II | Length1.6 mm | Width0.8 mm | Height0.8 mm | Pad Dimension0.4 mm | Packaging7" Tape & Reel | Demoboard – | Design Kit – | Filter Bag – | Filter Stick – | |||
885012207032 | SPEC | Status Activei| Production is active. Expected lifetime: >10 years. | Capacitance680 pF | Capacitance±10% | Rated Voltage16 V (DC) | Size0805 | Operating Temperature -55 °C up to +125 °C | – | Dissipation Factor3.5 % | Insulation Resistance10 GΩ | Ceramic TypeX7R Class II | Length2 mm | Width1.25 mm | Height0.8 mm | Pad Dimension0.5 mm | Packaging7" Tape & Reel | Demoboard – | Design Kit – | Filter Bag – | Filter Stick – | |||
885012205025 | SPEC | Status Activei| Production is active. Expected lifetime: >10 years. | Capacitance1 nF | Capacitance±10% | Rated Voltage16 V (DC) | Size0402 | Operating Temperature -55 °C up to +125 °C | – | Dissipation Factor3.5 % | Insulation Resistance10 GΩ | Ceramic TypeX7R Class II | Length1 mm | Width0.5 mm | Height0.5 mm | Pad Dimension0.25 mm | Packaging7" Tape & Reel | Demoboard – | Design Kit – | Filter Bag – | Filter Stick – | |||
885012006029 | SPEC | Status Activei| Production is active. Expected lifetime: >10 years. | Capacitance1 nF | Capacitance±5% | Rated Voltage16 V (DC) | Size0603 | Operating Temperature -55 °C up to +125 °C | Q-Factor1000 % | – | Insulation Resistance10 GΩ | Ceramic TypeNP0 Class I | Length1.6 mm | Width0.8 mm | Height0.8 mm | Pad Dimension0.4 mm | Packaging7" Tape & Reel | Demoboard – | Design Kit – | Filter Bag – | Filter Stick – | |||
885012206034 | SPEC | Status Activei| Production is active. Expected lifetime: >10 years. | Capacitance1 nF | Capacitance±10% | Rated Voltage16 V (DC) | Size0603 | Operating Temperature -55 °C up to +125 °C | – | Dissipation Factor3.5 % | Insulation Resistance10 GΩ | Ceramic TypeX7R Class II | Length1.6 mm | Width0.8 mm | Height0.8 mm | Pad Dimension0.4 mm | Packaging7" Tape & Reel | Demoboard – | Design Kit – | Filter Bag – | Filter Stick – | |||
885012007021 | SPEC | Status Activei| Production is active. Expected lifetime: >10 years. | Capacitance1 nF | Capacitance±5% | Rated Voltage16 V (DC) | Size0805 | Operating Temperature -55 °C up to +125 °C | Q-Factor1000 % | – | Insulation Resistance10 GΩ | Ceramic TypeNP0 Class I | Length2 mm | Width1.25 mm | Height0.8 mm | Pad Dimension0.5 mm | Packaging7" Tape & Reel | Demoboard – | Design Kit – | Filter Bag – | Filter Stick – | |||
885012207033 | SPEC | Status Activei| Production is active. Expected lifetime: >10 years. | Capacitance1 nF | Capacitance±10% | Rated Voltage16 V (DC) | Size0805 | Operating Temperature -55 °C up to +125 °C | – | Dissipation Factor3.5 % | Insulation Resistance10 GΩ | Ceramic TypeX7R Class II | Length2 mm | Width1.25 mm | Height0.8 mm | Pad Dimension0.5 mm | Packaging7" Tape & Reel | Demoboard – | Design Kit – | Filter Bag – | Filter Stick – | |||
885012208022 | SPEC | Status Activei| Production is active. Expected lifetime: >10 years. | Capacitance1 nF | Capacitance±10% | Rated Voltage16 V (DC) | Size1206 | Operating Temperature -55 °C up to +125 °C | – | Dissipation Factor3.5 % | Insulation Resistance10 GΩ | Ceramic TypeX7R Class II | Length3.2 mm | Width1.6 mm | Height0.8 mm | Pad Dimension0.6 mm | Packaging7" Tape & Reel | Demoboard – | Design Kit – | Filter Bag – | Filter Stick – | |||
885012010001 | SPEC | Status Activei| Production is active. Expected lifetime: >10 years. | Capacitance1 nF | Capacitance±5% | Rated Voltage16 V (DC) | Size1812 | Operating Temperature -55 °C up to +125 °C | Q-Factor1000 % | – | Insulation Resistance10 GΩ | Ceramic TypeNP0 Class I | Length4.5 mm | Width3.2 mm | Height1.25 mm | Pad Dimension0.75 mm | Packaging7" Tape & Reel | Demoboard – | Design Kit – | Filter Bag – | Filter Stick – | |||
885012205026 | SPEC | Status Activei| Production is active. Expected lifetime: >10 years. | Capacitance1.5 nF | Capacitance±10% | Rated Voltage16 V (DC) | Size0402 | Operating Temperature -55 °C up to +125 °C | – | Dissipation Factor3.5 % | Insulation Resistance10 GΩ | Ceramic TypeX7R Class II | Length1 mm | Width0.5 mm | Height0.5 mm | Pad Dimension0.25 mm | Packaging7" Tape & Reel | Demoboard – | Design Kit – | Filter Bag – | Filter Stick – | |||
885012206035 | SPEC | Status Activei| Production is active. Expected lifetime: >10 years. | Capacitance1.5 nF | Capacitance±10% | Rated Voltage16 V (DC) | Size0603 | Operating Temperature -55 °C up to +125 °C | – | Dissipation Factor3.5 % | Insulation Resistance10 GΩ | Ceramic TypeX7R Class II | Length1.6 mm | Width0.8 mm | Height0.8 mm | Pad Dimension0.4 mm | Packaging7" Tape & Reel | Demoboard – | Design Kit – | Filter Bag – | Filter Stick – | |||
885012007022 | SPEC | Status Activei| Production is active. Expected lifetime: >10 years. | Capacitance1.5 nF | Capacitance±5% | Rated Voltage16 V (DC) | Size0805 | Operating Temperature -55 °C up to +125 °C | Q-Factor1000 % | – | Insulation Resistance10 GΩ | Ceramic TypeNP0 Class I | Length2 mm | Width1.25 mm | Height0.8 mm | Pad Dimension0.5 mm | Packaging7" Tape & Reel | Demoboard – | Design Kit – | Filter Bag – | Filter Stick – | |||
885012207034 | SPEC | Status Activei| Production is active. Expected lifetime: >10 years. | Capacitance1.5 nF | Capacitance±10% | Rated Voltage16 V (DC) | Size0805 | Operating Temperature -55 °C up to +125 °C | – | Dissipation Factor3.5 % | Insulation Resistance10 GΩ | Ceramic TypeX7R Class II | Length2 mm | Width1.25 mm | Height0.8 mm | Pad Dimension0.5 mm | Packaging7" Tape & Reel | Demoboard – | Design Kit – | Filter Bag – | Filter Stick – | |||
885012205027 | SPEC | Status Activei| Production is active. Expected lifetime: >10 years. | Capacitance2.2 nF | Capacitance±10% | Rated Voltage16 V (DC) | Size0402 | Operating Temperature -55 °C up to +125 °C | – | Dissipation Factor3.5 % | Insulation Resistance10 GΩ | Ceramic TypeX7R Class II | Length1 mm | Width0.5 mm | Height0.5 mm | Pad Dimension0.25 mm | Packaging7" Tape & Reel | Demoboard – | Design Kit – | Filter Bag – | Filter Stick – | |||
885012206036 | SPEC | Status Activei| Production is active. Expected lifetime: >10 years. | Capacitance2.2 nF | Capacitance±10% | Rated Voltage16 V (DC) | Size0603 | Operating Temperature -55 °C up to +125 °C | – | Dissipation Factor3.5 % | Insulation Resistance10 GΩ | Ceramic TypeX7R Class II | Length1.6 mm | Width0.8 mm | Height0.8 mm | Pad Dimension0.4 mm | Packaging7" Tape & Reel | Demoboard – | Design Kit – | Filter Bag – | Filter Stick – | |||
885012007023 | SPEC | Status Activei| Production is active. Expected lifetime: >10 years. | Capacitance2.2 nF | Capacitance±5% | Rated Voltage16 V (DC) | Size0805 | Operating Temperature -55 °C up to +125 °C | Q-Factor1000 % | – | Insulation Resistance10 GΩ | Ceramic TypeNP0 Class I | Length2 mm | Width1.25 mm | Height0.8 mm | Pad Dimension0.5 mm | Packaging7" Tape & Reel | Demoboard – | Design Kit – | Filter Bag – | Filter Stick – | |||
885012207035 | SPEC | Status Activei| Production is active. Expected lifetime: >10 years. | Capacitance2.2 nF | Capacitance±10% | Rated Voltage16 V (DC) | Size0805 | Operating Temperature -55 °C up to +125 °C | – | Dissipation Factor3.5 % | Insulation Resistance10 GΩ | Ceramic TypeX7R Class II | Length2 mm | Width1.25 mm | Height0.8 mm | Pad Dimension0.5 mm | Packaging7" Tape & Reel | Demoboard – | Design Kit – | Filter Bag – | Filter Stick – | |||
885012008015 | SPEC | Status Activei| Production is active. Expected lifetime: >10 years. | Capacitance2.2 nF | Capacitance±5% | Rated Voltage16 V (DC) | Size1206 | Operating Temperature -55 °C up to +125 °C | Q-Factor1000 % | – | Insulation Resistance10 GΩ | Ceramic TypeNP0 Class I | Length3.2 mm | Width1.6 mm | Height0.8 mm | Pad Dimension0.6 mm | Packaging7" Tape & Reel | Demoboard – | Design Kit – | Filter Bag – | Filter Stick – | |||
885012208023 | SPEC | Status Activei| Production is active. Expected lifetime: >10 years. | Capacitance2.2 nF | Capacitance±10% | Rated Voltage16 V (DC) | Size1206 | Operating Temperature -55 °C up to +125 °C | – | Dissipation Factor3.5 % | Insulation Resistance10 GΩ | Ceramic TypeX7R Class II | Length3.2 mm | Width1.6 mm | Height0.8 mm | Pad Dimension0.6 mm | Packaging7" Tape & Reel | Demoboard – | Design Kit – | Filter Bag – | Filter Stick – | |||
885012205028 | SPEC | Status Activei| Production is active. Expected lifetime: >10 years. | Capacitance3.3 nF | Capacitance±10% | Rated Voltage16 V (DC) | Size0402 | Operating Temperature -55 °C up to +125 °C | – | Dissipation Factor3.5 % | Insulation Resistance10 GΩ | Ceramic TypeX7R Class II | Length1 mm | Width0.5 mm | Height0.5 mm | Pad Dimension0.25 mm | Packaging7" Tape & Reel | Demoboard – | Design Kit – | Filter Bag – | Filter Stick – | |||
885012206037 | SPEC | Status Activei| Production is active. Expected lifetime: >10 years. | Capacitance3.3 nF | Capacitance±10% | Rated Voltage16 V (DC) | Size0603 | Operating Temperature -55 °C up to +125 °C | – | Dissipation Factor3.5 % | Insulation Resistance10 GΩ | Ceramic TypeX7R Class II | Length1.6 mm | Width0.8 mm | Height0.8 mm | Pad Dimension0.4 mm | Packaging7" Tape & Reel | Demoboard – | Design Kit – | Filter Bag – | Filter Stick – | |||
885012007024 | SPEC | Status Activei| Production is active. Expected lifetime: >10 years. | Capacitance3.3 nF | Capacitance±5% | Rated Voltage16 V (DC) | Size0805 | Operating Temperature -55 °C up to +125 °C | Q-Factor1000 % | – | Insulation Resistance10 GΩ | Ceramic TypeNP0 Class I | Length2 mm | Width1.25 mm | Height1.25 mm | Pad Dimension0.5 mm | Packaging7" Tape & Reel | Demoboard – | Design Kit – | Filter Bag – | Filter Stick – | |||
885012207036 | SPEC | Status Activei| Production is active. Expected lifetime: >10 years. | Capacitance3.3 nF | Capacitance±10% | Rated Voltage16 V (DC) | Size0805 | Operating Temperature -55 °C up to +125 °C | – | Dissipation Factor3.5 % | Insulation Resistance10 GΩ | Ceramic TypeX7R Class II | Length2 mm | Width1.25 mm | Height0.8 mm | Pad Dimension0.5 mm | Packaging7" Tape & Reel | Demoboard – | Design Kit – | Filter Bag – | Filter Stick – | |||
885012208024 | SPEC | Status Activei| Production is active. Expected lifetime: >10 years. | Capacitance3.3 nF | Capacitance±10% | Rated Voltage16 V (DC) | Size1206 | Operating Temperature -55 °C up to +125 °C | – | Dissipation Factor3.5 % | Insulation Resistance10 GΩ | Ceramic TypeX7R Class II | Length3.2 mm | Width1.6 mm | Height0.8 mm | Pad Dimension0.6 mm | Packaging7" Tape & Reel | Demoboard – | Design Kit – | Filter Bag – | Filter Stick – | |||
885012205029 | SPEC | Status Activei| Production is active. Expected lifetime: >10 years. | Capacitance4.7 nF | Capacitance±10% | Rated Voltage16 V (DC) | Size0402 | Operating Temperature -55 °C up to +125 °C | – | Dissipation Factor3.5 % | Insulation Resistance10 GΩ | Ceramic TypeX7R Class II | Length1 mm | Width0.5 mm | Height0.5 mm | Pad Dimension0.25 mm | Packaging7" Tape & Reel | Demoboard – | Design Kit – | Filter Bag – | Filter Stick – | |||
885012206038 | SPEC | Status Activei| Production is active. Expected lifetime: >10 years. | Capacitance4.7 nF | Capacitance±10% | Rated Voltage16 V (DC) | Size0603 | Operating Temperature -55 °C up to +125 °C | – | Dissipation Factor3.5 % | Insulation Resistance10 GΩ | Ceramic TypeX7R Class II | Length1.6 mm | Width0.8 mm | Height0.8 mm | Pad Dimension0.4 mm | Packaging7" Tape & Reel | Demoboard – | Design Kit – | Filter Bag – | Filter Stick – | |||
885012007025 | SPEC | Status Activei| Production is active. Expected lifetime: >10 years. | Capacitance4.7 nF | Capacitance±5% | Rated Voltage16 V (DC) | Size0805 | Operating Temperature -55 °C up to +125 °C | Q-Factor1000 % | – | Insulation Resistance10 GΩ | Ceramic TypeNP0 Class I | Length2 mm | Width1.25 mm | Height1.25 mm | Pad Dimension0.5 mm | Packaging7" Tape & Reel | Demoboard – | Design Kit – | Filter Bag – | Filter Stick – | |||
885012207037 | SPEC | Status Activei| Production is active. Expected lifetime: >10 years. | Capacitance4.7 nF | Capacitance±10% | Rated Voltage16 V (DC) | Size0805 | Operating Temperature -55 °C up to +125 °C | – | Dissipation Factor3.5 % | Insulation Resistance10 GΩ | Ceramic TypeX7R Class II | Length2 mm | Width1.25 mm | Height0.8 mm | Pad Dimension0.5 mm | Packaging7" Tape & Reel | Demoboard – | Design Kit – | Filter Bag – | Filter Stick – | |||
885012208025 | SPEC | Status Activei| Production is active. Expected lifetime: >10 years. | Capacitance4.7 nF | Capacitance±10% | Rated Voltage16 V (DC) | Size1206 | Operating Temperature -55 °C up to +125 °C | – | Dissipation Factor3.5 % | Insulation Resistance10 GΩ | Ceramic TypeX7R Class II | Length3.2 mm | Width1.6 mm | Height0.8 mm | Pad Dimension0.6 mm | Packaging7" Tape & Reel | Demoboard – | Design Kit – | Filter Bag – | Filter Stick – | |||
885012205030 | SPEC | Status Activei| Production is active. Expected lifetime: >10 years. | Capacitance6.8 nF | Capacitance±10% | Rated Voltage16 V (DC) | Size0402 | Operating Temperature -55 °C up to +125 °C | – | Dissipation Factor3.5 % | Insulation Resistance10 GΩ | Ceramic TypeX7R Class II | Length1 mm | Width0.5 mm | Height0.5 mm | Pad Dimension0.25 mm | Packaging7" Tape & Reel | Demoboard – | Design Kit – | Filter Bag – | Filter Stick – | |||
885012206039 | SPEC | Status Activei| Production is active. Expected lifetime: >10 years. | Capacitance6.8 nF | Capacitance±10% | Rated Voltage16 V (DC) | Size0603 | Operating Temperature -55 °C up to +125 °C | – | Dissipation Factor3.5 % | Insulation Resistance10 GΩ | Ceramic TypeX7R Class II | Length1.6 mm | Width0.8 mm | Height0.8 mm | Pad Dimension0.4 mm | Packaging7" Tape & Reel | Demoboard – | Design Kit – | Filter Bag – | Filter Stick – | |||
885012207038 | SPEC | Status Activei| Production is active. Expected lifetime: >10 years. | Capacitance6.8 nF | Capacitance±10% | Rated Voltage16 V (DC) | Size0805 | Operating Temperature -55 °C up to +125 °C | – | Dissipation Factor3.5 % | Insulation Resistance10 GΩ | Ceramic TypeX7R Class II | Length2 mm | Width1.25 mm | Height0.8 mm | Pad Dimension0.5 mm | Packaging7" Tape & Reel | Demoboard – | Design Kit – | Filter Bag – | Filter Stick – | |||
885012008016 | SPEC | Status Activei| Production is active. Expected lifetime: >10 years. | Capacitance6.8 nF | Capacitance±5% | Rated Voltage16 V (DC) | Size1206 | Operating Temperature -55 °C up to +125 °C | Q-Factor1000 % | – | Insulation Resistance10 GΩ | Ceramic TypeNP0 Class I | Length3.2 mm | Width1.6 mm | Height0.95 mm | Pad Dimension0.6 mm | Packaging7" Tape & Reel | Demoboard – | Design Kit – | Filter Bag – | Filter Stick – | |||
885012205031 | SPEC | Status Activei| Production is active. Expected lifetime: >10 years. | Capacitance10 nF | Capacitance±10% | Rated Voltage16 V (DC) | Size0402 | Operating Temperature -55 °C up to +125 °C | – | Dissipation Factor3.5 % | Insulation Resistance10 GΩ | Ceramic TypeX7R Class II | Length1 mm | Width0.5 mm | Height0.5 mm | Pad Dimension0.25 mm | Packaging7" Tape & Reel | Demoboard – | Design Kit – | Filter Bag – | Filter Stick – | |||
885012206040 | SPEC | Status Activei| Production is active. Expected lifetime: >10 years. | Capacitance10 nF | Capacitance±10% | Rated Voltage16 V (DC) | Size0603 | Operating Temperature -55 °C up to +125 °C | – | Dissipation Factor3.5 % | Insulation Resistance10 GΩ | Ceramic TypeX7R Class II | Length1.6 mm | Width0.8 mm | Height0.8 mm | Pad Dimension0.4 mm | Packaging7" Tape & Reel | Demoboard | Design Kit – | Filter Bag – | Filter Stick – | |||
885012207039 | SPEC | Status Activei| Production is active. Expected lifetime: >10 years. | Capacitance10 nF | Capacitance±10% | Rated Voltage16 V (DC) | Size0805 | Operating Temperature -55 °C up to +125 °C | – | Dissipation Factor3.5 % | Insulation Resistance10 GΩ | Ceramic TypeX7R Class II | Length2 mm | Width1.25 mm | Height0.8 mm | Pad Dimension0.5 mm | Packaging7" Tape & Reel | Demoboard – | Design Kit – | Filter Bag – | Filter Stick – | |||
885012008017 | SPEC | Status Activei| Production is active. Expected lifetime: >10 years. | Capacitance10 nF | Capacitance±5% | Rated Voltage16 V (DC) | Size1206 | Operating Temperature -55 °C up to +125 °C | Q-Factor1000 % | – | Insulation Resistance10 GΩ | Ceramic TypeNP0 Class I | Length3.2 mm | Width1.6 mm | Height1.25 mm | Pad Dimension0.6 mm | Packaging7" Tape & Reel | Demoboard – | Design Kit – | Filter Bag – | Filter Stick – | |||
885012208026 | SPEC | Status Activei| Production is active. Expected lifetime: >10 years. | Capacitance10 nF | Capacitance±10% | Rated Voltage16 V (DC) | Size1206 | Operating Temperature -55 °C up to +125 °C | – | Dissipation Factor3.5 % | Insulation Resistance10 GΩ | Ceramic TypeX7R Class II | Length3.2 mm | Width1.6 mm | Height0.8 mm | Pad Dimension0.6 mm | Packaging7" Tape & Reel | Demoboard – | Design Kit – | Filter Bag – | Filter Stick – | |||
885012210001 | SPEC | Status Activei| Production is active. Expected lifetime: >10 years. | Capacitance10 nF | Capacitance±10% | Rated Voltage16 V (DC) | Size1812 | Operating Temperature -55 °C up to +125 °C | – | Dissipation Factor3.5 % | Insulation Resistance10 GΩ | Ceramic TypeX7R Class II | Length4.5 mm | Width3.2 mm | Height1.25 mm | Pad Dimension0.75 mm | Packaging7" Tape & Reel | Demoboard – | Design Kit – | Filter Bag – | Filter Stick – | |||
885012205032 | SPEC | Status Activei| Production is active. Expected lifetime: >10 years. | Capacitance15 nF | Capacitance±10% | Rated Voltage16 V (DC) | Size0402 | Operating Temperature -55 °C up to +125 °C | – | Dissipation Factor3.5 % | Insulation Resistance10 GΩ | Ceramic TypeX7R Class II | Length1 mm | Width0.5 mm | Height0.5 mm | Pad Dimension0.25 mm | Packaging7" Tape & Reel | Demoboard – | Design Kit – | Filter Bag – | Filter Stick – | |||
885012206041 | SPEC | Status Activei| Production is active. Expected lifetime: >10 years. | Capacitance15 nF | Capacitance±10% | Rated Voltage16 V (DC) | Size0603 | Operating Temperature -55 °C up to +125 °C | – | Dissipation Factor3.5 % | Insulation Resistance10 GΩ | Ceramic TypeX7R Class II | Length1.6 mm | Width0.8 mm | Height0.8 mm | Pad Dimension0.4 mm | Packaging7" Tape & Reel | Demoboard – | Design Kit – | Filter Bag – | Filter Stick – | |||
885012207040 | SPEC | Status Activei| Production is active. Expected lifetime: >10 years. | Capacitance15 nF | Capacitance±10% | Rated Voltage16 V (DC) | Size0805 | Operating Temperature -55 °C up to +125 °C | – | Dissipation Factor3.5 % | Insulation Resistance10 GΩ | Ceramic TypeX7R Class II | Length2 mm | Width1.25 mm | Height0.8 mm | Pad Dimension0.5 mm | Packaging7" Tape & Reel | Demoboard – | Design Kit – | Filter Bag – | Filter Stick – | |||
885012009001 | SPEC | Status Activei| Production is active. Expected lifetime: >10 years. | Capacitance15 nF | Capacitance±5% | Rated Voltage16 V (DC) | Size1210 | Operating Temperature -55 °C up to +125 °C | Q-Factor1000 % | – | Insulation Resistance10 GΩ | Ceramic TypeNP0 Class I | Length3.2 mm | Width2.5 mm | Height1.25 mm | Pad Dimension0.75 mm | Packaging7" Tape & Reel | Demoboard – | Design Kit – | Filter Bag – | Filter Stick – | |||
885012205033 | SPEC | Status Activei| Production is active. Expected lifetime: >10 years. | Capacitance22 nF | Capacitance±10% | Rated Voltage16 V (DC) | Size0402 | Operating Temperature -55 °C up to +125 °C | – | Dissipation Factor3.5 % | Insulation Resistance10 GΩ | Ceramic TypeX7R Class II | Length1 mm | Width0.5 mm | Height0.5 mm | Pad Dimension0.25 mm | Packaging7" Tape & Reel | Demoboard – | Design Kit – | Filter Bag – | Filter Stick – | |||
885012206042 | SPEC | Status Activei| Production is active. Expected lifetime: >10 years. | Capacitance22 nF | Capacitance±10% | Rated Voltage16 V (DC) | Size0603 | Operating Temperature -55 °C up to +125 °C | – | Dissipation Factor3.5 % | Insulation Resistance10 GΩ | Ceramic TypeX7R Class II | Length1.6 mm | Width0.8 mm | Height0.8 mm | Pad Dimension0.4 mm | Packaging7" Tape & Reel | Demoboard – | Design Kit – | Filter Bag – | Filter Stick – | |||
885012207041 | SPEC | Status Activei| Production is active. Expected lifetime: >10 years. | Capacitance22 nF | Capacitance±10% | Rated Voltage16 V (DC) | Size0805 | Operating Temperature -55 °C up to +125 °C | – | Dissipation Factor3.5 % | Insulation Resistance10 GΩ | Ceramic TypeX7R Class II | Length2 mm | Width1.25 mm | Height0.8 mm | Pad Dimension0.5 mm | Packaging7" Tape & Reel | Demoboard – | Design Kit – | Filter Bag – | Filter Stick – | |||
885012208027 | SPEC | Status Activei| Production is active. Expected lifetime: >10 years. | Capacitance22 nF | Capacitance±10% | Rated Voltage16 V (DC) | Size1206 | Operating Temperature -55 °C up to +125 °C | – | Dissipation Factor3.5 % | Insulation Resistance10 GΩ | Ceramic TypeX7R Class II | Length3.2 mm | Width1.6 mm | Height0.8 mm | Pad Dimension0.6 mm | Packaging7" Tape & Reel | Demoboard – | Design Kit – | Filter Bag – | Filter Stick – | |||
885012010002 | SPEC | Status Activei| Production is active. Expected lifetime: >10 years. | Capacitance22 nF | Capacitance±5% | Rated Voltage16 V (DC) | Size1812 | Operating Temperature -55 °C up to +125 °C | Q-Factor1000 % | – | Insulation Resistance10 GΩ | Ceramic TypeNP0 Class I | Length4.5 mm | Width3.2 mm | Height1.25 mm | Pad Dimension0.75 mm | Packaging7" Tape & Reel | Demoboard – | Design Kit – | Filter Bag – | Filter Stick – | |||
885012205034 | SPEC | Status Activei| Production is active. Expected lifetime: >10 years. | Capacitance33 nF | Capacitance±10% | Rated Voltage16 V (DC) | Size0402 | Operating Temperature -55 °C up to +125 °C | – | Dissipation Factor5 % | Insulation Resistance10 GΩ | Ceramic TypeX7R Class II | Length1 mm | Width0.5 mm | Height0.5 mm | Pad Dimension0.25 mm | Packaging7" Tape & Reel | Demoboard – | Design Kit – | Filter Bag – | Filter Stick – | |||
885012105014 | SPEC | Status Activei| Production is active. Expected lifetime: >10 years. | Capacitance33 nF | Capacitance±20% | Rated Voltage16 V (DC) | Size0402 | Operating Temperature -55 °C up to +85 °C | – | Dissipation Factor5 % | Insulation Resistance10 GΩ | Ceramic TypeX5R Class II | Length1 mm | Width0.5 mm | Height0.5 mm | Pad Dimension0.25 mm | Packaging7" Tape & Reel | Demoboard – | Design Kit | Filter Bag – | Filter Stick – | |||
885012206043 | SPEC | Status Activei| Production is active. Expected lifetime: >10 years. | Capacitance33 nF | Capacitance±10% | Rated Voltage16 V (DC) | Size0603 | Operating Temperature -55 °C up to +125 °C | – | Dissipation Factor3.5 % | Insulation Resistance10 GΩ | Ceramic TypeX7R Class II | Length1.6 mm | Width0.8 mm | Height0.8 mm | Pad Dimension0.4 mm | Packaging7" Tape & Reel | Demoboard – | Design Kit – | Filter Bag – | Filter Stick – | |||
885012207042 | SPEC | Status Activei| Production is active. Expected lifetime: >10 years. | Capacitance33 nF | Capacitance±10% | Rated Voltage16 V (DC) | Size0805 | Operating Temperature -55 °C up to +125 °C | – | Dissipation Factor3.5 % | Insulation Resistance10 GΩ | Ceramic TypeX7R Class II | Length2 mm | Width1.25 mm | Height0.8 mm | Pad Dimension0.5 mm | Packaging7" Tape & Reel | Demoboard – | Design Kit – | Filter Bag – | Filter Stick – | |||
885012208028 | SPEC | Status Activei| Production is active. Expected lifetime: >10 years. | Capacitance33 nF | Capacitance±10% | Rated Voltage16 V (DC) | Size1206 | Operating Temperature -55 °C up to +125 °C | – | Dissipation Factor3.5 % | Insulation Resistance10 GΩ | Ceramic TypeX7R Class II | Length3.2 mm | Width1.6 mm | Height0.8 mm | Pad Dimension0.6 mm | Packaging7" Tape & Reel | Demoboard – | Design Kit – | Filter Bag – | Filter Stick – | |||
885012205035 | SPEC | Status Activei| Production is active. Expected lifetime: >10 years. | Capacitance47 nF | Capacitance±10% | Rated Voltage16 V (DC) | Size0402 | Operating Temperature -55 °C up to +125 °C | – | Dissipation Factor5 % | Insulation Resistance10 GΩ | Ceramic TypeX7R Class II | Length1 mm | Width0.5 mm | Height0.5 mm | Pad Dimension0.25 mm | Packaging7" Tape & Reel | Demoboard – | Design Kit – | Filter Bag – | Filter Stick – | |||
885012105015 | SPEC | Status Activei| Production is active. Expected lifetime: >10 years. | Capacitance47 nF | Capacitance±20% | Rated Voltage16 V (DC) | Size0402 | Operating Temperature -55 °C up to +85 °C | – | Dissipation Factor5 % | Insulation Resistance10 GΩ | Ceramic TypeX5R Class II | Length1 mm | Width0.5 mm | Height0.5 mm | Pad Dimension0.25 mm | Packaging7" Tape & Reel | Demoboard – | Design Kit | Filter Bag – | Filter Stick – | |||
885012206044 | SPEC | Status Activei| Production is active. Expected lifetime: >10 years. | Capacitance47 nF | Capacitance±10% | Rated Voltage16 V (DC) | Size0603 | Operating Temperature -55 °C up to +125 °C | – | Dissipation Factor3.5 % | Insulation Resistance10 GΩ | Ceramic TypeX7R Class II | Length1.6 mm | Width0.8 mm | Height0.8 mm | Pad Dimension0.4 mm | Packaging7" Tape & Reel | Demoboard – | Design Kit – | Filter Bag – | Filter Stick – | |||
885012207043 | SPEC | Status Activei| Production is active. Expected lifetime: >10 years. | Capacitance47 nF | Capacitance±10% | Rated Voltage16 V (DC) | Size0805 | Operating Temperature -55 °C up to +125 °C | – | Dissipation Factor3.5 % | Insulation Resistance10 GΩ | Ceramic TypeX7R Class II | Length2 mm | Width1.25 mm | Height0.8 mm | Pad Dimension0.5 mm | Packaging7" Tape & Reel | Demoboard – | Design Kit – | Filter Bag – | Filter Stick – | |||
885012208029 | SPEC | Status Activei| Production is active. Expected lifetime: >10 years. | Capacitance47 nF | Capacitance±10% | Rated Voltage16 V (DC) | Size1206 | Operating Temperature -55 °C up to +125 °C | – | Dissipation Factor3.5 % | Insulation Resistance10 GΩ | Ceramic TypeX7R Class II | Length3.2 mm | Width1.6 mm | Height0.8 mm | Pad Dimension0.6 mm | Packaging7" Tape & Reel | Demoboard – | Design Kit – | Filter Bag – | Filter Stick – | |||
885012210002 | SPEC | Status Activei| Production is active. Expected lifetime: >10 years. | Capacitance47 nF | Capacitance±10% | Rated Voltage16 V (DC) | Size1812 | Operating Temperature -55 °C up to +125 °C | – | Dissipation Factor3.5 % | Insulation Resistance10 GΩ | Ceramic TypeX7R Class II | Length4.5 mm | Width3.2 mm | Height1.25 mm | Pad Dimension0.75 mm | Packaging7" Tape & Reel | Demoboard – | Design Kit – | Filter Bag – | Filter Stick – | |||
885012205036 | SPEC | Status Activei| Production is active. Expected lifetime: >10 years. | Capacitance68 nF | Capacitance±10% | Rated Voltage16 V (DC) | Size0402 | Operating Temperature -55 °C up to +125 °C | – | Dissipation Factor5 % | Insulation Resistance7.4 GΩ | Ceramic TypeX7R Class II | Length1 mm | Width0.5 mm | Height0.5 mm | Pad Dimension0.25 mm | Packaging7" Tape & Reel | Demoboard – | Design Kit | Filter Bag – | Filter Stick – | |||
885012206045 | SPEC | Status Activei| Production is active. Expected lifetime: >10 years. | Capacitance68 nF | Capacitance±10% | Rated Voltage16 V (DC) | Size0603 | Operating Temperature -55 °C up to +125 °C | – | Dissipation Factor3.5 % | Insulation Resistance7.4 GΩ | Ceramic TypeX7R Class II | Length1.6 mm | Width0.8 mm | Height0.8 mm | Pad Dimension0.4 mm | Packaging7" Tape & Reel | Demoboard – | Design Kit – | Filter Bag – | Filter Stick – | |||
885012207044 | SPEC | Status Activei| Production is active. Expected lifetime: >10 years. | Capacitance68 nF | Capacitance±10% | Rated Voltage16 V (DC) | Size0805 | Operating Temperature -55 °C up to +125 °C | – | Dissipation Factor3.5 % | Insulation Resistance7.4 GΩ | Ceramic TypeX7R Class II | Length2 mm | Width1.25 mm | Height0.8 mm | Pad Dimension0.5 mm | Packaging7" Tape & Reel | Demoboard – | Design Kit – | Filter Bag – | Filter Stick – | |||
885012205037 | SPEC | Status Activei| Production is active. Expected lifetime: >10 years. | Capacitance100 nF | Capacitance±10% | Rated Voltage16 V (DC) | Size0402 | Operating Temperature -55 °C up to +125 °C | – | Dissipation Factor5 % | Insulation Resistance5 GΩ | Ceramic TypeX7R Class II | Length1 mm | Width0.5 mm | Height0.5 mm | Pad Dimension0.25 mm | Packaging7" Tape & Reel | Demoboard – | Design Kit | Filter Bag – | Filter Stick – | |||
885012105016 | SPEC | Status Activei| Production is active. Expected lifetime: >10 years. | Capacitance100 nF | Capacitance±20% | Rated Voltage16 V (DC) | Size0402 | Operating Temperature -55 °C up to +85 °C | – | Dissipation Factor5 % | Insulation Resistance5 GΩ | Ceramic TypeX5R Class II | Length1 mm | Width0.5 mm | Height0.5 mm | Pad Dimension0.25 mm | Packaging7" Tape & Reel | Demoboard – | Design Kit | Filter Bag – | Filter Stick – | |||
885012206046 | SPEC | Status Activei| Production is active. Expected lifetime: >10 years. | Capacitance100 nF | Capacitance±10% | Rated Voltage16 V (DC) | Size0603 | Operating Temperature -55 °C up to +125 °C | – | Dissipation Factor3.5 % | Insulation Resistance5 GΩ | Ceramic TypeX7R Class II | Length1.6 mm | Width0.8 mm | Height0.8 mm | Pad Dimension0.4 mm | Packaging7" Tape & Reel | Demoboard | Design Kit – | Filter Bag – | Filter Stick – | |||
885012207045 | SPEC | Status Activei| Production is active. Expected lifetime: >10 years. | Capacitance100 nF | Capacitance±10% | Rated Voltage16 V (DC) | Size0805 | Operating Temperature -55 °C up to +125 °C | – | Dissipation Factor3.5 % | Insulation Resistance5 GΩ | Ceramic TypeX7R Class II | Length2 mm | Width1.25 mm | Height0.8 mm | Pad Dimension0.5 mm | Packaging7" Tape & Reel | Demoboard – | Design Kit – | Filter Bag – | Filter Stick – | |||
885012208030 | SPEC | Status Activei| Production is active. Expected lifetime: >10 years. | Capacitance100 nF | Capacitance±10% | Rated Voltage16 V (DC) | Size1206 | Operating Temperature -55 °C up to +125 °C | – | Dissipation Factor3.5 % | Insulation Resistance5 GΩ | Ceramic TypeX7R Class II | Length3.2 mm | Width1.6 mm | Height0.8 mm | Pad Dimension0.6 mm | Packaging7" Tape & Reel | Demoboard – | Design Kit – | Filter Bag – | Filter Stick – | |||
885012104001 | SPEC | Status Activei| Production is active. Expected lifetime: >10 years. | Capacitance100 nF | Capacitance±10% | Rated Voltage16 V (DC) | Size0201 | Operating Temperature -55 °C up to +85 °C | – | Dissipation Factor10 % | Insulation Resistance1 GΩ | Ceramic TypeX5R Class II | Length0.6 mm | Width0.3 mm | Height0.3 mm | – | Packaging7" Tape & Reel | Demoboard – | Design Kit – | Filter Bag – | Filter Stick – | |||
885012205037R | SPEC | Status Activei| Production is active. Expected lifetime: >10 years. | Capacitance100 nF | Capacitance±10% | Rated Voltage16 V (DC) | Size0402 | Operating Temperature -55 °C up to +125 °C | – | Dissipation Factor5 % | Insulation Resistance5 GΩ | Ceramic TypeX7R Class II | Length1 mm | Width0.5 mm | Height0.5 mm | Pad Dimension0.25 mm | Packaging13" Tape & Reel | Demoboard – | Design Kit – | Filter Bag – | Filter Stick – | |||
885012206047 | SPEC | Status Activei| Production is active. Expected lifetime: >10 years. | Capacitance150 nF | Capacitance±10% | Rated Voltage16 V (DC) | Size0603 | Operating Temperature -55 °C up to +125 °C | – | Dissipation Factor5 % | Insulation Resistance3.3 GΩ | Ceramic TypeX7R Class II | Length1.6 mm | Width0.8 mm | Height0.8 mm | Pad Dimension0.4 mm | Packaging7" Tape & Reel | Demoboard – | Design Kit – | Filter Bag – | Filter Stick – | |||
885012207046 | SPEC | Status Activei| Production is active. Expected lifetime: >10 years. | Capacitance150 nF | Capacitance±10% | Rated Voltage16 V (DC) | Size0805 | Operating Temperature -55 °C up to +125 °C | – | Dissipation Factor3.5 % | Insulation Resistance3.3 GΩ | Ceramic TypeX7R Class II | Length2 mm | Width1.25 mm | Height1.25 mm | Pad Dimension0.5 mm | Packaging7" Tape & Reel | Demoboard – | Design Kit – | Filter Bag – | Filter Stick – | |||
885012208031 | SPEC | Status Activei| Production is active. Expected lifetime: >10 years. | Capacitance150 nF | Capacitance±10% | Rated Voltage16 V (DC) | Size1206 | Operating Temperature -55 °C up to +125 °C | – | Dissipation Factor3.5 % | Insulation Resistance3.3 GΩ | Ceramic TypeX7R Class II | Length3.2 mm | Width1.6 mm | Height0.95 mm | Pad Dimension0.6 mm | Packaging7" Tape & Reel | Demoboard – | Design Kit – | Filter Bag – | Filter Stick – | |||
885012209007 | SPEC | Status Activei| Production is active. Expected lifetime: >10 years. | Capacitance150 nF | Capacitance±10% | Rated Voltage16 V (DC) | Size1210 | Operating Temperature -55 °C up to +125 °C | – | Dissipation Factor3.5 % | Insulation Resistance3.3 GΩ | Ceramic TypeX7R Class II | Length3.2 mm | Width2.5 mm | Height0.95 mm | Pad Dimension0.75 mm | Packaging7" Tape & Reel | Demoboard – | Design Kit – | Filter Bag – | Filter Stick – | |||
885012105017 | SPEC | Status Activei| Production is active. Expected lifetime: >10 years. | Capacitance220 nF | Capacitance±20% | Rated Voltage16 V (DC) | Size0402 | Operating Temperature -55 °C up to +85 °C | – | Dissipation Factor10 % | Insulation Resistance0.5 GΩ | Ceramic TypeX5R Class II | Length1 mm | Width0.5 mm | Height0.5 mm | Pad Dimension0.25 mm | Packaging7" Tape & Reel | Demoboard – | Design Kit | Filter Bag – | Filter Stick – | |||
885012206048 | SPEC | Status Activei| Production is active. Expected lifetime: >10 years. | Capacitance220 nF | Capacitance±10% | Rated Voltage16 V (DC) | Size0603 | Operating Temperature -55 °C up to +125 °C | – | Dissipation Factor5 % | Insulation Resistance2.3 GΩ | Ceramic TypeX7R Class II | Length1.6 mm | Width0.8 mm | Height0.8 mm | Pad Dimension0.4 mm | Packaging7" Tape & Reel | Demoboard – | Design Kit – | Filter Bag – | Filter Stick – | |||
885012106013 | SPEC | Status Activei| Production is active. Expected lifetime: >10 years. | Capacitance220 nF | Capacitance±20% | Rated Voltage16 V (DC) | Size0603 | Operating Temperature -55 °C up to +85 °C | – | Dissipation Factor5 % | Insulation Resistance2.3 GΩ | Ceramic TypeX5R Class II | Length1.6 mm | Width0.8 mm | Height0.8 mm | Pad Dimension0.4 mm | Packaging7" Tape & Reel | Demoboard – | Design Kit – | Filter Bag – | Filter Stick – | |||
885012207047 | SPEC | Status Activei| Production is active. Expected lifetime: >10 years. | Capacitance220 nF | Capacitance±10% | Rated Voltage16 V (DC) | Size0805 | Operating Temperature -55 °C up to +125 °C | – | Dissipation Factor3.5 % | Insulation Resistance2.3 GΩ | Ceramic TypeX7R Class II | Length2 mm | Width1.25 mm | Height1.25 mm | Pad Dimension0.5 mm | Packaging7" Tape & Reel | Demoboard – | Design Kit – | Filter Bag – | Filter Stick – | |||
885012208032 | SPEC | Status Activei| Production is active. Expected lifetime: >10 years. | Capacitance220 nF | Capacitance±10% | Rated Voltage16 V (DC) | Size1206 | Operating Temperature -55 °C up to +125 °C | – | Dissipation Factor3.5 % | Insulation Resistance2.3 GΩ | Ceramic TypeX7R Class II | Length3.2 mm | Width1.6 mm | Height0.95 mm | Pad Dimension0.6 mm | Packaging7" Tape & Reel | Demoboard – | Design Kit – | Filter Bag – | Filter Stick – | |||
885012209008 | SPEC | Status Activei| Production is active. Expected lifetime: >10 years. | Capacitance220 nF | Capacitance±10% | Rated Voltage16 V (DC) | Size1210 | Operating Temperature -55 °C up to +125 °C | – | Dissipation Factor3.5 % | Insulation Resistance2.3 GΩ | Ceramic TypeX7R Class II | Length3.2 mm | Width2.5 mm | Height0.95 mm | Pad Dimension0.75 mm | Packaging7" Tape & Reel | Demoboard – | Design Kit – | Filter Bag – | Filter Stick – | |||
885012205087 | SPEC | Status Activei| Production is active. Expected lifetime: >10 years. | Capacitance220 nF | Capacitance±10% | Rated Voltage16 V (DC) | Size0402 | Operating Temperature -55 °C up to +125 °C | – | Dissipation Factor10 % | Insulation Resistance0.45 GΩ | Ceramic TypeX7R Class II | Length1 mm | Width0.5 mm | Height0.5 mm | Pad Dimension0.25 mm | Packaging7" Tape & Reel | Demoboard – | Design Kit – | Filter Bag – | Filter Stick – | |||
885012206049 | SPEC | Status Activei| Production is active. Expected lifetime: >10 years. | Capacitance330 nF | Capacitance±10% | Rated Voltage16 V (DC) | Size0603 | Operating Temperature -55 °C up to +125 °C | – | Dissipation Factor5 % | Insulation Resistance1.5 GΩ | Ceramic TypeX7R Class II | Length1.6 mm | Width0.8 mm | Height0.8 mm | Pad Dimension0.4 mm | Packaging7" Tape & Reel | Demoboard – | Design Kit – | Filter Bag – | Filter Stick – | |||
885012106014 | SPEC | Status Activei| Production is active. Expected lifetime: >10 years. | Capacitance330 nF | Capacitance±20% | Rated Voltage16 V (DC) | Size0603 | Operating Temperature -55 °C up to +85 °C | – | Dissipation Factor5 % | Insulation Resistance1.5 GΩ | Ceramic TypeX5R Class II | Length1.6 mm | Width0.8 mm | Height0.8 mm | Pad Dimension0.4 mm | Packaging7" Tape & Reel | Demoboard – | Design Kit – | Filter Bag – | Filter Stick – | |||
885012207048 | SPEC | Status Activei| Production is active. Expected lifetime: >10 years. | Capacitance330 nF | Capacitance±10% | Rated Voltage16 V (DC) | Size0805 | Operating Temperature -55 °C up to +125 °C | – | Dissipation Factor3.5 % | Insulation Resistance1.5 GΩ | Ceramic TypeX7R Class II | Length2 mm | Width1.25 mm | Height1.25 mm | Pad Dimension0.5 mm | Packaging7" Tape & Reel | Demoboard – | Design Kit – | Filter Bag – | Filter Stick – | |||
885012208033 | SPEC | Status Activei| Production is active. Expected lifetime: >10 years. | Capacitance330 nF | Capacitance±10% | Rated Voltage16 V (DC) | Size1206 | Operating Temperature -55 °C up to +125 °C | – | Dissipation Factor3.5 % | Insulation Resistance1.5 GΩ | Ceramic TypeX7R Class II | Length3.2 mm | Width1.6 mm | Height0.95 mm | Pad Dimension0.6 mm | Packaging7" Tape & Reel | Demoboard – | Design Kit – | Filter Bag – | Filter Stick – | |||
885012206050 | SPEC | Status Activei| Production is active. Expected lifetime: >10 years. | Capacitance470 nF | Capacitance±10% | Rated Voltage16 V (DC) | Size0603 | Operating Temperature -55 °C up to +125 °C | – | Dissipation Factor5 % | Insulation Resistance1.1 GΩ | Ceramic TypeX7R Class II | Length1.6 mm | Width0.8 mm | Height0.8 mm | Pad Dimension0.4 mm | Packaging7" Tape & Reel | Demoboard – | Design Kit – | Filter Bag – | Filter Stick – | |||
885012106015 | SPEC | Status Activei| Production is active. Expected lifetime: >10 years. | Capacitance470 nF | Capacitance±20% | Rated Voltage16 V (DC) | Size0603 | Operating Temperature -55 °C up to +85 °C | – | Dissipation Factor5 % | Insulation Resistance1.1 GΩ | Ceramic TypeX5R Class II | Length1.6 mm | Width0.8 mm | Height0.8 mm | Pad Dimension0.4 mm | Packaging7" Tape & Reel | Demoboard – | Design Kit – | Filter Bag – | Filter Stick – | |||
885012207049 | SPEC | Status Activei| Production is active. Expected lifetime: >10 years. | Capacitance470 nF | Capacitance±10% | Rated Voltage16 V (DC) | Size0805 | Operating Temperature -55 °C up to +125 °C | – | Dissipation Factor3.5 % | Insulation Resistance1.1 GΩ | Ceramic TypeX7R Class II | Length2 mm | Width1.25 mm | Height1.25 mm | Pad Dimension0.5 mm | Packaging7" Tape & Reel | Demoboard – | Design Kit – | Filter Bag – | Filter Stick – | |||
885012208034 | SPEC | Status Activei| Production is active. Expected lifetime: >10 years. | Capacitance470 nF | Capacitance±10% | Rated Voltage16 V (DC) | Size1206 | Operating Temperature -55 °C up to +125 °C | – | Dissipation Factor3.5 % | Insulation Resistance1.1 GΩ | Ceramic TypeX7R Class II | Length3.2 mm | Width1.6 mm | Height1.15 mm | Pad Dimension0.6 mm | Packaging7" Tape & Reel | Demoboard – | Design Kit – | Filter Bag – | Filter Stick – | |||
885012209009 | SPEC | Status Activei| Production is active. Expected lifetime: >10 years. | Capacitance470 nF | Capacitance±10% | Rated Voltage16 V (DC) | Size1210 | Operating Temperature -55 °C up to +125 °C | – | Dissipation Factor3.5 % | Insulation Resistance1.1 GΩ | Ceramic TypeX7R Class II | Length3.2 mm | Width2.5 mm | Height0.95 mm | Pad Dimension0.75 mm | Packaging7" Tape & Reel | Demoboard – | Design Kit – | Filter Bag – | Filter Stick – | |||
885012206051 | SPEC | Status Activei| Production is active. Expected lifetime: >10 years. | Capacitance680 nF | Capacitance±10% | Rated Voltage16 V (DC) | Size0603 | Operating Temperature -55 °C up to +125 °C | – | Dissipation Factor10 % | Insulation Resistance0.7 GΩ | Ceramic TypeX7R Class II | Length1.6 mm | Width0.8 mm | Height0.8 mm | Pad Dimension0.4 mm | Packaging7" Tape & Reel | Demoboard – | Design Kit – | Filter Stick | ||||
885012106016 | SPEC | Status Activei| Production is active. Expected lifetime: >10 years. | Capacitance680 nF | Capacitance±20% | Rated Voltage16 V (DC) | Size0603 | Operating Temperature -55 °C up to +85 °C | – | Dissipation Factor10 % | Insulation Resistance0.7 GΩ | Ceramic TypeX5R Class II | Length1.6 mm | Width0.8 mm | Height0.8 mm | Pad Dimension0.4 mm | Packaging7" Tape & Reel | Demoboard – | Design Kit – | Filter Bag – | Filter Stick – | |||
885012207050 | SPEC | Status Activei| Production is active. Expected lifetime: >10 years. | Capacitance680 nF | Capacitance±10% | Rated Voltage16 V (DC) | Size0805 | Operating Temperature -55 °C up to +125 °C | – | Dissipation Factor5 % | Insulation Resistance0.7 GΩ | Ceramic TypeX7R Class II | Length2 mm | Width1.25 mm | Height1.25 mm | Pad Dimension0.5 mm | Packaging7" Tape & Reel | Demoboard – | Design Kit – | Filter Bag – | Filter Stick – | |||
885012208035 | SPEC | Status Activei| Production is active. Expected lifetime: >10 years. | Capacitance680 nF | Capacitance±10% | Rated Voltage16 V (DC) | Size1206 | Operating Temperature -55 °C up to +125 °C | – | Dissipation Factor3.5 % | Insulation Resistance0.7 GΩ | Ceramic TypeX7R Class II | Length3.2 mm | Width1.6 mm | Height1.15 mm | Pad Dimension0.6 mm | Packaging7" Tape & Reel | Demoboard – | Design Kit – | Filter Bag – | Filter Stick – | |||
885012209010 | SPEC | Status Activei| Production is active. Expected lifetime: >10 years. | Capacitance680 nF | Capacitance±10% | Rated Voltage16 V (DC) | Size1210 | Operating Temperature -55 °C up to +125 °C | – | Dissipation Factor3.5 % | Insulation Resistance0.7 GΩ | Ceramic TypeX7R Class II | Length3.2 mm | Width2.5 mm | Height1.25 mm | Pad Dimension0.75 mm | Packaging7" Tape & Reel | Demoboard – | Design Kit – | Filter Bag – | Filter Stick – | |||
885012210003 | SPEC | Status Activei| Production is active. Expected lifetime: >10 years. | Capacitance680 nF | Capacitance±10% | Rated Voltage16 V (DC) | Size1812 | Operating Temperature -55 °C up to +125 °C | – | Dissipation Factor3.5 % | Insulation Resistance0.7 GΩ | Ceramic TypeX7R Class II | Length4.5 mm | Width3.2 mm | Height1.25 mm | Pad Dimension0.75 mm | Packaging7" Tape & Reel | Demoboard – | Design Kit – | Filter Bag – | Filter Stick – | |||
885012206052 | SPEC | Status Activei| Production is active. Expected lifetime: >10 years. | Capacitance1 µF | Capacitance±10% | Rated Voltage16 V (DC) | Size0603 | Operating Temperature -55 °C up to +125 °C | – | Dissipation Factor10 % | Insulation Resistance0.1 GΩ | Ceramic TypeX7R Class II | Length1.6 mm | Width0.8 mm | Height0.8 mm | Pad Dimension0.4 mm | Packaging7" Tape & Reel | Demoboard – | Design Kit – | Filter Bag – | Filter Stick – | |||
885012106017 | SPEC | Status Activei| Production is active. Expected lifetime: >10 years. | Capacitance1 µF | Capacitance±20% | Rated Voltage16 V (DC) | Size0603 | Operating Temperature -55 °C up to +85 °C | – | Dissipation Factor10 % | Insulation Resistance0.1 GΩ | Ceramic TypeX5R Class II | Length1.6 mm | Width0.8 mm | Height0.8 mm | Pad Dimension0.4 mm | Packaging7" Tape & Reel | Demoboard – | Design Kit – | Filter Bag – | Filter Stick – | |||
885012207051 | SPEC | Status Activei| Production is active. Expected lifetime: >10 years. | Capacitance1 µF | Capacitance±10% | Rated Voltage16 V (DC) | Size0805 | Operating Temperature -55 °C up to +125 °C | – | Dissipation Factor5 % | Insulation Resistance0.5 GΩ | Ceramic TypeX7R Class II | Length2 mm | Width1.25 mm | Height1.25 mm | Pad Dimension0.5 mm | Packaging7" Tape & Reel | Demoboard – | Design Kit – | Filter Bag – | Filter Stick – | |||
885012208036 | SPEC | Status Activei| Production is active. Expected lifetime: >10 years. | Capacitance1 µF | Capacitance±10% | Rated Voltage16 V (DC) | Size1206 | Operating Temperature -55 °C up to +125 °C | – | Dissipation Factor3.5 % | Insulation Resistance0.5 GΩ | Ceramic TypeX7R Class II | Length3.2 mm | Width1.6 mm | Height1.15 mm | Pad Dimension0.6 mm | Packaging7" Tape & Reel | Demoboard – | Design Kit – | Filter Bag – | Filter Stick – | |||
885012209011 | SPEC | Status Activei| Production is active. Expected lifetime: >10 years. | Capacitance1 µF | Capacitance±10% | Rated Voltage16 V (DC) | Size1210 | Operating Temperature -55 °C up to +125 °C | – | Dissipation Factor3.5 % | Insulation Resistance0.5 GΩ | Ceramic TypeX7R Class II | Length3.2 mm | Width2.5 mm | Height1.25 mm | Pad Dimension0.75 mm | Packaging7" Tape & Reel | Demoboard – | Design Kit – | Filter Bag – | Filter Stick – | |||
885012210004 | SPEC | Status Activei| Production is active. Expected lifetime: >10 years. | Capacitance1 µF | Capacitance±10% | Rated Voltage16 V (DC) | Size1812 | Operating Temperature -55 °C up to +125 °C | – | Dissipation Factor3.5 % | Insulation Resistance0.5 GΩ | Ceramic TypeX7R Class II | Length4.5 mm | Width3.2 mm | Height1.25 mm | Pad Dimension0.75 mm | Packaging7" Tape & Reel | Demoboard – | Design Kit – | Filter Bag – | Filter Stick – | |||
885012104007 | SPEC | Status Activei| Production is active. Expected lifetime: >10 years. | Capacitance1 µF | Capacitance±20% | Rated Voltage16 V (DC) | Size0201 | Operating Temperature -55 °C up to +85 °C | – | Dissipation Factor20 % | Insulation Resistance0.05 GΩ | Ceramic TypeX5R Class II | Length0.6 mm | Width0.3 mm | Height0.3 mm | – | Packaging7" Tape & Reel | Demoboard – | Design Kit – | Filter Bag – | Filter Stick – | |||
885012105019 | SPEC | Status Newi| Product is new in our portfolio and production is active. Expected lifetime: >10 years. | Capacitance1 µF | Capacitance±10% | Rated Voltage16 V (DC) | Size0402 | Operating Temperature -55 °C up to +85 °C | – | Dissipation Factor12.5 % | Insulation Resistance0.05 GΩ | Ceramic TypeX5R Class II | Length1 mm | Width0.5 mm | Height0.5 mm | – | Packaging7" Tape & Reel | Demoboard – | Design Kit – | Filter Bag – | Filter Stick – | |||
885012208037 | SPEC | Status Activei| Production is active. Expected lifetime: >10 years. | Capacitance1.5 µF | Capacitance±10% | Rated Voltage16 V (DC) | Size1206 | Operating Temperature -55 °C up to +125 °C | – | Dissipation Factor3.5 % | Insulation Resistance0.3 GΩ | Ceramic TypeX7R Class II | Length3.2 mm | Width1.6 mm | Height1.15 mm | Pad Dimension0.6 mm | Packaging7" Tape & Reel | Demoboard – | Design Kit – | Filter Bag – | Filter Stick – | |||
885012108013 | SPEC | Status Activei| Production is active. Expected lifetime: >10 years. | Capacitance1.5 µF | Capacitance±20% | Rated Voltage16 V (DC) | Size1206 | Operating Temperature -55 °C up to +85 °C | – | Dissipation Factor3.5 % | Insulation Resistance0.3 GΩ | Ceramic TypeX5R Class II | Length3.2 mm | Width1.6 mm | Height1.15 mm | Pad Dimension0.6 mm | Packaging7" Tape & Reel | Demoboard – | Design Kit – | Filter Bag – | Filter Stick – | |||
885012106018 | SPEC | Status Activei| Production is active. Expected lifetime: >10 years. | Capacitance2.2 µF | Capacitance±20% | Rated Voltage16 V (DC) | Size0603 | Operating Temperature -55 °C up to +85 °C | – | Dissipation Factor10 % | Insulation Resistance0.05 GΩ | Ceramic TypeX5R Class II | Length1.6 mm | Width0.8 mm | Height0.8 mm | Pad Dimension0.4 mm | Packaging7" Tape & Reel | Demoboard – | Design Kit | Filter Bag – | Filter Stick – | |||
885012207052 | SPEC | Status Activei| Production is active. Expected lifetime: >10 years. | Capacitance2.2 µF | Capacitance±10% | Rated Voltage16 V (DC) | Size0805 | Operating Temperature -55 °C up to +125 °C | – | Dissipation Factor10 % | Insulation Resistance0.05 GΩ | Ceramic TypeX7R Class II | Length2 mm | Width1.25 mm | Height1.25 mm | Pad Dimension0.5 mm | Packaging7" Tape & Reel | Demoboard – | Design Kit – | Filter Bag – | Filter Stick – | |||
885012107012 | SPEC | Status Activei| Production is active. Expected lifetime: >10 years. | Capacitance2.2 µF | Capacitance±20% | Rated Voltage16 V (DC) | Size0805 | Operating Temperature -55 °C up to +85 °C | – | Dissipation Factor10 % | Insulation Resistance0.05 GΩ | Ceramic TypeX5R Class II | Length2 mm | Width1.25 mm | Height1.25 mm | Pad Dimension0.5 mm | Packaging7" Tape & Reel | Demoboard – | Design Kit – | Filter Bag – | Filter Stick – | |||
885012208038 | SPEC | Status Activei| Production is active. Expected lifetime: >10 years. | Capacitance2.2 µF | Capacitance±10% | Rated Voltage16 V (DC) | Size1206 | Operating Temperature -55 °C up to +125 °C | – | Dissipation Factor5 % | Insulation Resistance0.2 GΩ | Ceramic TypeX7R Class II | Length3.2 mm | Width1.6 mm | Height1.15 mm | Pad Dimension0.6 mm | Packaging7" Tape & Reel | Demoboard – | Design Kit – | Filter Bag – | Filter Stick – | |||
885012108014 | SPEC | Status Activei| Production is active. Expected lifetime: >10 years. | Capacitance2.2 µF | Capacitance±20% | Rated Voltage16 V (DC) | Size1206 | Operating Temperature -55 °C up to +85 °C | – | Dissipation Factor5 % | Insulation Resistance0.2 GΩ | Ceramic TypeX5R Class II | Length3.2 mm | Width1.6 mm | Height1.15 mm | Pad Dimension0.6 mm | Packaging7" Tape & Reel | Demoboard – | Design Kit – | Filter Bag – | Filter Stick – | |||
885012209012 | SPEC | Status Activei| Production is active. Expected lifetime: >10 years. | Capacitance2.2 µF | Capacitance±10% | Rated Voltage16 V (DC) | Size1210 | Operating Temperature -55 °C up to +125 °C | – | Dissipation Factor3.5 % | Insulation Resistance0.2 GΩ | Ceramic TypeX7R Class II | Length3.2 mm | Width2.5 mm | Height2 mm | Pad Dimension0.75 mm | Packaging7" Tape & Reel | Demoboard – | Design Kit – | Filter Bag – | Filter Stick – | |||
885012106029 | SPEC | Status Activei| Production is active. Expected lifetime: >10 years. | Capacitance2.2 µF | Capacitance±10% | Rated Voltage16 V (DC) | Size0603 | Operating Temperature -55 °C up to +85 °C | – | Dissipation Factor10 % | Insulation Resistance0.05 GΩ | Ceramic TypeX5R Class II | Length1.6 mm | Width0.8 mm | Height0.8 mm | Pad Dimension0.4 mm | Packaging7" Tape & Reel | Demoboard – | Design Kit – | Filter Bag – | Filter Stick – | |||
885012208039 | SPEC | Status Activei| Production is active. Expected lifetime: >10 years. | Capacitance3.3 µF | Capacitance±10% | Rated Voltage16 V (DC) | Size1206 | Operating Temperature -55 °C up to +125 °C | – | Dissipation Factor5 % | Insulation Resistance0.2 GΩ | Ceramic TypeX7R Class II | Length3.2 mm | Width1.6 mm | Height1.6 mm | Pad Dimension0.6 mm | Packaging7" Tape & Reel | Demoboard – | Design Kit – | Filter Bag – | Filter Stick – | |||
885012108015 | SPEC | Status Activei| Production is active. Expected lifetime: >10 years. | Capacitance3.3 µF | Capacitance±20% | Rated Voltage16 V (DC) | Size1206 | Operating Temperature -55 °C up to +85 °C | – | Dissipation Factor5 % | Insulation Resistance0.2 GΩ | Ceramic TypeX5R Class II | Length3.2 mm | Width1.6 mm | Height1.6 mm | Pad Dimension0.6 mm | Packaging7" Tape & Reel | Demoboard – | Design Kit | Filter Bag – | Filter Stick – | |||
885012207053 | SPEC | Status Activei| Production is active. Expected lifetime: >10 years. | Capacitance4.7 µF | Capacitance±10% | Rated Voltage16 V (DC) | Size0805 | Operating Temperature -55 °C up to +125 °C | – | Dissipation Factor10 % | Insulation Resistance0.02 GΩ | Ceramic TypeX7R Class II | Length2 mm | Width1.25 mm | Height1.25 mm | Pad Dimension0.5 mm | Packaging7" Tape & Reel | Demoboard – | Design Kit | Filter Bag – | Filter Stick – | |||
885012107013 | SPEC | Status Activei| Production is active. Expected lifetime: >10 years. | Capacitance4.7 µF | Capacitance±20% | Rated Voltage16 V (DC) | Size0805 | Operating Temperature -55 °C up to +85 °C | – | Dissipation Factor10 % | Insulation Resistance0.02 GΩ | Ceramic TypeX5R Class II | Length2 mm | Width1.25 mm | Height1.25 mm | Pad Dimension0.5 mm | Packaging7" Tape & Reel | Demoboard – | Design Kit | Filter Bag – | Filter Stick – | |||
885012208040 | SPEC | Status Activei| Production is active. Expected lifetime: >10 years. | Capacitance4.7 µF | Capacitance±10% | Rated Voltage16 V (DC) | Size1206 | Operating Temperature -55 °C up to +125 °C | – | Dissipation Factor10 % | Insulation Resistance0.1 GΩ | Ceramic TypeX7R Class II | Length3.2 mm | Width1.6 mm | Height1.6 mm | Pad Dimension0.6 mm | Packaging7" Tape & Reel | Demoboard – | Design Kit – | Filter Bag – | Filter Stick – | |||
885012108016 | SPEC | Status Activei| Production is active. Expected lifetime: >10 years. | Capacitance4.7 µF | Capacitance±20% | Rated Voltage16 V (DC) | Size1206 | Operating Temperature -55 °C up to +85 °C | – | Dissipation Factor10 % | Insulation Resistance0.1 GΩ | Ceramic TypeX5R Class II | Length3.2 mm | Width1.6 mm | Height1.6 mm | Pad Dimension0.6 mm | Packaging7" Tape & Reel | Demoboard – | Design Kit – | Filter Bag – | Filter Stick – | |||
885012209013 | SPEC | Status Activei| Production is active. Expected lifetime: >10 years. | Capacitance4.7 µF | Capacitance±10% | Rated Voltage16 V (DC) | Size1210 | Operating Temperature -55 °C up to +125 °C | – | Dissipation Factor5 % | Insulation Resistance0.1 GΩ | Ceramic TypeX7R Class II | Length3.2 mm | Width2.5 mm | Height2 mm | Pad Dimension0.75 mm | Packaging7" Tape & Reel | Demoboard – | Design Kit – | Filter Bag – | Filter Stick – | |||
885012109008 | SPEC | Status Activei| Production is active. Expected lifetime: >10 years. | Capacitance4.7 µF | Capacitance±20% | Rated Voltage16 V (DC) | Size1210 | Operating Temperature -55 °C up to +85 °C | – | Dissipation Factor5 % | Insulation Resistance0.1 GΩ | Ceramic TypeX5R Class II | Length3.2 mm | Width2.5 mm | Height2 mm | Pad Dimension0.75 mm | Packaging7" Tape & Reel | Demoboard – | Design Kit | Filter Bag – | Filter Stick – | |||
885012107014 | SPEC | Status Activei| Production is active. Expected lifetime: >10 years. | Capacitance10 µF | Capacitance±20% | Rated Voltage16 V (DC) | Size0805 | Operating Temperature -55 °C up to +85 °C | – | Dissipation Factor10 % | Insulation Resistance0.01 GΩ | Ceramic TypeX5R Class II | Length2 mm | Width1.25 mm | Height1.25 mm | Pad Dimension0.5 mm | Packaging7" Tape & Reel | Demoboard – | Design Kit | Filter Bag – | Filter Stick – | |||
885012208041 | SPEC | Status Activei| Production is active. Expected lifetime: >10 years. | Capacitance10 µF | Capacitance±10% | Rated Voltage16 V (DC) | Size1206 | Operating Temperature -55 °C up to +125 °C | – | Dissipation Factor10 % | Insulation Resistance0.01 GΩ | Ceramic TypeX7R Class II | Length3.2 mm | Width1.6 mm | Height1.6 mm | Pad Dimension0.5 mm | Packaging7" Tape & Reel | Demoboard – | Design Kit – | Filter Bag – | Filter Stick – | |||
885012108017 | SPEC | Status Activei| Production is active. Expected lifetime: >10 years. | Capacitance10 µF | Capacitance±20% | Rated Voltage16 V (DC) | Size1206 | Operating Temperature -55 °C up to +85 °C | – | Dissipation Factor10 % | Insulation Resistance0.01 GΩ | Ceramic TypeX5R Class II | Length3.2 mm | Width1.6 mm | Height1.6 mm | Pad Dimension0.6 mm | Packaging7" Tape & Reel | Demoboard – | Design Kit | Filter Bag – | Filter Stick – | |||
885012209014 | SPEC | Status Activei| Production is active. Expected lifetime: >10 years. | Capacitance10 µF | Capacitance±10% | Rated Voltage16 V (DC) | Size1210 | Operating Temperature -55 °C up to +125 °C | – | Dissipation Factor5 % | Insulation Resistance0.1 GΩ | Ceramic TypeX7R Class II | Length3.2 mm | Width2.5 mm | Height2 mm | Pad Dimension0.75 mm | Packaging7" Tape & Reel | Demoboard – | Design Kit – | Filter Bag – | Filter Stick – | |||
885012109009 | SPEC | Status Activei| Production is active. Expected lifetime: >10 years. | Capacitance10 µF | Capacitance±20% | Rated Voltage16 V (DC) | Size1210 | Operating Temperature -55 °C up to +85 °C | – | Dissipation Factor5 % | Insulation Resistance0.05 GΩ | Ceramic TypeX5R Class II | Length3.2 mm | Width2.5 mm | Height2 mm | Pad Dimension0.75 mm | Packaging7" Tape & Reel | Demoboard – | Design Kit | Filter Bag – | Filter Stick – | |||
885012108018 | SPEC | Status Activei| Production is active. Expected lifetime: >10 years. | Capacitance22 µF | Capacitance±20% | Rated Voltage16 V (DC) | Size1206 | Operating Temperature -55 °C up to +85 °C | – | Dissipation Factor10 % | Insulation Resistance0.005 GΩ | Ceramic TypeX5R Class II | Length3.2 mm | Width1.6 mm | Height1.6 mm | Pad Dimension0.5 mm | Packaging7" Tape & Reel | Demoboard – | Design Kit | Filter Bag – | Filter Stick – | |||
885012109010 | SPEC | Status Activei| Production is active. Expected lifetime: >10 years. | Capacitance22 µF | Capacitance±20% | Rated Voltage16 V (DC) | Size1210 | Operating Temperature -55 °C up to +85 °C | – | Dissipation Factor10 % | Insulation Resistance0.02 GΩ | Ceramic TypeX5R Class II | Length3.2 mm | Width2.5 mm | Height2.5 mm | Pad Dimension0.6 mm | Packaging7" Tape & Reel | Demoboard – | Design Kit | Filter Bag – | Filter Stick – | |||
885012109011 | SPEC | Status Activei| Production is active. Expected lifetime: >10 years. | Capacitance47 µF | Capacitance±20% | Rated Voltage16 V (DC) | Size1210 | Operating Temperature -55 °C up to +85 °C | – | Dissipation Factor10 % | Insulation Resistance0.002 GΩ | Ceramic TypeX5R Class II | Length3.2 mm | Width2.5 mm | Height2.5 mm | Pad Dimension0.75 mm | Packaging7" Tape & Reel | Demoboard – | Design Kit | Filter Bag – | Filter Stick – |
Assortments
Articles from this product series can be found in the following assortments:
Videos
#askLorandt explains: What miniaturization means for MLCCs and what alternatives are possible
Videos
#askLorandt explains: Influence of DC-Bias on Ceramic Filter Capacitors
Videos
#askLorandt explains: LTspice DC-Bias Simulation for Capacitors
Videos
#askLorandt explains: DC/DC Converter Voltage Ripple vs. ESR of Different Capacitor Technologies
Videos
How to choose the right capacitor type for a circuit?! || Film vs. Ceramic vs. Electrolytic
Videos
Webinar: Introduction to the capacitor technologies and how to use them
