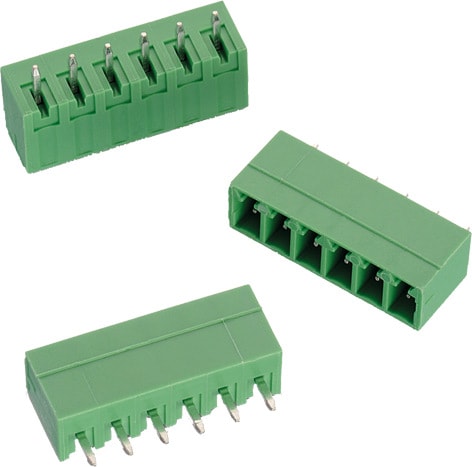

WR-TBL Series 321 - 3.81 mm Vertical PCB Header | Electromechanical Components

General Information
Operating Temperature	-40 °C up to +105 °C
Compliance	RoHS
Pitch	3.81 mm

Material Properties
Insulator Material	PA66
Insulator Flammability Rating	UL94 V-0
Contact Material	Brass
Contact Plating	Tin

Electrical Properties
I_R	10 A; 10.5 A
I_{R cULus}	10 A
I_{R VDE}	10.5 A
Working Voltage	300 V (AC)
Working Voltage [cULus]	300 V (AC)
Working Voltage [VDE]	300 V (AC)
Withstanding Voltage [cULus]	1600 V (AC)
Withstanding Voltage [VDE]	2500 V (AC)
Contact Resistance [cULus]	20 mΩ
Contact Resistance [VDE]	20 mΩ

Certification
cULus Approval	E315414
VDE Approval	40023195

Application Notes
