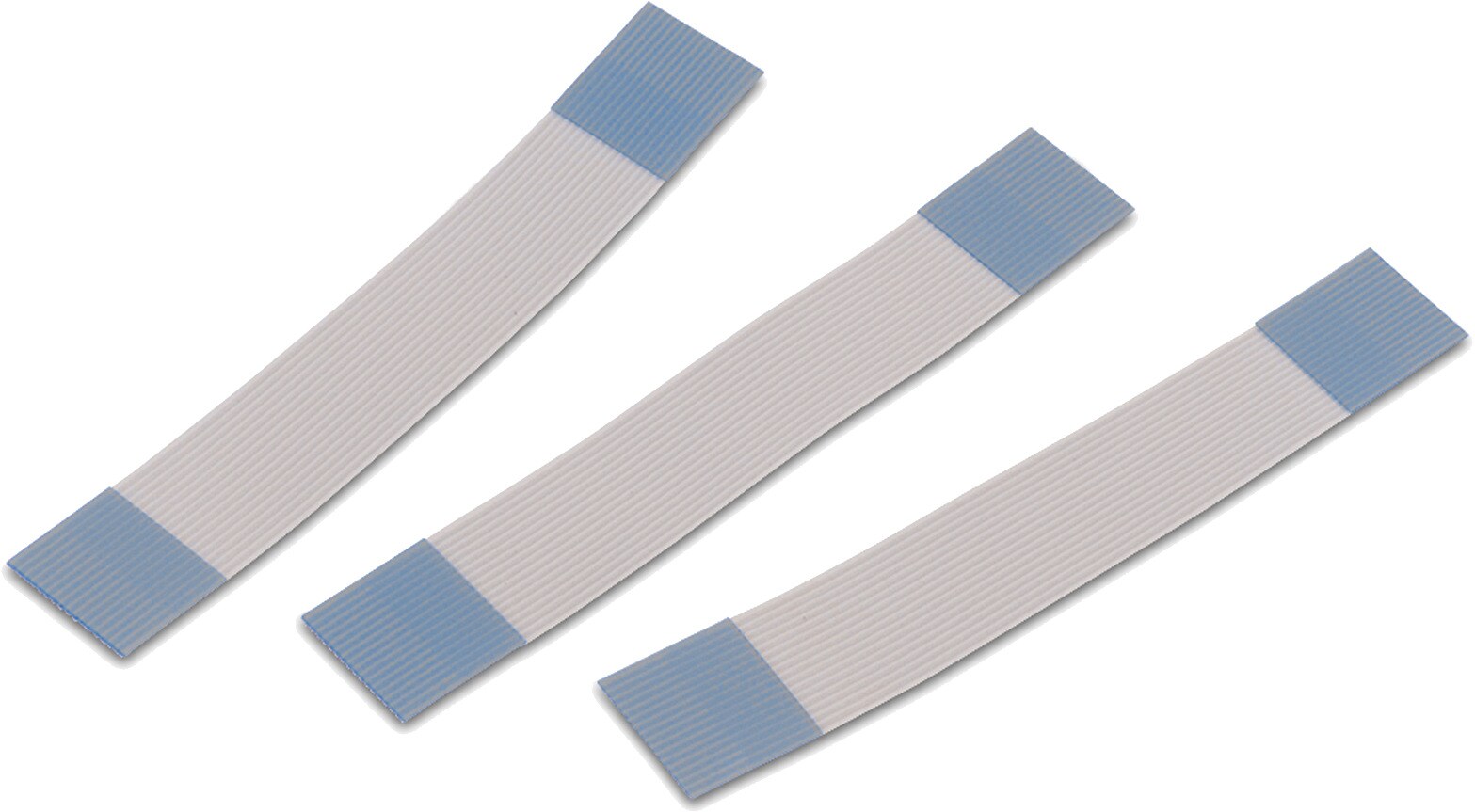

WR-FFC 1.00 mm Flat Flexible Cable Type 1 (Contacts on same side)

Kind Properties
Pitch1 mm
Quality Class20 Mating cycles
Material Properties
Insulator MaterialPET (White)
Contact MaterialCopper
Contact PlatingTin

Products

Order Code Data­sheet DownloadsPins
(mm)
Pitch
(mm)
TypeL
(mm)
IR
(A)
Working Voltage
(V)
Contact Resistance
(mΩ)
Tol. RDesign Kit Samples
686604050001SPEC
2 files 4 1 Type 1 50 1 60 20 max.
686604100001SPEC
2 files 4 1 Type 1 100 1 60 20 max.
686604200001SPEC
2 files 4 1 Type 1 200 1 60 20 max.
686604152001SPEC
2 files 4 1 Type 1 152 1 60 20 max.
686605050001SPEC
2 files 5 1 Type 1 50 1 60 20 max.
686605100001SPEC
2 files 5 1 Type 1 100 1 60 20 max.
686605200001SPEC
2 files 5 1 Type 1 200 1 60 20 max.
686605152001SPEC
2 files 5 1 Type 1 152 1 60 20 max.
686606050001SPEC
2 files 6 1 Type 1 50 1 60 20 max.
686606100001SPEC
2 files 6 1 Type 1 100 1 60 20 max.
686606200001SPEC
2 files 6 1 Type 1 200 1 60 20 max.
686606152001SPEC
2 files 6 1 Type 1 152 1 60 20 max.
686608050001SPEC
2 files 8 1 Type 1 50 1 60 20 max.
686608100001SPEC
2 files 8 1 Type 1 100 1 60 20 max.
686608200001SPEC
2 files 8 1 Type 1 200 1 60 20 max.
686608152001SPEC
2 files 8 1 Type 1 152 1 60 20 max.
686609050001SPEC
2 files 9 1 Type 1 50 1 60 20 max.
686609100001SPEC
2 files 9 1 Type 1 100 1 60 20 max.
686609200001SPEC
2 files 9 1 Type 1 200 1 60 20 max.
686609152001SPEC
2 files 9 1 Type 1 152 1 60 20 max.
686610050001SPEC
2 files 10 1 Type 1 50 1 60 20 max.687001
686610100001SPEC
2 files 10 1 Type 1 100 1 60 20 max.
686610200001SPEC
2 files 10 1 Type 1 200 1 60 20 max.
686610152001SPEC
2 files 10 1 Type 1 152 1 60 20 max.
686611050001SPEC
2 files 11 1 Type 1 50 1 60 20 max.
686611100001SPEC
2 files 11 1 Type 1 100 1 60 20 max.
686611200001SPEC
2 files 11 1 Type 1 200 1 60 20 max.
686611152001SPEC
2 files 11 1 Type 1 152 1 60 20 max.
686612050001SPEC
2 files 12 1 Type 1 50 1 60 20 max.
686612100001SPEC
2 files 12 1 Type 1 100 1 60 20 max.
686612200001SPEC
2 files 12 1 Type 1 200 1 60 20 max.
686612152001SPEC
2 files 12 1 Type 1 152 1 60 20 max.
686614050001SPEC
2 files 14 1 Type 1 50 1 60 20 max.
686614100001SPEC
2 files 14 1 Type 1 100 1 60 20 max.
686614200001SPEC
2 files 14 1 Type 1 200 1 60 20 max.
686614152001SPEC
2 files 14 1 Type 1 152 1 60 20 max.
686615050001SPEC
2 files 15 1 Type 1 50 1 60 20 max.
686615100001SPEC
2 files 15 1 Type 1 100 1 60 20 max.
686615200001SPEC
2 files 15 1 Type 1 200 1 60 20 max.
686615152001SPEC
2 files 15 1 Type 1 152 1 60 20 max.
686616050001SPEC
2 files 16 1 Type 1 50 1 60 20 max.
686616100001SPEC
2 files 16 1 Type 1 100 1 60 20 max.
686616200001SPEC
2 files 16 1 Type 1 200 1 60 20 max.
686616152001SPEC
2 files 16 1 Type 1 152 1 60 20 max.
686618050001SPEC
2 files 18 1 Type 1 50 1 60 20 max.
686618100001SPEC
2 files 18 1 Type 1 100 1 60 20 max.
686618200001SPEC
2 files 18 1 Type 1 200 1 60 20 max.
686618152001SPEC
2 files 18 1 Type 1 152 1 60 20 max.
686620050001SPEC
2 files 20 1 Type 1 50 1 60 20 max.612690
687001
686620100001SPEC
2 files 20 1 Type 1 100 1 60 20 max.
686620200001SPEC
2 files 20 1 Type 1 200 1 60 20 max.
686620152001SPEC
2 files 20 1 Type 1 152 1 60 20 max.
686621050001SPEC
2 files 21 1 Type 1 50 1 60 20 max.
686621100001SPEC
2 files 21 1 Type 1 100 1 60 20 max.
686621200001SPEC
2 files 21 1 Type 1 200 1 60 20 max.
686621152001SPEC
2 files 21 1 Type 1 152 1 60 20 max.
686622050001SPEC
2 files 22 1 Type 1 50 1 60 20 max.
686622100001SPEC
2 files 22 1 Type 1 100 1 60 20 max.
686622200001SPEC
2 files 22 1 Type 1 200 1 60 20 max.
686622152001SPEC
2 files 22 1 Type 1 152 1 60 20 max.
686624050001SPEC
2 files 24 1 Type 1 50 1 60 20 max.
686624100001SPEC
2 files 24 1 Type 1 100 1 60 20 max.
686624200001SPEC
2 files 24 1 Type 1 200 1 60 20 max.
686624152001SPEC
2 files 24 1 Type 1 152 1 60 20 max.
686626050001SPEC
2 files 26 1 Type 1 50 1 60 20 max.
686626100001SPEC
2 files 26 1 Type 1 100 1 60 20 max.
686626200001SPEC
2 files 26 1 Type 1 200 1 60 20 max.
686626152001SPEC
2 files 26 1 Type 1 152 1 60 20 max.
686628050001SPEC
2 files 28 1 Type 1 50 1 60 20 max.
686628100001SPEC
2 files 28 1 Type 1 100 1 60 20 max.
686628200001SPEC
2 files 28 1 Type 1 200 1 60 20 max.
686628152001SPEC
2 files 28 1 Type 1 152 1 60 20 max.
686630050001SPEC
2 files 30 1 Type 1 50 1 60 20 max.
686630100001SPEC
2 files 30 1 Type 1 100 1 60 20 max.
686630200001SPEC
2 files 30 1 Type 1 200 1 60 20 max.
686630152001SPEC
2 files 30 1 Type 1 152 1 60 20 max.
Order Code Data­sheet
686604050001SPEC
686604100001SPEC
686604200001SPEC
686604152001SPEC
686605050001SPEC
686605100001SPEC
686605200001SPEC
686605152001SPEC
686606050001SPEC
686606100001SPEC
686606200001SPEC
686606152001SPEC
686608050001SPEC
686608100001SPEC
686608200001SPEC
686608152001SPEC
686609050001SPEC
686609100001SPEC
686609200001SPEC
686609152001SPEC
686610050001SPEC
686610100001SPEC
686610200001SPEC
686610152001SPEC
686611050001SPEC
686611100001SPEC
686611200001SPEC
686611152001SPEC
686612050001SPEC
686612100001SPEC
686612200001SPEC
686612152001SPEC
686614050001SPEC
686614100001SPEC
686614200001SPEC
686614152001SPEC
686615050001SPEC
686615100001SPEC
686615200001SPEC
686615152001SPEC
686616050001SPEC
686616100001SPEC
686616200001SPEC
686616152001SPEC
686618050001SPEC
686618100001SPEC
686618200001SPEC
686618152001SPEC
686620050001SPEC
686620100001SPEC
686620200001SPEC
686620152001SPEC
686621050001SPEC
686621100001SPEC
686621200001SPEC
686621152001SPEC
686622050001SPEC
686622100001SPEC
686622200001SPEC
686622152001SPEC
686624050001SPEC
686624100001SPEC
686624200001SPEC
686624152001SPEC
686626050001SPEC
686626100001SPEC
686626200001SPEC
686626152001SPEC
686628050001SPEC
686628100001SPEC
686628200001SPEC
686628152001SPEC
686630050001SPEC
686630100001SPEC
686630200001SPEC
686630152001SPEC
Samples
Order Code Data­sheet DownloadsPins
(mm)
Pitch
(mm)
TypeL
(mm)
IR
(A)
Working Voltage
(V)
Contact Resistance
(mΩ)
Tol. RDesign Kit Samples

Assortments

Articles from this product series can be found in the following assortments:
