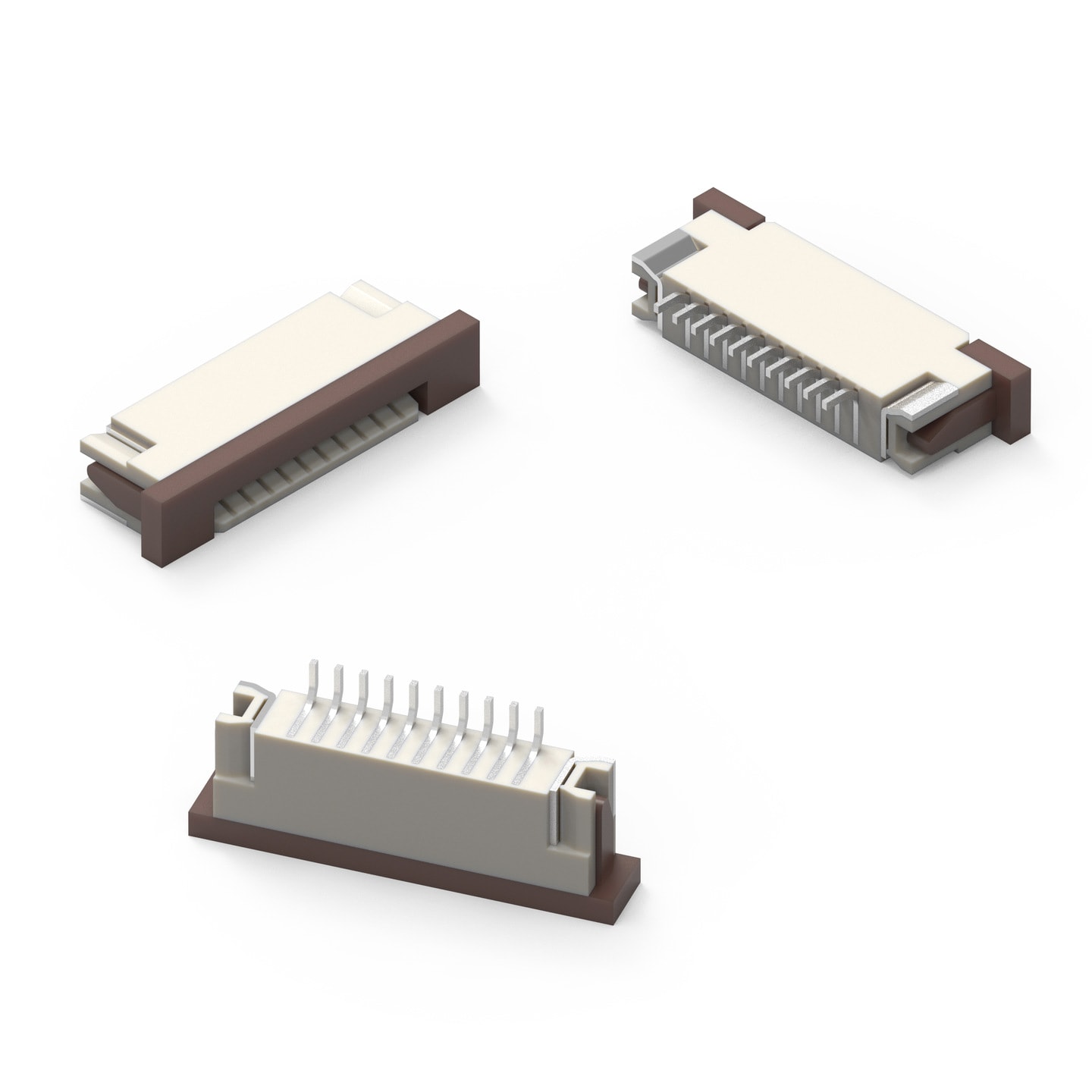

WR-FPC 1.00 mm SMT ZIF Horizontal Bottom Contact

General Information
Pitch	1 mm

Material Properties
Insulator Material	PPS
Contact Material	Phosphor Bronze
Contact Plating	100 (µ") Tin over 50 (µ") Nickel
Contact Type	Stamped

Application Notes

ANE018 Plastic Material Properties
PDF

Products

Order Code	Datasheet	Downloads	Status	Pins (pcs)	Pitch (mm)	Type	L (mm)	I_R (A)	Working Voltage (V (AC))	Packaging	Contact Resistance (mΩ)	Tol. R	Design Kit	Samples
68610414422	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-FPC (rev22c).IntLib \| 32.4 MB CDS Cadence_WR-FPC (rev22a).zip \| 37.9 MB EAG Eagle_WR-FPC (rev24a).lbr \| 1.9 MB CAD files ZIP 3D 68610414422 (rev1).pdf \| 119.8 KB IGS 68610414422 (rev1).igs \| 1.9 MB STP 68610414422 (rev1).stp \| 541.7 KB Others ZIP PCG Precaution_WE-FPC_6861xx(14122;14422;183422;183522;183822)_6871xx(14022;14522;183622;183722)_6873xx124422 (rev1).pdf \| 320.9 KB Download all 7 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	4	1	Horizontal	11	1	125	Tape and Reel	20	max.	687001
68610514422	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-FPC (rev22c).IntLib \| 32.4 MB CDS Cadence_WR-FPC (rev22a).zip \| 37.9 MB EAG Eagle_WR-FPC (rev24a).lbr \| 1.9 MB CAD files ZIP 3D 68610514422 (rev1).pdf \| 127.7 KB IGS 68610514422 (rev1).igs \| 2.1 MB STP 68610514422 (rev1).stp \| 581.2 KB Others ZIP PCG Precaution_WE-FPC_6861xx(14122;14422;183422;183522;183822)_6871xx(14022;14522;183622;183722)_6873xx124422 (rev1).pdf \| 320.9 KB Download all 7 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	5	1	Horizontal	12	1	125	Tape and Reel	20	max.	687001
68610614422	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-FPC (rev22c).IntLib \| 32.4 MB CDS Cadence_WR-FPC (rev22a).zip \| 37.9 MB EAG Eagle_WR-FPC (rev24a).lbr \| 1.9 MB CAD files ZIP 3D 68610614422 (rev1).pdf \| 137.3 KB IGS 68610614422 (rev1).igs \| 2.2 MB STP 68610614422 (rev1).stp \| 617.2 KB Others ZIP PCG Precaution_WE-FPC_6861xx(14122;14422;183422;183522;183822)_6871xx(14022;14522;183622;183722)_6873xx124422 (rev1).pdf \| 320.9 KB Download all 7 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	6	1	Horizontal	13	1	125	Tape and Reel	20	max.	687001
68610814422	SPEC	10 files EDA models: Components ZIP ALT Altium_WR-FPC (rev22c).IntLib \| 32.4 MB CDS Cadence_WR-FPC (rev22a).zip \| 37.9 MB EAG Eagle_WR-FPC (rev24a).lbr \| 1.9 MB CAD files ZIP 3D 68610814422 (rev1).pdf \| 153.8 KB 3D 68610814422_3D (rev1).pdf \| 156.7 KB IGS 68610814422 (rev1).iges \| 2.1 MB IGS 68610814422 (rev1).igs \| 2.5 MB STP 68610814422 (rev1).stp \| 687.5 KB STP 68610814422 (rev1).stp \| 471.1 KB Others ZIP PCG Precaution_WE-FPC_6861xx(14122;14422;183422;183522;183822)_6871xx(14022;14522;183622;183722)_6873xx124422 (rev1).pdf \| 320.9 KB Download all 10 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	8	1	Horizontal	15	1	125	Tape and Reel	20	max.	687001
68610914422	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-FPC (rev22c).IntLib \| 32.4 MB CDS Cadence_WR-FPC (rev22a).zip \| 37.9 MB EAG Eagle_WR-FPC (rev24a).lbr \| 1.9 MB CAD files ZIP 3D 68610914422 (rev1).pdf \| 159.3 KB IGS 68610914422 (rev1).igs \| 2.6 MB STP 68610914422 (rev1).stp \| 722.3 KB Others ZIP PCG Precaution_WE-FPC_6861xx(14122;14422;183422;183522;183822)_6871xx(14022;14522;183622;183722)_6873xx124422 (rev1).pdf \| 320.9 KB Download all 7 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	9	1	Horizontal	16	1	125	Tape and Reel	20	max.	687001
68611014422	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-FPC (rev22c).IntLib \| 32.4 MB CDS Cadence_WR-FPC (rev22a).zip \| 37.9 MB EAG Eagle_WR-FPC (rev24a).lbr \| 1.9 MB CAD files ZIP 3D 68611014422 (rev1).pdf \| 168.7 KB IGS 68611014422 (rev1).igs \| 2.7 MB STP 68611014422 (rev1).stp \| 764.9 KB Others ZIP PCG Precaution_WE-FPC_6861xx(14122;14422;183422;183522;183822)_6871xx(14022;14522;183622;183722)_6873xx124422 (rev1).pdf \| 320.9 KB Download all 7 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	10	1	Horizontal	17	1	125	Tape and Reel	20	max.	612690 687001
68611214422	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-FPC (rev22c).IntLib \| 32.4 MB CDS Cadence_WR-FPC (rev22a).zip \| 37.9 MB EAG Eagle_WR-FPC (rev24a).lbr \| 1.9 MB CAD files ZIP 3D 68611214422 (rev1).pdf \| 185.7 KB IGS 68611214422 (rev1).igs \| 3 MB STP 68611214422 (rev1).stp \| 841.8 KB Others ZIP PCG Precaution_WE-FPC_6861xx(14122;14422;183422;183522;183822)_6871xx(14022;14522;183622;183722)_6873xx124422 (rev1).pdf \| 320.9 KB Download all 7 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	12	1	Horizontal	19	1	125	Tape and Reel	20	max.	687001
68611414422	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-FPC (rev22c).IntLib \| 32.4 MB CDS Cadence_WR-FPC (rev22a).zip \| 37.9 MB EAG Eagle_WR-FPC (rev24a).lbr \| 1.9 MB CAD files ZIP 3D 68611414422 (rev1).pdf \| 200.1 KB IGS 68611414422 (rev1).igs \| 3.3 MB STP 68611414422 (rev1).stp \| 909.4 KB Others ZIP PCG Precaution_WE-FPC_6861xx(14122;14422;183422;183522;183822)_6871xx(14022;14522;183622;183722)_6873xx124422 (rev1).pdf \| 320.9 KB Download all 7 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	14	1	Horizontal	21	1	125	Tape and Reel	20	max.	687001
68611614422	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-FPC (rev22c).IntLib \| 32.4 MB CDS Cadence_WR-FPC (rev22a).zip \| 37.9 MB EAG Eagle_WR-FPC (rev24a).lbr \| 1.9 MB CAD files ZIP 3D 68611614422 (rev1).pdf \| 214.2 KB IGS 68611614422 (rev1).igs \| 3.5 MB STP 68611614422 (rev1).stp \| 1.1 MB Others ZIP PCG Precaution_WE-FPC_6861xx(14122;14422;183422;183522;183822)_6871xx(14022;14522;183622;183722)_6873xx124422 (rev1).pdf \| 320.9 KB Download all 7 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	16	1	Horizontal	23	1	125	Tape and Reel	20	max.	687001
68611814422	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-FPC (rev22c).IntLib \| 32.4 MB CDS Cadence_WR-FPC (rev22a).zip \| 37.9 MB EAG Eagle_WR-FPC (rev24a).lbr \| 1.9 MB CAD files ZIP 3D 68611814422 (rev1).pdf \| 233.2 KB IGS 68611814422 (rev1).igs \| 3.8 MB STP 68611814422 (rev1).stp \| 1.2 MB Others ZIP PCG Precaution_WE-FPC_6861xx(14122;14422;183422;183522;183822)_6871xx(14022;14522;183622;183722)_6873xx124422 (rev1).pdf \| 320.9 KB Download all 7 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	18	1	Horizontal	25	1	125	Tape and Reel	20	max.	687001
68612014422	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-FPC (rev22c).IntLib \| 32.4 MB CDS Cadence_WR-FPC (rev22a).zip \| 37.9 MB EAG Eagle_WR-FPC (rev24a).lbr \| 1.9 MB CAD files ZIP 3D 68612014422 (rev1).pdf \| 246.4 KB IGS 68612014422 (rev1).igs \| 4.1 MB STP 68612014422 (rev1).stp \| 1.1 MB Others ZIP PCG Precaution_WE-FPC_6861xx(14122;14422;183422;183522;183822)_6871xx(14022;14522;183622;183722)_6873xx124422 (rev1).pdf \| 320.9 KB Download all 7 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	20	1	Horizontal	27	1	125	Tape and Reel	20	max.	687001
68612214422	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-FPC (rev22c).IntLib \| 32.4 MB CDS Cadence_WR-FPC (rev22a).zip \| 37.9 MB EAG Eagle_WR-FPC (rev24a).lbr \| 1.9 MB CAD files ZIP 3D 68612214422 (rev1).pdf \| 262.3 KB IGS 68612214422 (rev1).igs \| 4.3 MB STP 68612214422 (rev1).stp \| 1.2 MB Others ZIP PCG Precaution_WE-FPC_6861xx(14122;14422;183422;183522;183822)_6871xx(14022;14522;183622;183722)_6873xx124422 (rev1).pdf \| 320.9 KB Download all 7 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	22	1	Horizontal	29	1	125	Tape and Reel	20	max.	687001
68612414422	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-FPC (rev22c).IntLib \| 32.4 MB CDS Cadence_WR-FPC (rev22a).zip \| 37.9 MB EAG Eagle_WR-FPC (rev24a).lbr \| 1.9 MB CAD files ZIP 3D 68612414422 (rev1).pdf \| 279.5 KB IGS 68612414422 (rev1).igs \| 4.6 MB STP 68612414422 (rev1).stp \| 1.3 MB Others ZIP PCG Precaution_WE-FPC_6861xx(14122;14422;183422;183522;183822)_6871xx(14022;14522;183622;183722)_6873xx124422 (rev1).pdf \| 320.9 KB Download all 7 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	24	1	Horizontal	31	1	125	Tape and Reel	20	max.	687001
68612614422	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-FPC (rev22c).IntLib \| 32.4 MB CDS Cadence_WR-FPC (rev22a).zip \| 37.9 MB EAG Eagle_WR-FPC (rev24a).lbr \| 1.9 MB CAD files ZIP 3D 68612614422 (rev1).pdf \| 296 KB IGS 68612614422 (rev1).igs \| 4.9 MB STP 68612614422 (rev1).stp \| 1.3 MB Others ZIP PCG Precaution_WE-FPC_6861xx(14122;14422;183422;183522;183822)_6871xx(14022;14522;183622;183722)_6873xx124422 (rev1).pdf \| 320.9 KB Download all 7 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	26	1	Horizontal	33	1	125	Tape and Reel	20	max.	687001
68612814422	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-FPC (rev22c).IntLib \| 32.4 MB CDS Cadence_WR-FPC (rev22a).zip \| 37.9 MB EAG Eagle_WR-FPC (rev24a).lbr \| 1.9 MB CAD files ZIP 3D 68612814422 (rev1).pdf \| 305.9 KB IGS 68612814422 (rev1).igs \| 5.1 MB STP 68612814422 (rev1).stp \| 1.4 MB Others ZIP PCG Precaution_WE-FPC_6861xx(14122;14422;183422;183522;183822)_6871xx(14022;14522;183622;183722)_6873xx124422 (rev1).pdf \| 320.9 KB Download all 7 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	28	1	Horizontal	35	1	125	Tape and Reel	20	max.	687001
68613014422	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-FPC (rev22c).IntLib \| 32.4 MB CDS Cadence_WR-FPC (rev22a).zip \| 37.9 MB EAG Eagle_WR-FPC (rev24a).lbr \| 1.9 MB CAD files ZIP 3D 68613014422 (rev1).pdf \| 320.6 KB IGS 68613014422 (rev1).igs \| 5.4 MB STP 68613014422 (rev1).stp \| 1.5 MB Others ZIP PCG Precaution_WE-FPC_6861xx(14122;14422;183422;183522;183822)_6871xx(14022;14522;183622;183722)_6873xx124422 (rev1).pdf \| 320.9 KB Download all 7 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	30	1	Horizontal	37	1	125	Tape and Reel	20	max.	687001

Order Code	Datasheet
68610414422	SPEC
68610514422	SPEC
68610614422	SPEC
68610814422	SPEC
68610914422	SPEC
68611014422	SPEC
68611214422	SPEC
68611414422	SPEC
68611614422	SPEC
68611814422	SPEC
68612014422	SPEC
68612214422	SPEC
68612414422	SPEC
68612614422	SPEC
68612814422	SPEC
68613014422	SPEC

Samples

Order Code	Datasheet	Downloads	Status	Pins (pcs)	Pitch (mm)	Type	L (mm)	I_R (A)	Working Voltage (V (AC))	Packaging	Contact Resistance (mΩ)	Tol. R	Design Kit	Samples

Use with

WR-FFC 1.00 mm Flat Flexible Cable Type 1 (Contacts on same side)

WR-FFC 1.00 mm Flat Flexible Cable Type 2 (Contacts opposite)

Suitable for

WR-FFC 1.00 mm Folding Flat Flexible Cable

Assortments

Articles from this product series can be found in the following assortments:

Design Kit Connector Solutions

Design Kit WR-FPC ZIF Connectors & Flat Flexible Cables
