WR-FPC 1.00 mm SMT ZIF Horizontal Bottom Contact Low Profile | Electromechanical Components | Würth Elektronik Product Catalog

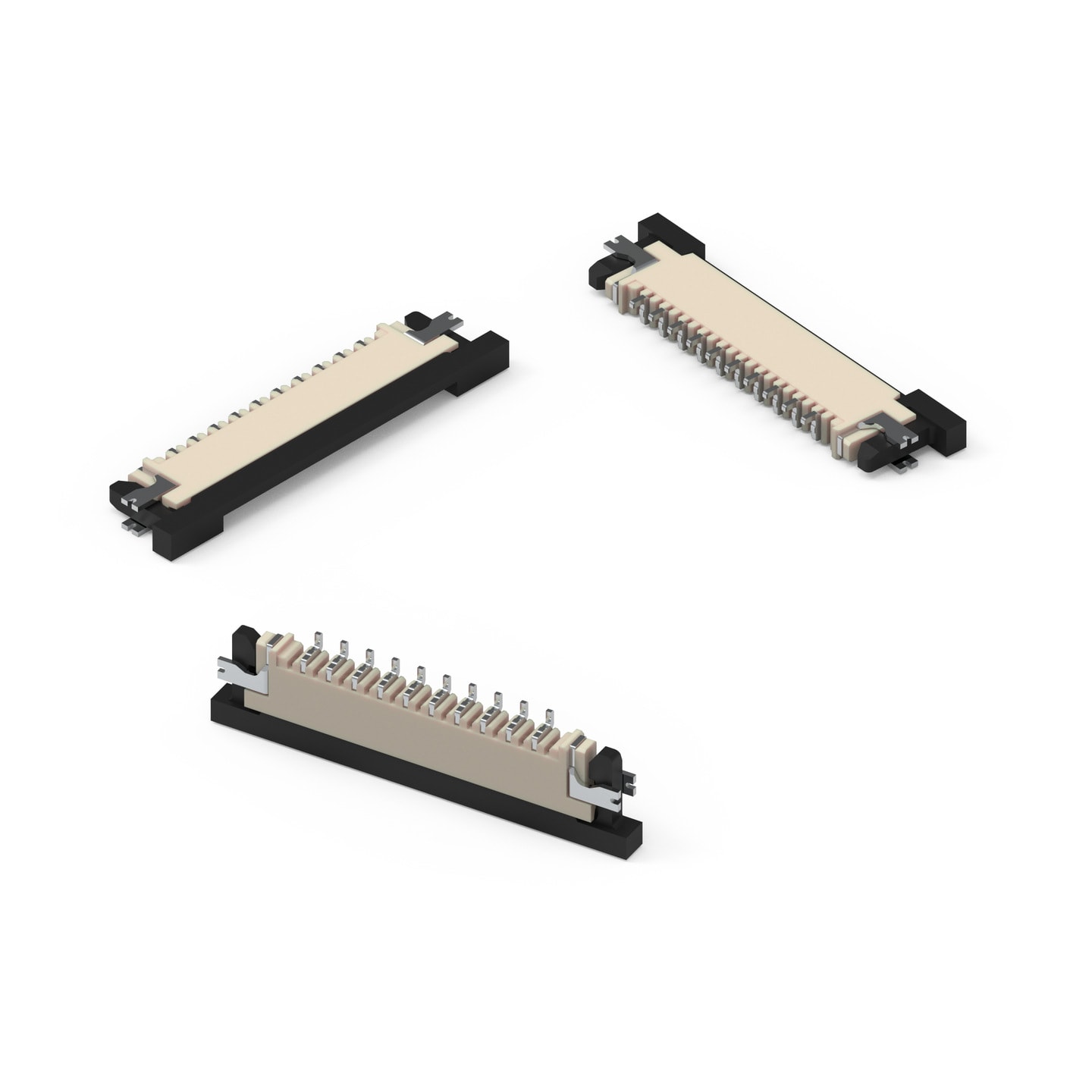

OverviewAll product units Product unitElectromechanical Components Product groupConnectors Product familyFPC Connector and FFC Cable Product sub-familyZIF Connectors (Zero Insertion Force)Product seriesWR-FPC 1.00 mm SMT ZIF Horizontal Bottom Contact Low Profile

General Information
Pitch	1 mm

Material Properties
Insulator Material	LCP
Contact Material	Phosphor Bronze
Contact Plating	120 (µ") Tin over 30 (µ") Nickel
Contact Type	Stamped
Solder Tabs	Brass

Application Notes

ANE018 Plastic Material Properties
PDF

The gold plated version is now available for all polarities. Please contact your local sales contact if you are interested in this variant.

Products

Order Code	Datasheet	Downloads	Status	Pins (pcs)	Pitch (mm)	Type	L (mm)	I_R (A)	Working Voltage (V (AC))	Packaging	Contact Resistance (mΩ)	Tol. R	Design Kit	Samples
686104183522	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-FPC (rev22c).IntLib \| 32.4 MB CDS Cadence_WR-FPC (rev22a).zip \| 37.9 MB EAG Eagle_WR-FPC (rev24a).lbr \| 1.9 MB CAD files ZIP 3D 686104183522 (rev1).pdf \| 209.8 KB IGS 686104183522 (rev1).iges \| 3.2 MB STP 686104183522 (rev1).stp \| 736.5 KB Others ZIP PCG Precaution_WE-FPC_6861xx(14122;14422;183422;183522;183822)_6871xx(14022;14522;183622;183722)_6873xx124422 (rev1).pdf \| 320.9 KB Download all 7 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	4	1	Horizontal	10.2	0.8	50	Tape and Reel	30	max.	687001
686106183522	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-FPC (rev22c).IntLib \| 32.4 MB CDS Cadence_WR-FPC (rev22a).zip \| 37.9 MB EAG Eagle_WR-FPC (rev24a).lbr \| 1.9 MB CAD files ZIP 3D 686106183522 (rev1).pdf \| 248.1 KB IGS 686106183522 (rev1).iges \| 3.8 MB STP 686106183522 (rev1).stp \| 889.3 KB Others ZIP PCG Precaution_WE-FPC_6861xx(14122;14422;183422;183522;183822)_6871xx(14022;14522;183622;183722)_6873xx124422 (rev1).pdf \| 320.9 KB Download all 7 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	6	1	Horizontal	12.2	0.8	50	Tape and Reel	30	max.	687001
686108183522	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-FPC (rev22c).IntLib \| 32.4 MB CDS Cadence_WR-FPC (rev22a).zip \| 37.9 MB EAG Eagle_WR-FPC (rev24a).lbr \| 1.9 MB CAD files ZIP 3D 686108183522 (rev1).pdf \| 286.4 KB IGS 686108183522 (rev1).iges \| 4.5 MB STP 686108183522 (rev1).stp \| 1 MB Others ZIP PCG Precaution_WE-FPC_6861xx(14122;14422;183422;183522;183822)_6871xx(14022;14522;183622;183722)_6873xx124422 (rev1).pdf \| 320.9 KB Download all 7 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	8	1	Horizontal	14.2	0.8	50	Tape and Reel	30	max.	687001
686110183522	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-FPC (rev22c).IntLib \| 32.4 MB CDS Cadence_WR-FPC (rev22a).zip \| 37.9 MB EAG Eagle_WR-FPC (rev24a).lbr \| 1.9 MB CAD files ZIP 3D 686110183522 (rev1).pdf \| 325.8 KB IGS 686110183522 (rev1).iges \| 5.1 MB STP 686110183522 (rev1).stp \| 1.2 MB Others ZIP PCG Precaution_WE-FPC_6861xx(14122;14422;183422;183522;183822)_6871xx(14022;14522;183622;183722)_6873xx124422 (rev1).pdf \| 320.9 KB Download all 7 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	10	1	Horizontal	16.2	0.8	50	Tape and Reel	30	max.	612690 687001
686114183522	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-FPC (rev22c).IntLib \| 32.4 MB CDS Cadence_WR-FPC (rev22a).zip \| 37.9 MB EAG Eagle_WR-FPC (rev24a).lbr \| 1.9 MB CAD files ZIP 3D 686114183522 (rev1).pdf \| 405.5 KB IGS 686114183522 (rev1).iges \| 6.4 MB STP 686114183522 (rev1).stp \| 1.5 MB Others ZIP PCG Precaution_WE-FPC_6861xx(14122;14422;183422;183522;183822)_6871xx(14022;14522;183622;183722)_6873xx124422 (rev1).pdf \| 320.9 KB Download all 7 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	14	1	Horizontal	20.2	0.8	50	Tape and Reel	30	max.	687001
686115183522	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-FPC (rev22c).IntLib \| 32.4 MB CDS Cadence_WR-FPC (rev22a).zip \| 37.9 MB EAG Eagle_WR-FPC (rev24a).lbr \| 1.9 MB CAD files ZIP 3D 686115183522 (rev1).pdf \| 425.7 KB IGS 686115183522 (rev1).iges \| 6.8 MB STP 686115183522 (rev1).stp \| 1.6 MB Others ZIP PCG Precaution_WE-FPC_6861xx(14122;14422;183422;183522;183822)_6871xx(14022;14522;183622;183722)_6873xx124422 (rev1).pdf \| 320.9 KB Download all 7 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	15	1	Horizontal	21.2	0.8	50	Tape and Reel	30	max.	687001
686116183522	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-FPC (rev22c).IntLib \| 32.4 MB CDS Cadence_WR-FPC (rev22a).zip \| 37.9 MB EAG Eagle_WR-FPC (rev24a).lbr \| 1.9 MB CAD files ZIP 3D 686116183522 (rev1).pdf \| 445.4 KB IGS 686116183522 (rev1).iges \| 7.1 MB STP 686116183522 (rev1).stp \| 1.6 MB Others ZIP PCG Precaution_WE-FPC_6861xx(14122;14422;183422;183522;183822)_6871xx(14022;14522;183622;183722)_6873xx124422 (rev1).pdf \| 320.9 KB Download all 7 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	16	1	Horizontal	22.2	0.8	50	Tape and Reel	30	max.	687001
686118183522	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-FPC (rev22c).IntLib \| 32.4 MB CDS Cadence_WR-FPC (rev22a).zip \| 37.9 MB EAG Eagle_WR-FPC (rev24a).lbr \| 1.9 MB CAD files ZIP 3D 686118183522 (rev1).pdf \| 484.8 KB IGS 686118183522 (rev1).iges \| 7.7 MB STP 686118183522 (rev1).stp \| 1.8 MB Others ZIP PCG Precaution_WE-FPC_6861xx(14122;14422;183422;183522;183822)_6871xx(14022;14522;183622;183722)_6873xx124422 (rev1).pdf \| 320.9 KB Download all 7 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	18	1	Horizontal	24.2	0.8	50	Tape and Reel	30	max.	687001

Order Code	Datasheet
686104183522	SPEC
686106183522	SPEC
686108183522	SPEC
686110183522	SPEC
686114183522	SPEC
686115183522	SPEC
686116183522	SPEC
686118183522	SPEC

Samples

Order Code	Datasheet	Downloads	Status	Pins (pcs)	Pitch (mm)	Type	L (mm)	I_R (A)	Working Voltage (V (AC))	Packaging	Contact Resistance (mΩ)	Tol. R	Design Kit	Samples

Use with

WR-FFC 1.00 mm Flat Flexible Cable Type 1 (Contacts on same side)

WR-FFC 1.00 mm Flat Flexible Cable Type 2 (Contacts opposite)

Suitable for

WR-FFC 1.00 mm Folding Flat Flexible Cable

Assortments

Articles from this product series can be found in the following assortments:

Design Kit Connector Solutions

Design Kit WR-FPC ZIF Connectors & Flat Flexible Cables
