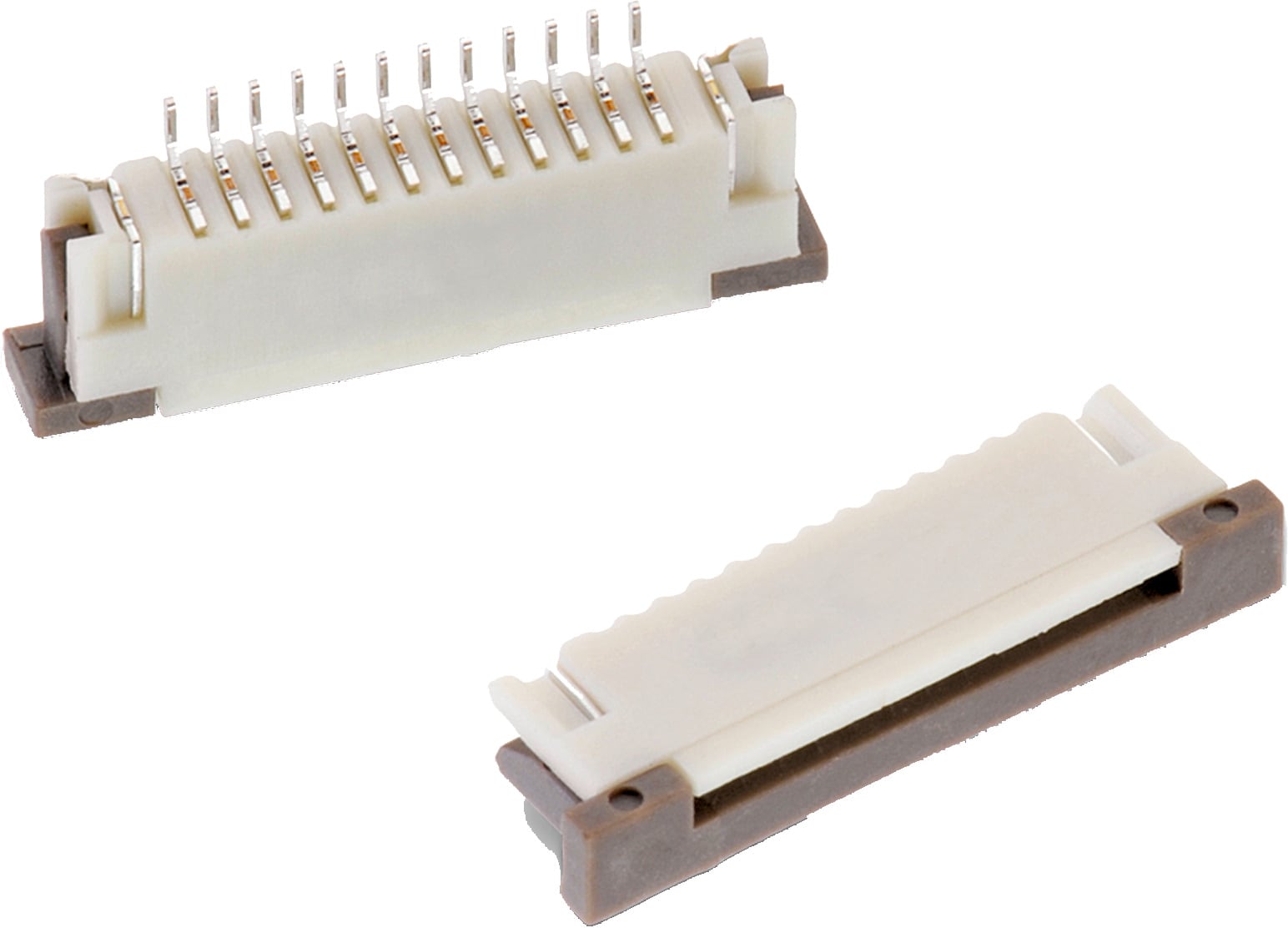

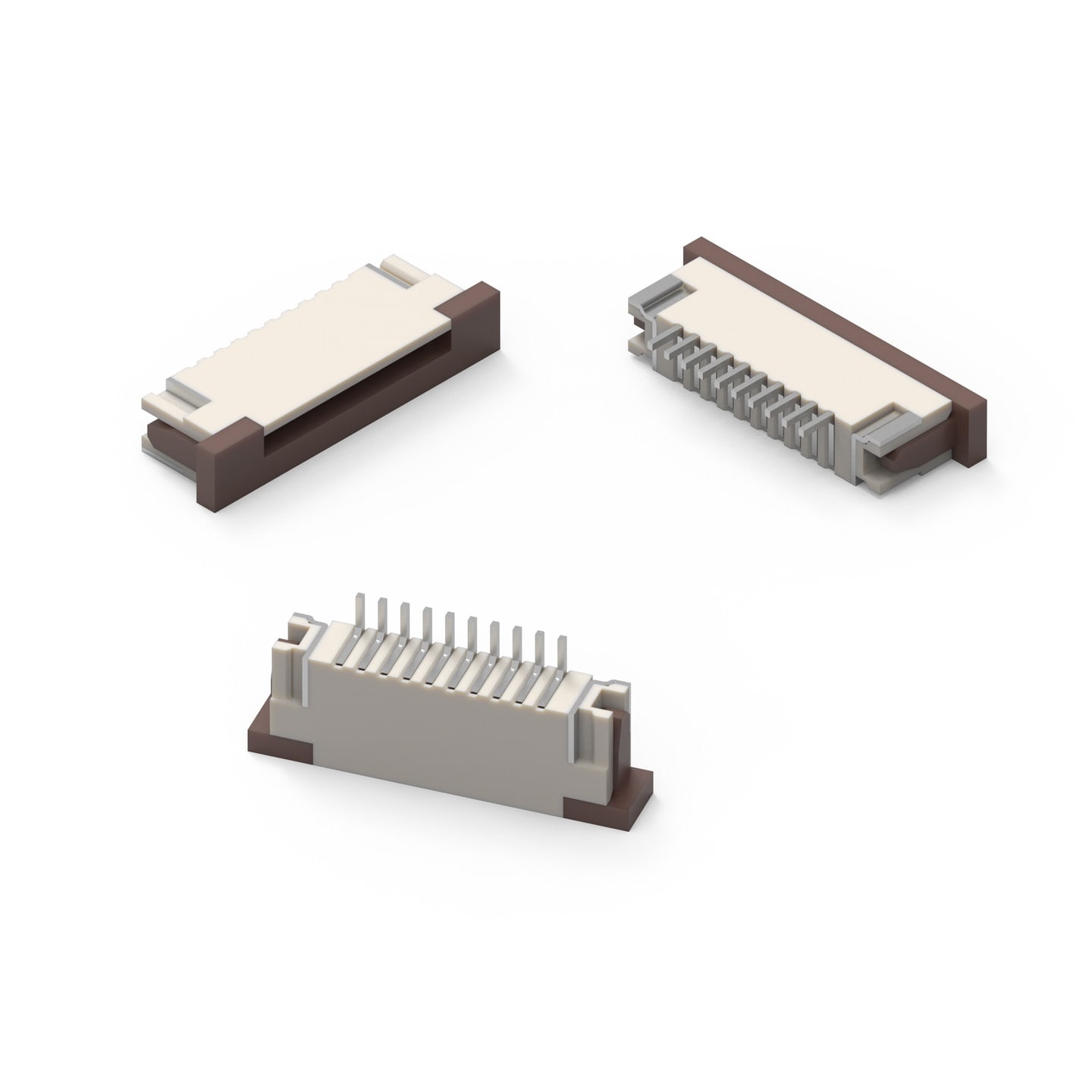

WR-FPC 1.00 mm SMT ZIF Horizontal Top Contact

General Information
Pitch	1 mm

Material Properties
Insulator Material	PPS
Contact Material	Phosphor Bronze
Contact Plating	100 (µ") Tin over 50 (µ") Nickel
Contact Type	Stamped

Application Notes

ANE018 Plastic Material Properties
PDF

Products

Order Code	Datasheet	Downloads	Status	Pins (pcs)	Pitch (mm)	Type	L (mm)	I_R (A)	Working Voltage (V (AC))	Packaging	Contact Resistance (mΩ)	Tol. R	Design Kit	Samples
68610414122	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-FPC (rev22c).IntLib \| 32.4 MB CDS Cadence_WR-FPC (rev22a).zip \| 37.9 MB EAG Eagle_WR-FPC (rev24a).lbr \| 1.9 MB CAD files ZIP 3D 3D_68610414122 (rev1).pdf \| 89.4 KB IGS Download_IGES_68610414122 (rev1).iges \| 1.5 MB STP 68610414122 (rev1).stp \| 581.8 KB Others ZIP PCG Precaution_WE-FPC_6861xx(14122;14422;183422;183522;183822)_6871xx(14022;14522;183622;183722)_6873xx124422 (rev1).pdf \| 320.9 KB Download all 7 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	4	1	Horizontal	11	1	125	Tape and Reel	20	max.	687001
68610614122	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-FPC (rev22c).IntLib \| 32.4 MB CDS Cadence_WR-FPC (rev22a).zip \| 37.9 MB EAG Eagle_WR-FPC (rev24a).lbr \| 1.9 MB CAD files ZIP 3D 3D_68610614122 (rev1).pdf \| 101.6 KB IGS Download_IGES_68610614122 (rev1).iges \| 1.8 MB STP 68610614122 (rev1).stp \| 417.8 KB Others ZIP PCG Precaution_WE-FPC_6861xx(14122;14422;183422;183522;183822)_6871xx(14022;14522;183622;183722)_6873xx124422 (rev1).pdf \| 320.9 KB Download all 7 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	6	1	Horizontal	13	1	125	Tape and Reel	20	max.	687001
68610814122	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-FPC (rev22c).IntLib \| 32.4 MB CDS Cadence_WR-FPC (rev22a).zip \| 37.9 MB EAG Eagle_WR-FPC (rev24a).lbr \| 1.9 MB CAD files ZIP 3D 3D_68610814122 (rev1).pdf \| 113.8 KB IGS Download_IGES_68610814122 (rev1).iges \| 2 MB STP 68610814122 (rev1).stp \| 475.8 KB Others ZIP PCG Precaution_WE-FPC_6861xx(14122;14422;183422;183522;183822)_6871xx(14022;14522;183622;183722)_6873xx124422 (rev1).pdf \| 320.9 KB Download all 7 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	8	1	Horizontal	15	1	125	Tape and Reel	20	max.	687001
68611014122	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-FPC (rev22c).IntLib \| 32.4 MB CDS Cadence_WR-FPC (rev22a).zip \| 37.9 MB EAG Eagle_WR-FPC (rev24a).lbr \| 1.9 MB CAD files ZIP 3D 3D_68611014122 (rev1).pdf \| 126.1 KB IGS Download_IGES_68611014122 (rev1).iges \| 2.5 MB STP 68611014122 (rev1).stp \| 609.2 KB Others ZIP PCG Precaution_WE-FPC_6861xx(14122;14422;183422;183522;183822)_6871xx(14022;14522;183622;183722)_6873xx124422 (rev1).pdf \| 320.9 KB Download all 7 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	10	1	Horizontal	17	1	125	Tape and Reel	20	max.	612690 687001
68611114122	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-FPC (rev22c).IntLib \| 32.4 MB CDS Cadence_WR-FPC (rev22a).zip \| 37.9 MB EAG Eagle_WR-FPC (rev24a).lbr \| 1.9 MB CAD files ZIP 3D 3D_68611114122 (rev1).pdf \| 132.3 KB IGS Download_IGES_68611114122 (rev1).iges \| 2.4 MB STP 68611114122 (rev1).stp \| 564.3 KB Others ZIP PCG Precaution_WE-FPC_6861xx(14122;14422;183422;183522;183822)_6871xx(14022;14522;183622;183722)_6873xx124422 (rev1).pdf \| 320.9 KB Download all 7 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	11	1	Horizontal	18	1	125	Tape and Reel	20	max.	687001
68611214122	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-FPC (rev22c).IntLib \| 32.4 MB CDS Cadence_WR-FPC (rev22a).zip \| 37.9 MB EAG Eagle_WR-FPC (rev24a).lbr \| 1.9 MB CAD files ZIP 3D 3D_68611214122 (rev1).pdf \| 138.5 KB IGS Download_IGES_68611214122 (rev1).iges \| 2.5 MB STP 68611214122 (rev1).stp \| 593.5 KB Others ZIP PCG Precaution_WE-FPC_6861xx(14122;14422;183422;183522;183822)_6871xx(14022;14522;183622;183722)_6873xx124422 (rev1).pdf \| 320.9 KB Download all 7 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	12	1	Horizontal	19	1	125	Tape and Reel	20	max.	687001
68611414122	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-FPC (rev22c).IntLib \| 32.4 MB CDS Cadence_WR-FPC (rev22a).zip \| 37.9 MB EAG Eagle_WR-FPC (rev24a).lbr \| 1.9 MB CAD files ZIP 3D 3D_68611414122 (rev1).pdf \| 150.8 KB IGS Download_IGES_68611414122 (rev1).iges \| 2.7 MB STP 68611414122 (rev1).stp \| 655.1 KB Others ZIP PCG Precaution_WE-FPC_6861xx(14122;14422;183422;183522;183822)_6871xx(14022;14522;183622;183722)_6873xx124422 (rev1).pdf \| 320.9 KB Download all 7 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	14	1	Horizontal	21	1	125	Tape and Reel	20	max.	687001
68611514122	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-FPC (rev22c).IntLib \| 32.4 MB CDS Cadence_WR-FPC (rev22a).zip \| 37.9 MB EAG Eagle_WR-FPC (rev24a).lbr \| 1.9 MB CAD files ZIP 3D 3D_68611514122 (rev1).pdf \| 157 KB IGS Download_IGES_68611514122 (rev1).iges \| 2.9 MB STP 68611514122 (rev1).stp \| 681.8 KB Others ZIP PCG Precaution_WE-FPC_6861xx(14122;14422;183422;183522;183822)_6871xx(14022;14522;183622;183722)_6873xx124422 (rev1).pdf \| 320.9 KB Download all 7 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	15	1	Horizontal	22	1	125	Tape and Reel	20	max.	687001
68611614122	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-FPC (rev22c).IntLib \| 32.4 MB CDS Cadence_WR-FPC (rev22a).zip \| 37.9 MB EAG Eagle_WR-FPC (rev24a).lbr \| 1.9 MB CAD files ZIP 3D 3D_68611614122 (rev1).pdf \| 163.2 KB IGS Download_IGES_68611614122 (rev1).iges \| 3 MB STP 68611614122 (rev1).stp \| 717.5 KB Others ZIP PCG Precaution_WE-FPC_6861xx(14122;14422;183422;183522;183822)_6871xx(14022;14522;183622;183722)_6873xx124422 (rev1).pdf \| 320.9 KB Download all 7 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	16	1	Horizontal	23	1	125	Tape and Reel	20	max.	687001
68611814122	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-FPC (rev22c).IntLib \| 32.4 MB CDS Cadence_WR-FPC (rev22a).zip \| 37.9 MB EAG Eagle_WR-FPC (rev24a).lbr \| 1.9 MB CAD files ZIP 3D 3D_68611814122 (rev1).pdf \| 175.6 KB IGS Download_IGES_68611814122 (rev1).iges \| 3.2 MB STP 68611814122 (rev1).stp \| 774.7 KB Others ZIP PCG Precaution_WE-FPC_6861xx(14122;14422;183422;183522;183822)_6871xx(14022;14522;183622;183722)_6873xx124422 (rev1).pdf \| 320.9 KB Download all 7 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	18	1	Horizontal	25	1	125	Tape and Reel	20	max.	687001
68612014122	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-FPC (rev22c).IntLib \| 32.4 MB CDS Cadence_WR-FPC (rev22a).zip \| 37.9 MB EAG Eagle_WR-FPC (rev24a).lbr \| 1.9 MB CAD files ZIP 3D 3D_68612014122 (rev1).pdf \| 188.1 KB IGS Download_IGES_68612014122 (rev1).iges \| 3.5 MB STP 68612014122 (rev1).stp \| 839.4 KB Others ZIP PCG Precaution_WE-FPC_6861xx(14122;14422;183422;183522;183822)_6871xx(14022;14522;183622;183722)_6873xx124422 (rev1).pdf \| 320.9 KB Download all 7 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	20	1	Horizontal	27	1	125	Tape and Reel	20	max.	687001
68612214122	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-FPC (rev22c).IntLib \| 32.4 MB CDS Cadence_WR-FPC (rev22a).zip \| 37.9 MB EAG Eagle_WR-FPC (rev24a).lbr \| 1.9 MB CAD files ZIP 3D 3D_68612214122 (rev1).pdf \| 200.6 KB IGS Download_IGES_68612214122 (rev1).iges \| 3.7 MB STP 68612214122 (rev1).stp \| 895.7 KB Others ZIP PCG Precaution_WE-FPC_6861xx(14122;14422;183422;183522;183822)_6871xx(14022;14522;183622;183722)_6873xx124422 (rev1).pdf \| 320.9 KB Download all 7 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	22	1	Horizontal	29	1	125	Tape and Reel	20	max.	687001
68612414122	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-FPC (rev22c).IntLib \| 32.4 MB CDS Cadence_WR-FPC (rev22a).zip \| 37.9 MB EAG Eagle_WR-FPC (rev24a).lbr \| 1.9 MB CAD files ZIP 3D 3D_68612414122 (rev1).pdf \| 213.1 KB IGS Download_IGES_68612414122 (rev1).iges \| 3.9 MB STP 68612414122 (rev1).stp \| 954.2 KB Others ZIP PCG Precaution_WE-FPC_6861xx(14122;14422;183422;183522;183822)_6871xx(14022;14522;183622;183722)_6873xx124422 (rev1).pdf \| 320.9 KB Download all 7 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	24	1	Horizontal	31	1	125	Tape and Reel	20	max.	687001
68612614122	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-FPC (rev22c).IntLib \| 32.4 MB CDS Cadence_WR-FPC (rev22a).zip \| 37.9 MB EAG Eagle_WR-FPC (rev24a).lbr \| 1.9 MB CAD files ZIP 3D 3D_68612614122 (rev1).pdf \| 225.6 KB IGS Download_IGES_68612614122 (rev1).iges \| 4.2 MB STP 68612614122 (rev1).stp \| 1001.2 KB Others ZIP PCG Precaution_WE-FPC_6861xx(14122;14422;183422;183522;183822)_6871xx(14022;14522;183622;183722)_6873xx124422 (rev1).pdf \| 320.9 KB Download all 7 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	26	1	Horizontal	33	1	125	Tape and Reel	20	max.	687001
68612814122	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-FPC (rev22c).IntLib \| 32.4 MB CDS Cadence_WR-FPC (rev22a).zip \| 37.9 MB EAG Eagle_WR-FPC (rev24a).lbr \| 1.9 MB CAD files ZIP 3D 3D_68612814122 (rev1).pdf \| 238.2 KB IGS Download_IGES_68612814122 (rev1).iges \| 4.5 MB STP 68612814122 (rev1).stp \| 1 MB Others ZIP PCG Precaution_WE-FPC_6861xx(14122;14422;183422;183522;183822)_6871xx(14022;14522;183622;183722)_6873xx124422 (rev1).pdf \| 320.9 KB Download all 7 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	28	1	Horizontal	35	1	125	Tape and Reel	20	max.	687001
68613014122	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-FPC (rev22c).IntLib \| 32.4 MB CDS Cadence_WR-FPC (rev22a).zip \| 37.9 MB EAG Eagle_WR-FPC (rev24a).lbr \| 1.9 MB CAD files ZIP 3D 3D_68613014122 (rev1).pdf \| 250.6 KB IGS Download_IGES_68613014122 (rev1).iges \| 4.7 MB STP 68613014122 (rev1).stp \| 1.1 MB Others ZIP PCG Precaution_WE-FPC_6861xx(14122;14422;183422;183522;183822)_6871xx(14022;14522;183622;183722)_6873xx124422 (rev1).pdf \| 320.9 KB Download all 7 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	30	1	Horizontal	37	1	125	Tape and Reel	20	max.	687001

Order Code	Datasheet
68610414122	SPEC
68610614122	SPEC
68610814122	SPEC
68611014122	SPEC
68611114122	SPEC
68611214122	SPEC
68611414122	SPEC
68611514122	SPEC
68611614122	SPEC
68611814122	SPEC
68612014122	SPEC
68612214122	SPEC
68612414122	SPEC
68612614122	SPEC
68612814122	SPEC
68613014122	SPEC

Samples

Order Code	Datasheet	Downloads	Status	Pins (pcs)	Pitch (mm)	Type	L (mm)	I_R (A)	Working Voltage (V (AC))	Packaging	Contact Resistance (mΩ)	Tol. R	Design Kit	Samples

Use with

WR-FFC 1.00 mm Flat Flexible Cable Type 1 (Contacts on same side)

WR-FFC 1.00 mm Flat Flexible Cable Type 2 (Contacts opposite)

Suitable for

WR-FFC 1.00 mm Folding Flat Flexible Cable

Assortments

Articles from this product series can be found in the following assortments:

Design Kit Connector Solutions

Design Kit WR-FPC ZIF Connectors & Flat Flexible Cables
