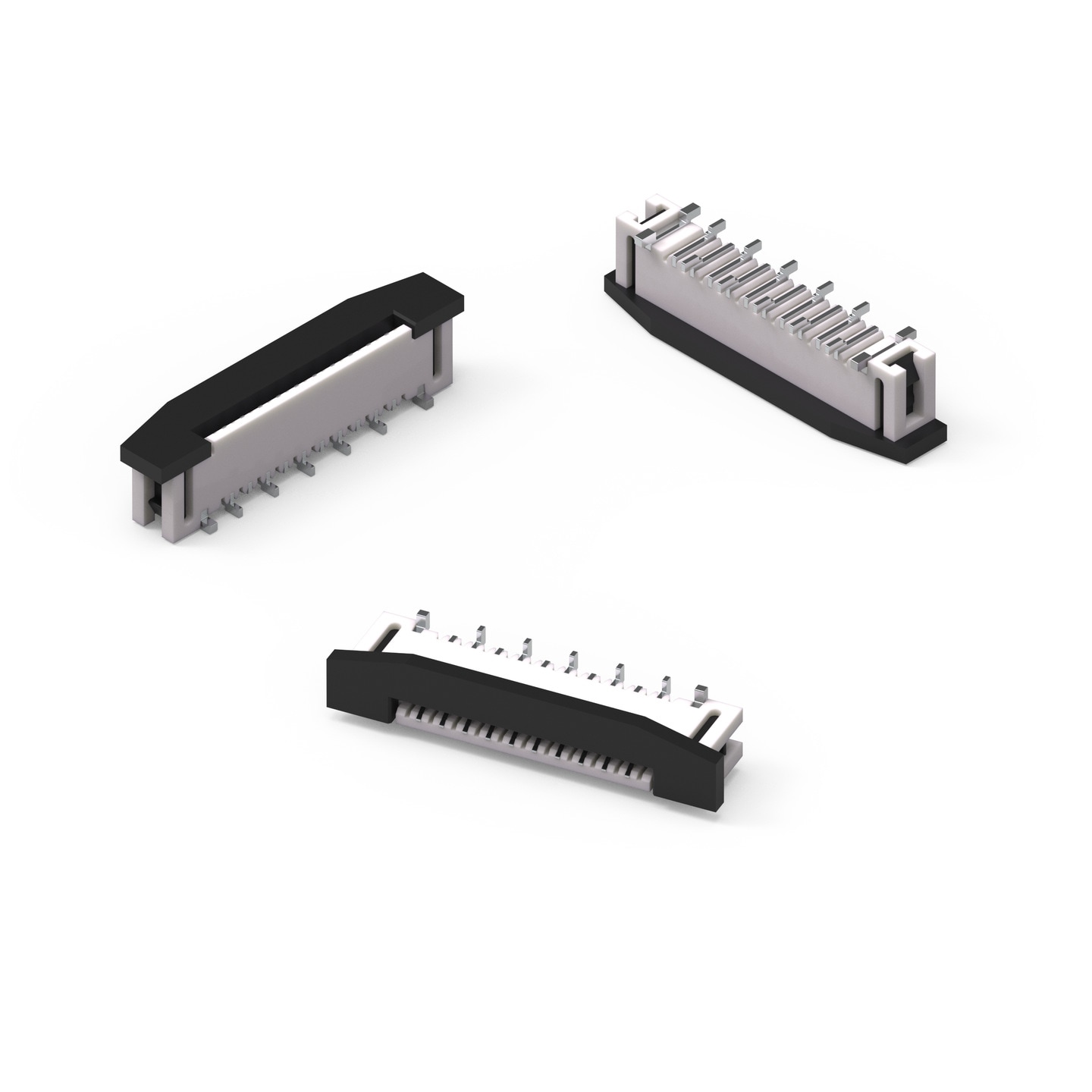

WR-FPC 1.00 mm SMT ZIF Vertical Type A

General Information
Pitch	1 mm

Material Properties
Insulator Material	PA6T
Contact Material	Phosphor Bronze
Contact Plating	120 (µ") Tin over 30 (µ") Nickel
Solder Tabs	Brass

Application Notes

ANE018 Plastic Material Properties
PDF

Products

Order Code	Datasheet	Downloads	Status	Pins (pcs)	Pitch (mm)	Type	L (mm)	I_R (A)	Working Voltage (V (AC))	Packaging	Contact Resistance (mΩ)	Tol. R	Design Kit	Samples
686104183822	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-FPC (rev22c).IntLib \| 32.4 MB CDS Cadence_WR-FPC (rev22a).zip \| 37.9 MB EAG Eagle_WR-FPC (rev24a).lbr \| 1.9 MB CAD files ZIP 3D 686104183822_1 (rev1).pdf \| 154.2 KB IGS 686104183822 (rev1).iges \| 2.5 MB STP 686104183822 (rev1).stp \| 993 KB Others ZIP PCG Precaution_WE-FPC_6861xx(14122;14422;183422;183522;183822)_6871xx(14022;14522;183622;183722)_6873xx124422 (rev1).pdf \| 320.9 KB Download all 7 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	4	1	Vertical	10.8	1	125	Tape and Reel	30	max.	687001
686105183822	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-FPC (rev22c).IntLib \| 32.4 MB CDS Cadence_WR-FPC (rev22a).zip \| 37.9 MB EAG Eagle_WR-FPC (rev24a).lbr \| 1.9 MB CAD files ZIP 3D 686105183822_1 (rev1).pdf \| 164.9 KB IGS 686105183822 (rev1).iges \| 2.7 MB STP 686105183822 (rev1).stp \| 1.1 MB Others ZIP PCG Precaution_WE-FPC_6861xx(14122;14422;183422;183522;183822)_6871xx(14022;14522;183622;183722)_6873xx124422 (rev1).pdf \| 320.9 KB Download all 7 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	5	1	Vertical	11.8	1	125	Tape and Reel	30	max.	687001
686106183822	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-FPC (rev22c).IntLib \| 32.4 MB CDS Cadence_WR-FPC (rev22a).zip \| 37.9 MB EAG Eagle_WR-FPC (rev24a).lbr \| 1.9 MB CAD files ZIP 3D 686106183822_1 (rev1).pdf \| 176.9 KB IGS 686106183822 (rev1).iges \| 2.9 MB STP 686106183822 (rev1).stp \| 1.1 MB Others ZIP PCG Precaution_WE-FPC_6861xx(14122;14422;183422;183522;183822)_6871xx(14022;14522;183622;183722)_6873xx124422 (rev1).pdf \| 320.9 KB Download all 7 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	6	1	Vertical	12.8	1	125	Tape and Reel	30	max.	687001
686108183822	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-FPC (rev22c).IntLib \| 32.4 MB CDS Cadence_WR-FPC (rev22a).zip \| 37.9 MB EAG Eagle_WR-FPC (rev24a).lbr \| 1.9 MB CAD files ZIP 3D 686108183822_1 (rev1).pdf \| 199.7 KB IGS 686108183822 (rev1).iges \| 3.3 MB STP 686108183822 (rev1).stp \| 1.3 MB Others ZIP PCG Precaution_WE-FPC_6861xx(14122;14422;183422;183522;183822)_6871xx(14022;14522;183622;183722)_6873xx124422 (rev1).pdf \| 320.9 KB Download all 7 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	8	1	Vertical	14.8	1	125	Tape and Reel	30	max.	687001
686110183822	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-FPC (rev22c).IntLib \| 32.4 MB CDS Cadence_WR-FPC (rev22a).zip \| 37.9 MB EAG Eagle_WR-FPC (rev24a).lbr \| 1.9 MB CAD files ZIP 3D 686110183822_1 (rev1).pdf \| 222.7 KB IGS 686110183822 (rev1).iges \| 3.7 MB STP 686110183822 (rev1).stp \| 1.5 MB Others ZIP PCG Precaution_WE-FPC_6861xx(14122;14422;183422;183522;183822)_6871xx(14022;14522;183622;183722)_6873xx124422 (rev1).pdf \| 320.9 KB Download all 7 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	10	1	Vertical	16.8	1	125	Tape and Reel	30	max.	612690 687001
686112183822	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-FPC (rev22c).IntLib \| 32.4 MB CDS Cadence_WR-FPC (rev22a).zip \| 37.9 MB EAG Eagle_WR-FPC (rev24a).lbr \| 1.9 MB CAD files ZIP 3D 686112183822_1 (rev1).pdf \| 246.5 KB IGS 686112183822 (rev1).iges \| 4.1 MB STP 686112183822 (rev1).stp \| 1.7 MB Others ZIP PCG Precaution_WE-FPC_6861xx(14122;14422;183422;183522;183822)_6871xx(14022;14522;183622;183722)_6873xx124422 (rev1).pdf \| 320.9 KB Download all 7 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	12	1	Vertical	18.8	1	125	Tape and Reel	30	max.	687001
686114183822	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-FPC (rev22c).IntLib \| 32.4 MB CDS Cadence_WR-FPC (rev22a).zip \| 37.9 MB EAG Eagle_WR-FPC (rev24a).lbr \| 1.9 MB CAD files ZIP 3D 686114183822_1 (rev1).pdf \| 268.9 KB IGS 686114183822 (rev1).iges \| 4.5 MB STP 686114183822 (rev1).stp \| 1.8 MB Others ZIP PCG Precaution_WE-FPC_6861xx(14122;14422;183422;183522;183822)_6871xx(14022;14522;183622;183722)_6873xx124422 (rev1).pdf \| 320.9 KB Download all 7 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	14	1	Vertical	20.8	1	125	Tape and Reel	30	max.	687001
686116183822	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-FPC (rev22c).IntLib \| 32.4 MB CDS Cadence_WR-FPC (rev22a).zip \| 37.9 MB EAG Eagle_WR-FPC (rev24a).lbr \| 1.9 MB CAD files ZIP 3D 686116183822_1 (rev1).pdf \| 291.9 KB IGS 686116183822 (rev1).iges \| 4.9 MB STP 686116183822 (rev1).stp \| 2 MB Others ZIP PCG Precaution_WE-FPC_6861xx(14122;14422;183422;183522;183822)_6871xx(14022;14522;183622;183722)_6873xx124422 (rev1).pdf \| 320.9 KB Download all 7 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	16	1	Vertical	22.8	1	125	Tape and Reel	30	max.	687001
686118183822	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-FPC (rev22c).IntLib \| 32.4 MB CDS Cadence_WR-FPC (rev22a).zip \| 37.9 MB EAG Eagle_WR-FPC (rev24a).lbr \| 1.9 MB CAD files ZIP 3D 686118183822_1 (rev1).pdf \| 315.6 KB IGS 686118183822 (rev1).iges \| 5.4 MB STP 686118183822 (rev1).stp \| 2.2 MB Others ZIP PCG Precaution_WE-FPC_6861xx(14122;14422;183422;183522;183822)_6871xx(14022;14522;183622;183722)_6873xx124422 (rev1).pdf \| 320.9 KB Download all 7 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	18	1	Vertical	24.8	1	125	Tape and Reel	30	max.	687001
686120183822	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-FPC (rev22c).IntLib \| 32.4 MB CDS Cadence_WR-FPC (rev22a).zip \| 37.9 MB EAG Eagle_WR-FPC (rev24a).lbr \| 1.9 MB CAD files ZIP 3D 686120183822_1 (rev1).pdf \| 338.5 KB IGS 686120183822 (rev1).iges \| 5.8 MB STP 686120183822 (rev1).stp \| 2.3 MB Others ZIP PCG Precaution_WE-FPC_6861xx(14122;14422;183422;183522;183822)_6871xx(14022;14522;183622;183722)_6873xx124422 (rev1).pdf \| 320.9 KB Download all 7 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	20	1	Vertical	26.8	1	125	Tape and Reel	30	max.	687001
686122183822	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-FPC (rev22c).IntLib \| 32.4 MB CDS Cadence_WR-FPC (rev22a).zip \| 37.9 MB EAG Eagle_WR-FPC (rev24a).lbr \| 1.9 MB CAD files ZIP 3D 686122183822_1 (rev1).pdf \| 361.8 KB IGS 686122183822 (rev1).iges \| 6.2 MB STP 686122183822 (rev1).stp \| 2.5 MB Others ZIP PCG Precaution_WE-FPC_6861xx(14122;14422;183422;183522;183822)_6871xx(14022;14522;183622;183722)_6873xx124422 (rev1).pdf \| 320.9 KB Download all 7 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	22	1	Vertical	28.8	1	125	Tape and Reel	30	max.	687001
686124183822	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-FPC (rev22c).IntLib \| 32.4 MB CDS Cadence_WR-FPC (rev22a).zip \| 37.9 MB EAG Eagle_WR-FPC (rev24a).lbr \| 1.9 MB CAD files ZIP 3D 686124183822_1 (rev1).pdf \| 385.2 KB IGS 686124183822 (rev1).iges \| 6.6 MB STP 686124183822 (rev1).stp \| 2.7 MB Others ZIP PCG Precaution_WE-FPC_6861xx(14122;14422;183422;183522;183822)_6871xx(14022;14522;183622;183722)_6873xx124422 (rev1).pdf \| 320.9 KB Download all 7 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	24	1	Vertical	30.8	1	125	Tape and Reel	30	max.	687001

Order Code	Datasheet
686104183822	SPEC
686105183822	SPEC
686106183822	SPEC
686108183822	SPEC
686110183822	SPEC
686112183822	SPEC
686114183822	SPEC
686116183822	SPEC
686118183822	SPEC
686120183822	SPEC
686122183822	SPEC
686124183822	SPEC

Samples

Order Code	Datasheet	Downloads	Status	Pins (pcs)	Pitch (mm)	Type	L (mm)	I_R (A)	Working Voltage (V (AC))	Packaging	Contact Resistance (mΩ)	Tol. R	Design Kit	Samples

Use with

WR-FFC 1.00 mm Flat Flexible Cable Type 1 (Contacts on same side)

WR-FFC 1.00 mm Flat Flexible Cable Type 2 (Contacts opposite)

Suitable for

WR-FFC 1.00 mm Folding Flat Flexible Cable

Assortments

Articles from this product series can be found in the following assortments:

Design Kit Connector Solutions

Design Kit WR-FPC ZIF Connectors & Flat Flexible Cables
