WE-DCT Ringkern-Doppeldrossel

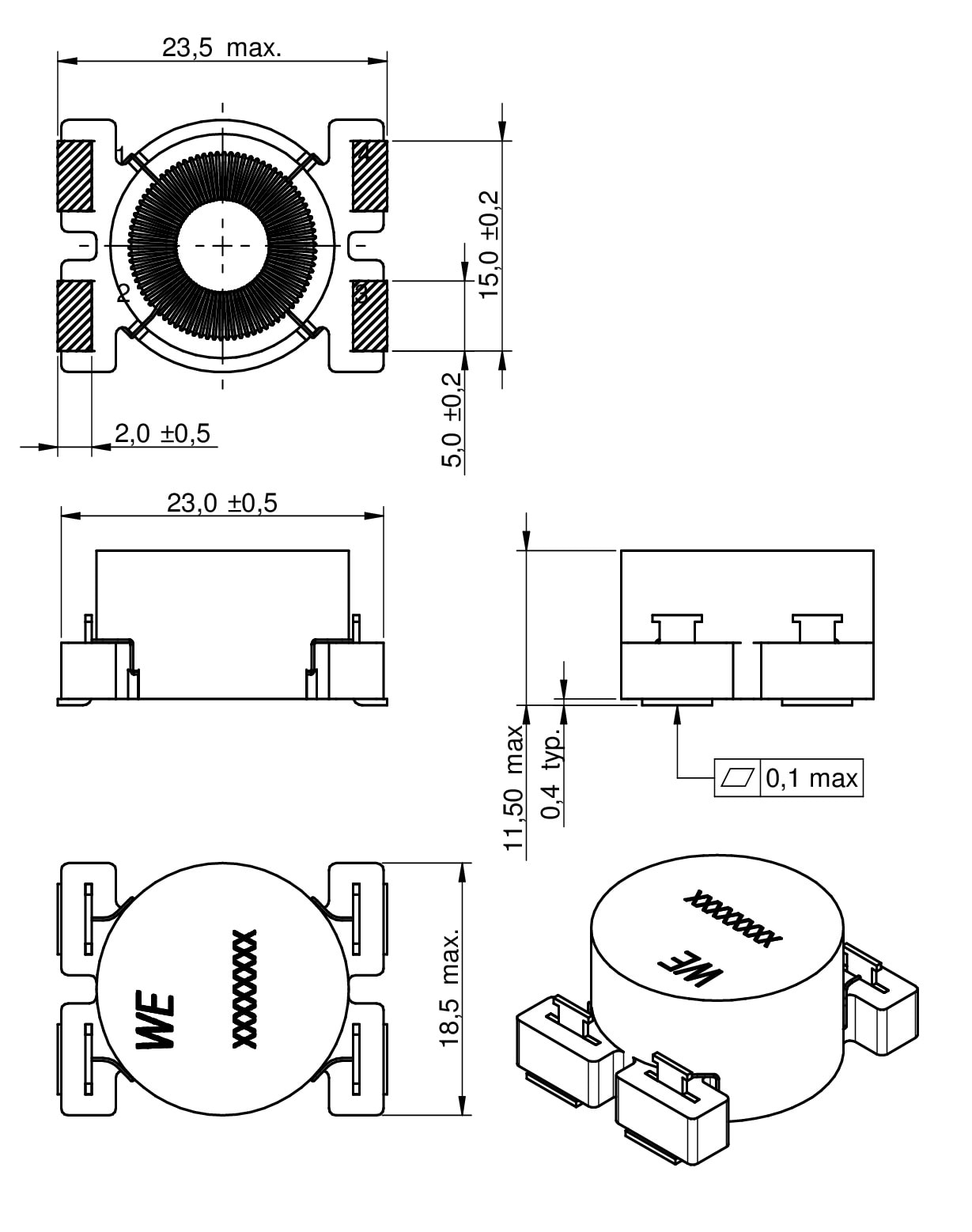

Bauform MaßeL
(mm)
W
(mm)
H
(mm)
SH 23 18.5 11.5

Merkmale

  • Sehr geringer RDC
  • Sehr geringe Kernverluste
  • Hohe Sättigungsströme bis zu 120 A
  • Stabil bei hohen Temperaturen
  • Betriebstemperatur: –40 °C bis 125 °C
  • Gekoppelte Induktivität mit zwei identischen Wicklungen
  • Weitere Varianten aufgrund von Parallel- und Serienschaltung möglich
  • Kernmaterial WE-Perm
  • Geringe Alterung bei hohen Temperaturen, lange Betriebsdauer

Anwendung

  • Hochleistungsschaltregler
  • Solarwechselrichter
  • 1:1 Sperrwandler-Anwendungen
  • Buck, Boost, Sepic, CUK-Schaltregler
  • Schaltregler mit zweiter ungeregelter Ausgangsspannung

Duett der Meisterklasse!

Die WE-MCRI ist eine innovative, gemoldete Doppeldrossel. Der vollautomatische Produktionsprozess mit Bifilarwicklung ermöglicht einen fast idealen Kopplungskoeffizienten von bis zu 0,995.

Produktvideo und mehr

Artikeldaten

SH
Artikel Nr. Daten­blatt Simu­lation DownloadsL1
(µH)
L2
(µH)
IR 1
(A)
IR 2
(A)
ISAT 1
(A)
RDC1 typ
(mΩ)
RDC2 typ
(mΩ)
RDC1 max
(mΩ)
RDC2 max
(mΩ)
Muster
7448510091SPEC
7 Dateien 0.091 0.091 14.5 14.5 120 2.8 2.8 3.5 3.5
744851016SPEC
7 Dateien 0.16 0.16 13.8 13.8 90 3.4 3.4 4.4 4.4
744851027SPEC
7 Dateien 0.27 0.27 12.3 12.3 65 4 4 5 5
744851039SPEC
7 Dateien 0.39 0.39 10.6 10.6 50 4.7 4.7 6 6
744851056SPEC
6 Dateien 0.56 0.56 9.8 9.8 40 5.3 5.3 6.7 6.7
744851100SPEC
7 Dateien 1 1 8.6 8.6 30 7.4 7.4 8.5 8.5
744851220SPEC
7 Dateien 2.2 2.2 8.6 8.6 17 7.4 7.4 8.5 8.5
744851330SPEC
7 Dateien 3.3 3.3 7.7 7.7 13.5 9 9 12 12
744851470SPEC
7 Dateien 4.7 4.7 7.2 7.2 11 10.3 10.3 14 14
744851101SPEC
6 Dateien 10 10 5.3 5.3 8 18.4 18.4 22 22
744851221SPEC
7 Dateien 22 22 3.5 3.5 2.7 34 34 45 45
744851331SPEC
6 Dateien 33 33 2.5 2.5 2.25 61 61 70 70
744851471SPEC
7 Dateien 47 47 1.6 1.6 2 130 130 160 160
744851102SPEC
7 Dateien 100 100 1.1 1.1 1.3 265 265 290 290
744851561SPEC
6 Dateien 56 56 1.5 1.5 8 140 140 170 170
