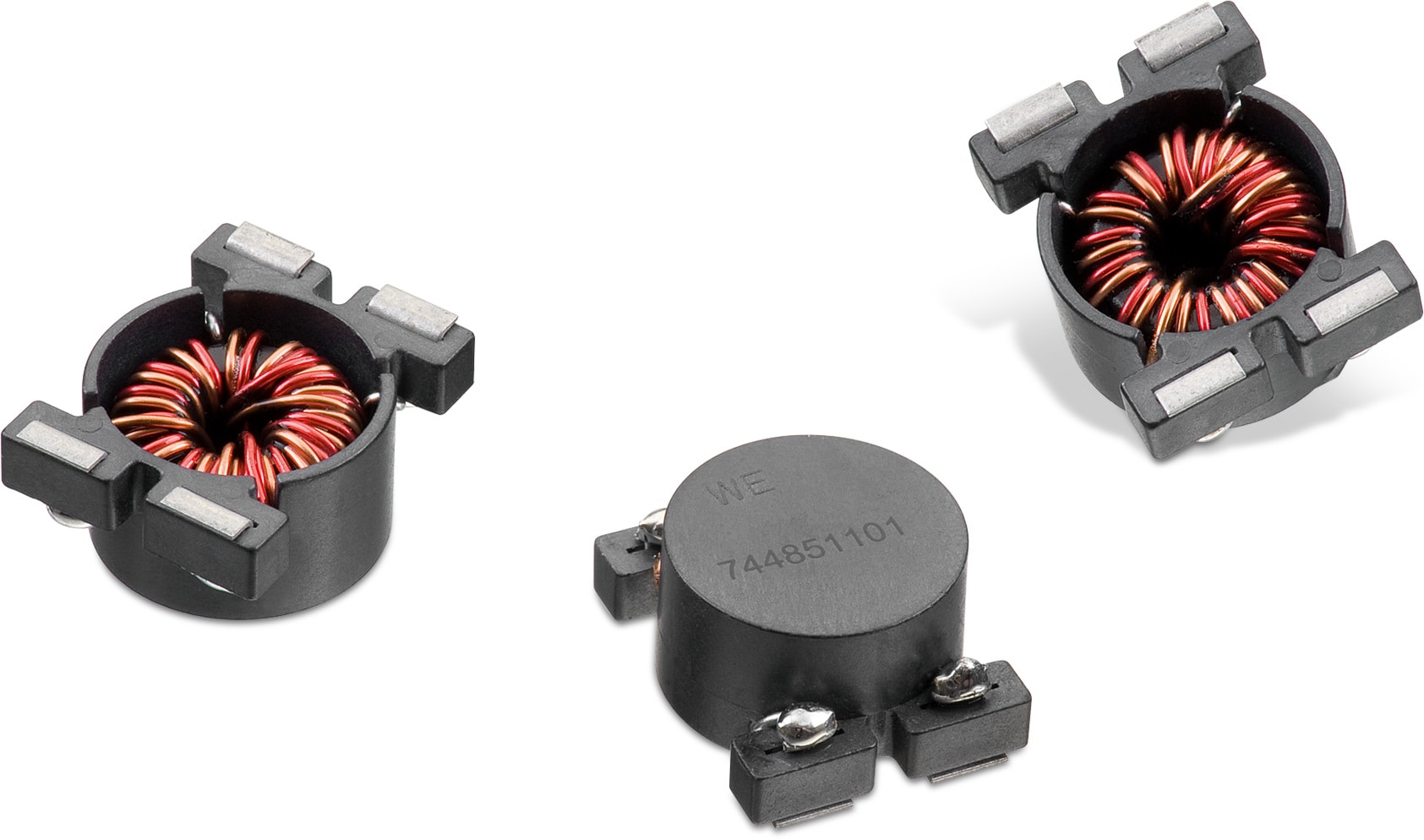

WE-DCT Toroidal Double Power Choke

Size	Dimensions	L (mm)	W (mm)	H (mm)
SH		23	18.5	11.5

LTSpice files

LT
LTSpice_WE-DCT (rev22a).zip
|
2.4 KB

Characteristics

Very low RDC
Very low core losses
Saturation current higher up to 120 A
Low inductance drift over temperature
Operating temperature: –40 °C up to +125 °C
Coupled inductor with two identical windings
More variants due to parallel and series connection
Core material WE-Perm
Low leakage due to bifilar winding

Applications

High power switching regulators
Solar inverter
1:1 flyback converter
Buck, Boost, Sepic and CUK Converter
Switching regulators with second unregulated output voltage

Application Notes

An Excellent Duet!

The WE-MCRI is an innovative molded coupled inductor with fully automated bifilar winding process. It offers an almost ideal coupling coefficient up to 0.995.

Product video and more

Products

Order Code	Datasheet	Downloads	Status	L₁ (µH)	L₂ (µH)	I_R (A)	I_{R 2} (A)	I_SAT (A)	R_{DC1 typ} (mΩ)	R_{DC2 typ} (mΩ)	R_{DC1 max} (mΩ)	R_{DC2 max} (mΩ)
7448510091	SPEC	8 files EDA models: Components ZIP ALT WE-DCT (rev22b).IntLib \| 1.6 MB CDS Cadence_WE-DCT (rev22a).zip \| 4 MB EAG Eagle_WE-DCT (rev19a).lbr \| 26.6 KB KIC KiCad_WE-DCT (rev25a).zip \| 3.9 MB ZUK Download_Cadstar_WE-DCT (rev19a).zip \| 9.6 KB CAD files ZIP IGS WE-DCT_SH_DCT (rev1).igs \| 19.4 MB STP WE-DCT_SH_DCT (rev1).stp \| 5 MB Electric models ZIP PSP PSpice_WE-DCT (rev22a).zip \| 5.6 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	0.091	0.091	14.5	14.5	120	2.8	2.8	3.5	3.5
744851016	SPEC	8 files EDA models: Components ZIP ALT WE-DCT (rev22b).IntLib \| 1.6 MB CDS Cadence_WE-DCT (rev22a).zip \| 4 MB EAG Eagle_WE-DCT (rev19a).lbr \| 26.6 KB KIC KiCad_WE-DCT (rev25a).zip \| 3.9 MB ZUK Download_Cadstar_WE-DCT (rev19a).zip \| 9.6 KB CAD files ZIP IGS WE-DCT_SH_DCT (rev1).igs \| 19.4 MB STP WE-DCT_SH_DCT (rev1).stp \| 5 MB Electric models ZIP PSP PSpice_WE-DCT (rev22a).zip \| 5.6 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	0.16	0.16	13.8	13.8	90	3.4	3.4	4.4	4.4
744851027	SPEC	8 files EDA models: Components ZIP ALT WE-DCT (rev22b).IntLib \| 1.6 MB CDS Cadence_WE-DCT (rev22a).zip \| 4 MB EAG Eagle_WE-DCT (rev19a).lbr \| 26.6 KB KIC KiCad_WE-DCT (rev25a).zip \| 3.9 MB ZUK Download_Cadstar_WE-DCT (rev19a).zip \| 9.6 KB CAD files ZIP IGS WE-DCT_SH_DCT (rev1).igs \| 19.4 MB STP WE-DCT_SH_DCT (rev1).stp \| 5 MB Electric models ZIP PSP PSpice_WE-DCT (rev22a).zip \| 5.6 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	0.27	0.27	12.3	12.3	65	4	4	5	5
744851039	SPEC	8 files EDA models: Components ZIP ALT WE-DCT (rev22b).IntLib \| 1.6 MB CDS Cadence_WE-DCT (rev22a).zip \| 4 MB EAG Eagle_WE-DCT (rev19a).lbr \| 26.6 KB KIC KiCad_WE-DCT (rev25a).zip \| 3.9 MB ZUK Download_Cadstar_WE-DCT (rev19a).zip \| 9.6 KB CAD files ZIP IGS WE-DCT_SH_DCT (rev1).igs \| 19.4 MB STP WE-DCT_SH_DCT (rev1).stp \| 5 MB Electric models ZIP PSP PSpice_WE-DCT (rev22a).zip \| 5.6 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	0.39	0.39	10.6	10.6	50	4.7	4.7	6	6
744851056	SPEC	7 files EDA models: Components ZIP ALT WE-DCT (rev22b).IntLib \| 1.6 MB CDS Cadence_WE-DCT (rev22a).zip \| 4 MB EAG Eagle_WE-DCT (rev19a).lbr \| 26.6 KB KIC KiCad_WE-DCT (rev25a).zip \| 3.9 MB ZUK Download_Cadstar_WE-DCT (rev19a).zip \| 9.6 KB CAD files ZIP IGS WE-DCT_SH_DCT (rev1).igs \| 19.4 MB STP WE-DCT_SH_DCT (rev1).stp \| 5 MB Download all 7 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	0.56	0.56	9.8	9.8	40	5.3	5.3	6.7	6.7
744851100	SPEC	8 files EDA models: Components ZIP ALT WE-DCT (rev22b).IntLib \| 1.6 MB CDS Cadence_WE-DCT (rev22a).zip \| 4 MB EAG Eagle_WE-DCT (rev19a).lbr \| 26.6 KB KIC KiCad_WE-DCT (rev25a).zip \| 3.9 MB ZUK Download_Cadstar_WE-DCT (rev19a).zip \| 9.6 KB CAD files ZIP IGS WE-DCT_SH_DCT (rev1).igs \| 19.4 MB STP WE-DCT_SH_DCT (rev1).stp \| 5 MB Electric models ZIP PSP PSpice_WE-DCT (rev22a).zip \| 5.6 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	1	1	8.6	8.6	30	7.4	7.4	8.5	8.5
744851220	SPEC	8 files EDA models: Components ZIP ALT WE-DCT (rev22b).IntLib \| 1.6 MB CDS Cadence_WE-DCT (rev22a).zip \| 4 MB EAG Eagle_WE-DCT (rev19a).lbr \| 26.6 KB KIC KiCad_WE-DCT (rev25a).zip \| 3.9 MB ZUK Download_Cadstar_WE-DCT (rev19a).zip \| 9.6 KB CAD files ZIP IGS WE-DCT_SH_DCT (rev1).igs \| 19.4 MB STP WE-DCT_SH_DCT (rev1).stp \| 5 MB Electric models ZIP PSP PSpice_WE-DCT (rev22a).zip \| 5.6 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	2.2	2.2	8.6	8.6	17	7.4	7.4	8.5	8.5
744851330	SPEC	8 files EDA models: Components ZIP ALT WE-DCT (rev22b).IntLib \| 1.6 MB CDS Cadence_WE-DCT (rev22a).zip \| 4 MB EAG Eagle_WE-DCT (rev19a).lbr \| 26.6 KB KIC KiCad_WE-DCT (rev25a).zip \| 3.9 MB ZUK Download_Cadstar_WE-DCT (rev19a).zip \| 9.6 KB CAD files ZIP IGS WE-DCT_SH_DCT (rev1).igs \| 19.4 MB STP WE-DCT_SH_DCT (rev1).stp \| 5 MB Electric models ZIP PSP PSpice_WE-DCT (rev22a).zip \| 5.6 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	3.3	3.3	7.7	7.7	13.5	9	9	12	12
744851470	SPEC	8 files EDA models: Components ZIP ALT WE-DCT (rev22b).IntLib \| 1.6 MB CDS Cadence_WE-DCT (rev22a).zip \| 4 MB EAG Eagle_WE-DCT (rev19a).lbr \| 26.6 KB KIC KiCad_WE-DCT (rev25a).zip \| 3.9 MB ZUK Download_Cadstar_WE-DCT (rev19a).zip \| 9.6 KB CAD files ZIP IGS WE-DCT_SH_DCT (rev1).igs \| 19.4 MB STP WE-DCT_SH_DCT (rev1).stp \| 5 MB Electric models ZIP PSP PSpice_WE-DCT (rev22a).zip \| 5.6 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	4.7	4.7	7.2	7.2	11	10.3	10.3	14	14
744851101	SPEC	7 files EDA models: Components ZIP ALT WE-DCT (rev22b).IntLib \| 1.6 MB CDS Cadence_WE-DCT (rev22a).zip \| 4 MB EAG Eagle_WE-DCT (rev19a).lbr \| 26.6 KB KIC KiCad_WE-DCT (rev25a).zip \| 3.9 MB ZUK Download_Cadstar_WE-DCT (rev19a).zip \| 9.6 KB CAD files ZIP IGS WE-DCT_SH_DCT (rev1).igs \| 19.4 MB STP WE-DCT_SH_DCT (rev1).stp \| 5 MB Download all 7 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	10	10	5.3	5.3	8	18.4	18.4	22	22
744851221	SPEC	8 files EDA models: Components ZIP ALT WE-DCT (rev22b).IntLib \| 1.6 MB CDS Cadence_WE-DCT (rev22a).zip \| 4 MB EAG Eagle_WE-DCT (rev19a).lbr \| 26.6 KB KIC KiCad_WE-DCT (rev25a).zip \| 3.9 MB ZUK Download_Cadstar_WE-DCT (rev19a).zip \| 9.6 KB CAD files ZIP IGS WE-DCT_SH_DCT (rev1).igs \| 19.4 MB STP WE-DCT_SH_DCT (rev1).stp \| 5 MB Electric models ZIP PSP PSpice_WE-DCT (rev22a).zip \| 5.6 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	22	22	3.5	3.5	2.7	34	34	45	45
744851331	SPEC	7 files EDA models: Components ZIP ALT WE-DCT (rev22b).IntLib \| 1.6 MB CDS Cadence_WE-DCT (rev22a).zip \| 4 MB EAG Eagle_WE-DCT (rev19a).lbr \| 26.6 KB KIC KiCad_WE-DCT (rev25a).zip \| 3.9 MB ZUK Download_Cadstar_WE-DCT (rev19a).zip \| 9.6 KB CAD files ZIP IGS WE-DCT_SH_DCT (rev1).igs \| 19.4 MB STP WE-DCT_SH_DCT (rev1).stp \| 5 MB Download all 7 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	33	33	2.5	2.5	2.25	61	61	70	70
744851471	SPEC	8 files EDA models: Components ZIP ALT WE-DCT (rev22b).IntLib \| 1.6 MB CDS Cadence_WE-DCT (rev22a).zip \| 4 MB EAG Eagle_WE-DCT (rev19a).lbr \| 26.6 KB KIC KiCad_WE-DCT (rev25a).zip \| 3.9 MB ZUK Download_Cadstar_WE-DCT (rev19a).zip \| 9.6 KB CAD files ZIP IGS WE-DCT_SH_DCT (rev1).igs \| 19.4 MB STP WE-DCT_SH_DCT (rev1).stp \| 5 MB Electric models ZIP PSP PSpice_WE-DCT (rev22a).zip \| 5.6 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	47	47	1.6	1.6	2	130	130	160	160
744851102	SPEC	8 files EDA models: Components ZIP ALT WE-DCT (rev22b).IntLib \| 1.6 MB CDS Cadence_WE-DCT (rev22a).zip \| 4 MB EAG Eagle_WE-DCT (rev19a).lbr \| 26.6 KB KIC KiCad_WE-DCT (rev25a).zip \| 3.9 MB ZUK Download_Cadstar_WE-DCT (rev19a).zip \| 9.6 KB CAD files ZIP IGS WE-DCT_SH_DCT (rev1).igs \| 19.4 MB STP WE-DCT_SH_DCT (rev1).stp \| 5 MB Electric models ZIP PSP PSpice_WE-DCT (rev22a).zip \| 5.6 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	100	100	1.1	1.1	1.3	265	265	290	290
744851561	SPEC	7 files EDA models: Components ZIP ALT WE-DCT (rev22b).IntLib \| 1.6 MB CDS Cadence_WE-DCT (rev22a).zip \| 4 MB EAG Eagle_WE-DCT (rev19a).lbr \| 26.6 KB KIC KiCad_WE-DCT (rev25a).zip \| 3.9 MB ZUK Download_Cadstar_WE-DCT (rev19a).zip \| 9.6 KB CAD files ZIP IGS WE-DCT_SH_DCT (rev1).igs \| 19.4 MB STP WE-DCT_SH_DCT (rev1).stp \| 5 MB Download all 7 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	56	56	1.5	1.5	8	140	140	170	170

Order Code	Datasheet	Simulation
7448510091	SPEC
744851016	SPEC
744851027	SPEC
744851039	SPEC
744851056	SPEC
744851100	SPEC
744851220	SPEC
744851330	SPEC
744851470	SPEC
744851101	SPEC
744851221	SPEC
744851331	SPEC
744851471	SPEC
744851102	SPEC
744851561	SPEC

Samples

Order Code	Datasheet	Simulation	Downloads	Status	L₁ (µH)	L₂ (µH)	I_R (A)	I_{R 2} (A)	I_SAT (A)	R_{DC1 typ} (mΩ)	R_{DC2 typ} (mΩ)	R_{DC1 max} (mΩ)	R_{DC2 max} (mΩ)	Samples

REDEXPERT loss simulation

Find the best inductor!

REDEXPERT loss simulation

Find the best inductor!

REDEXPERT has the world’s most accurate AC loss model, which even includes the DC-bias current. With dedicated DC-DC topologies or the generic loss simulator, you can accurately determine the AC and DC losses for your converter. The model includes the core material, shape and winding structure of the inductor. REDEXPERT recommends suitable inductors and allows you to add more filters to find the best inductor for your application.
