Kind Properties | |
---|---|
P | 5 mm |
Material Properties | |
---|---|
Isolationsmaterial | PA66 |
Isolation Brennbarkeitsklasse | UL94 V-0 |
Isolationsfarbe | Blau |
Kontaktmaterial | Messing |
Kontaktbeschichtung | Kupfer über Zink |
Schraubanschlussbeschichtung | Stahl |
Schraubanschlussmaterial | Zink |
Kabelschutzmaterial | Edelstahl |
General Information | |
---|---|
Betriebstemperatur | -40 bis zu +105 °C |
Einhaltung | Lead free / RoHS |
Electrical Properties | |
---|---|
IR UL | 16 A |
IR VDE | 16 A |
Arbeitsspannung | 250 V (AC) |
Arbeitsspannung [UL] | 250 V (AC) |
Arbeitsspannung [VDE] | 250 V (AC) |
Spannungsfestigkeit [UL] | 1500 V (AC) |
Spannungsfestigkeit [cULus] | 2000 V (AC) |
Spannungsfestigkeit [VDE] | 2000 V (AC) |
Kontaktwiderstand [UL] | 20 mΩ |
Kontaktwiderstand [cULus] | 20 mΩ |
Kontaktwiderstand [VDE] | 20 mΩ |
Mechanical Properties | |
---|---|
Kabellänge | 6 up to 7 (mm) |
Schraube | M3 |
Certification | |
---|---|
UL-Zulassung | E315414 |
VDE-Zulassung | 40022614 |
Packaging Properties | |
---|---|
Verpackung | Karton |
Application Notes
Artikeldaten
Artikel Nr. | Datenblatt | Downloads | Pins (mm) | Anwendung | PCB/Kabel/Panel | Modularity | Typ | Wire Section | IR UL (A) | Design Kit | Muster |
---|---|---|---|---|---|---|---|---|---|---|---|

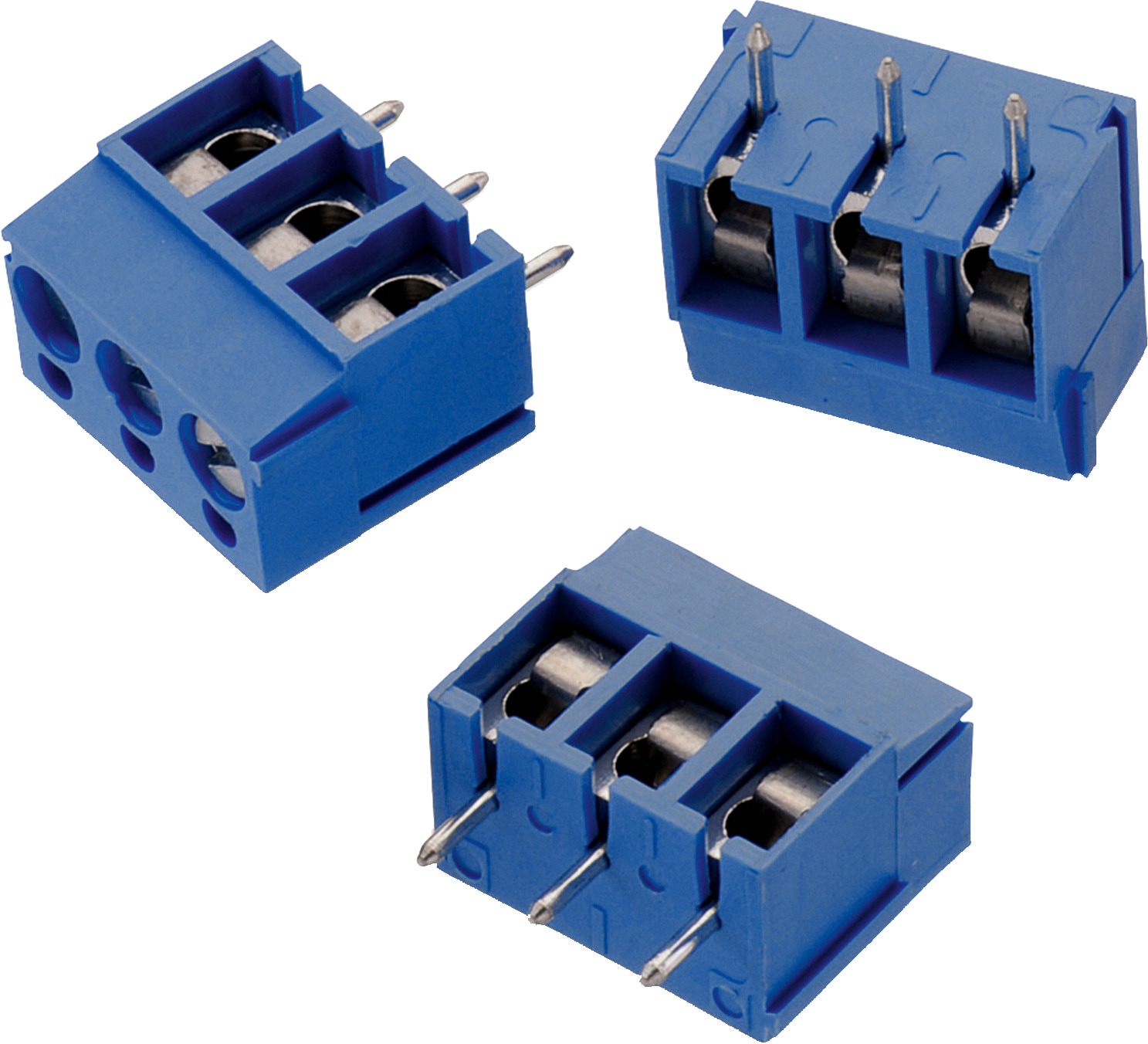

691101710002 | SPEC | 6 Dateien | 2 | Pressure Clamp | PCB | Ja | Horizontal | 26 to 14 (AWG) 0.129 to 2.08 (mm²) | 16 | 691001 | |
691101710003 | SPEC | 6 Dateien | 3 | Pressure Clamp | PCB | Ja | Horizontal | 26 to 14 (AWG) 0.129 to 2.08 (mm²) | 16 | – |
Muster |
---|
Artikel Nr. | Datenblatt | Downloads | Pins (mm) | Anwendung | PCB/Kabel/Panel | Modularity | Typ | Wire Section | IR UL (A) | Design Kit | Muster |
---|
