OverviewAll product unitsProduct unitElectromechanical ComponentsProduct groupConnectorsProduct familyTerminal BlocksProduct sub-familyWire Protector PitchPitch 5.00 mmProduct seriesWR-TBL Series 101 - 5.00 mm Horizontal Entry Modular

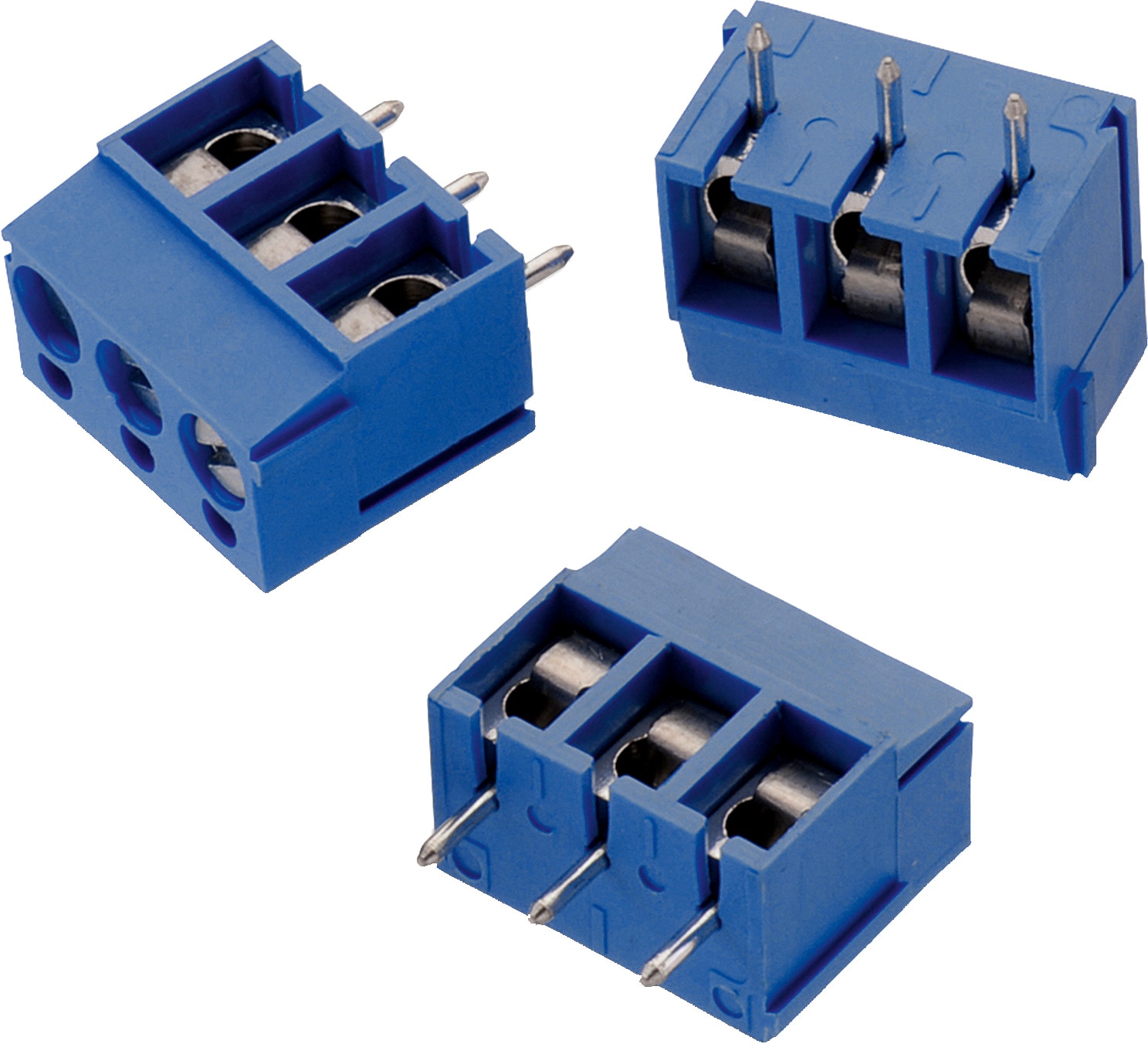

WR-TBL Series 101 - 5.00 mm Horizontal Entry Modular

WR-TBL Series 101 - 5.00 mm Horizontal Entry Modular
General Information
Operating Temperature-40 °C up to +105 °C
ComplianceRoHS
Pitch5 mm
Material Properties
Insulator MaterialPA66
Insulator Flammability RatingUL94 V-0
Insulator ColorBlue
Terminal Screw MaterialSteel
Terminal Screw PlatingZinc
Wire Guard MaterialStainless Steel
Electrical Properties
IR16 A
IR16 A
Working Voltage250 V (AC)
Working Voltage [UL]250 V (AC)
Working Voltage [VDE]250 V (AC)
Withstanding Voltage [UL]1500 V (AC)
Withstanding Voltage [VDE]2000 V (AC)
RC20 mΩ
RC20 mΩ
Mechanical Properties
Wire Strip Length6 up to 7 (mm)
ScrewM3
Certification
UL ApprovalE315414
VDE Approval40022614
Packaging Properties
PackagingBox

Products

Order Code Data­sheet DownloadsPins (Value)
(pcs)
ApplicationPCB/Cable/PanelModularityTypeWire SectionDesign Kit Samples
691101710002SPEC
6 files 2 Wire Protector PCB Yes Horizontal 26 to 14 (AWG) 0.5 to 2.5 (mm²)691001
691101710003SPEC
6 files 3 Wire Protector PCB Yes Horizontal 26 to 14 (AWG) 0.5 to 2.5 (mm²)612690
Order Code Data­sheet
691101710002SPEC
691101710003SPEC
Samples
Order Code Data­sheet DownloadsPins (Value)
(pcs)
ApplicationPCB/Cable/PanelModularityTypeWire SectionDesign Kit Samples
