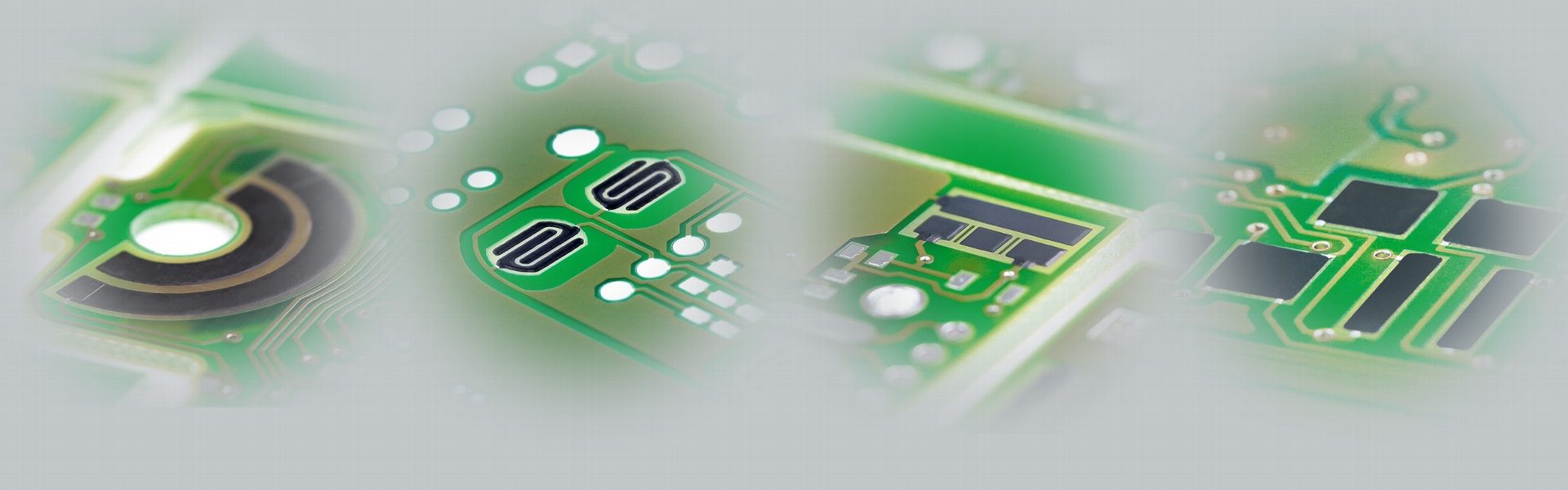

Collage Printed Polymer with Functionalities

Printed Polymer

Printed Electronics Using Polymer Pastes

An Alternative to Assembly

Reducing the overall height and size of an assembly requires increased integration of functionalities into the printed circuit board. Based on conductive polymers, flat components such as robust contact areas, intelligent connection systems or complex resistors can be realized on the inner and outer layers.

Printed polymer technology can be used to realize the following components and applications:

  • Keyboards
  • Switches
  • Resistors

The latter can be placed on the inner and outer layers. The possible applications range from pull-up/pull-down resistors to voltage dividers, potentiometers, pulse resistors and heaters.

This technology is used in the automotive, medical, building, household and security technology sectors as well as in commercial vehicles.

Our Know-how - Your Profit!

Advantages of Würth Elektronik Printed Polymer Technology

  • Possible savings due to elimination of assembly costs
  • Reduction in overall height due to flat components
  • Miniaturization through integration of components in the PCB
  • Fewer solder joints

Fields of Application

Increased Integration of Functionalities Into the PCB

Printed polymer technology can be used to realize the following components and applications: Keyboards, switches and resistors. The latter can be placed on the inner and outer layers. Possible applications range from pull-up/pull-down resistors to voltage dividers, potentiometers, pulse resistors and heaters.

This technology is used in

  • Automotive
  • Medical sector
  • Building sector
  • Household sector
  • Security technology sectors
  • Commercial vehicles
Picture shows beside the housing of a remote control the two installed printed circuit boards and the control panel

Printed Polymer PCBs Remote Control

Printed Polymer Design

Relevant Parameters for Production-ready PCB Design

Man sits at two screens and designs circuit boards

Modern printed circuit board solutions are more than just connecting elements. They are the key to progress in electronics. With this in mind, we actively support our customers in development and also offer our own system solutions with electronic

Design Guide

In our Printed Polymer Design Guide you will find an overview of all variants. In addition, our specialists have summarized valuable design tips for you here. This will help you bring your application to success reliably and safely.

Webinar

"Printed Polymer - an alternative to SMD assembly"

Take a look at the recording or the presentation of the webinar:

"Printed Polymer - an alternative to SMD assembly"





EN

Video Tutorial

Printed Resistors in a High Performance PCB System - Printed Polymer

Learn more about our technologies and services. This video tutorial shows how miniaturization in PCB design can be implemented using printed resistors (printed polymer). This results in highly reliable PCBs and assemblies in automotive electronics.

This video tutorial is an excerpt from our webinar "HDI Microvia - High Performance PCB System Moves the Masses".
