WEdesign

More Than Just PCB Design

So You Can Focus On What’s Important!

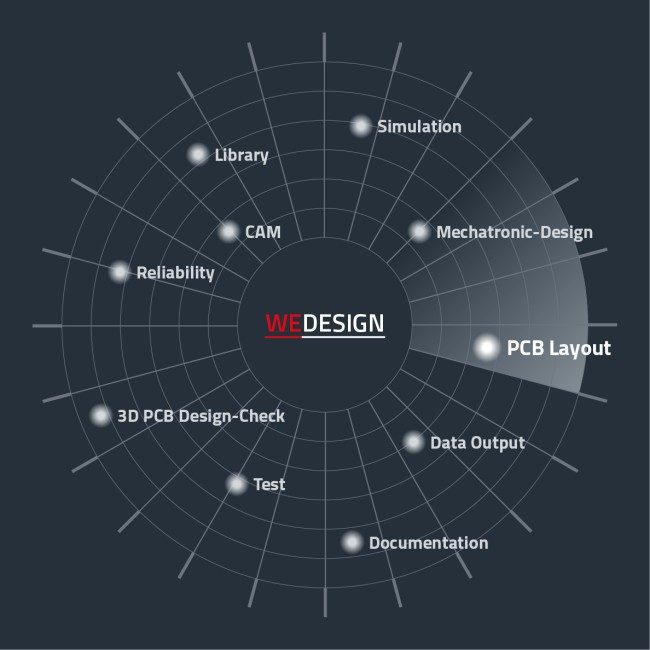

The picture shows the CBT WEdesign service portfolio on a radar screen

Our WEdesign Service Offer

Würth Elektronik has more than 50 years of experience in PCB production and is Europe's No. 1. So who should know the requirements for reliable and production-ready PCB design better than we do? We start with your circuit diagram and offer everything from a single source. To this end, we have extensive resources and up-to-date design, simulation and test tools and can support you quickly and efficiently, for example in bottleneck situations.

  • Take advantage of our layout services, focus on your core expertise
  • Avoid project delays, save valuable time by working in parallel
  • Don't put off smaller redesigns anymore, contact us!

Our Range of Services in Detail

Layout for all common technologies, such as. e.g.

  • Multilayer, RIGID.flex, Highspeed, Highpower, Shielding, ...
  • Stackups / X-Section
  • Area usage optimization = cost optimization
  • Design of test coupons
  • Delivery array design considering customer requirements

Signal integrity (SI)

  • Analysis of connector effects
  • Eye diagram analysis and optimization of transmission channels
  • SerDes channel simulation
  • Creation of S-parameters of multilayer PCBs and component packages

Power integrity (PI)

  • 3D representation of voltage and current distribution and power loss density
  • Graphical representation of distribution of temperatures on planes, at pins and vias
  • S-Parameter generation in power supply systems and 3D representations of current density

Thermic

  • Thermic management on system level for IPxy designs (International Protection Codes)
  • Heat sink and package optimization

  • Creation of footprints and 3D models for different EDA tools
  • According to IPC-7351 or to your specifications

  • Package design
  • Collision check


Additional services on request


Our Know-how - Your Profit!

Benefit From the Know-how of Our Printed Circuit Board Specialists

  • German contact persons
  • We always have the latest software versions
  • After consultation we also use older versions for your project, so that we are compatible
  • Direct coordination and clarification between development and PCB production, avoidance of correction loops with costs and time expenditure
  • Improvement of reliability
  • Design-to-Cost: Cost-optimized PCB design with good production and manufacturing data
  • If required, we also start with your bill of material and netlist

Our Design Tools

  • EDA
    • Allegro / OrCAD
    • Altium Designer
    • Xpedition, PADS Standard Plus & Professional
  • Mechanical construction
    • Solidworks
  • Analyses / Simulations
    • HyperLynx SI / PI / Thermal 2.5
    • Ansys Icepak
    • Speedstack, Speedflex, SI9000 Field Solver
Developer holds green circuit board in hand and makes phone call

DO YOU NEED ASSISTANCE WITH A DESIGN PROJECT?

DO YOU NEED ASSISTANCE WITH A DESIGN PROJECT?

We Are Looking Forward to Your Request!
