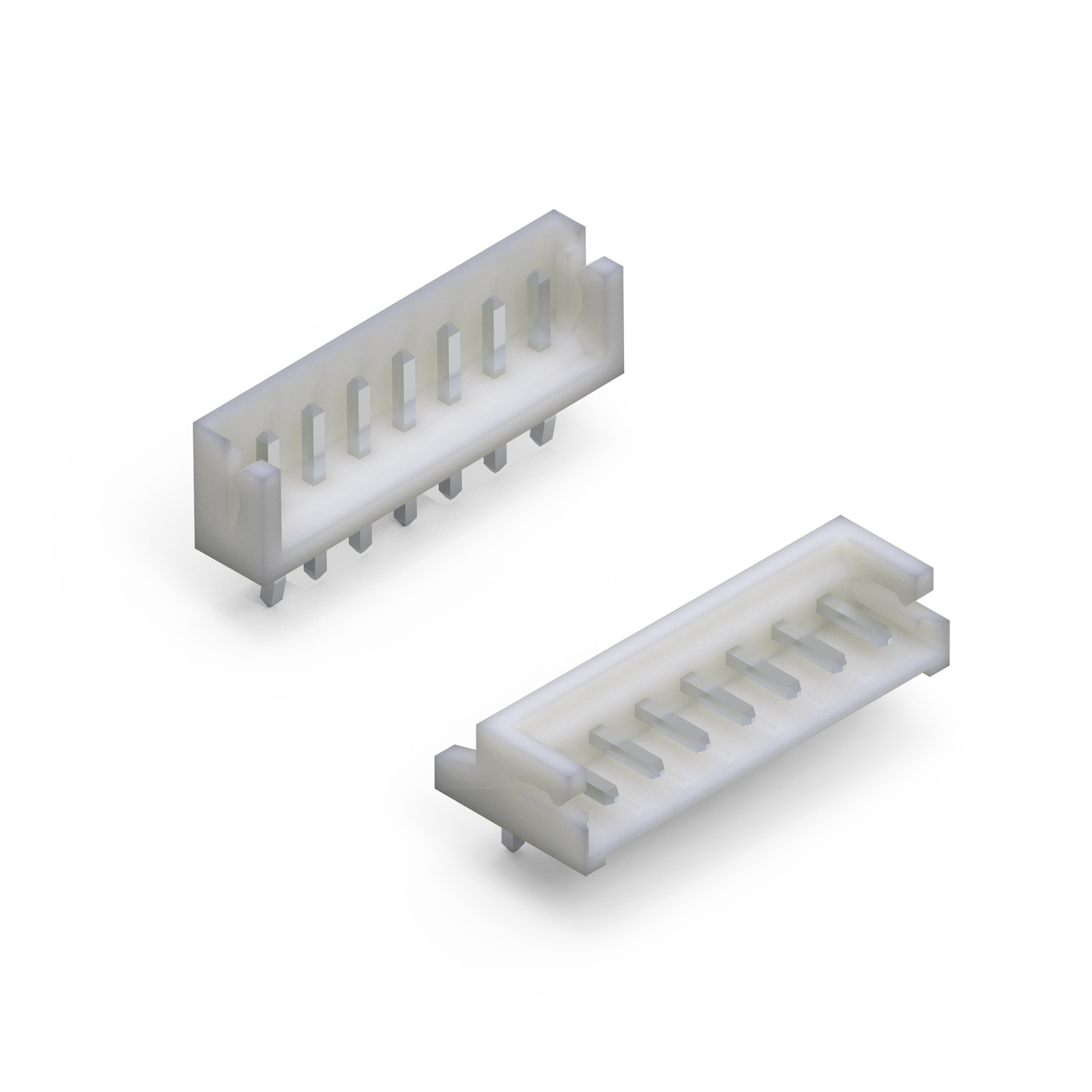

WR-WTB 2.50 mm "J" Type Male Header

Size	Dimensions	Mount
Horizontal		THT
Vertical		THT

Characteristics

Properties:

Rated Current: 3 A
Working Voltage: 250 V
UL 94-V0
Pitch: 2.50 mm

Features:

Fine pitch
THT soldering
Operating temperature:-25 °C up to +85 °C

Applications

Microelectronic
Portable devices
Industry 4.0

Products

All

Horizontal

Vertical

Order Code	Datasheet	Downloads	Status	Pins	Type	Mount	I_R (A)	PCB/Cable/Panel	L (mm)	Packaging	Mates with	Design Kit	Samples
68800211622	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-WTB (rev25b).IntLib \| 12.4 MB CDS Cadence_WR-WTB (rev25b).zip \| 56.4 MB EAG Eagle_WR-WTB (rev25b).lbr \| 2.4 MB KIC KiCad_WR-WTB (rev25b).zip \| 219.1 MB CAD files ZIP 3D 68800211622_1 (rev1).pdf \| 34 KB IGS Download_IGES_68800211622 (rev1).iges \| 538.8 KB STP 68800211622 (rev1).stp \| 219.5 KB	Active i\| Production is active. Expected lifetime: >10 years.	2	Vertical	THT	3	PCB	7.5	Bag	688002113322	645001
68800211722	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-WTB (rev25b).IntLib \| 12.4 MB CDS Cadence_WR-WTB (rev25b).zip \| 56.4 MB EAG Eagle_WR-WTB (rev25b).lbr \| 2.4 MB KIC KiCad_WR-WTB (rev25b).zip \| 219.1 MB CAD files ZIP 3D 68800211722_1 (rev1).pdf \| 39.4 KB IGS Download_IGES_68800211722 (rev1).iges \| 637.1 KB STP 68800211722 (rev1).stp \| 256.3 KB	Active i\| Production is active. Expected lifetime: >10 years.	2	Horizontal	THT	3	PCB	7.5	Bag	688002113322	645001
68800311622	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-WTB (rev25b).IntLib \| 12.4 MB CDS Cadence_WR-WTB (rev25b).zip \| 56.4 MB EAG Eagle_WR-WTB (rev25b).lbr \| 2.4 MB KIC KiCad_WR-WTB (rev25b).zip \| 219.1 MB CAD files ZIP 3D 68800311622_1 (rev1).pdf \| 42.1 KB IGS Download_IGES_68800311622 (rev1).iges \| 714.7 KB STP 68800311622 (rev1).stp \| 294.6 KB	Active i\| Production is active. Expected lifetime: >10 years.	3	Vertical	THT	3	PCB	10	Bag	688003113322	645001
68800311722	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-WTB (rev25b).IntLib \| 12.4 MB CDS Cadence_WR-WTB (rev25b).zip \| 56.4 MB EAG Eagle_WR-WTB (rev25b).lbr \| 2.4 MB KIC KiCad_WR-WTB (rev25b).zip \| 219.1 MB CAD files ZIP 3D 3D_68800311722 (rev1).pdf \| 49.8 KB IGS Download_IGES_68800311722 (rev1).iges \| 840.6 KB STP 68800311722 (rev1).stp \| 340.6 KB	Active i\| Production is active. Expected lifetime: >10 years.	3	Horizontal	THT	3	PCB	10	Bag	688003113322	645001
68800411622	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-WTB (rev25b).IntLib \| 12.4 MB CDS Cadence_WR-WTB (rev25b).zip \| 56.4 MB EAG Eagle_WR-WTB (rev25b).lbr \| 2.4 MB KIC KiCad_WR-WTB (rev25b).zip \| 219.1 MB CAD files ZIP 3D 68800411622_1 (rev1).pdf \| 46.6 KB IGS Download_IGES_68800411622 (rev1).iges \| 805.1 KB STP 68800411622 (rev1).stp \| 332.2 KB	Active i\| Production is active. Expected lifetime: >10 years.	4	Vertical	THT	3	PCB	12.5	Bag	688004113322	645001
68800411722	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-WTB (rev25b).IntLib \| 12.4 MB CDS Cadence_WR-WTB (rev25b).zip \| 56.4 MB EAG Eagle_WR-WTB (rev25b).lbr \| 2.4 MB KIC KiCad_WR-WTB (rev25b).zip \| 219.1 MB CAD files ZIP 3D 3D_68800411722 (rev1).pdf \| 54.2 KB IGS Download_IGES_68800411722 (rev1).iges \| 930.2 KB STP 68800411722 (rev1).stp \| 378.2 KB	Active i\| Production is active. Expected lifetime: >10 years.	4	Horizontal	THT	3	PCB	12.5	Bag	688004113322	645001
68800511622	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-WTB (rev25b).IntLib \| 12.4 MB CDS Cadence_WR-WTB (rev25b).zip \| 56.4 MB EAG Eagle_WR-WTB (rev25b).lbr \| 2.4 MB KIC KiCad_WR-WTB (rev25b).zip \| 219.1 MB CAD files ZIP 3D 68800511622_1 (rev1).pdf \| 51.4 KB IGS Download_IGES_68800511622 (rev1).iges \| 896.5 KB STP 68800511622 (rev1).stp \| 370.2 KB	Active i\| Production is active. Expected lifetime: >10 years.	5	Vertical	THT	3	PCB	15	Bag	688005113322	645001
68800511722	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-WTB (rev25b).IntLib \| 12.4 MB CDS Cadence_WR-WTB (rev25b).zip \| 56.4 MB EAG Eagle_WR-WTB (rev25b).lbr \| 2.4 MB KIC KiCad_WR-WTB (rev25b).zip \| 219.1 MB CAD files ZIP 3D 3D_68800511722 (rev1).pdf \| 59 KB IGS Download_IGES_68800511722 (rev1).iges \| 1020.1 KB STP 68800511722 (rev1).stp \| 415.9 KB	Active i\| Production is active. Expected lifetime: >10 years.	5	Horizontal	THT	3	PCB	15	Bag	688005113322	645001
68800611622	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-WTB (rev25b).IntLib \| 12.4 MB CDS Cadence_WR-WTB (rev25b).zip \| 56.4 MB EAG Eagle_WR-WTB (rev25b).lbr \| 2.4 MB KIC KiCad_WR-WTB (rev25b).zip \| 219.1 MB CAD files ZIP 3D 68800611622_1 (rev1).pdf \| 56.7 KB IGS Download_IGES_68800611622 (rev1).iges \| 985.3 KB STP 68800611622 (rev1).stp \| 407.5 KB	Active i\| Production is active. Expected lifetime: >10 years.	6	Vertical	THT	3	PCB	17.5	Bag	688006113322	645001
68800611722	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-WTB (rev25b).IntLib \| 12.4 MB CDS Cadence_WR-WTB (rev25b).zip \| 56.4 MB EAG Eagle_WR-WTB (rev25b).lbr \| 2.4 MB KIC KiCad_WR-WTB (rev25b).zip \| 219.1 MB CAD files ZIP 3D 3D_68800611722 (rev1).pdf \| 64.3 KB IGS Download_IGES_68800611722 (rev1).iges \| 1.1 MB STP 68800611722 (rev1).stp \| 453.3 KB	Active i\| Production is active. Expected lifetime: >10 years.	6	Horizontal	THT	3	PCB	17.5	Bag	688006113322	645001
68800711622	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-WTB (rev25b).IntLib \| 12.4 MB CDS Cadence_WR-WTB (rev25b).zip \| 56.4 MB EAG Eagle_WR-WTB (rev25b).lbr \| 2.4 MB KIC KiCad_WR-WTB (rev25b).zip \| 219.1 MB CAD files ZIP 3D 68800711622_1 (rev1).pdf \| 61.4 KB IGS Download_IGES_68800711622 (rev1).iges \| 1 MB STP 68800711622 (rev1).stp \| 445.3 KB	Active i\| Production is active. Expected lifetime: >10 years.	7	Vertical	THT	3	PCB	20	Bag	688007113322	645001
68800711722	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-WTB (rev25b).IntLib \| 12.4 MB CDS Cadence_WR-WTB (rev25b).zip \| 56.4 MB EAG Eagle_WR-WTB (rev25b).lbr \| 2.4 MB KIC KiCad_WR-WTB (rev25b).zip \| 219.1 MB CAD files ZIP 3D 3D_68800711722 (rev1).pdf \| 69 KB IGS Download_IGES_68800711722 (rev1).iges \| 1.2 MB STP 68800711722 (rev1).stp \| 491 KB	Active i\| Production is active. Expected lifetime: >10 years.	7	Horizontal	THT	3	PCB	20	Bag	688007113322	645001
68800811622	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-WTB (rev25b).IntLib \| 12.4 MB CDS Cadence_WR-WTB (rev25b).zip \| 56.4 MB EAG Eagle_WR-WTB (rev25b).lbr \| 2.4 MB KIC KiCad_WR-WTB (rev25b).zip \| 219.1 MB CAD files ZIP 3D 68800811622_1 (rev1).pdf \| 66 KB IGS Download_IGES_68800811622 (rev1).iges \| 1.1 MB STP 68800811622 (rev1).stp \| 483 KB	Active i\| Production is active. Expected lifetime: >10 years.	8	Vertical	THT	3	PCB	22.5	Bag	688008113322	612690 645001
68800811722	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-WTB (rev25b).IntLib \| 12.4 MB CDS Cadence_WR-WTB (rev25b).zip \| 56.4 MB EAG Eagle_WR-WTB (rev25b).lbr \| 2.4 MB KIC KiCad_WR-WTB (rev25b).zip \| 219.1 MB CAD files ZIP 3D 3D_68800811722 (rev1).pdf \| 73.6 KB IGS Download_IGES_68800811722 (rev1).iges \| 1.3 MB STP 68800811722 (rev1).stp \| 529.1 KB	Active i\| Production is active. Expected lifetime: >10 years.	8	Horizontal	THT	3	PCB	22.5	Bag	688008113322	612690 645001
68800911622	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-WTB (rev25b).IntLib \| 12.4 MB CDS Cadence_WR-WTB (rev25b).zip \| 56.4 MB EAG Eagle_WR-WTB (rev25b).lbr \| 2.4 MB KIC KiCad_WR-WTB (rev25b).zip \| 219.1 MB CAD files ZIP 3D 68800911622_1 (rev1).pdf \| 70.6 KB IGS Download_IGES_68800911622 (rev1).iges \| 1.2 MB STP 68800911622 (rev1).stp \| 520.7 KB	Active i\| Production is active. Expected lifetime: >10 years.	9	Vertical	THT	3	PCB	25	Bag	688009113322	645001
68800911722	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-WTB (rev25b).IntLib \| 12.4 MB CDS Cadence_WR-WTB (rev25b).zip \| 56.4 MB EAG Eagle_WR-WTB (rev25b).lbr \| 2.4 MB KIC KiCad_WR-WTB (rev25b).zip \| 219.1 MB CAD files ZIP 3D 3D_68800911722 (rev1).pdf \| 78.3 KB IGS Download_IGES_68800911722 (rev1).iges \| 1.3 MB STP 68800911722 (rev1).stp \| 566.9 KB	Active i\| Production is active. Expected lifetime: >10 years.	9	Horizontal	THT	3	PCB	25	Bag	688009113322	645001
68801011622	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-WTB (rev25b).IntLib \| 12.4 MB CDS Cadence_WR-WTB (rev25b).zip \| 56.4 MB EAG Eagle_WR-WTB (rev25b).lbr \| 2.4 MB KIC KiCad_WR-WTB (rev25b).zip \| 219.1 MB CAD files ZIP 3D 68801011622_1 (rev1).pdf \| 75.1 KB IGS Download_IGES_68801011622 (rev1).iges \| 1.3 MB STP 68801011622 (rev1).stp \| 558.5 KB	Active i\| Production is active. Expected lifetime: >10 years.	10	Vertical	THT	3	PCB	27.5	Bag	688010113322	645001
68801011722	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-WTB (rev25b).IntLib \| 12.4 MB CDS Cadence_WR-WTB (rev25b).zip \| 56.4 MB EAG Eagle_WR-WTB (rev25b).lbr \| 2.4 MB KIC KiCad_WR-WTB (rev25b).zip \| 219.1 MB CAD files ZIP 3D 68801011722_1 (rev1).pdf \| 82.8 KB IGS Download_IGES_68801011722 (rev1).iges \| 1.4 MB STP 68801011722 (rev1).stp \| 605 KB	Active i\| Production is active. Expected lifetime: >10 years.	10	Horizontal	THT	3	PCB	27.5	Bag	688010113322	645001
