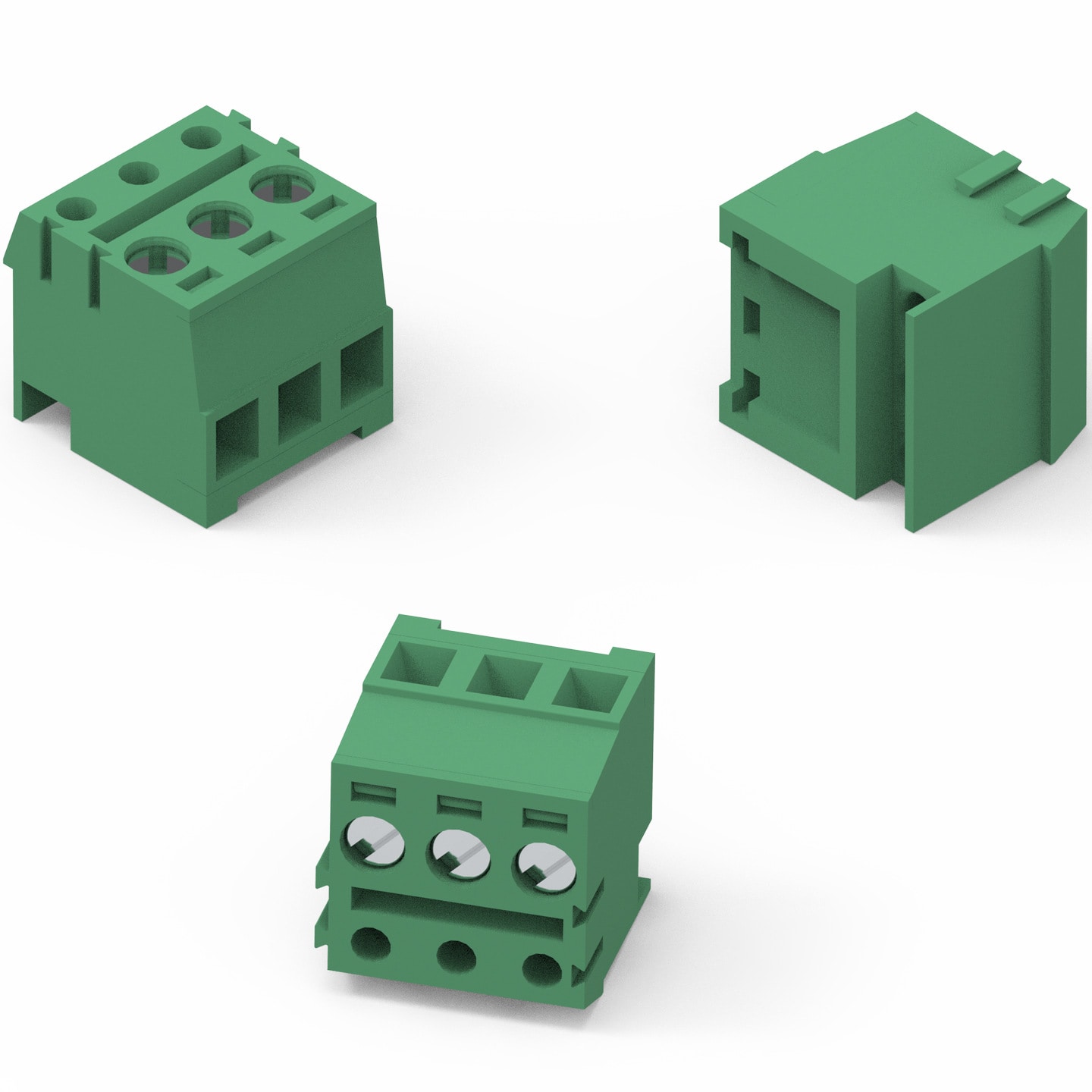

WR-TBL Series 3163 - Plug with Rising Cage Clamp 3.81mm pitch - Modular Horizontal cable entry - Cable
| General Information | |
|---|---|
| Operating Temperature | -40 °C up to +115 °C |
| Pitch | 3.81 mm |
| Material Properties | |
|---|---|
| Insulator Material | PA66 |
| Insulator Flammability Rating | UL94 V-0 |
| Insulator Color | Green |
| Contact Material | Phosphor Bronze |
| Contact Plating | Tin over Nickel |
| Cage Material | Brass |
| Cage Plating | nickel |
| Terminal Screw Material | Steel |
| Terminal Screw Plating | Zinc |
| Electrical Properties | |
|---|---|
| IR | 10 A |
| Working Voltage | 300 V (AC) |
| Withstanding Voltage | 1600 V (AC) |
| Contact Resistance | 20 mΩ |
| Mechanical Properties | |
|---|---|
| Screw | M2 |
| Wire Properties | |
|---|---|
| Solid Wire Section (AWG) | 28 to 16 (AWG) |
| Solid Wire Section (Metric) | 0.2 to 1 (mm²) |
| Stranded Wire Section (AWG) | 28 to 16 (AWG) |
| Stranded Wire Section (Metric) | 0.2 to 1 (mm²) |
| Certification | |
|---|---|
| cULus Approval | E315414 |
Application Notes
Products
| Order Code | Datasheet | Downloads | Status | Pins (pcs) | Application | PCB/Cable/Panel | Modularity | Type | Wire Section | Samples |
|---|---|---|---|---|---|---|---|---|---|---|
| 691316310002 | SPEC | – | Active i| Production is active. Expected lifetime: >10 years. | 2 | Plug with Rising Cage Clamp | Cable | Yes | Horizontal Cable Entry | 28 to 16 (AWG) 0.2 to 1 (mm²) | |
| 691316310003 | SPEC | – | Active i| Production is active. Expected lifetime: >10 years. | 3 | Plug with Rising Cage Clamp | Cable | Yes | Horizontal Cable Entry | 28 to 16 (AWG) 0.2 to 1 (mm²) |
