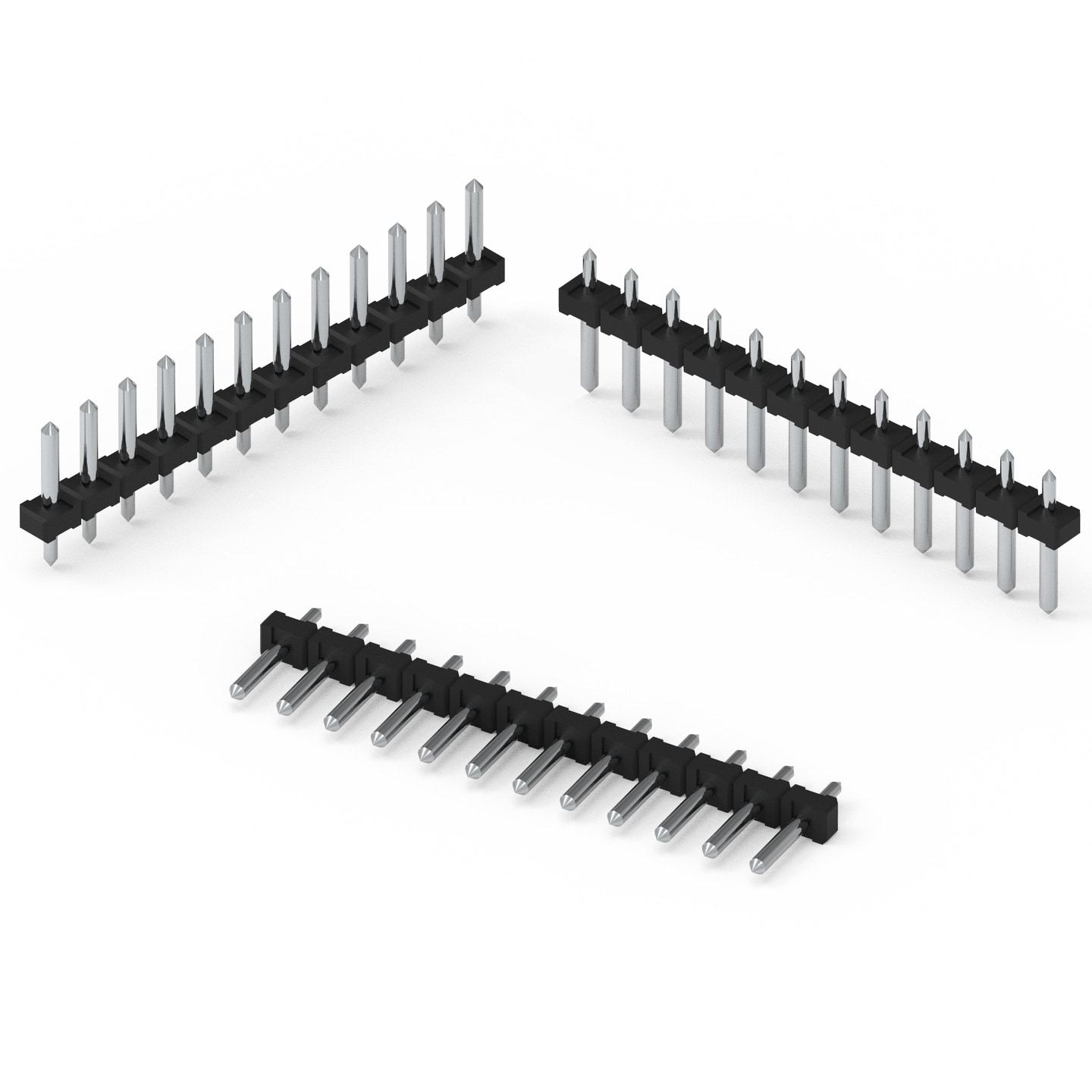

WR-TBL Series 3003 - Pin Header 3.81mm pitch - Vertical cable entry - THT

General Information
Operating Temperature	-40 °C up to +115 °C
Pitch	3.81 mm

Material Properties
Insulator Material	PA46
Insulator Flammability Rating	UL94 V-0
Insulator Color	Black
Pin Material	Brass
Pin Plating	Tin over Nickel

Electrical Properties
I_R	10 A
Working Voltage	300 V (AC)
Withstanding Voltage	1600 V (AC)
Contact Resistance	20 mΩ

Certification
cULus Approval	E315414

Application Notes

Products

Order Code	Datasheet	Downloads	Status	Application	PCB/Cable/Panel	Modularity	Type	Samples
691300300002	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Pluggable Connector (rev25b).IntLib \| 108.3 MB CDS Cadence_WR-TBL (rev25a).zip \| 360.6 MB EAG Eagle_WR-TBL Pluggable Connector (rev25a).lbr \| 4.2 MB CAD files ZIP 3D 3D_ConTBL3_691300300002 (rev1).pdf \| 45.3 KB IGS IGS_WR-TBL_691300300002 (rev1).igs \| 314.1 KB STP STP_WR-TBL_691300300002 (rev1).stp \| 61.1 KB	Active i\| Production is active. Expected lifetime: >10 years.	PCB Header	PCB	No	Vertical PCB Header
691300300003	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Pluggable Connector (rev25b).IntLib \| 108.3 MB CDS Cadence_WR-TBL (rev25a).zip \| 360.6 MB EAG Eagle_WR-TBL Pluggable Connector (rev25a).lbr \| 4.2 MB CAD files ZIP 3D 3D_ConTBL3_691300300003 (rev1).pdf \| 54.7 KB IGS IGS_WR-TBL_691300300003 (rev1).igs \| 448 KB STP STP_WR-TBL_691300300003 (rev1).stp \| 86.9 KB	Active i\| Production is active. Expected lifetime: >10 years.	PCB Header	PCB	No	Vertical PCB Header
691300300024	SPEC	3 files EDA models: Components ZIP CDS Cadence_WR-TBL (rev25a).zip \| 360.6 MB EAG Eagle_WR-TBL Pluggable Connector (rev25a).lbr \| 4.2 MB CAD files ZIP 3D 3D_ConTBL3_691300300024 (rev1).pdf \| 259.6 KB	New i\| Product is new in our portfolio and production is active. Expected lifetime: >10 years.	PCB Header	PCB	No	Vertical PCB Header

Order Code	Datasheet
691300300002	SPEC
691300300003	SPEC
691300300024	SPEC

Samples

Order Code	Datasheet	Downloads	Status	Application	PCB/Cable/Panel	Modularity	Type	Samples

Mates with

WR-TBL Series 3163 - Plug with Rising Cage Clamp 3.81mm pitch - Modular Horizontal cable entry - Cable
