WR-CIRCM12 Screw Mating Female Straight Metal Coupling Nut Shielded

WR-CIRCM12 Screw Mating Female Straight Metal Coupling Nut Shielded
General Information
Operating Temperature-20 °C up to +80 °C
GenderFemale
Durability100 Mating cycles
Packaging Properties
PackagingBag
Material Properties
Insulator MaterialPA66
Insulator Flammability RatingUL94 HB
Insulator ColorBlack
Contact MaterialCopper Alloy
Contact PlatingGold
Coupling Nut MaterialBrass
Electrical Properties
IR5 A
Working Voltage250 V
Withstanding Voltage1400 V (AC)
Contact Resistance Initial10 mΩ
RISO100 MΩ

Products

Order Code Data­sheet Man­ual DownloadsPolarityGenderIR
(A)		Working Voltage
(V)		Withstanding Voltage
(V (AC))		Packaging Samples
643662120304SPEC
PDF3 files

CAD files
ZIP

Download all 3 files as zip archive
ZIP

 4 Female 5 250 1400 Bag
Order Code Data­sheet
643662120304SPEC
Samples
Order Code Data­sheet Man­ual DownloadsPolarityGenderIR
(A)		Working Voltage
(V)		Withstanding Voltage
(V (AC))		Packaging Samples

Mates with

WR-CIRCM12 Screw Mating Panel Connector Solder Bucket Male Metal Rear Nut PG9
WR-CIRCM12 Screw Mating Panel Connector Solder Bucket Male Metal Front Nut M12
WR-CIRCM12 Screw Mating Panel Connector Solder Bucket Male Metal Front Nut PG9
WR-CIRCM12 Panel Connector PCB Metal M12
WR-CIRCM12 Screw Mating Panel Connector PCB Metal PG9
WR-CIRCM12 Screw Mating Panel Connector PCB Angled 90° Metal M12

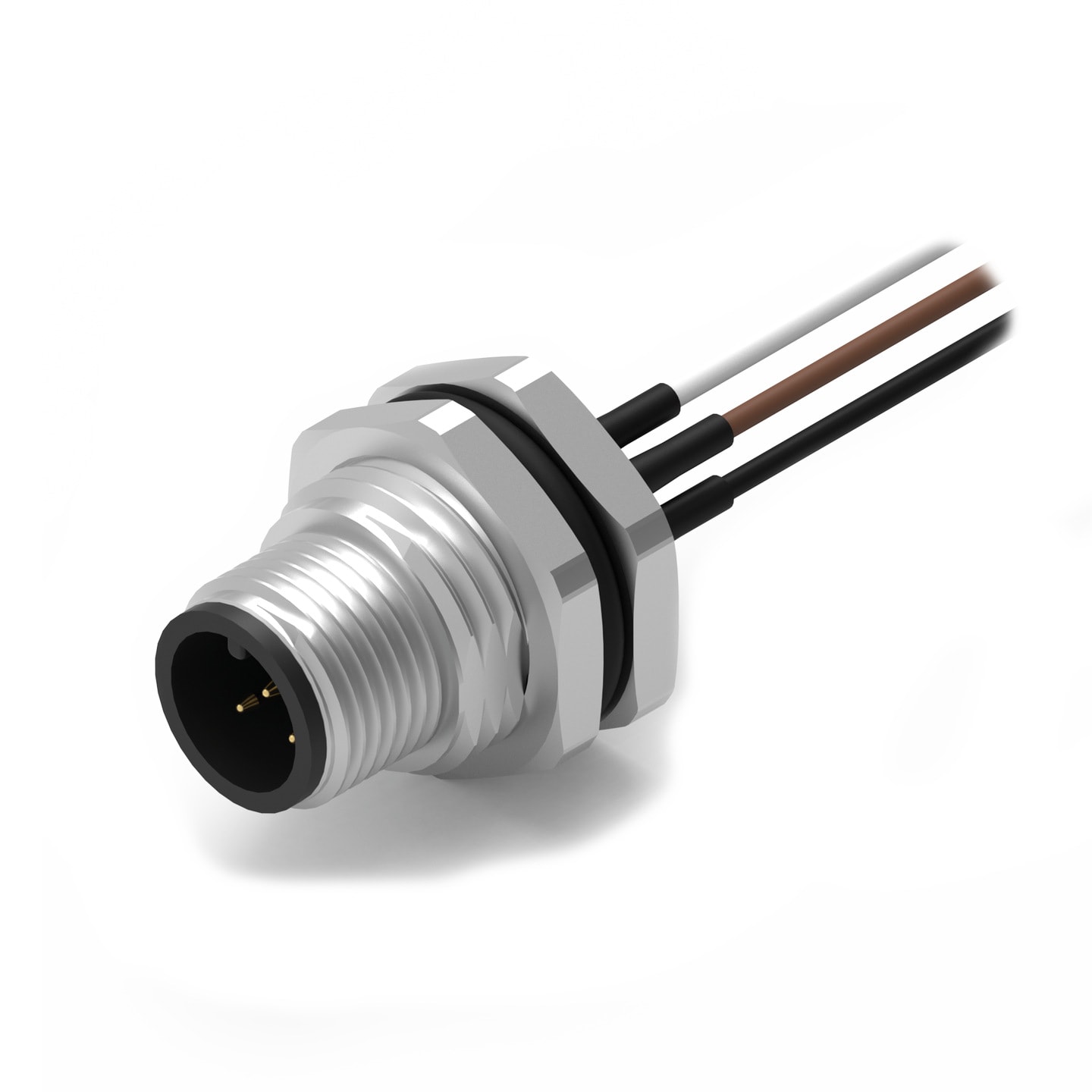

WR-CIRCM12 Screw Mating Panel & Wires Connector Male Metal Rear Nut PG9
WR-CIRCM12 Screw Mating Panel & Wires Connector Male Metal Front Nut M12
WR-CIRCM12 Screw Mating Panel & Wires Connector Male Metal Front Nut PG9
