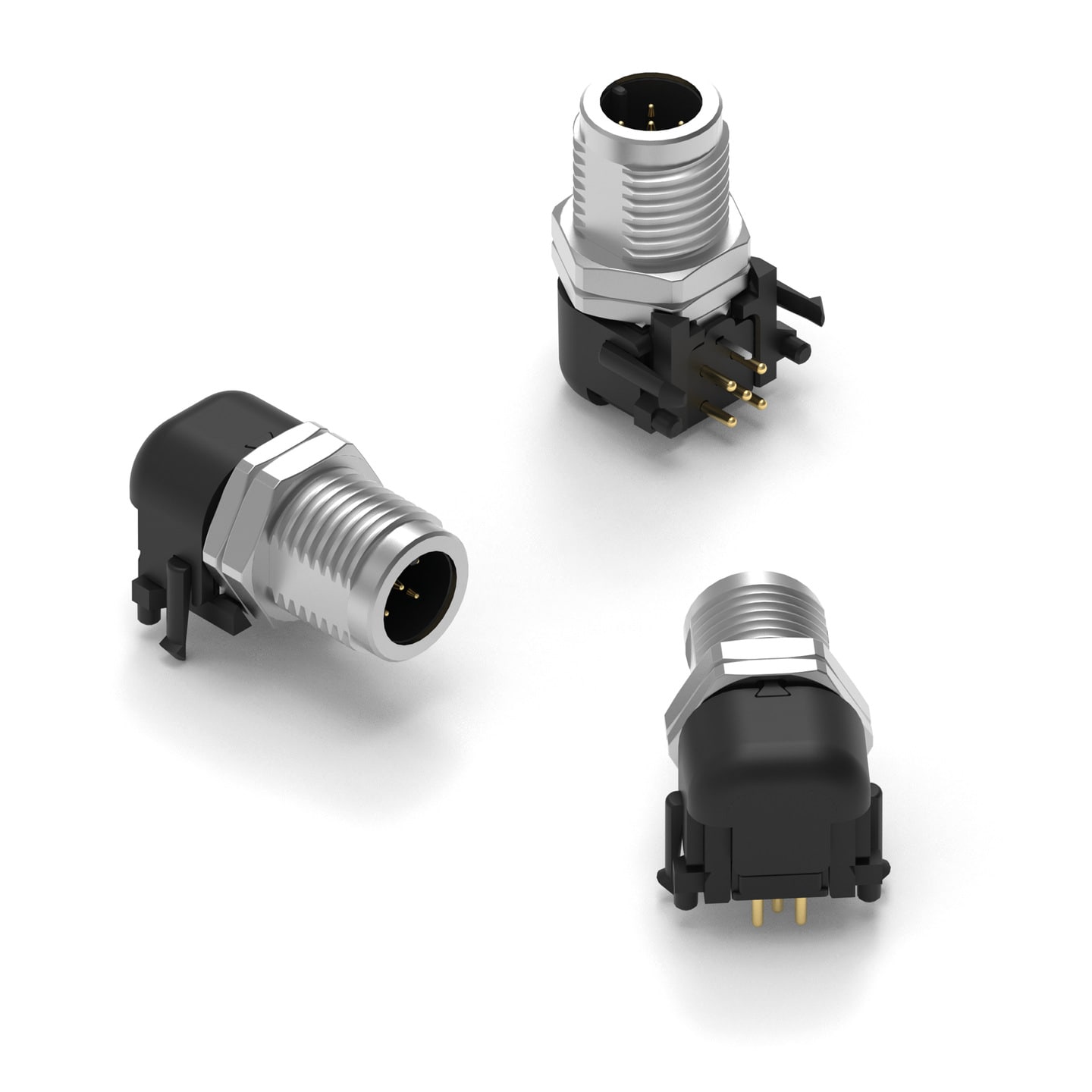

WR-CIRCM12 Screw Mating Panel Connector PCB Angled 90° Metal M12

General Information
Durability	100 Mating cycles
Ingress Protection Code	IP68
Operating Temperature	-40 °C up to +90 °C
Gender	Male

Packaging Properties
Packaging	Tray

Material Properties
Insulator Material	PBT
Insulator Flammability Rating	UL94 V-0
Insulator Color	Black
Contact Material	Copper Alloy
Contact Plating	Gold

Electrical Properties
I_R	2 A; 5 A
Working Voltage	30 V; 60 V; 250 V
Withstanding Voltage	650 V (AC); 1000 V (AC); 1400 V (AC)
Contact Resistance Initial	10 mΩ
R_ISO	100 MΩ

Application Notes

ANE019 M12 A-Coded Circular Connectors – Use Cases
PDF

Wave Soldering is the process of soldering through hole components onto a PCB by passing the exposed contacts of the components placed on a board over a wave of tin molten solder. The solder wave flows under the PCB board and applies by capillarity solder to the contacts of components placed on the PCB board. It is primarily used to solder through hole connectors on printed circuit boards.

These two recommended wave soldering profiles are available for information purposes only. Please consider plastic material, circuit board features, connectors ranges and other technical properties when choosing your soldering parameters / a suitable soldering profile.

Learn more now

Products

Order Code	Datasheet	Manual	Downloads	Status	Polarity	Gender	I_R (A)	Working Voltage (V)	Withstanding Voltage (V (AC))	Packaging	Design Kit
643270100304	SPEC	PDF	6 files EDA models: Components ZIP ALT Altium_WR-CIRC (rev23b).IntLib \| 11 MB CDS Cadence_WR-CIRCM12 (rev25a).zip \| 72.8 MB EAG Eagle_WR-CIRC (rev23a).lbr \| 266.2 KB CAD files ZIP 3D 3D_643270100304 (rev1).pdf \| 1.8 MB IGS IGS_643270100304 (rev1).igs \| 9.9 MB STP STP_643270100304 (rev1).stp \| 3.4 MB	Active i\| Production is active. Expected lifetime: >10 years.	4	Male	5	250	1400	Tray	612690
643270100305	SPEC	PDF	6 files EDA models: Components ZIP ALT Altium_WR-CIRC (rev23b).IntLib \| 11 MB CDS Cadence_WR-CIRCM12 (rev25a).zip \| 72.8 MB EAG Eagle_WR-CIRC (rev23a).lbr \| 266.2 KB CAD files ZIP 3D 3D_643270100305 (rev1).pdf \| 1.9 MB IGS IGS_643270100305 (rev1).igs \| 10.3 MB STP STP_643270100305 (rev1).stp \| 3.5 MB	Active i\| Production is active. Expected lifetime: >10 years.	5	Male	5	60	1000	Tray	–
643270100308	SPEC	PDF	6 files EDA models: Components ZIP ALT Altium_WR-CIRC (rev23b).IntLib \| 11 MB CDS Cadence_WR-CIRCM12 (rev25a).zip \| 72.8 MB EAG Eagle_WR-CIRC (rev23a).lbr \| 266.2 KB CAD files ZIP 3D 3D_643270100308 (rev1).pdf \| 2 MB IGS IGS_643270100308 (rev1).igs \| 10.6 MB STP STP_643270100308 (rev1).stp \| 3.4 MB	Active i\| Production is active. Expected lifetime: >10 years.	8	Male	2	30	650	Tray	–
