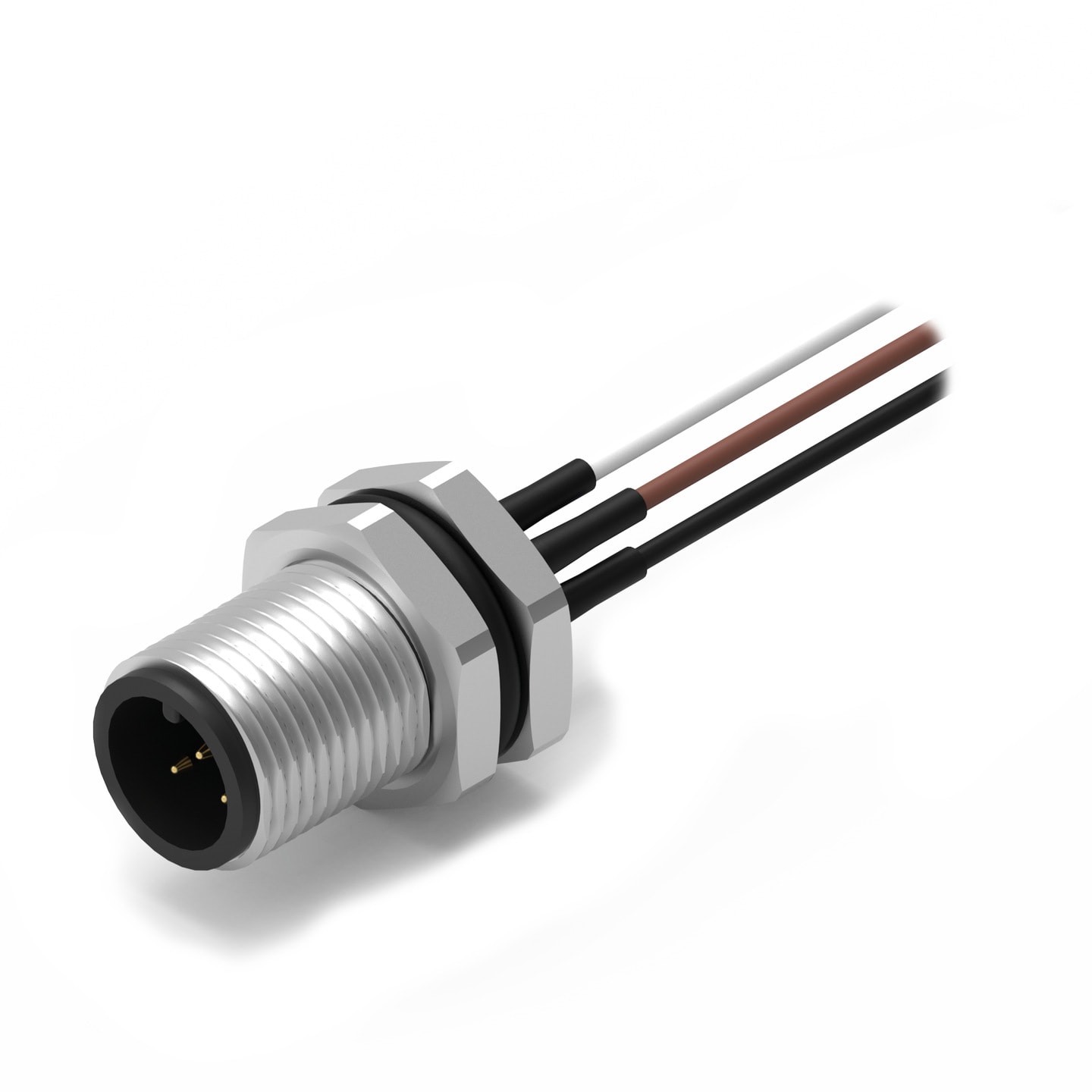

WR-CIRCM12 Screw Mating Panel & Wires Connector Male Metal Front Nut M12

Packaging Properties
Packaging	Tray

Material Properties
Insulator Material	PA66
Insulator Flammability Rating	UL94 V-0
Insulator Color	Black
Contact Material	Copper Alloy
Contact Plating	Gold

Order Code	Datasheet	Downloads	Polarity	Gender	I_R (A)	Working Voltage (V)	Withstanding Voltage (V (AC))	Packaging
643452100304	SPEC	3 files CAD files ZIP 3D 3D_643452100304 (rev1).pdf \| 1.2 MB IGS IGS_643452100304 (rev1).igs \| 3.6 MB STP STP_643452100304 (rev1).stp \| 4 MB Download all 3 files as zip archive ZIP	4	Male	2	250	1000	Tray
643452100305	SPEC	3 files CAD files ZIP 3D 3D_643452100305 (rev1).pdf \| 1.3 MB IGS IGS_643452100305 (rev1).igs \| 3.6 MB STP STP_643452100305 (rev1).stp \| 4 MB Download all 3 files as zip archive ZIP	5	Male	5	60	1000	Tray
643452100308	SPEC	3 files CAD files ZIP 3D 3D_643452100308 (rev1).pdf \| 1.3 MB IGS IGS_643452100308 (rev1).igs \| 4 MB STP STP_643452100308 (rev1).stp \| 4.1 MB Download all 3 files as zip archive ZIP	8	Male	2	30	650	Tray
