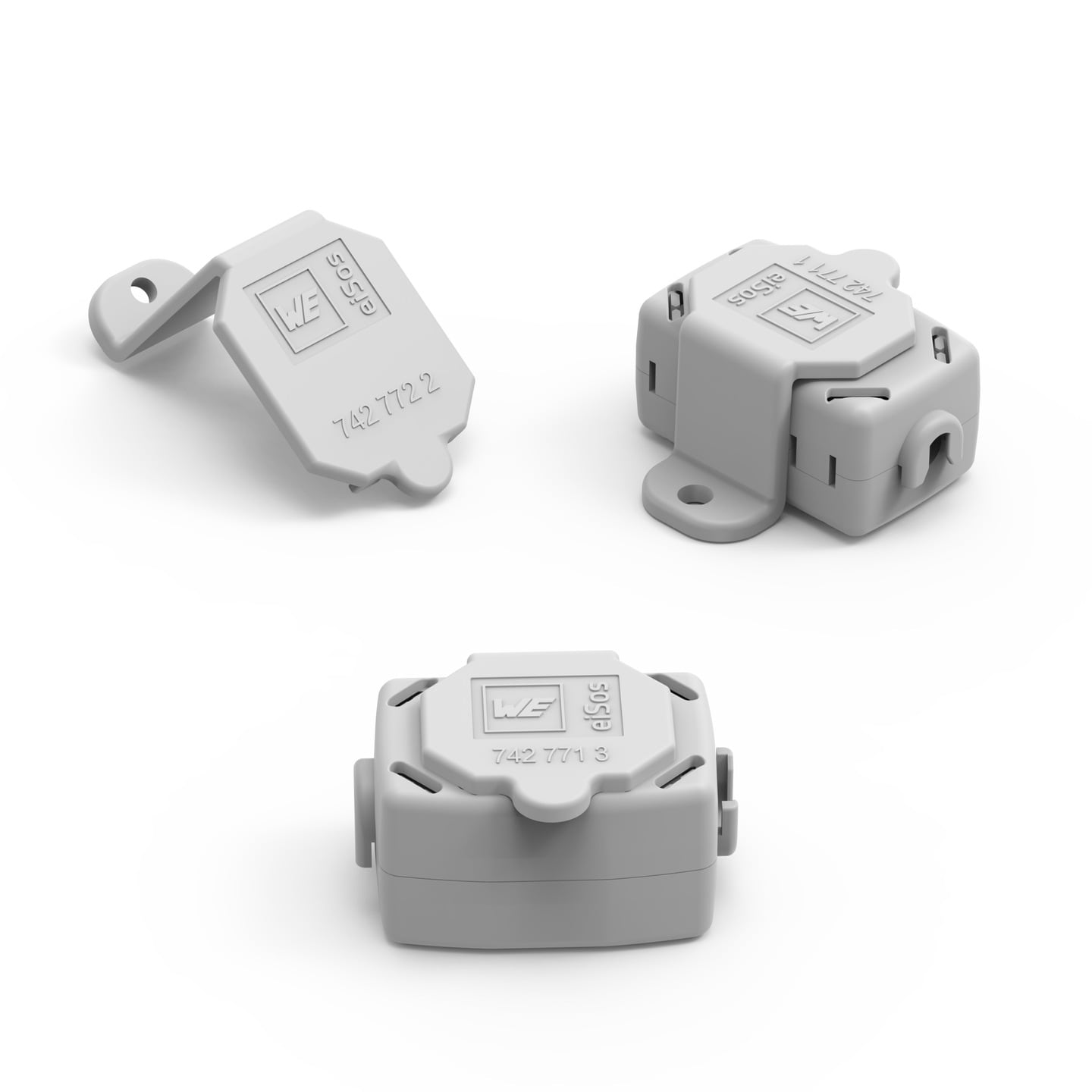

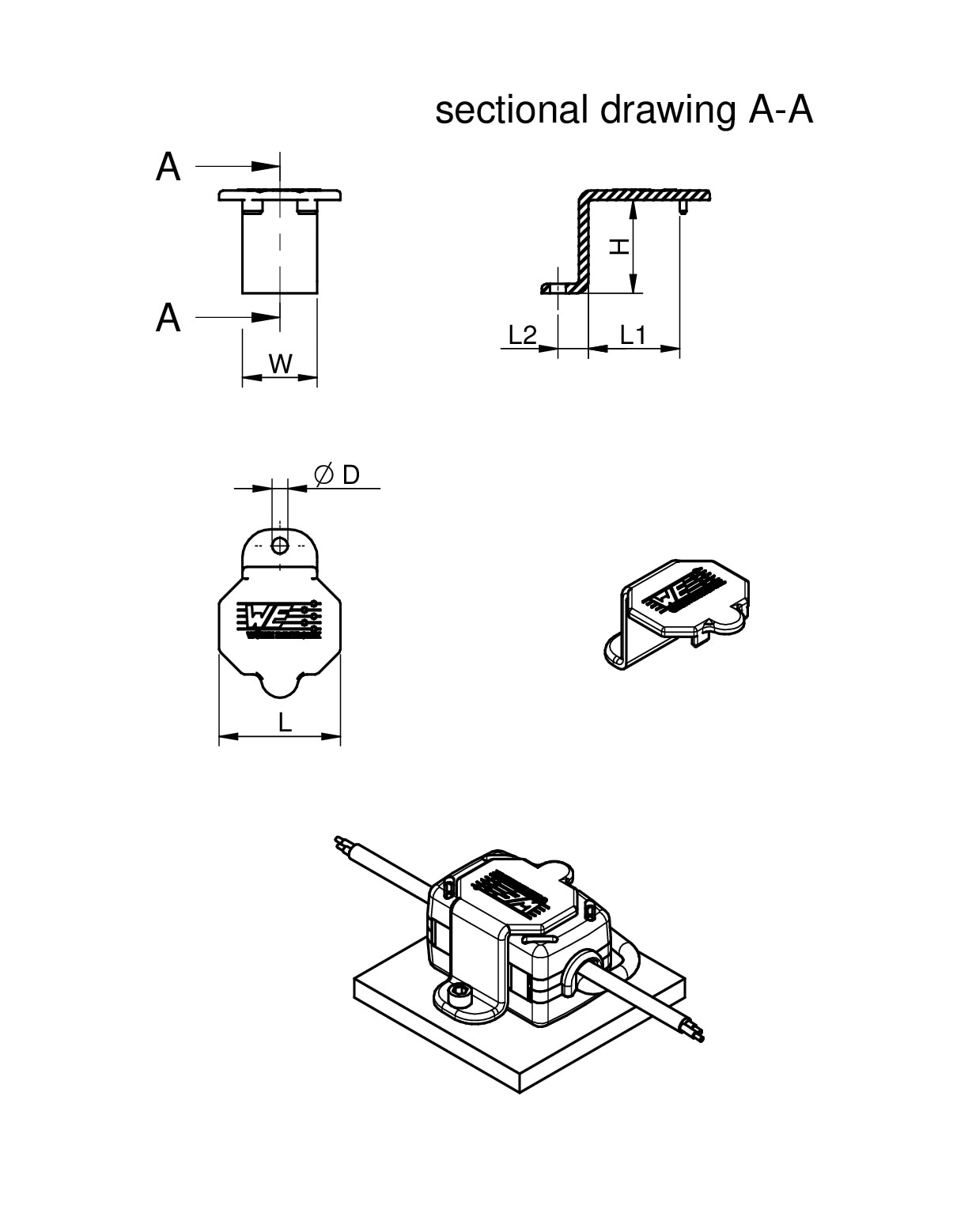

WE-STAR-CLIP

Characteristics

New fixation
Pre-fixing of the clip with additional assembling of the Snap Ferrite
Classification of the clip: min. UL94 HB
Colour of the clip: electronic grey; black on request available

Applications

Especially for the fixation of STAR-TEC, STAR-TEC LFS and STAR-FIX Snap Ferrites
Reusable thanks to STAR-KEY technology, ideal for testing and measuring purposes in EMC laboratories

Products

Filter article data

show article in 0 product lines

article in 0 product lines

	Order Code	Datasheet	Downloads	Status	L(mm)	W(mm)	H(mm)	Color	Suitable for	Alpha-Rack	Design Kit	Samples
	7427722	26 mm, 16 mm, 29 mm	Downloads2 files CAD files ZIP IGS Download_IGS_WE-STAR-CLIP-7427722 (rev1).igs \| 2 MB STP Download_STP_WE-STAR-CLIP-7427722 (rev1).stp \| 511.9 KB Download all 2 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Length26 mm	Width16 mm	Height29 mm	Plastic Housing ColorGrey	Suitable for 74272221S 74272222S 74271221 74271221S 74271222 74271222S 74272221 74272222	Alpha-Rack 742707001	Design Kit 742711
	7427711	26.2 mm, 16.1 mm, 18.5 mm	Downloads2 files CAD files ZIP IGS 7427711 (rev1).igs \| 2 MB STP 7427711 (rev1).stp \| 547.9 KB Download all 2 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Length26.2 mm	Width16.1 mm	Height18.5 mm	Plastic Housing ColorGrey	Suitable for 78271111 78271111S 78271112 78271112S 74272111S 74272112S 74271111 74271111S 74271112 74271112S 74271633 74271633S 74272111 74272112	Alpha-Rack 742707001	Design Kit 742711
	7427713	26.2 mm, 16.1 mm, 20 mm	Downloads2 files CAD files ZIP IGS 7427713 (rev1).igs \| 2.1 MB STP 7427713 (rev1).stp \| 558.6 KB Download all 2 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Length26.2 mm	Width16.1 mm	Height20 mm	Plastic Housing ColorGrey	Suitable for 78271131 78271132 78271132S 74272131S 74272132S 74271131 74271131S 74271132 74271132S 74272131 74272132	Alpha-Rack 742707001	Design Kit 742711

Assortments

Articles from this product series can be found in the following assortments:

Design Kit Snap Ferrites WE-Star

Alpha-Rack EMC: Snap Ferrites

Learn more
