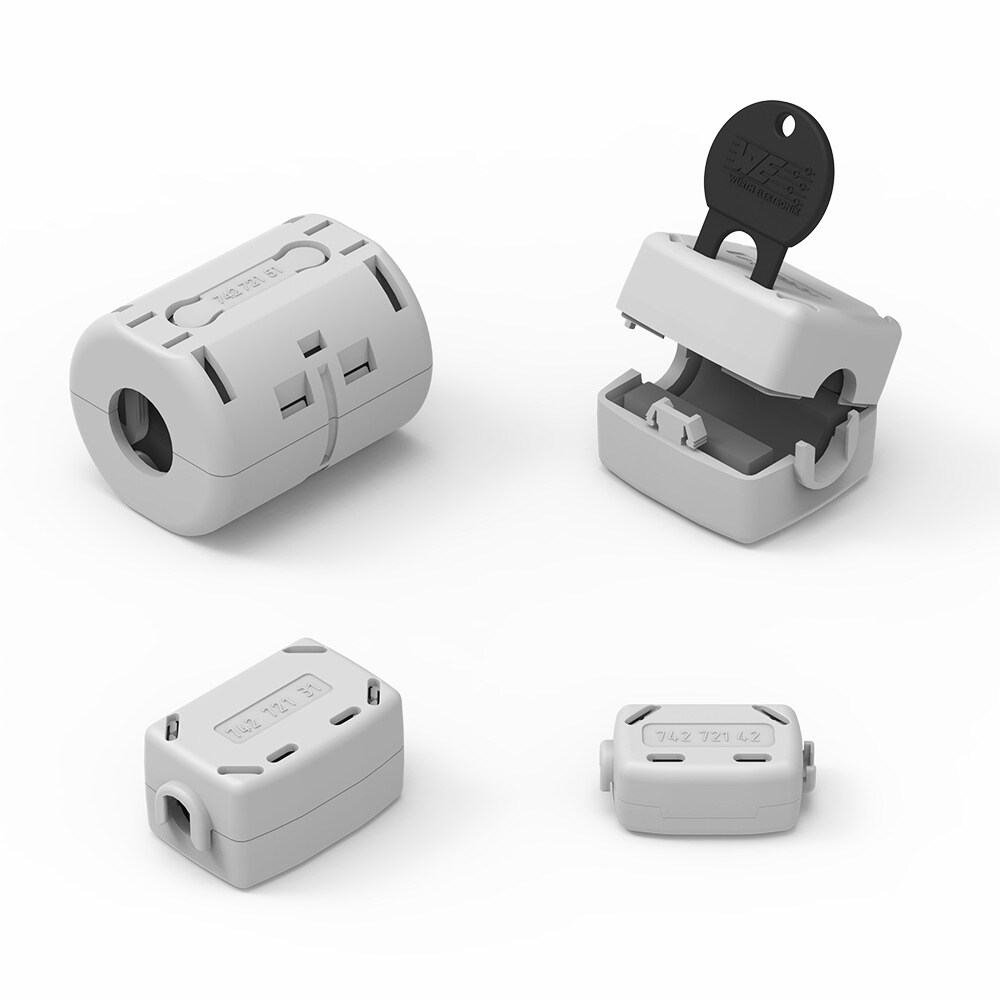

WE-STAR-TEC LFS

Characteristics

With reliable flexible cable fixing, developed in-house
Prefixing cable system facilitates the cable assembling process
Cable clamping protection
Internal security locking system with key technology WE-STAR-KEY (safety key) prevents unauthorized removing from the cable
One key in each sample shipment
Classification of the plastic housing: UL94 V-0
Operating temperature: –50 °C to +105 °C
Core material: MnZn

Applications

Especially for applications in the low frequency range from 300 kHz to 30 MHz
Perfect for applications with varying cable diameter
Suppression of electronic ballasts (i.e. neon tube) in the lighting industry
Reusable thanks to STAR-KEY technology, ideal for testing and measuring purposes in EMC laboratories

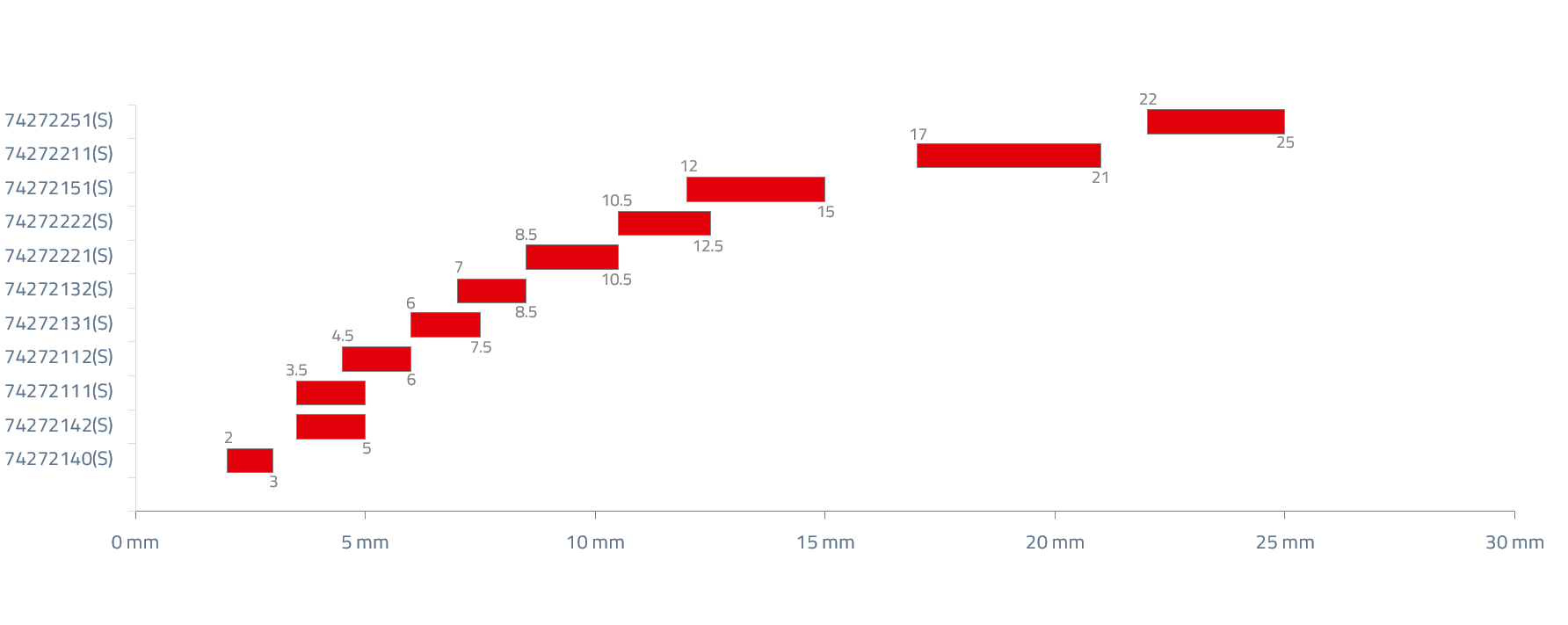

Fastening for round cables with diameter 2.0 mm to 25.0 mm or if winded more turns through the ferrite

Products

Filter article data

show article in 0 product lines

article in 0 product lines

Reset all

Order Code	Datasheet	Simulation	Downloads	Status	Ø Cable (mm)	Z @ 300 kHz 1 turn (Ω)	Z @ 1 MHz 1 turn (Ω)	Z @ 10 MHz 1 turn (Ω)	Material	L (mm)	W (mm)	H (mm)	Color	Safety Key	Design Kit	Alpha-Rack	STAR-CLIP Fixation
74272140	2 - 3, 5 Ω, 17 Ω	Simulation	Downloads 5 files CAD files ZIP 3D 3D_WEStarTecLFS_74272140_3d (rev1).pdf \| 838.8 KB 3D 3D_open_WEStarTecLFS_74272140_3d_open (rev1).pdf \| 838.8 KB IGS IGS_WEStarTecLFS_74272140 (rev1).igs \| 9.5 MB STP STP_WEStarTecLFS_74272140 (rev1).stp \| 2.2 MB STP STP_open_WEStarTecLFS_74272140 (rev1).stp \| 2.2 MB Download all 5 files as zip archive ZIP	Status New i \| Product is new in our portfolio and production is active. Expected lifetime: >10 years.	Cable Diameter 2 - 3	Impedance @ 300 kHz 1 turn 5 Ω	Impedance @ 1 MHz 1 turn 17 Ω	Impedance @ 10 MHz 1 turn 59 Ω	Material 8 W 5000	Length 32.6 mm	Width 19 mm	Height 13 mm	Plastic Housing Color Grey	Safety Key 74271	Design Kit 742711	Alpha-Rack 742707001	STAR-CLIP Fixation –
74272140S	2 - 3, 5 Ω, 17 Ω	Simulation	Downloads 5 files CAD files ZIP 3D 3D_WEStarTecLFS_74272140_3d (rev1).pdf \| 838.8 KB 3D 3D_open_WEStarTecLFS_74272140_3d_open (rev1).pdf \| 838.8 KB IGS IGS_WEStarTecLFS_74272140 (rev1).igs \| 9.5 MB STP STP_WEStarTecLFS_74272140 (rev1).stp \| 2.2 MB STP STP_open_WEStarTecLFS_74272140 (rev1).stp \| 2.2 MB Download all 5 files as zip archive ZIP	Status New i \| Product is new in our portfolio and production is active. Expected lifetime: >10 years.	Cable Diameter 2 - 3	Impedance @ 300 kHz 1 turn 5 Ω	Impedance @ 1 MHz 1 turn 17 Ω	Impedance @ 10 MHz 1 turn 59 Ω	Material 8 W 5000	Length 32.6 mm	Width 19 mm	Height 13 mm	Plastic Housing Color Black	Safety Key 74271	Design Kit –	Alpha-Rack –	STAR-CLIP Fixation –
74272142	3.5 - 5, 5 Ω, 17 Ω	Simulation	Downloads 3 files CAD files ZIP 3D 3D_WE-Star-Tec_LFS_74272142 (rev1).pdf \| 836.5 KB IGS IGS_WE-STAR-TEC-LFS_74272142 (rev1).igs \| 9.6 MB STP STP_WE-STAR-TEC-LFS-74272142 (rev1).stp \| 2.2 MB Download all 3 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Cable Diameter 3.5 - 5	Impedance @ 300 kHz 1 turn 5 Ω	Impedance @ 1 MHz 1 turn 17 Ω	Impedance @ 10 MHz 1 turn 59 Ω	Material 8 W 5000	Length 32.6 mm	Width 19 mm	Height 13 mm	Plastic Housing Color Grey	Safety Key 74271	Design Kit 742711	Alpha-Rack 742707001	STAR-CLIP Fixation –
74272111	3.5 - 5, 10 Ω, 35 Ω	Simulation	Downloads 3 files CAD files ZIP 3D 3D_WE-Star-TecLFS_74272111 (rev1).pdf \| 1.7 MB IGS IGS_WE-Star-TecLFS _74272111 (rev1).igs \| 21.4 MB STP STP_WE-Star-TecLFS_74272111 (rev1).stp \| 5.8 MB Download all 3 files as zip archive ZIP	Status New i \| Product is new in our portfolio and production is active. Expected lifetime: >10 years.	Cable Diameter 3.5 - 5	Impedance @ 300 kHz 1 turn 10 Ω	Impedance @ 1 MHz 1 turn 35 Ω	Impedance @ 10 MHz 1 turn 59 Ω	Material 8 W 5000	Length 41 mm	Width 23.4 mm	Height 18 mm	Plastic Housing Color Grey	Safety Key 74271	Design Kit 742711	Alpha-Rack 742707001	STAR-CLIP Fixation 7427711
74272142S	3.5 - 5, 5 Ω, 17 Ω	Simulation	Downloads 3 files CAD files ZIP 3D 3D_WE-Star-Tec_LFS_74272142 (rev1).pdf \| 836.5 KB IGS IGS_WE-Star-Tec_LFS_74272142 (rev1).igs \| 9.6 MB STP STP_WE-Star-Tec_LFS_74272142 (rev1).stp \| 2.2 MB Download all 3 files as zip archive ZIP	Status New i \| Product is new in our portfolio and production is active. Expected lifetime: >10 years.	Cable Diameter 3.5 - 5	Impedance @ 300 kHz 1 turn 5 Ω	Impedance @ 1 MHz 1 turn 17 Ω	Impedance @ 10 MHz 1 turn 59 Ω	Material 8 W 5000	Length 32.6 mm	Width 19 mm	Height 13 mm	Plastic Housing Color Black	Safety Key 74271	Design Kit –	Alpha-Rack –	STAR-CLIP Fixation –
74272111S	3.5 - 5, 10 Ω, 35 Ω	Simulation	Downloads 3 files CAD files ZIP 3D 3D_WE-Star-Tec_LFS_74272111 (rev1).pdf \| 1.7 MB IGS IGS_WE-Star-Tec_LFS_74272111 (rev1).igs \| 21.4 MB STP STP_WE-Star-Tec_LFS_74272111 (rev1).stp \| 5.8 MB Download all 3 files as zip archive ZIP	Status New i \| Product is new in our portfolio and production is active. Expected lifetime: >10 years.	Cable Diameter 3.5 - 5	Impedance @ 300 kHz 1 turn 10 Ω	Impedance @ 1 MHz 1 turn 35 Ω	Impedance @ 10 MHz 1 turn 59 Ω	Material 8 W 5000	Length 41 mm	Width 23.4 mm	Height 18 mm	Plastic Housing Color Black	Safety Key 74271	Design Kit –	Alpha-Rack –	STAR-CLIP Fixation 7427711
74272112	4.5 - 6, 10 Ω, 35 Ω	Simulation	Downloads 3 files CAD files ZIP 3D 3D_WE-Star-TecLFS _74272112 (rev1).pdf \| 1.7 MB IGS IGS_WE-Star-TecLFS _74272112 (rev1).igs \| 21.6 MB STP STP_WE-Star-TecLFS_ 74272112 (rev1).stp \| 5.8 MB Download all 3 files as zip archive ZIP	Status New i \| Product is new in our portfolio and production is active. Expected lifetime: >10 years.	Cable Diameter 4.5 - 6	Impedance @ 300 kHz 1 turn 10 Ω	Impedance @ 1 MHz 1 turn 35 Ω	Impedance @ 10 MHz 1 turn 59 Ω	Material 8 W 5000	Length 41 mm	Width 23.4 mm	Height 18 mm	Plastic Housing Color Grey	Safety Key 74271	Design Kit 742711	Alpha-Rack 742707001	STAR-CLIP Fixation 7427711
74272112S	4.5 - 6, 10 Ω, 35 Ω	Simulation	Downloads 3 files CAD files ZIP 3D 3D_WE-Star-Tec_LFS_74272112 (rev1).pdf \| 1.7 MB IGS IGS_WE-Star-Tec_LFS_74272112 (rev1).igs \| 21.6 MB STP STP_WE-Star-Tec_LFS_74272112 (rev1).stp \| 5.8 MB Download all 3 files as zip archive ZIP	Status New i \| Product is new in our portfolio and production is active. Expected lifetime: >10 years.	Cable Diameter 4.5 - 6	Impedance @ 300 kHz 1 turn 10 Ω	Impedance @ 1 MHz 1 turn 35 Ω	Impedance @ 10 MHz 1 turn 59 Ω	Material 8 W 5000	Length 41 mm	Width 23.4 mm	Height 18 mm	Plastic Housing Color Black	Safety Key 74271	Design Kit –	Alpha-Rack –	STAR-CLIP Fixation 7427711
74272131	6 - 7.5, 9 Ω, 30 Ω	Simulation	Downloads 3 files CAD files ZIP 3D 3D_WE-Star-Tec-LFS _74272131 (rev1).pdf \| 941.6 KB IGS IGS_WE-STAR-TEC-LFS-74272131 (rev1).igs \| 11.8 MB STP STP_WE-STAR-TEC-LFS-74272131 (rev1).stp \| 3 MB Download all 3 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Cable Diameter 6 - 7.5	Impedance @ 300 kHz 1 turn 9 Ω	Impedance @ 1 MHz 1 turn 30 Ω	Impedance @ 10 MHz 1 turn 45 Ω	Material 8 W 5000	Length 40 mm	Width 24 mm	Height 20 mm	Plastic Housing Color Grey	Safety Key 74271	Design Kit 742711	Alpha-Rack 742707001	STAR-CLIP Fixation 7427713
74272131S	6 - 7.5, 9 Ω, 30 Ω	Simulation	Downloads 3 files CAD files ZIP 3D 3D_WE-Star-Tec_LFS_74272131 (rev1).pdf \| 941.6 KB 3D STP_WE-Star-Tec_LFS_74272131 (rev1).pdf \| 941.6 KB IGS IGS_WE-Star-Tec_LFS_74272131 (rev1).igs \| 11.8 MB Download all 3 files as zip archive ZIP	Status New i \| Product is new in our portfolio and production is active. Expected lifetime: >10 years.	Cable Diameter 6 - 7.5	Impedance @ 300 kHz 1 turn 9 Ω	Impedance @ 1 MHz 1 turn 30 Ω	Impedance @ 10 MHz 1 turn 45 Ω	Material 8 W 5000	Length 40 mm	Width 24 mm	Height 20 mm	Plastic Housing Color Black	Safety Key 74271	Design Kit –	Alpha-Rack –	STAR-CLIP Fixation 7427713
74272132	7 - 8.5, 9 Ω, 30 Ω	Simulation	Downloads 3 files CAD files ZIP 3D 3D_WE-Star-Tec-LFS_74272132 (rev1).pdf \| 950.8 KB IGS IGS_WE-STAR-TEC-LFS-74272132 (rev1).igs \| 12 MB STP STP_WE-STAR-TEC-LFS-74272132 (rev1).stp \| 3 MB Download all 3 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Cable Diameter 7 - 8.5	Impedance @ 300 kHz 1 turn 9 Ω	Impedance @ 1 MHz 1 turn 30 Ω	Impedance @ 10 MHz 1 turn 45 Ω	Material 8 W 5000	Length 40 mm	Width 24 mm	Height 20 mm	Plastic Housing Color Grey	Safety Key 74271	Design Kit 742711	Alpha-Rack 742707001	STAR-CLIP Fixation 7427713
74272132S	7 - 8.5, 9 Ω, 30 Ω	Simulation	Downloads 3 files CAD files ZIP 3D 3D_WE-Star-Tec_LFS_74272132 (rev1).pdf \| 950.8 KB IGS IGS_WE-Star-Tec_LFS_74272132 (rev1).igs \| 12 MB STP STP_WE-Star-Tec_LFS_74272132 (rev1).stp \| 3 MB Download all 3 files as zip archive ZIP	Status New i \| Product is new in our portfolio and production is active. Expected lifetime: >10 years.	Cable Diameter 7 - 8.5	Impedance @ 300 kHz 1 turn 9 Ω	Impedance @ 1 MHz 1 turn 30 Ω	Impedance @ 10 MHz 1 turn 45 Ω	Material 8 W 5000	Length 40 mm	Width 24 mm	Height 20 mm	Plastic Housing Color Black	Safety Key 74271	Design Kit –	Alpha-Rack –	STAR-CLIP Fixation 7427713
74272221	8.5 - 10.5, 13 Ω, 50 Ω	Simulation	Downloads 3 files CAD files ZIP 3D 3D_WE-Star-Tec-LFS _74272221 (rev1).pdf \| 1 MB IGS IGS_WE-STAR-TEC-LFS-74272221 (rev1).igs \| 12.9 MB STP STP_WE-STAR-TEC-LFS-74272221 (rev1).stp \| 2.8 MB Download all 3 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Cable Diameter 8.5 - 10.5	Impedance @ 300 kHz 1 turn 13 Ω	Impedance @ 1 MHz 1 turn 50 Ω	Impedance @ 10 MHz 1 turn 32 Ω	Material 8 W 5000	Length 41.6 mm	Width 33.5 mm	Height 28.4 mm	Plastic Housing Color Grey	Safety Key 74271	Design Kit 742711	Alpha-Rack 742707001	STAR-CLIP Fixation 7427722
74272221S	8.5 - 10.5, 13 Ω, 50 Ω	Simulation	Downloads 3 files CAD files ZIP 3D 3D_WE-Star-Tec_LFS_74272221S (rev1).pdf \| 10.4 MB IGS IGS_WE-STAR-TEC-LFS-74272221S (rev1).igs \| 12.5 MB STP STP_WE-STAR-TEC-LFS-74272221S (rev1).stp \| 3.1 MB Download all 3 files as zip archive ZIP	Status New i \| Product is new in our portfolio and production is active. Expected lifetime: >10 years.	Cable Diameter 8.5 - 10.5	Impedance @ 300 kHz 1 turn 13 Ω	Impedance @ 1 MHz 1 turn 50 Ω	Impedance @ 10 MHz 1 turn 32 Ω	Material 8 W 5000	Length 41.6 mm	Width 33.5 mm	Height 28.4 mm	Plastic Housing Color Black	Safety Key 74271	Design Kit –	Alpha-Rack –	STAR-CLIP Fixation 7427722
74272222	10.5 - 12.5, 13 Ω, 50 Ω	Simulation	Downloads 3 files CAD files ZIP 3D 3D_WE-Star-Tec-LFS_74272222 (rev1).pdf \| 1.1 MB IGS IGS_WE-STAR-TEC-LFS-74272222 (rev1).igs \| 13.7 MB STP STP_WE-STAR-TEC-LFS-74272222 (rev1).stp \| 3 MB Download all 3 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Cable Diameter 10.5 - 12.5	Impedance @ 300 kHz 1 turn 13 Ω	Impedance @ 1 MHz 1 turn 50 Ω	Impedance @ 10 MHz 1 turn 32 Ω	Material 8 W 5000	Length 41.6 mm	Width 33.5 mm	Height 28.4 mm	Plastic Housing Color Grey	Safety Key 74271	Design Kit 742711	Alpha-Rack 742707001	STAR-CLIP Fixation 7427722
74272222S	10.5 - 12.5, 13 Ω, 50 Ω	Simulation	Downloads 3 files CAD files ZIP 3D 3D_WE-Star-Tec_LFS_74272222S (rev1).pdf \| 10.6 MB IGS IGS_WE-STAR-TEC-LFS-74272222S (rev1).igs \| 12.1 MB STP STP_WE-STAR-TEC-LFS-74272222S (rev1).stp \| 3.1 MB Download all 3 files as zip archive ZIP	Status New i \| Product is new in our portfolio and production is active. Expected lifetime: >10 years.	Cable Diameter 10.5 - 12.5	Impedance @ 300 kHz 1 turn 13 Ω	Impedance @ 1 MHz 1 turn 50 Ω	Impedance @ 10 MHz 1 turn 32 Ω	Material 8 W 5000	Length 41.6 mm	Width 33.5 mm	Height 28.4 mm	Plastic Housing Color Black	Safety Key 74271	Design Kit –	Alpha-Rack –	STAR-CLIP Fixation 7427722
74272151	12 - 15, 15 Ω, 65 Ω	Simulation	Downloads 3 files CAD files ZIP 3D 3D_WE-Star-Tec-LFS_74272151 (rev1).pdf \| 9.9 MB IGS IGS_WE-STAR-TEC-LFS-74272151 (rev1).igs \| 10.3 MB STP STP_WE-STAR-TEC-LFS-74272151 (rev1).stp \| 2.5 MB Download all 3 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Cable Diameter 12 - 15	Impedance @ 300 kHz 1 turn 15 Ω	Impedance @ 1 MHz 1 turn 65 Ω	Impedance @ 10 MHz 1 turn 33 Ω	Material 8 W 5000	Length 48.4 mm	Width 38.8 mm	Height 35 mm	Plastic Housing Color Grey	Safety Key 74271	Design Kit –	Alpha-Rack 742707001	STAR-CLIP Fixation –
74272151S	12 - 15, 15 Ω, 65 Ω	Simulation	Downloads 3 files CAD files ZIP 3D 3D_WE-Star-Tec_LFS_74272151 (rev1).pdf \| 1.8 MB IGS IGS_WE-STAR-TEC-LFS-74272151 (rev1).igs \| 10.3 MB STP STP_WE-STAR-TEC-LFS-74272151 (rev1).stp \| 2.5 MB Download all 3 files as zip archive ZIP	Status New i \| Product is new in our portfolio and production is active. Expected lifetime: >10 years.	Cable Diameter 12 - 15	Impedance @ 300 kHz 1 turn 15 Ω	Impedance @ 1 MHz 1 turn 65 Ω	Impedance @ 10 MHz 1 turn 33 Ω	Material 8 W 5000	Length 48.4 mm	Width 38.8 mm	Height 35 mm	Plastic Housing Color Black	Safety Key 74271	Design Kit –	Alpha-Rack –	STAR-CLIP Fixation –
74272211	17 - 21, 18 Ω, 70 Ω	Simulation	Downloads 3 files CAD files ZIP 3D 3D_WE-Star-Tec-LFS_74272211 (rev1).pdf \| 1.4 MB IGS IGS_WE-STAR-TEC-LFS-74272211 (rev1).igs \| 13.9 MB STP STP_WE-STAR-TEC-LFS_74272211 (rev1).stp \| 3.2 MB Download all 3 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Cable Diameter 17 - 21	Impedance @ 300 kHz 1 turn 18 Ω	Impedance @ 1 MHz 1 turn 70 Ω	Impedance @ 10 MHz 1 turn 30 Ω	Material 8 W 5000	Length 55.4 mm	Width 46.5 mm	Height 43 mm	Plastic Housing Color Grey	Safety Key 74271	Design Kit –	Alpha-Rack 742707001	STAR-CLIP Fixation –
74272211S	17 - 21, 18 Ω, 70 Ω	Simulation	Downloads 3 files CAD files ZIP 3D 3D_WE-Star-Tec_LFS_74272211S (rev1).pdf \| 1.4 MB IGS IGS_WE-Star-Tec_LFS_74272211S (rev1).igs \| 13.9 MB STP STP_WE-Star-Tec_LFS_74272211S (rev1).stp \| 3.2 MB Download all 3 files as zip archive ZIP	Status New i \| Product is new in our portfolio and production is active. Expected lifetime: >10 years.	Cable Diameter 17 - 21	Impedance @ 300 kHz 1 turn 18 Ω	Impedance @ 1 MHz 1 turn 70 Ω	Impedance @ 10 MHz 1 turn 30 Ω	Material 8 W 5000	Length 55.4 mm	Width 46.5 mm	Height 43 mm	Plastic Housing Color Black	Safety Key 74271	Design Kit –	Alpha-Rack –	STAR-CLIP Fixation –
74272251	22 - 25, 23 Ω, 46 Ω	Simulation	Downloads 3 files CAD files ZIP 3D 3D_WE-Star-Tec-LFS_74272251 (rev1).pdf \| 1.8 MB IGS IGS_WE-STAR-TEC-LFS_74272251 (rev1).igs \| 14 MB STP STP_WE-STAR-TEC-LFS_74272251 (rev1).stp \| 4.7 MB Download all 3 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Cable Diameter 22 - 25	Impedance @ 300 kHz 1 turn 23 Ω	Impedance @ 1 MHz 1 turn 46 Ω	Impedance @ 10 MHz 1 turn 27 Ω	Material 8 W 5000	Length 61.3 mm	Width 59.5 mm	Height 55 mm	Plastic Housing Color Grey	Safety Key 74271	Design Kit –	Alpha-Rack 742707001	STAR-CLIP Fixation –
74272251S	22 - 25, 23 Ω, 46 Ω	Simulation	Downloads 3 files CAD files ZIP 3D 3D_WE-Star-TEc_LFS_74272251S (rev1).pdf \| 9.9 MB IGS IGS_WE_Star-Tec_LFS_74272251S (rev1).igs \| 10.3 MB STP STP_WE-Star-Tec_LFS_74272251S (rev1).stp \| 2.5 MB Download all 3 files as zip archive ZIP	Status New i \| Product is new in our portfolio and production is active. Expected lifetime: >10 years.	Cable Diameter 22 - 25	Impedance @ 300 kHz 1 turn 23 Ω	Impedance @ 1 MHz 1 turn 46 Ω	Impedance @ 10 MHz 1 turn 27 Ω	Material 8 W 5000	Length 61.3 mm	Width 59.5 mm	Height 55 mm	Plastic Housing Color Black	Safety Key 74271	Design Kit –	Alpha-Rack –	STAR-CLIP Fixation –
