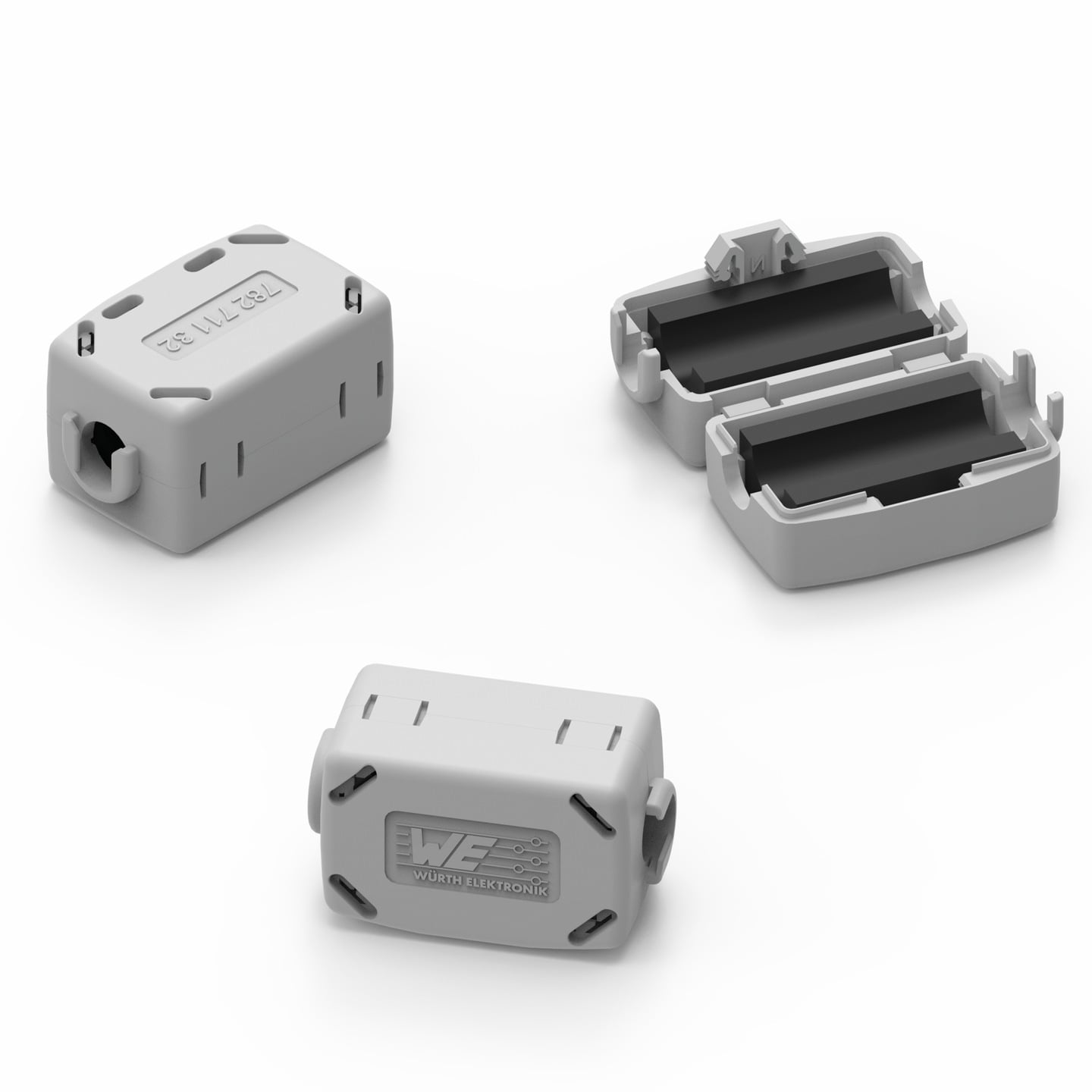

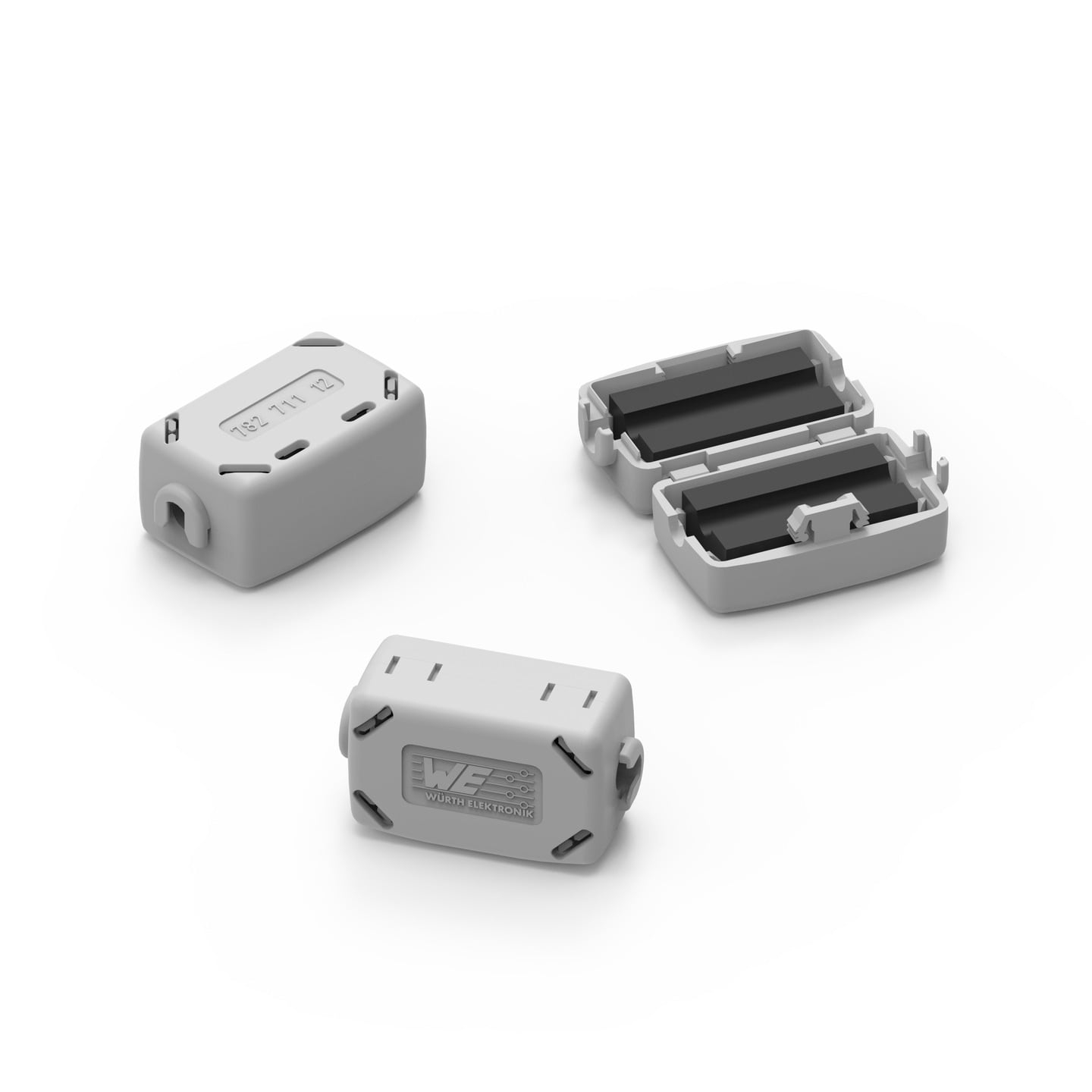

WE-CAR-TEC Snap Ferrite

Datasheet

SPEC
Seriesdatasheet_WE-CAR-TEC_V1 (rev1).pdf
|
3.4 MB

Characteristics

Pre-fixing cable system facilitates the assembly process
Cable clamping protection
Internal security locking system with key technology (WE-STAR-KEY PN: 74271) prevents unauthorized removing from the cable
One key in each sample shipment
Classification of the plastic housing: UL94 V0
Operating temperature: from –50 °C up to +105 °C
Core material: NiZn
AEC-Q200
Automotive approved

Applications

EMC ferrite for EMI suppression in the frequency range from 1 MHz up to 1 GHz
Fastening round cables with diameter from 3.5 mm up to 8.5 mm or if winded more turns through the ferrite
Reusable because of the STAR-KEY technology therefore perfect for test and measuring purposes in EMC labs

Application Notes

ANP115 Cable Ferrites and Nanocrystalline Sleeves for Automotive Applications
PDF

Products

Filter article data

show article in 0 product lines

article in 0 product lines

Log in now to view availability and request availability forecasts. LOGIN

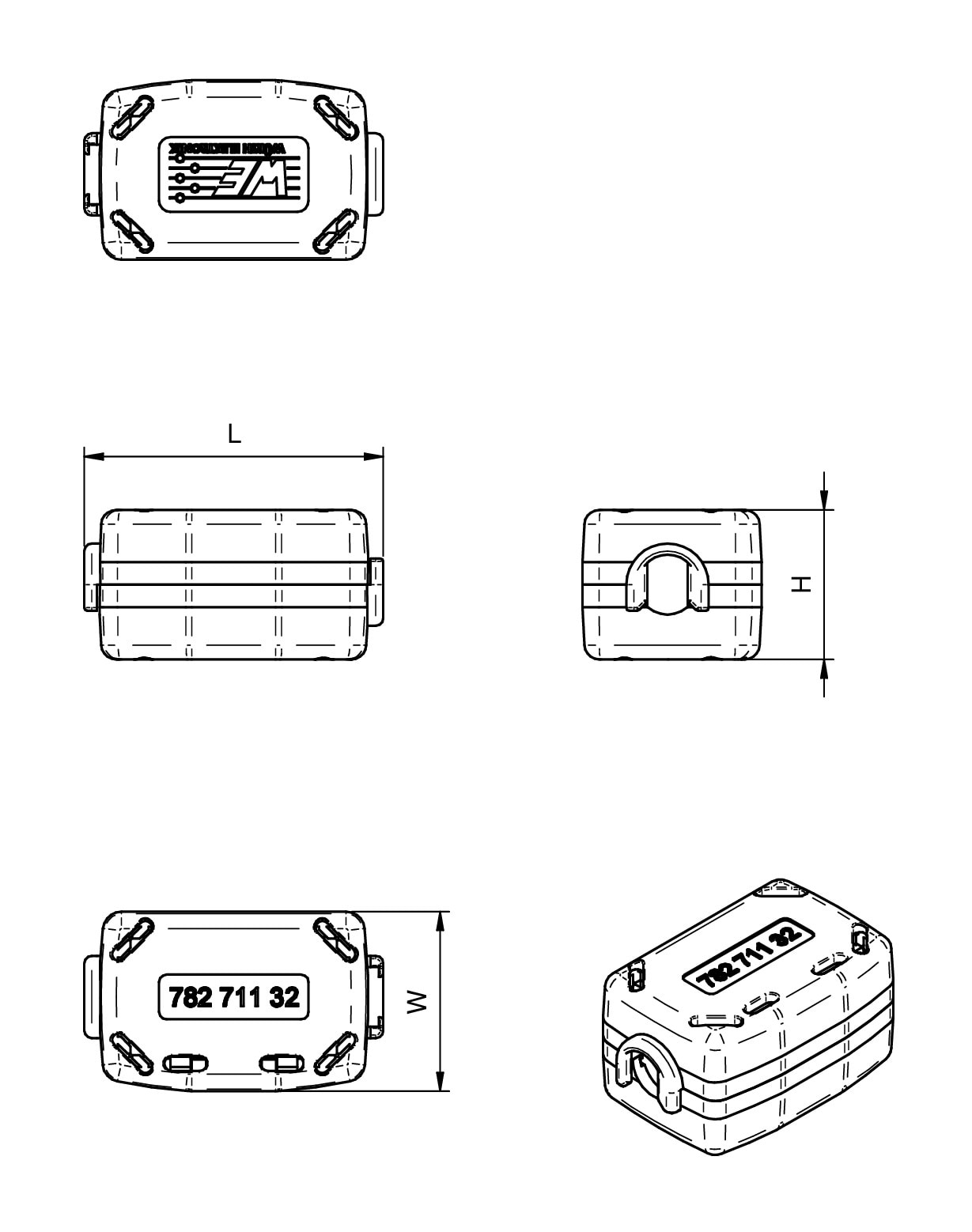

Order Code	Datasheet	Downloads	Status	Ø Cable(mm)	Z @ 25 MHz 1 turn(Ω)	Z @ 100 MHz 1 turn(Ω)	Material	Color	L(mm)	W(mm)	H(mm)	STAR-CLIP Fixation	Alpha-Rack	SamplesAvailability & Sample

Log in now to view availability and request availability forecasts. LOGIN
78271111	SPEC3.5 - 5, 175 Ω, 316 Ω	Availability –	Downloads2 files IGS Download_WE-CAR-TEC_78271111_IGS (rev1).igs \| 20.2 MB STP Download_WE-CAR-TEC_78271111_STP (rev1).stp \| 8.8 MB	Status Activei\| Production is active. Expected lifetime: >10 years.	Cable Diameter 3.5 - 5	Impedance @ 25 MHz 1 turn175 Ω	Impedance @ 100 MHz 1 turn316 Ω	Material91101004	Plastic Housing ColorGrey	Length41 mm	Width23.4 mm	Height18 mm	STAR-CLIP Fixation 7427711	Alpha-Rack 742707016	–Check availability
78271111S	SPEC3.5 - 5, 175 Ω, 316 Ω	Availability –	Downloads2 files IGS Download_WE-CAR-TEC_78271111_IGS (rev1).igs \| 20.2 MB STP Download_WE-CAR-TEC_78271111_STP (rev1).stp \| 8.8 MB	Status Activei\| Production is active. Expected lifetime: >10 years.	Cable Diameter 3.5 - 5	Impedance @ 25 MHz 1 turn175 Ω	Impedance @ 100 MHz 1 turn316 Ω	Material91101004	Plastic Housing ColorBlack	Length41 mm	Width23.4 mm	Height18 mm	STAR-CLIP Fixation 7427711	Alpha-Rack –	–Check availability
78271112	SPEC4.5 - 6, 175 Ω, 316 Ω	Availability –	Downloads2 files IGS Download_WE-CAR-TEC_78271112_IGS (rev1).igs \| 20.2 MB STP Download_WE-CAR-TEC_78271112_STP (rev1).stp \| 8.8 MB	Status Activei\| Production is active. Expected lifetime: >10 years.	Cable Diameter 4.5 - 6	Impedance @ 25 MHz 1 turn175 Ω	Impedance @ 100 MHz 1 turn316 Ω	Material91101004	Plastic Housing ColorGrey	Length41 mm	Width23.4 mm	Height18 mm	STAR-CLIP Fixation 7427711	Alpha-Rack 742707016	–Check availability
78271112S	SPEC4.5 - 6, 175 Ω, 316 Ω	Availability –	Downloads2 files IGS Download_WE-CAR-TEC_78271112_IGS (rev1).igs \| 20.2 MB STP Download_WE-CAR-TEC_78271112_STP (rev1).stp \| 8.8 MB	Status Activei\| Production is active. Expected lifetime: >10 years.	Cable Diameter 4.5 - 6	Impedance @ 25 MHz 1 turn175 Ω	Impedance @ 100 MHz 1 turn316 Ω	Material91101004	Plastic Housing ColorBlack	Length41 mm	Width23.4 mm	Height18 mm	STAR-CLIP Fixation 7427711	Alpha-Rack –	–Check availability
78271131	SPEC6 - 7.5, 125 Ω, 235 Ω	Availability –	Downloads2 files IGS Download_WE-CAR-TEC_78271131_IGS (rev1).igs \| 11.9 MB STP Download_WE-CAR-TEC_78271131_STP (rev1).stp \| 4.1 MB	Status Activei\| Production is active. Expected lifetime: >10 years.	Cable Diameter 6 - 7.5	Impedance @ 25 MHz 1 turn125 Ω	Impedance @ 100 MHz 1 turn235 Ω	Material91101004	Plastic Housing ColorGrey	Length40 mm	Width24 mm	Height20 mm	STAR-CLIP Fixation 7427713	Alpha-Rack 742707016	–Check availability
78271132	SPEC7 - 8.5, 125 Ω, 175 Ω	Availability –	Downloads2 files IGS Download_WE-CAR-TEC_78271132_IGS (rev1).igs \| 12 MB STP Download_WE-CAR-TEC_78271132_STP (rev1).stp \| 4.1 MB	Status Activei\| Production is active. Expected lifetime: >10 years.	Cable Diameter 7 - 8.5	Impedance @ 25 MHz 1 turn125 Ω	Impedance @ 100 MHz 1 turn175 Ω	Material91101004	Plastic Housing ColorGrey	Length40 mm	Width24 mm	Height20 mm	STAR-CLIP Fixation 7427713	Alpha-Rack 742707016	–Check availability
78271132S	SPEC7 - 8.5, 125 Ω, 235 Ω	Availability –	Downloads2 files IGS Download_WE-CAR-TEC_78271132_IGS (rev1).igs \| 12 MB STP Download_WE-CAR-TEC_78271132_STP (rev1).stp \| 4.1 MB	Status Activei\| Production is active. Expected lifetime: >10 years.	Cable Diameter 7 - 8.5	Impedance @ 25 MHz 1 turn125 Ω	Impedance @ 100 MHz 1 turn235 Ω	Material91101004	Plastic Housing ColorBlack	Length40 mm	Width24 mm	Height20 mm	STAR-CLIP Fixation 7427713	Alpha-Rack –	–Check availability

Assortments

Articles from this product series can be found in the following assortments:

Alpha-Rack EMC: Automotive

Alpha-Rack EMC: Automotive
