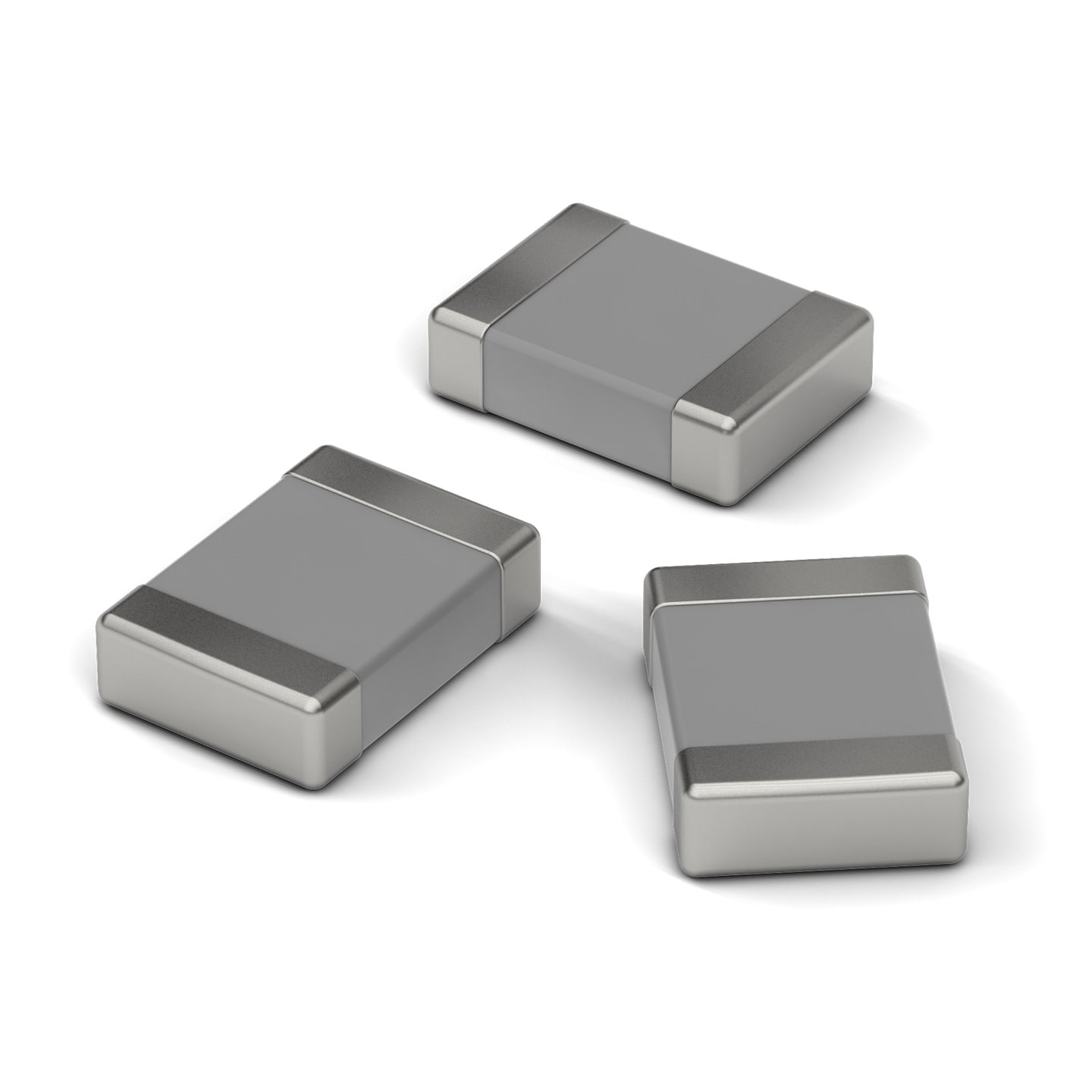

WCAP-CSSA Interference Suppression
Safety Capacitors
LTSpice files
Characteristics
- Product series for interference suppression
- High capacitance stability
- Certificates: TÜV, cULus
- Safety class: X1/Y2, X2
- Mounting style: SMT-Chip
- Ceramic: NP0 (Class I), X7R (Class II)
- Temperature Coefficient:
±30 ppm/°C for NP0
±15 % for X7R - Sizes: 1808 / 1812 / 2211 / 2220
- Recommended soldering: Reflow soldering
Applications
- Interference suppression
- Filter in power supplies
Application Notes
- ANP062 LC Filter Design With MLCCs: Why The Applied Voltage Matters
- ANP098 Effect of layout, vias and design on the blocking quality of filter capacitors
- ANP109 Impedance Spectra of Different Capacitor Technologies
- ANP117 Impact of output capacitor on feedback loop stability of a power supply
- ANP123 Long- and Short-Term Voltage Dependence of Ferroelectric Class 2 MLCCs
- ANS018 EMI Filter Design for Non-Isolated DC/DC Converters
- SN011 Why does the capacity of MLCCs change
Products
All
1808
1812
2211
2220
Filter by
show in
article in 4 product lines

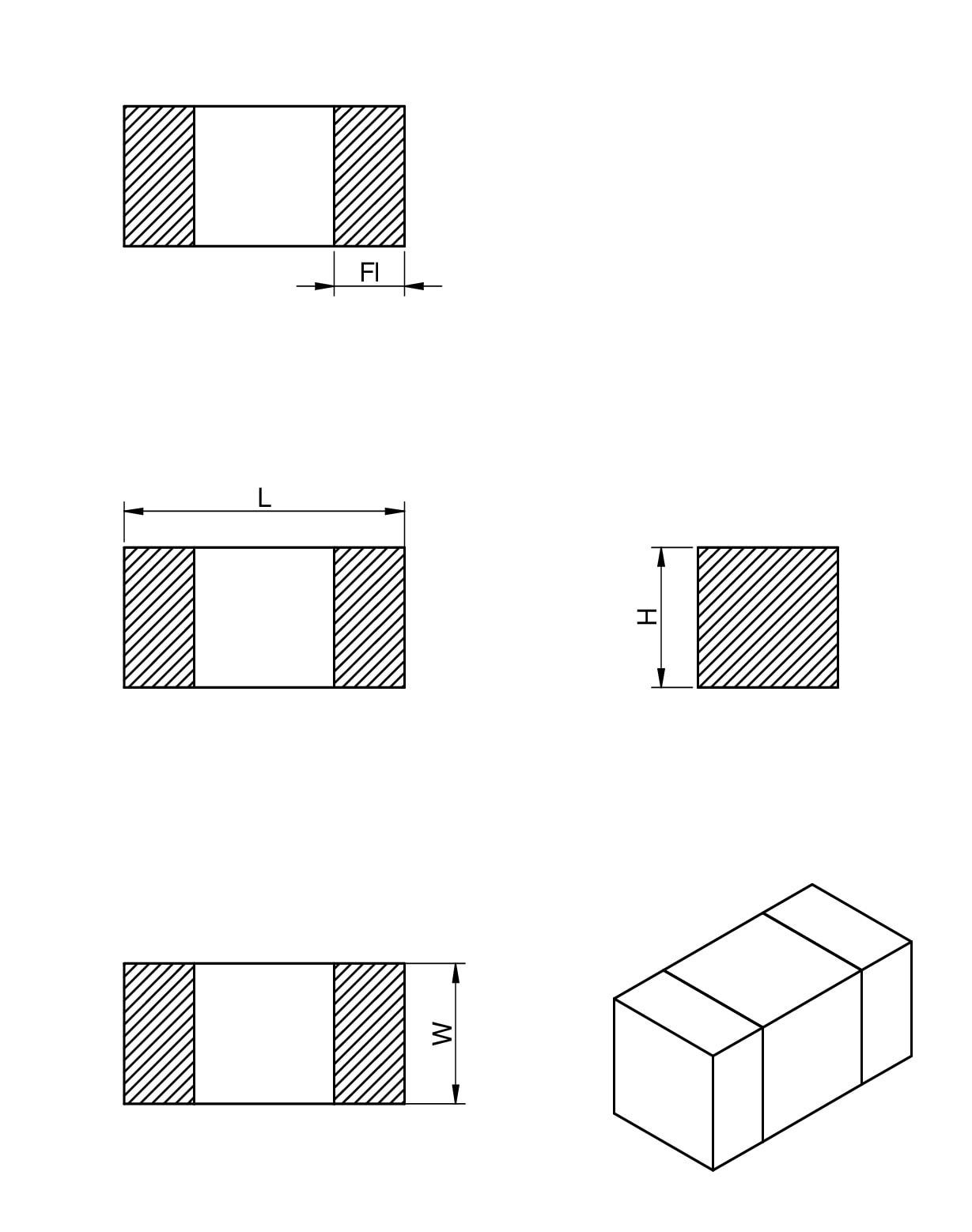

Reset allOrder Code | Datasheet | Simulation | Downloads | Status | C | Tol. C | VR(V (AC)) | Size | Operating Temperature | Safety Class | VIMP(V (DC)) | DF(%) | RISO | Ceramic Type | L(mm) | W(mm) | H(mm) | Fl(mm) | Packaging | Design Kit | Samples |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
8853520100071 | SPEC | Status Activei| Production is active. Expected lifetime: >10 years. | Capacitance33 pF | Capacitance±5% | Rated Voltage250 V (AC) | Size1808 | Operating Temperature -55 °C up to +125 °C | Safety ClassX1 / Y2 | Impulse Voltage5000 V (DC) | Dissipation Factor0.1 % | Insulation Resistance100 GΩ | Ceramic TypeNP0 Class I | Length4.5 mm | Width2 mm | Height1.4 mm | Pad Dimension0.5 mm | Packaging7" Tape & Reel | Design Kit | |||
8853620100091 | SPEC | Status Activei| Production is active. Expected lifetime: >10 years. | Capacitance33 pF | Capacitance±5% | Rated Voltage250 V (AC) | Size1808 | Operating Temperature -55 °C up to +125 °C | Safety ClassX2 | Impulse Voltage2500 V (DC) | Dissipation Factor0.1 % | Insulation Resistance100 GΩ | Ceramic TypeNP0 Class I | Length4.5 mm | Width2 mm | Height1.4 mm | Pad Dimension0.5 mm | Packaging7" Tape & Reel | Design Kit | |||
8853620100111 | SPEC | Status Activei| Production is active. Expected lifetime: >10 years. | Capacitance47 pF | Capacitance±5% | Rated Voltage250 V (AC) | Size1808 | Operating Temperature -55 °C up to +125 °C | Safety ClassX2 | Impulse Voltage2500 V (DC) | Dissipation Factor0.1 % | Insulation Resistance100 GΩ | Ceramic TypeNP0 Class I | Length4.5 mm | Width2 mm | Height1.6 mm | Pad Dimension0.5 mm | Packaging7" Tape & Reel | Design Kit | |||
8853620100171 | SPEC | Status Activei| Production is active. Expected lifetime: >10 years. | Capacitance100 pF | Capacitance±5% | Rated Voltage250 V (AC) | Size1808 | Operating Temperature -55 °C up to +125 °C | Safety ClassX2 | Impulse Voltage2500 V (DC) | Dissipation Factor0.1 % | Insulation Resistance100 GΩ | Ceramic TypeNP0 Class I | Length4.5 mm | Width2 mm | Height2 mm | Pad Dimension0.5 mm | Packaging7" Tape & Reel | Design Kit | |||
8853522100141 | SPEC | Status Activei| Production is active. Expected lifetime: >10 years. | Capacitance100 pF | Capacitance±10% | Rated Voltage250 V (AC) | Size1808 | Operating Temperature -55 °C up to +125 °C | Safety ClassX1 / Y2 | Impulse Voltage5000 V (DC) | Dissipation Factor2.5 % | Insulation Resistance10 GΩ | Ceramic TypeX7R Class II | Length4.5 mm | Width2 mm | Height1.6 mm | Pad Dimension0.5 mm | Packaging7" Tape & Reel | Design Kit – | |||
8853622100181 | SPEC | Status Activei| Production is active. Expected lifetime: >10 years. | Capacitance150 pF | Capacitance±10% | Rated Voltage250 V (AC) | Size1808 | Operating Temperature -55 °C up to +125 °C | Safety ClassX2 | Impulse Voltage2500 V (DC) | Dissipation Factor2.5 % | Insulation Resistance10 GΩ | Ceramic TypeX7R Class II | Length4.5 mm | Width2 mm | Height1.6 mm | Pad Dimension0.5 mm | Packaging7" Tape & Reel | Design Kit – | |||
8853620100181 | SPEC | Status Activei| Production is active. Expected lifetime: >10 years. | Capacitance220 pF | Capacitance±5% | Rated Voltage250 V (AC) | Size1808 | Operating Temperature -55 °C up to +125 °C | Safety ClassX2 | Impulse Voltage2500 V (DC) | Dissipation Factor0.1 % | Insulation Resistance100 GΩ | Ceramic TypeNP0 Class I | Length4.5 mm | Width2 mm | Height2 mm | Pad Dimension0.5 mm | Packaging7" Tape & Reel | Design Kit | |||
8853522110011 | SPEC | Status Activei| Production is active. Expected lifetime: >10 years. | Capacitance470 pF | Capacitance±10% | Rated Voltage250 V (AC) | Size1812 | Operating Temperature -55 °C up to +125 °C | Safety ClassX1 / Y2 | Impulse Voltage5000 V (DC) | Dissipation Factor2.5 % | Insulation Resistance10 GΩ | Ceramic TypeX7R Class II | Length4.5 mm | Width3.2 mm | Height1.6 mm | Pad Dimension0.5 mm | Packaging7" Tape & Reel | Design Kit | |||
8853622100091 | SPEC | Status Activei| Production is active. Expected lifetime: >10 years. | Capacitance470 pF | Capacitance±10% | Rated Voltage250 V (AC) | Size1808 | Operating Temperature -55 °C up to +125 °C | Safety ClassX2 | Impulse Voltage2500 V (DC) | Dissipation Factor2.5 % | Insulation Resistance10 GΩ | Ceramic TypeX7R Class II | Length4.5 mm | Width2 mm | Height1.6 mm | Pad Dimension0.5 mm | Packaging7" Tape & Reel | Design Kit | |||
8853522110021 | SPEC | Status Activei| Production is active. Expected lifetime: >10 years. | Capacitance680 pF | Capacitance±10% | Rated Voltage250 V (AC) | Size1812 | Operating Temperature -55 °C up to +125 °C | Safety ClassX1 / Y2 | Impulse Voltage5000 V (DC) | Dissipation Factor2.5 % | Insulation Resistance10 GΩ | Ceramic TypeX7R Class II | Length4.5 mm | Width3.2 mm | Height2 mm | Pad Dimension0.5 mm | Packaging7" Tape & Reel | ||||
8853622100131 | SPEC | Status Activei| Production is active. Expected lifetime: >10 years. | Capacitance680 pF | Capacitance±10% | Rated Voltage250 V (AC) | Size1808 | Operating Temperature -55 °C up to +125 °C | Safety ClassX2 | Impulse Voltage2500 V (DC) | Dissipation Factor2.5 % | Insulation Resistance10 GΩ | Ceramic TypeX7R Class II | Length4.5 mm | Width2 mm | Height1.6 mm | Pad Dimension0.5 mm | Packaging7" Tape & Reel | Design Kit | |||
8853522100131 | SPEC | Status Activei| Production is active. Expected lifetime: >10 years. | Capacitance1 nF | Capacitance±10% | Rated Voltage250 V (AC) | Size1808 | Operating Temperature -55 °C up to +125 °C | Safety ClassX1 / Y2 | Impulse Voltage5000 V (DC) | Dissipation Factor2.5 % | Insulation Resistance10 GΩ | Ceramic TypeX7R Class II | Length4.5 mm | Width2 mm | Height2 mm | Pad Dimension0.5 mm | Packaging7" Tape & Reel | Design Kit | |||
8853522110031 | SPEC | Status Activei| Production is active. Expected lifetime: >10 years. | Capacitance1 nF | Capacitance±10% | Rated Voltage250 V (AC) | Size1812 | Operating Temperature -55 °C up to +125 °C | Safety ClassX1 / Y2 | Impulse Voltage5000 V (DC) | Dissipation Factor2.5 % | Insulation Resistance10 GΩ | Ceramic TypeX7R Class II | Length4.5 mm | Width3.2 mm | Height2.5 mm | Pad Dimension0.5 mm | Packaging7" Tape & Reel | ||||
8853522130111 | SPEC | Status Activei| Production is active. Expected lifetime: >10 years. | Capacitance1 nF | Capacitance±10% | Rated Voltage250 V (AC) | Size2211 | Operating Temperature -55 °C up to +125 °C | Safety ClassX1 / Y2 | Impulse Voltage5000 V (DC) | Dissipation Factor2.5 % | Insulation Resistance10 GΩ | Ceramic TypeX7R Class II | Length5.7 mm | Width2.8 mm | Height2.5 mm | Pad Dimension0.6 mm | Packaging7" Tape & Reel | ||||
8853622100171 | SPEC | Status Activei| Production is active. Expected lifetime: >10 years. | Capacitance1 nF | Capacitance±10% | Rated Voltage250 V (AC) | Size1808 | Operating Temperature -55 °C up to +125 °C | Safety ClassX2 | Impulse Voltage2500 V (DC) | Dissipation Factor2.5 % | Insulation Resistance10 GΩ | Ceramic TypeX7R Class II | Length4.5 mm | Width2 mm | Height2 mm | Pad Dimension0.5 mm | Packaging7" Tape & Reel | Design Kit – | |||
8853622110111 | SPEC | Status Activei| Production is active. Expected lifetime: >10 years. | Capacitance1 nF | Capacitance±10% | Rated Voltage250 V (AC) | Size1812 | Operating Temperature -55 °C up to +125 °C | Safety ClassX2 | Impulse Voltage2500 V (DC) | Dissipation Factor2.5 % | Insulation Resistance10 GΩ | Ceramic TypeX7R Class II | Length4.5 mm | Width3.2 mm | Height1.6 mm | Pad Dimension0.5 mm | Packaging7" Tape & Reel | Design Kit | |||
8853522130151 | SPEC | Status Activei| Production is active. Expected lifetime: >10 years. | Capacitance2.2 nF | Capacitance±10% | Rated Voltage250 V (AC) | Size2211 | Operating Temperature -55 °C up to +125 °C | Safety ClassX1 / Y2 | Impulse Voltage5000 V (DC) | Dissipation Factor2.5 % | Insulation Resistance10 GΩ | Ceramic TypeX7R Class II | Length5.7 mm | Width2.8 mm | Height2.5 mm | Pad Dimension0.6 mm | Packaging7" Tape & Reel | ||||
8853622110151 | SPEC | Status Activei| Production is active. Expected lifetime: >10 years. | Capacitance2.2 nF | Capacitance±10% | Rated Voltage250 V (AC) | Size1812 | Operating Temperature -55 °C up to +125 °C | Safety ClassX2 | Impulse Voltage2500 V (DC) | Dissipation Factor2.5 % | Insulation Resistance10 GΩ | Ceramic TypeX7R Class II | Length4.5 mm | Width3.2 mm | Height2.5 mm | Pad Dimension0.5 mm | Packaging7" Tape & Reel | Design Kit | |||
8853522140011 | SPEC | Status Activei| Production is active. Expected lifetime: >10 years. | Capacitance4.7 nF | Capacitance±10% | Rated Voltage250 V (AC) | Size2220 | Operating Temperature -55 °C up to +125 °C | Safety ClassX1 / Y2 | Impulse Voltage5000 V (DC) | Dissipation Factor2.5 % | Insulation Resistance10 GΩ | Ceramic TypeX7R Class II | Length5.7 mm | Width5 mm | Height2.5 mm | Pad Dimension0.6 mm | Packaging7" Tape & Reel | Design Kit |
Assortments
Articles from this product series can be found in the following assortments:
