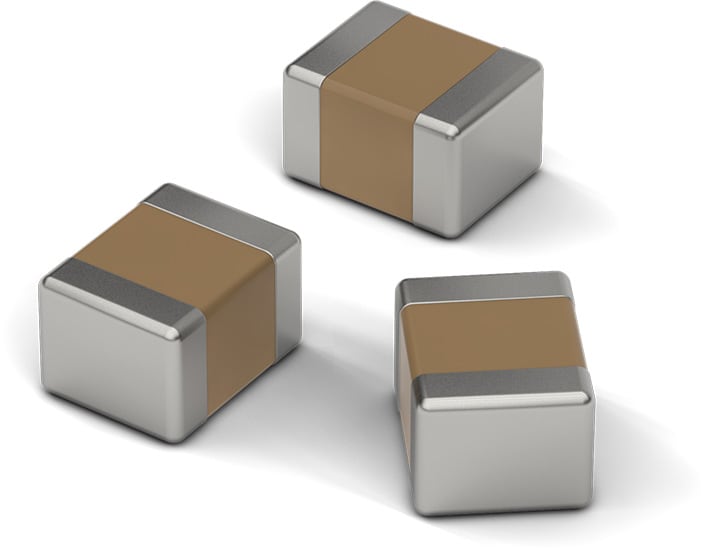

WCAP-CSMH Mid and High Voltage
Mid and High Voltage
LTSpice files
Characteristics
- Product series for mid and high voltage up to 3 kV(DC)
- Mounting style: SMT-Chip
- Ceramic: NP0 (Class I), X7R (Class II)
- Temperature Coefficient:
±30 ppm/°C; ±0.54 % for NP0
±15 % for X7R - Termination: Cu/Ni/Sn
- Recommended soldering: Reflow soldering
- Wave soldering only valid for 0603, 0805; thickness < 0.85 mm
- Reference Designs
- RD006 3 W Dual-output isolated auxiliary supply for communication interfaces and measurement systems
Applications
- Ports protection against EFT and surge
- Blocking
- High voltage coupling
- Snubber
Application Notes
- ANP062 LC Filter Design With MLCCs: Why The Applied Voltage Matters
- ANP085 Single Pair Ethernet for Industrial Applications
- ANP098 Effect of layout, vias and design on the blocking quality of filter capacitors
- ANP109 Impedance Spectra of Different Capacitor Technologies
- ANP117 Impact of output capacitor on feedback loop stability of a power supply
- ANP123 Long- and Short-Term Voltage Dependence of Ferroelectric Class 2 MLCCs
- ANS018 EMI Filter Design for Non-Isolated DC/DC Converters
- SN011 Why does the capacity of MLCCs change
Products
All
0603
0805
1206
1210
1808
1812
2220
Filter by
show
in
article
in
7 product lines
Reset all
|
Order Code
|
Datasheet
|
Simulation
|
Downloads
|
Status
|
C
|
Tol. C
|
VR
(V (DC))
|
Size
|
Qmin.
|
DF
(%)
|
RISO
|
Ceramic Type
|
L
(mm)
|
W
(mm)
|
H
(mm)
|
Fl
(mm)
|
Packaging
|
Design Kit
|
Samples
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
885342009004
|
10 pF, ±5%, 2000 V (DC) |
Downloads
8 files
|
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Capacitance
10
pF
|
Capacitance
±5%
|
Rated Voltage
2000 V (DC)
|
Size
1210
|
Q-Factor [1]
600
|
–
|
Insulation Resistance
10
GΩ
|
Ceramic Type
NP0 Class I
|
Length
3.2 mm
|
Width
2.5 mm
|
Height
0.95 mm
|
Pad Dimension
0.75 mm
|
Packaging
7" Tape & Reel
|
Design Kit
|
|
|
|
885342010001
|
10 pF, ±5%, 3000 V (DC) |
Downloads
8 files
|
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Capacitance
10
pF
|
Capacitance
±5%
|
Rated Voltage
3000 V (DC)
|
Size
1808
|
Q-Factor [1]
600
|
–
|
Insulation Resistance
10
GΩ
|
Ceramic Type
NP0 Class I
|
Length
4.5 mm
|
Width
2.03 mm
|
Height
1.25 mm
|
Pad Dimension
0.5 mm
|
Packaging
7" Tape & Reel
|
Design Kit
|
|
|
|
885342006001
|
10 pF, ±5%, 250 V (DC) |
Downloads
8 files
|
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Capacitance
10
pF
|
Capacitance
±5%
|
Rated Voltage
250 V (DC)
|
Size
0603
|
Q-Factor [1]
600
|
–
|
Insulation Resistance
10
GΩ
|
Ceramic Type
NP0 Class I
|
Length
1.6 mm
|
Width
0.8 mm
|
Height
0.8 mm
|
Pad Dimension
0.4 mm
|
Packaging
7" Tape & Reel
|
Design Kit
|
|
|
|
885342007004
|
15 pF, ±5%, 250 V (DC) |
Downloads
8 files
|
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Capacitance
15
pF
|
Capacitance
±5%
|
Rated Voltage
250 V (DC)
|
Size
0805
|
Q-Factor [1]
700
|
–
|
Insulation Resistance
10
GΩ
|
Ceramic Type
NP0 Class I
|
Length
2 mm
|
Width
1.25 mm
|
Height
0.6 mm
|
Pad Dimension
0.5 mm
|
Packaging
7" Tape & Reel
|
Design Kit
–
|
|
|
|
885342009002
|
22 pF, ±5%, 1000 V (DC) |
Downloads
8 files
|
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Capacitance
22
pF
|
Capacitance
±5%
|
Rated Voltage
1000 V (DC)
|
Size
1210
|
Q-Factor [1]
840
|
–
|
Insulation Resistance
10
GΩ
|
Ceramic Type
NP0 Class I
|
Length
3.2 mm
|
Width
2.5 mm
|
Height
0.95 mm
|
Pad Dimension
0.75 mm
|
Packaging
7" Tape & Reel
|
Design Kit
|
|
|
|
885342008008
|
22 pF, ±5%, 1000 V (DC) |
Downloads
8 files
|
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Capacitance
22
pF
|
Capacitance
±5%
|
Rated Voltage
1000 V (DC)
|
Size
1206
|
Q-Factor [1]
840
|
–
|
Insulation Resistance
10
GΩ
|
Ceramic Type
NP0 Class I
|
Length
3.2 mm
|
Width
1.6 mm
|
Height
0.8 mm
|
Pad Dimension
0.6 mm
|
Packaging
7" Tape & Reel
|
Design Kit
|
|
|
|
885342006002
|
33 pF, ±5%, 250 V (DC) |
Downloads
8 files
|
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Capacitance
33
pF
|
Capacitance
±5%
|
Rated Voltage
250 V (DC)
|
Size
0603
|
Q-Factor [1]
1000
|
–
|
Insulation Resistance
10
GΩ
|
Ceramic Type
NP0 Class I
|
Length
1.6 mm
|
Width
0.8 mm
|
Height
0.8 mm
|
Pad Dimension
0.4 mm
|
Packaging
7" Tape & Reel
|
Design Kit
–
|
|
|
|
885342007006
|
47 pF, ±5%, 500 V (DC) |
Downloads
8 files
|
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Capacitance
47
pF
|
Capacitance
±5%
|
Rated Voltage
500 V (DC)
|
Size
0805
|
Q-Factor [1]
1000
|
–
|
Insulation Resistance
10
GΩ
|
Ceramic Type
NP0 Class I
|
Length
2 mm
|
Width
1.25 mm
|
Height
0.6 mm
|
Pad Dimension
0.5 mm
|
Packaging
7" Tape & Reel
|
Design Kit
|
|
|
|
885342008001
|
47 pF, ±5%, 500 V (DC) |
Downloads
8 files
|
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Capacitance
47
pF
|
Capacitance
±5%
|
Rated Voltage
500 V (DC)
|
Size
1206
|
Q-Factor [1]
1000
|
–
|
Insulation Resistance
10
GΩ
|
Ceramic Type
NP0 Class I
|
Length
3.2 mm
|
Width
1.6 mm
|
Height
0.8 mm
|
Pad Dimension
0.6 mm
|
Packaging
7" Tape & Reel
|
Design Kit
|
|
|
|
885342010002
|
68 pF, ±5%, 3000 V (DC) |
Downloads
8 files
|
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Capacitance
68
pF
|
Capacitance
±5%
|
Rated Voltage
3000 V (DC)
|
Size
1808
|
Q-Factor [1]
1000
|
–
|
Insulation Resistance
10
GΩ
|
Ceramic Type
NP0 Class I
|
Length
4.5 mm
|
Width
2.03 mm
|
Height
1.25 mm
|
Pad Dimension
0.5 mm
|
Packaging
7" Tape & Reel
|
Design Kit
|
|
|
|
885342008010
|
68 pF, ±5%, 2000 V (DC) |
Downloads
8 files
|
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Capacitance
68
pF
|
Capacitance
±5%
|
Rated Voltage
2000 V (DC)
|
Size
1206
|
Q-Factor [1]
1000
|
–
|
Insulation Resistance
10
GΩ
|
Ceramic Type
NP0 Class I
|
Length
3.2 mm
|
Width
1.6 mm
|
Height
1.25 mm
|
Pad Dimension
0.6 mm
|
Packaging
7" Tape & Reel
|
Design Kit
|
|
|
|
885342206001
|
100 pF, ±10%, 250 V (DC) |
Downloads
8 files
|
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Capacitance
100
pF
|
Capacitance
±10%
|
Rated Voltage
250 V (DC)
|
Size
0603
|
–
|
Dissipation Factor
2.5 %
|
Insulation Resistance
10
GΩ
|
Ceramic Type
X7R Class II
|
Length
1.6 mm
|
Width
0.8 mm
|
Height
0.8 mm
|
Pad Dimension
0.4 mm
|
Packaging
7" Tape & Reel
|
Design Kit
|
|
|
|
885342207001
|
100 pF, ±10%, 200 V (DC) |
Downloads
8 files
|
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Capacitance
100
pF
|
Capacitance
±10%
|
Rated Voltage
200 V (DC)
|
Size
0805
|
–
|
Dissipation Factor
2.5 %
|
Insulation Resistance
10
GΩ
|
Ceramic Type
X7R Class II
|
Length
2 mm
|
Width
1.25 mm
|
Height
0.8 mm
|
Pad Dimension
0.5 mm
|
Packaging
7" Tape & Reel
|
Design Kit
–
|
|
|
|
885342207015
|
100 pF, ±10%, 1000 V (DC) |
Downloads
8 files
|
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Capacitance
100
pF
|
Capacitance
±10%
|
Rated Voltage
1000 V (DC)
|
Size
0805
|
–
|
Dissipation Factor
2.5 %
|
Insulation Resistance
10
GΩ
|
Ceramic Type
X7R Class II
|
Length
2 mm
|
Width
1.25 mm
|
Height
1.25 mm
|
Pad Dimension
0.5 mm
|
Packaging
7" Tape & Reel
|
Design Kit
|
|
|
|
885342008004
|
100 pF, ±5%, 630 V (DC) |
Downloads
8 files
|
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Capacitance
100
pF
|
Capacitance
±5%
|
Rated Voltage
630 V (DC)
|
Size
1206
|
Q-Factor [1]
1000
|
–
|
Insulation Resistance
10
GΩ
|
Ceramic Type
NP0 Class I
|
Length
3.2 mm
|
Width
1.6 mm
|
Height
0.8 mm
|
Pad Dimension
0.6 mm
|
Packaging
7" Tape & Reel
|
Design Kit
|
|
|
|
885342008011
|
100 pF, ±5%, 2000 V (DC) |
Downloads
8 files
|
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Capacitance
100
pF
|
Capacitance
±5%
|
Rated Voltage
2000 V (DC)
|
Size
1206
|
Q-Factor [1]
1000
|
–
|
Insulation Resistance
10
GΩ
|
Ceramic Type
NP0 Class I
|
Length
3.2 mm
|
Width
1.6 mm
|
Height
1.25 mm
|
Pad Dimension
0.6 mm
|
Packaging
7" Tape & Reel
|
Design Kit
|
|
|
|
885342208022
|
100 pF, ±10%, 2000 V (DC) |
Downloads
8 files
|
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Capacitance
100
pF
|
Capacitance
±10%
|
Rated Voltage
2000 V (DC)
|
Size
1206
|
–
|
Dissipation Factor
2.5 %
|
Insulation Resistance
10
GΩ
|
Ceramic Type
X7R Class II
|
Length
3.2 mm
|
Width
1.6 mm
|
Height
1.25 mm
|
Pad Dimension
0.6 mm
|
Packaging
7" Tape & Reel
|
Design Kit
|
|
|
|
885342010003
|
100 pF, ±5%, 3000 V (DC) |
Downloads
8 files
|
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Capacitance
100
pF
|
Capacitance
±5%
|
Rated Voltage
3000 V (DC)
|
Size
1808
|
Q-Factor [1]
1000
|
–
|
Insulation Resistance
10
GΩ
|
Ceramic Type
NP0 Class I
|
Length
4.5 mm
|
Width
2.03 mm
|
Height
2 mm
|
Pad Dimension
0.5 mm
|
Packaging
7" Tape & Reel
|
Design Kit
|
|
|
|
885342006003
|
100 pF, ±5%, 250 V (DC) |
Downloads
8 files
|
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Capacitance
100
pF
|
Capacitance
±5%
|
Rated Voltage
250 V (DC)
|
Size
0603
|
Q-Factor [1]
1000
|
–
|
Insulation Resistance
10
GΩ
|
Ceramic Type
NP0 Class I
|
Length
1.6 mm
|
Width
0.8 mm
|
Height
0.8 mm
|
Pad Dimension
0.4 mm
|
Packaging
7" Tape & Reel
|
Design Kit
|
|
|
|
885342008009
|
100 pF, ±5%, 1000 V (DC) |
Downloads
8 files
|
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Capacitance
100
pF
|
Capacitance
±5%
|
Rated Voltage
1000 V (DC)
|
Size
1206
|
Q-Factor [1]
1000
|
–
|
Insulation Resistance
10
GΩ
|
Ceramic Type
NP0 Class I
|
Length
3.2 mm
|
Width
1.6 mm
|
Height
1.25 mm
|
Pad Dimension
0.6 mm
|
Packaging
7" Tape & Reel
|
Design Kit
|
|
|
|
885342011002
|
100 pF, ±5%, 1000 V (DC) |
Downloads
8 files
|
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Capacitance
100
pF
|
Capacitance
±5%
|
Rated Voltage
1000 V (DC)
|
Size
1812
|
Q-Factor [1]
1000
|
–
|
Insulation Resistance
10
GΩ
|
Ceramic Type
NP0 Class I
|
Length
4.5 mm
|
Width
3.2 mm
|
Height
1.25 mm
|
Pad Dimension
0.5 mm
|
Packaging
7" Tape & Reel
|
Design Kit
|
|
|
|
885342014230
|
100 pF, ±5%, 2000 V (DC) |
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Capacitance
100
pF
|
Capacitance
±5%
|
Rated Voltage
2000 V (DC)
|
Size
2220
|
–
|
Dissipation Factor
1000 %
|
Insulation Resistance
10
GΩ
|
Ceramic Type
NP0 Class I
|
Length
5.7 mm
|
Width
5 mm
|
Height
2 mm
|
Pad Dimension
0.85 mm
|
Packaging
7" Tape & Reel
|
Design Kit
–
|
|
||
|
885342208016
|
150 pF, ±10%, 1000 V (DC) |
Downloads
8 files
|
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Capacitance
150
pF
|
Capacitance
±10%
|
Rated Voltage
1000 V (DC)
|
Size
1206
|
–
|
Dissipation Factor
2.5 %
|
Insulation Resistance
10
GΩ
|
Ceramic Type
X7R Class II
|
Length
3.2 mm
|
Width
1.6 mm
|
Height
1.25 mm
|
Pad Dimension
0.6 mm
|
Packaging
7" Tape & Reel
|
Design Kit
|
|
|
|
885342009005
|
220 pF, ±5%, 2000 V (DC) |
Downloads
8 files
|
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Capacitance
220
pF
|
Capacitance
±5%
|
Rated Voltage
2000 V (DC)
|
Size
1210
|
Q-Factor [1]
1000
|
–
|
Insulation Resistance
10
GΩ
|
Ceramic Type
NP0 Class I
|
Length
3.2 mm
|
Width
2.5 mm
|
Height
1.6 mm
|
Pad Dimension
0.75 mm
|
Packaging
7" Tape & Reel
|
Design Kit
|
|
|
|
885342209008
|
220 pF, ±10%, 2000 V (DC) |
Downloads
8 files
|
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Capacitance
220
pF
|
Capacitance
±10%
|
Rated Voltage
2000 V (DC)
|
Size
1210
|
–
|
Dissipation Factor
2.5 %
|
Insulation Resistance
10
GΩ
|
Ceramic Type
X7R Class II
|
Length
3.2 mm
|
Width
2.5 mm
|
Height
1.25 mm
|
Pad Dimension
0.75 mm
|
Packaging
7" Tape & Reel
|
Design Kit
|
|
|
|
885342006004
|
220 pF, ±5%, 250 V (DC) |
Downloads
8 files
|
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Capacitance
220
pF
|
Capacitance
±5%
|
Rated Voltage
250 V (DC)
|
Size
0603
|
Q-Factor [1]
1000
|
–
|
Insulation Resistance
10
GΩ
|
Ceramic Type
NP0 Class I
|
Length
1.6 mm
|
Width
0.8 mm
|
Height
0.8 mm
|
Pad Dimension
0.4 mm
|
Packaging
7" Tape & Reel
|
Design Kit
–
|
|
|
|
885342007001
|
220 pF, ±5%, 200 V (DC) |
Downloads
8 files
|
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Capacitance
220
pF
|
Capacitance
±5%
|
Rated Voltage
200 V (DC)
|
Size
0805
|
Q-Factor [1]
1000
|
–
|
Insulation Resistance
10
GΩ
|
Ceramic Type
NP0 Class I
|
Length
2 mm
|
Width
1.25 mm
|
Height
1.25 mm
|
Pad Dimension
0.5 mm
|
Packaging
7" Tape & Reel
|
Design Kit
–
|
|
|
|
885342008002
|
220 pF, ±5%, 500 V (DC) |
Downloads
8 files
|
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Capacitance
220
pF
|
Capacitance
±5%
|
Rated Voltage
500 V (DC)
|
Size
1206
|
Q-Factor [1]
1000
|
–
|
Insulation Resistance
10
GΩ
|
Ceramic Type
NP0 Class I
|
Length
3.2 mm
|
Width
1.6 mm
|
Height
0.8 mm
|
Pad Dimension
0.6 mm
|
Packaging
7" Tape & Reel
|
Design Kit
–
|
|
|
|
885342007002
|
330 pF, ±5%, 200 V (DC) |
Downloads
8 files
|
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Capacitance
330
pF
|
Capacitance
±5%
|
Rated Voltage
200 V (DC)
|
Size
0805
|
Q-Factor [1]
1000
|
–
|
Insulation Resistance
10
GΩ
|
Ceramic Type
NP0 Class I
|
Length
2 mm
|
Width
1.25 mm
|
Height
1.25 mm
|
Pad Dimension
0.5 mm
|
Packaging
7" Tape & Reel
|
Design Kit
–
|
|
|
|
885342206002
|
330 pF, ±10%, 250 V (DC) |
Downloads
8 files
|
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Capacitance
330
pF
|
Capacitance
±10%
|
Rated Voltage
250 V (DC)
|
Size
0603
|
–
|
Dissipation Factor
2.5 %
|
Insulation Resistance
10
GΩ
|
Ceramic Type
X7R Class II
|
Length
1.6 mm
|
Width
0.8 mm
|
Height
0.8 mm
|
Pad Dimension
0.4 mm
|
Packaging
7" Tape & Reel
|
Design Kit
–
|
|
|
|
885342006005
|
470 pF, ±5%, 250 V (DC) |
Downloads
8 files
|
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Capacitance
470
pF
|
Capacitance
±5%
|
Rated Voltage
250 V (DC)
|
Size
0603
|
Q-Factor [1]
1000
|
–
|
Insulation Resistance
10
GΩ
|
Ceramic Type
NP0 Class I
|
Length
1.6 mm
|
Width
0.8 mm
|
Height
0.8 mm
|
Pad Dimension
0.4 mm
|
Packaging
7" Tape & Reel
|
Design Kit
|
|
|
|
885342207002
|
470 pF, ±10%, 200 V (DC) |
Downloads
8 files
|
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Capacitance
470
pF
|
Capacitance
±10%
|
Rated Voltage
200 V (DC)
|
Size
0805
|
–
|
Dissipation Factor
2.5 %
|
Insulation Resistance
10
GΩ
|
Ceramic Type
X7R Class II
|
Length
2 mm
|
Width
1.25 mm
|
Height
0.8 mm
|
Pad Dimension
0.5 mm
|
Packaging
7" Tape & Reel
|
Design Kit
–
|
|
|
|
885342207007
|
470 pF, ±10%, 250 V (DC) |
Downloads
8 files
|
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Capacitance
470
pF
|
Capacitance
±10%
|
Rated Voltage
250 V (DC)
|
Size
0805
|
–
|
Dissipation Factor
2.5 %
|
Insulation Resistance
10
GΩ
|
Ceramic Type
X7R Class II
|
Length
2 mm
|
Width
1.25 mm
|
Height
0.8 mm
|
Pad Dimension
0.5 mm
|
Packaging
7" Tape & Reel
|
Design Kit
–
|
|
|
|
885342207012
|
470 pF, ±10%, 500 V (DC) |
Downloads
8 files
|
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Capacitance
470
pF
|
Capacitance
±10%
|
Rated Voltage
500 V (DC)
|
Size
0805
|
–
|
Dissipation Factor
2.5 %
|
Insulation Resistance
10
GΩ
|
Ceramic Type
X7R Class II
|
Length
2 mm
|
Width
1.25 mm
|
Height
0.8 mm
|
Pad Dimension
0.5 mm
|
Packaging
7" Tape & Reel
|
Design Kit
|
|
|
|
885342208017
|
470 pF, ±10%, 1000 V (DC) |
Downloads
8 files
|
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Capacitance
470
pF
|
Capacitance
±10%
|
Rated Voltage
1000 V (DC)
|
Size
1206
|
–
|
Dissipation Factor
2.5 %
|
Insulation Resistance
10
GΩ
|
Ceramic Type
X7R Class II
|
Length
3.2 mm
|
Width
1.6 mm
|
Height
1.25 mm
|
Pad Dimension
0.6 mm
|
Packaging
7" Tape & Reel
|
Design Kit
|
|
|
|
885342208023
|
470 pF, ±10%, 2000 V (DC) |
Downloads
8 files
|
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Capacitance
470
pF
|
Capacitance
±10%
|
Rated Voltage
2000 V (DC)
|
Size
1206
|
–
|
Dissipation Factor
2.5 %
|
Insulation Resistance
10
GΩ
|
Ceramic Type
X7R Class II
|
Length
3.2 mm
|
Width
1.6 mm
|
Height
1.25 mm
|
Pad Dimension
0.6 mm
|
Packaging
7" Tape & Reel
|
Design Kit
|
|
|
|
885342210003
|
470 pF, ±10%, 3000 V (DC) |
Downloads
8 files
|
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Capacitance
470
pF
|
Capacitance
±10%
|
Rated Voltage
3000 V (DC)
|
Size
1808
|
–
|
Dissipation Factor
2.5 %
|
Insulation Resistance
10
GΩ
|
Ceramic Type
X7R Class II
|
Length
4.5 mm
|
Width
2.03 mm
|
Height
2 mm
|
Pad Dimension
0.5 mm
|
Packaging
7" Tape & Reel
|
Design Kit
|
|
|
|
885342208005
|
470 pF, ±10%, 500 V (DC) |
Downloads
8 files
|
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Capacitance
470
pF
|
Capacitance
±10%
|
Rated Voltage
500 V (DC)
|
Size
1206
|
–
|
Dissipation Factor
2.5 %
|
Insulation Resistance
10
GΩ
|
Ceramic Type
X7R Class II
|
Length
3.2 mm
|
Width
1.6 mm
|
Height
1.25 mm
|
Pad Dimension
0.6 mm
|
Packaging
7" Tape & Reel
|
Design Kit
|
|
|
|
885342210001
|
1 nF, ±10%, 2000 V (DC) |
Downloads
9 files
RF & Microwave simulation models
Download all 9 files as zip archive
|
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Capacitance
1
nF
|
Capacitance
±10%
|
Rated Voltage
2000 V (DC)
|
Size
1808
|
–
|
Dissipation Factor
2.5 %
|
Insulation Resistance
10
GΩ
|
Ceramic Type
X7R Class II
|
Length
4.5 mm
|
Width
2.03 mm
|
Height
1.25 mm
|
Pad Dimension
0.5 mm
|
Packaging
7" Tape & Reel
|
Design Kit
|
|
|
|
885342206003
|
1 nF, ±10%, 250 V (DC) |
Downloads
8 files
|
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Capacitance
1
nF
|
Capacitance
±10%
|
Rated Voltage
250 V (DC)
|
Size
0603
|
–
|
Dissipation Factor
2.5 %
|
Insulation Resistance
10
GΩ
|
Ceramic Type
X7R Class II
|
Length
1.6 mm
|
Width
0.8 mm
|
Height
0.8 mm
|
Pad Dimension
0.4 mm
|
Packaging
7" Tape & Reel
|
Design Kit
|
|
|
|
885342007003
|
1 nF, ±5%, 200 V (DC) |
Downloads
8 files
|
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Capacitance
1
nF
|
Capacitance
±5%
|
Rated Voltage
200 V (DC)
|
Size
0805
|
Q-Factor [1]
1000
|
–
|
Insulation Resistance
10
GΩ
|
Ceramic Type
NP0 Class I
|
Length
2 mm
|
Width
1.25 mm
|
Height
1.25 mm
|
Pad Dimension
0.5 mm
|
Packaging
7" Tape & Reel
|
Design Kit
|
|
|
|
885342207003
|
1 nF, ±10%, 200 V (DC) |
Downloads
8 files
|
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Capacitance
1
nF
|
Capacitance
±10%
|
Rated Voltage
200 V (DC)
|
Size
0805
|
–
|
Dissipation Factor
2.5 %
|
Insulation Resistance
10
GΩ
|
Ceramic Type
X7R Class II
|
Length
2 mm
|
Width
1.25 mm
|
Height
0.8 mm
|
Pad Dimension
0.5 mm
|
Packaging
7" Tape & Reel
|
Design Kit
–
|
|
|
|
885342207008
|
1 nF, ±10%, 250 V (DC) |
Downloads
8 files
|
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Capacitance
1
nF
|
Capacitance
±10%
|
Rated Voltage
250 V (DC)
|
Size
0805
|
–
|
Dissipation Factor
2.5 %
|
Insulation Resistance
10
GΩ
|
Ceramic Type
X7R Class II
|
Length
2 mm
|
Width
1.25 mm
|
Height
0.8 mm
|
Pad Dimension
0.5 mm
|
Packaging
7" Tape & Reel
|
Design Kit
–
|
|
|
|
885342207013
|
1 nF, ±10%, 500 V (DC) |
Downloads
8 files
|
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Capacitance
1
nF
|
Capacitance
±10%
|
Rated Voltage
500 V (DC)
|
Size
0805
|
–
|
Dissipation Factor
2.5 %
|
Insulation Resistance
10
GΩ
|
Ceramic Type
X7R Class II
|
Length
2 mm
|
Width
1.25 mm
|
Height
0.8 mm
|
Pad Dimension
0.5 mm
|
Packaging
7" Tape & Reel
|
Design Kit
|
|
|
|
885342008003
|
1 nF, ±5%, 500 V (DC) |
Downloads
8 files
|
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Capacitance
1
nF
|
Capacitance
±5%
|
Rated Voltage
500 V (DC)
|
Size
1206
|
Q-Factor [1]
1000
|
–
|
Insulation Resistance
10
GΩ
|
Ceramic Type
NP0 Class I
|
Length
3.2 mm
|
Width
1.6 mm
|
Height
1.6 mm
|
Pad Dimension
0.6 mm
|
Packaging
7" Tape & Reel
|
Design Kit
–
|
|
|
|
885342008005
|
1 nF, ±5%, 630 V (DC) |
Downloads
8 files
|
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Capacitance
1
nF
|
Capacitance
±5%
|
Rated Voltage
630 V (DC)
|
Size
1206
|
Q-Factor [1]
1000
|
–
|
Insulation Resistance
10
GΩ
|
Ceramic Type
NP0 Class I
|
Length
3.2 mm
|
Width
1.6 mm
|
Height
1.6 mm
|
Pad Dimension
0.6 mm
|
Packaging
7" Tape & Reel
|
Design Kit
–
|
|
|
|
885342208006
|
1 nF, ±10%, 500 V (DC) |
Downloads
8 files
|
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Capacitance
1
nF
|
Capacitance
±10%
|
Rated Voltage
500 V (DC)
|
Size
1206
|
–
|
Dissipation Factor
2.5 %
|
Insulation Resistance
10
GΩ
|
Ceramic Type
X7R Class II
|
Length
3.2 mm
|
Width
1.6 mm
|
Height
1.25 mm
|
Pad Dimension
0.6 mm
|
Packaging
7" Tape & Reel
|
Design Kit
–
|
|
|
|
885342208018
|
1 nF, ±10%, 1000 V (DC) |
Downloads
8 files
|
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Capacitance
1
nF
|
Capacitance
±10%
|
Rated Voltage
1000 V (DC)
|
Size
1206
|
–
|
Dissipation Factor
2.5 %
|
Insulation Resistance
10
GΩ
|
Ceramic Type
X7R Class II
|
Length
3.2 mm
|
Width
1.6 mm
|
Height
1.25 mm
|
Pad Dimension
0.6 mm
|
Packaging
7" Tape & Reel
|
Design Kit
|
|
|
|
885342208024
|
1 nF, ±10%, 2000 V (DC) |
Downloads
8 files
|
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Capacitance
1
nF
|
Capacitance
±10%
|
Rated Voltage
2000 V (DC)
|
Size
1206
|
–
|
Dissipation Factor
2.5 %
|
Insulation Resistance
10
GΩ
|
Ceramic Type
X7R Class II
|
Length
3.2 mm
|
Width
1.6 mm
|
Height
1.6 mm
|
Pad Dimension
0.6 mm
|
Packaging
7" Tape & Reel
|
Design Kit
|
|
|
|
885342009003
|
1 nF, ±5%, 1000 V (DC) |
Downloads
8 files
|
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Capacitance
1
nF
|
Capacitance
±5%
|
Rated Voltage
1000 V (DC)
|
Size
1210
|
Q-Factor [1]
1000
|
–
|
Insulation Resistance
10
GΩ
|
Ceramic Type
NP0 Class I
|
Length
3.2 mm
|
Width
2.5 mm
|
Height
1.6 mm
|
Pad Dimension
0.75 mm
|
Packaging
7" Tape & Reel
|
Design Kit
|
|
|
|
885342209006
|
1 nF, ±10%, 1000 V (DC) |
Downloads
8 files
|
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Capacitance
1
nF
|
Capacitance
±10%
|
Rated Voltage
1000 V (DC)
|
Size
1210
|
–
|
Dissipation Factor
2.5 %
|
Insulation Resistance
10
GΩ
|
Ceramic Type
X7R Class II
|
Length
3.2 mm
|
Width
2.5 mm
|
Height
1.25 mm
|
Pad Dimension
0.75 mm
|
Packaging
7" Tape & Reel
|
Design Kit
|
|
|
|
885342209009
|
1 nF, ±10%, 2000 V (DC) |
Downloads
8 files
|
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Capacitance
1
nF
|
Capacitance
±10%
|
Rated Voltage
2000 V (DC)
|
Size
1210
|
–
|
Dissipation Factor
2.5 %
|
Insulation Resistance
10
GΩ
|
Ceramic Type
X7R Class II
|
Length
3.2 mm
|
Width
2.5 mm
|
Height
1.25 mm
|
Pad Dimension
0.75 mm
|
Packaging
7" Tape & Reel
|
Design Kit
|
|
|
|
885342210004
|
1 nF, ±10%, 3000 V (DC) |
Downloads
8 files
|
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Capacitance
1
nF
|
Capacitance
±10%
|
Rated Voltage
3000 V (DC)
|
Size
1808
|
–
|
Dissipation Factor
2.5 %
|
Insulation Resistance
10
GΩ
|
Ceramic Type
X7R Class II
|
Length
4.5 mm
|
Width
2.03 mm
|
Height
2 mm
|
Pad Dimension
0.5 mm
|
Packaging
7" Tape & Reel
|
Design Kit
|
|
|
|
885342011001
|
1 nF, ±5%, 500 V (DC) |
Downloads
8 files
|
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Capacitance
1
nF
|
Capacitance
±5%
|
Rated Voltage
500 V (DC)
|
Size
1812
|
Q-Factor [1]
1000
|
–
|
Insulation Resistance
10
GΩ
|
Ceramic Type
NP0 Class I
|
Length
4.5 mm
|
Width
3.2 mm
|
Height
1.25 mm
|
Pad Dimension
0.5 mm
|
Packaging
7" Tape & Reel
|
Design Kit
–
|
|
|
|
885342211009
|
1 nF, ±10%, 3000 V (DC) |
Downloads
8 files
|
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Capacitance
1
nF
|
Capacitance
±10%
|
Rated Voltage
3000 V (DC)
|
Size
1812
|
–
|
Dissipation Factor
2.5 %
|
Insulation Resistance
10
GΩ
|
Ceramic Type
X7R Class II
|
Length
4.5 mm
|
Width
3.2 mm
|
Height
2 mm
|
Pad Dimension
0.5 mm
|
Packaging
7" Tape & Reel
|
Design Kit
|
|
|
|
885342208011
|
1 nF, ±10%, 630 V (DC) |
Downloads
8 files
|
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Capacitance
1
nF
|
Capacitance
±10%
|
Rated Voltage
630 V (DC)
|
Size
1206
|
–
|
Dissipation Factor
2.5 %
|
Insulation Resistance
10
GΩ
|
Ceramic Type
X7R Class II
|
Length
3.2 mm
|
Width
1.6 mm
|
Height
1.25 mm
|
Pad Dimension
0.6 mm
|
Packaging
7" Tape & Reel
|
Design Kit
|
|
|
|
885342206004
|
1.5 nF, ±10%, 250 V (DC) |
Downloads
8 files
|
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Capacitance
1.5
nF
|
Capacitance
±10%
|
Rated Voltage
250 V (DC)
|
Size
0603
|
–
|
Dissipation Factor
2.5 %
|
Insulation Resistance
10
GΩ
|
Ceramic Type
X7R Class II
|
Length
1.6 mm
|
Width
0.8 mm
|
Height
0.8 mm
|
Pad Dimension
0.4 mm
|
Packaging
7" Tape & Reel
|
Design Kit
–
|
|
|
|
885342008006
|
1.5 nF, ±5%, 630 V (DC) |
Downloads
8 files
|
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Capacitance
1.5
nF
|
Capacitance
±5%
|
Rated Voltage
630 V (DC)
|
Size
1206
|
Q-Factor [1]
1000
|
–
|
Insulation Resistance
10
GΩ
|
Ceramic Type
NP0 Class I
|
Length
3.2 mm
|
Width
1.6 mm
|
Height
1.6 mm
|
Pad Dimension
0.6 mm
|
Packaging
7" Tape & Reel
|
Design Kit
–
|
|
|
|
885342011003
|
1.5 nF, ±5%, 1000 V (DC) |
Downloads
8 files
|
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Capacitance
1.5
nF
|
Capacitance
±5%
|
Rated Voltage
1000 V (DC)
|
Size
1812
|
Q-Factor [1]
1000
|
–
|
Insulation Resistance
10
GΩ
|
Ceramic Type
NP0 Class I
|
Length
4.5 mm
|
Width
3.2 mm
|
Height
2 mm
|
Pad Dimension
0.5 mm
|
Packaging
7" Tape & Reel
|
Design Kit
|
|
|
|
885342007005
|
2.2 nF, ±5%, 250 V (DC) |
Downloads
8 files
|
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Capacitance
2.2
nF
|
Capacitance
±5%
|
Rated Voltage
250 V (DC)
|
Size
0805
|
Q-Factor [1]
1000
|
–
|
Insulation Resistance
10
GΩ
|
Ceramic Type
NP0 Class I
|
Length
2 mm
|
Width
1.25 mm
|
Height
1.25 mm
|
Pad Dimension
0.5 mm
|
Packaging
7" Tape & Reel
|
Design Kit
|
|
|
|
885342008007
|
2.2 nF, ±5%, 630 V (DC) |
Downloads
8 files
|
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Capacitance
2.2
nF
|
Capacitance
±5%
|
Rated Voltage
630 V (DC)
|
Size
1206
|
Q-Factor [1]
1000
|
–
|
Insulation Resistance
10
GΩ
|
Ceramic Type
NP0 Class I
|
Length
3.2 mm
|
Width
1.6 mm
|
Height
1.6 mm
|
Pad Dimension
0.6 mm
|
Packaging
7" Tape & Reel
|
Design Kit
|
|
|
|
885342208019
|
2.2 nF, ±10%, 1000 V (DC) |
Downloads
8 files
|
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Capacitance
2.2
nF
|
Capacitance
±10%
|
Rated Voltage
1000 V (DC)
|
Size
1206
|
–
|
Dissipation Factor
2.5 %
|
Insulation Resistance
10
GΩ
|
Ceramic Type
X7R Class II
|
Length
3.2 mm
|
Width
1.6 mm
|
Height
1.25 mm
|
Pad Dimension
0.6 mm
|
Packaging
7" Tape & Reel
|
Design Kit
|
|
|
|
885342210002
|
2.2 nF, ±10%, 2000 V (DC) |
Downloads
8 files
|
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Capacitance
2.2
nF
|
Capacitance
±10%
|
Rated Voltage
2000 V (DC)
|
Size
1808
|
–
|
Dissipation Factor
2.5 %
|
Insulation Resistance
10
GΩ
|
Ceramic Type
X7R Class II
|
Length
4.5 mm
|
Width
2.03 mm
|
Height
2 mm
|
Pad Dimension
0.5 mm
|
Packaging
7" Tape & Reel
|
Design Kit
|
|
|
|
885342207016
|
2.2 nF, ±10%, 1000 V (DC) |
Downloads
8 files
|
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Capacitance
2.2
nF
|
Capacitance
±10%
|
Rated Voltage
1000 V (DC)
|
Size
0805
|
–
|
Dissipation Factor
2.5 %
|
Insulation Resistance
10
GΩ
|
Ceramic Type
X7R Class II
|
Length
2 mm
|
Width
1.25 mm
|
Height
1.25 mm
|
Pad Dimension
0.5 mm
|
Packaging
7" Tape & Reel
|
Design Kit
|
|
|
|
885342211007
|
2.2 nF, ±10%, 2000 V (DC) |
Downloads
8 files
|
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Capacitance
2.2
nF
|
Capacitance
±10%
|
Rated Voltage
2000 V (DC)
|
Size
1812
|
–
|
Dissipation Factor
2.5 %
|
Insulation Resistance
10
GΩ
|
Ceramic Type
X7R Class II
|
Length
4.5 mm
|
Width
3.2 mm
|
Height
1.25 mm
|
Pad Dimension
0.5 mm
|
Packaging
7" Tape & Reel
|
Design Kit
|
|
|
|
885342211010
|
2.2 nF, ±10%, 3000 V (DC) |
Downloads
8 files
|
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Capacitance
2.2
nF
|
Capacitance
±10%
|
Rated Voltage
3000 V (DC)
|
Size
1812
|
–
|
Dissipation Factor
2.5 %
|
Insulation Resistance
10
GΩ
|
Ceramic Type
X7R Class II
|
Length
4.5 mm
|
Width
3.2 mm
|
Height
2.5 mm
|
Pad Dimension
0.5 mm
|
Packaging
7" Tape & Reel
|
Design Kit
|
|
|
|
885342208007
|
2.2 nF, ±10%, 500 V (DC) |
Downloads
8 files
|
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Capacitance
2.2
nF
|
Capacitance
±10%
|
Rated Voltage
500 V (DC)
|
Size
1206
|
–
|
Dissipation Factor
2.5 %
|
Insulation Resistance
10
GΩ
|
Ceramic Type
X7R Class II
|
Length
3.2 mm
|
Width
1.6 mm
|
Height
1.25 mm
|
Pad Dimension
0.6 mm
|
Packaging
7" Tape & Reel
|
Design Kit
|
|
|
|
885342206005
|
3.3 nF, ±10%, 250 V (DC) |
Downloads
8 files
|
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Capacitance
3.3
nF
|
Capacitance
±10%
|
Rated Voltage
250 V (DC)
|
Size
0603
|
–
|
Dissipation Factor
2.5 %
|
Insulation Resistance
10
GΩ
|
Ceramic Type
X7R Class II
|
Length
1.6 mm
|
Width
0.8 mm
|
Height
0.8 mm
|
Pad Dimension
0.4 mm
|
Packaging
7" Tape & Reel
|
Design Kit
–
|
|
|
|
885342208020
|
4.7 nF, ±10%, 1000 V (DC) |
Downloads
8 files
|
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Capacitance
4.7
nF
|
Capacitance
±10%
|
Rated Voltage
1000 V (DC)
|
Size
1206
|
–
|
Dissipation Factor
2.5 %
|
Insulation Resistance
10
GΩ
|
Ceramic Type
X7R Class II
|
Length
3.2 mm
|
Width
1.6 mm
|
Height
1.25 mm
|
Pad Dimension
0.6 mm
|
Packaging
7" Tape & Reel
|
Design Kit
|
|
|
|
885342207004
|
4.7 nF, ±10%, 200 V (DC) |
Downloads
8 files
|
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Capacitance
4.7
nF
|
Capacitance
±10%
|
Rated Voltage
200 V (DC)
|
Size
0805
|
–
|
Dissipation Factor
2.5 %
|
Insulation Resistance
10
GΩ
|
Ceramic Type
X7R Class II
|
Length
2 mm
|
Width
1.25 mm
|
Height
0.8 mm
|
Pad Dimension
0.5 mm
|
Packaging
7" Tape & Reel
|
Design Kit
–
|
|
|
|
885342207009
|
4.7 nF, ±10%, 250 V (DC) |
Downloads
8 files
|
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Capacitance
4.7
nF
|
Capacitance
±10%
|
Rated Voltage
250 V (DC)
|
Size
0805
|
–
|
Dissipation Factor
2.5 %
|
Insulation Resistance
10
GΩ
|
Ceramic Type
X7R Class II
|
Length
2 mm
|
Width
1.25 mm
|
Height
0.8 mm
|
Pad Dimension
0.5 mm
|
Packaging
7" Tape & Reel
|
Design Kit
|
|
|
|
885342009001
|
4.7 nF, ±5%, 200 V (DC) |
Downloads
8 files
|
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Capacitance
4.7
nF
|
Capacitance
±5%
|
Rated Voltage
200 V (DC)
|
Size
1210
|
Q-Factor [1]
1000
|
–
|
Insulation Resistance
10
GΩ
|
Ceramic Type
NP0 Class I
|
Length
3.2 mm
|
Width
2.5 mm
|
Height
1.6 mm
|
Pad Dimension
0.75 mm
|
Packaging
7" Tape & Reel
|
Design Kit
–
|
|
|
|
885342211001
|
4.7 nF, ±10%, 200 V (DC) |
Downloads
8 files
|
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Capacitance
4.7
nF
|
Capacitance
±10%
|
Rated Voltage
200 V (DC)
|
Size
1812
|
–
|
Dissipation Factor
2.5 %
|
Insulation Resistance
10
GΩ
|
Ceramic Type
X7R Class II
|
Length
4.5 mm
|
Width
3.2 mm
|
Height
1.25 mm
|
Pad Dimension
0.5 mm
|
Packaging
7" Tape & Reel
|
Design Kit
|
|
|
|
885342211008
|
4.7 nF, ±10%, 2000 V (DC) |
Downloads
8 files
|
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Capacitance
4.7
nF
|
Capacitance
±10%
|
Rated Voltage
2000 V (DC)
|
Size
1812
|
–
|
Dissipation Factor
2.5 %
|
Insulation Resistance
10
GΩ
|
Ceramic Type
X7R Class II
|
Length
4.5 mm
|
Width
3.2 mm
|
Height
2 mm
|
Pad Dimension
0.5 mm
|
Packaging
7" Tape & Reel
|
Design Kit
|
|
|
|
885342208008
|
4.7 nF, ±10%, 500 V (DC) |
Downloads
8 files
|
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Capacitance
4.7
nF
|
Capacitance
±10%
|
Rated Voltage
500 V (DC)
|
Size
1206
|
–
|
Dissipation Factor
2.5 %
|
Insulation Resistance
10
GΩ
|
Ceramic Type
X7R Class II
|
Length
3.2 mm
|
Width
1.6 mm
|
Height
1.25 mm
|
Pad Dimension
0.6 mm
|
Packaging
7" Tape & Reel
|
Design Kit
|
|
|
|
885342009007
|
5.6 nF, ±5%, 1000 V (DC) |
Simulation
–
|
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Capacitance
5.6
nF
|
Capacitance
±5%
|
Rated Voltage
1000 V (DC)
|
Size
1210
|
–
|
–
|
Insulation Resistance
10
GΩ
|
Ceramic Type
NP0 Class I
|
Length
3.2 mm
|
Width
2.5 mm
|
Height
1.6 mm
|
Pad Dimension
0.75 mm
|
Packaging
7" Tape & Reel
|
Design Kit
–
|
|
|
|
885342206006
|
10 nF, ±10%, 250 V (DC) |
Downloads
8 files
|
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Capacitance
10
nF
|
Capacitance
±10%
|
Rated Voltage
250 V (DC)
|
Size
0603
|
–
|
Dissipation Factor
2.5 %
|
Insulation Resistance
10
GΩ
|
Ceramic Type
X7R Class II
|
Length
1.6 mm
|
Width
0.8 mm
|
Height
0.8 mm
|
Pad Dimension
0.4 mm
|
Packaging
7" Tape & Reel
|
Design Kit
|
|
|
|
885342207005
|
10 nF, ±10%, 200 V (DC) |
Downloads
8 files
|
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Capacitance
10
nF
|
Capacitance
±10%
|
Rated Voltage
200 V (DC)
|
Size
0805
|
–
|
Dissipation Factor
2.5 %
|
Insulation Resistance
10
GΩ
|
Ceramic Type
X7R Class II
|
Length
2 mm
|
Width
1.25 mm
|
Height
1.25 mm
|
Pad Dimension
0.5 mm
|
Packaging
7" Tape & Reel
|
Design Kit
–
|
|
|
|
885342207010
|
10 nF, ±10%, 250 V (DC) |
Downloads
8 files
|
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Capacitance
10
nF
|
Capacitance
±10%
|
Rated Voltage
250 V (DC)
|
Size
0805
|
–
|
Dissipation Factor
2.5 %
|
Insulation Resistance
10
GΩ
|
Ceramic Type
X7R Class II
|
Length
2 mm
|
Width
1.25 mm
|
Height
1.25 mm
|
Pad Dimension
0.5 mm
|
Packaging
7" Tape & Reel
|
Design Kit
|
|
|
|
885342207014
|
10 nF, ±10%, 500 V (DC) |
Downloads
8 files
|
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Capacitance
10
nF
|
Capacitance
±10%
|
Rated Voltage
500 V (DC)
|
Size
0805
|
–
|
Dissipation Factor
2.5 %
|
Insulation Resistance
10
GΩ
|
Ceramic Type
X7R Class II
|
Length
2 mm
|
Width
1.25 mm
|
Height
1.25 mm
|
Pad Dimension
0.5 mm
|
Packaging
7" Tape & Reel
|
Design Kit
|
|
|
|
885342208021
|
10 nF, ±10%, 1000 V (DC) |
Downloads
8 files
|
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Capacitance
10
nF
|
Capacitance
±10%
|
Rated Voltage
1000 V (DC)
|
Size
1206
|
–
|
Dissipation Factor
2.5 %
|
Insulation Resistance
10
GΩ
|
Ceramic Type
X7R Class II
|
Length
3.2 mm
|
Width
1.6 mm
|
Height
1.25 mm
|
Pad Dimension
0.6 mm
|
Packaging
7" Tape & Reel
|
Design Kit
|
|
|
|
885342211004
|
10 nF, ±10%, 500 V (DC) |
Downloads
8 files
|
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Capacitance
10
nF
|
Capacitance
±10%
|
Rated Voltage
500 V (DC)
|
Size
1812
|
–
|
Dissipation Factor
2.5 %
|
Insulation Resistance
10
GΩ
|
Ceramic Type
X7R Class II
|
Length
4.5 mm
|
Width
3.2 mm
|
Height
1.25 mm
|
Pad Dimension
0.5 mm
|
Packaging
7" Tape & Reel
|
Design Kit
|
|
|
|
885342208003
|
10 nF, ±10%, 250 V (DC) |
Downloads
8 files
|
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Capacitance
10
nF
|
Capacitance
±10%
|
Rated Voltage
250 V (DC)
|
Size
1206
|
–
|
Dissipation Factor
2.5 %
|
Insulation Resistance
10
GΩ
|
Ceramic Type
X7R Class II
|
Length
3.2 mm
|
Width
1.6 mm
|
Height
1.25 mm
|
Pad Dimension
0.6 mm
|
Packaging
7" Tape & Reel
|
Design Kit
–
|
|
|
|
885342208009
|
10 nF, ±10%, 500 V (DC) |
Downloads
8 files
|
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Capacitance
10
nF
|
Capacitance
±10%
|
Rated Voltage
500 V (DC)
|
Size
1206
|
–
|
Dissipation Factor
2.5 %
|
Insulation Resistance
10
GΩ
|
Ceramic Type
X7R Class II
|
Length
3.2 mm
|
Width
1.6 mm
|
Height
1.25 mm
|
Pad Dimension
0.6 mm
|
Packaging
7" Tape & Reel
|
Design Kit
|
|
|
|
885342208012
|
10 nF, ±10%, 630 V (DC) |
Downloads
8 files
|
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Capacitance
10
nF
|
Capacitance
±10%
|
Rated Voltage
630 V (DC)
|
Size
1206
|
–
|
Dissipation Factor
2.5 %
|
Insulation Resistance
10
GΩ
|
Ceramic Type
X7R Class II
|
Length
3.2 mm
|
Width
1.6 mm
|
Height
1.25 mm
|
Pad Dimension
0.6 mm
|
Packaging
7" Tape & Reel
|
Design Kit
|
|
|
|
885342209001
|
15 nF, ±10%, 200 V (DC) |
Downloads
8 files
|
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Capacitance
15
nF
|
Capacitance
±10%
|
Rated Voltage
200 V (DC)
|
Size
1210
|
–
|
Dissipation Factor
2.5 %
|
Insulation Resistance
6.667
GΩ
|
Ceramic Type
X7R Class II
|
Length
3.2 mm
|
Width
2.5 mm
|
Height
0.95 mm
|
Pad Dimension
0.75 mm
|
Packaging
7" Tape & Reel
|
Design Kit
–
|
|
|
|
885342208013
|
15 nF, ±10%, 630 V (DC) |
Downloads
8 files
|
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Capacitance
15
nF
|
Capacitance
±10%
|
Rated Voltage
630 V (DC)
|
Size
1206
|
–
|
Dissipation Factor
2.5 %
|
Insulation Resistance
6.667
GΩ
|
Ceramic Type
X7R Class II
|
Length
3.2 mm
|
Width
1.6 mm
|
Height
1.25 mm
|
Pad Dimension
0.6 mm
|
Packaging
7" Tape & Reel
|
Design Kit
|
|
|
|
885342207006
|
22 nF, ±10%, 200 V (DC) |
Downloads
8 files
|
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Capacitance
22
nF
|
Capacitance
±10%
|
Rated Voltage
200 V (DC)
|
Size
0805
|
–
|
Dissipation Factor
2.5 %
|
Insulation Resistance
4.545
GΩ
|
Ceramic Type
X7R Class II
|
Length
2 mm
|
Width
1.25 mm
|
Height
1.25 mm
|
Pad Dimension
0.5 mm
|
Packaging
7" Tape & Reel
|
Design Kit
–
|
|
|
|
885342207011
|
22 nF, ±10%, 250 V (DC) |
Downloads
8 files
|
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Capacitance
22
nF
|
Capacitance
±10%
|
Rated Voltage
250 V (DC)
|
Size
0805
|
–
|
Dissipation Factor
2.5 %
|
Insulation Resistance
4.545
GΩ
|
Ceramic Type
X7R Class II
|
Length
2 mm
|
Width
1.25 mm
|
Height
1.25 mm
|
Pad Dimension
0.5 mm
|
Packaging
7" Tape & Reel
|
Design Kit
|
|
|
|
885342209007
|
22 nF, ±10%, 1000 V (DC) |
Downloads
8 files
|
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Capacitance
22
nF
|
Capacitance
±10%
|
Rated Voltage
1000 V (DC)
|
Size
1210
|
–
|
Dissipation Factor
2.5 %
|
Insulation Resistance
4.55
GΩ
|
Ceramic Type
X7R Class II
|
Length
3.2 mm
|
Width
2.5 mm
|
Height
1.6 mm
|
Pad Dimension
0.75 mm
|
Packaging
7" Tape & Reel
|
Design Kit
|
|
|
|
885342208014
|
22 nF, ±10%, 630 V (DC) |
Downloads
8 files
|
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Capacitance
22
nF
|
Capacitance
±10%
|
Rated Voltage
630 V (DC)
|
Size
1206
|
–
|
Dissipation Factor
2.5 %
|
Insulation Resistance
4.545
GΩ
|
Ceramic Type
X7R Class II
|
Length
3.2 mm
|
Width
1.6 mm
|
Height
1.6 mm
|
Pad Dimension
0.6 mm
|
Packaging
7" Tape & Reel
|
Design Kit
|
|
|
|
885342208001
|
22 nF, ±10%, 200 V (DC) |
Downloads
8 files
|
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Capacitance
22
nF
|
Capacitance
±10%
|
Rated Voltage
200 V (DC)
|
Size
1206
|
–
|
Dissipation Factor
2.5 %
|
Insulation Resistance
4.545
GΩ
|
Ceramic Type
X7R Class II
|
Length
3.2 mm
|
Width
1.6 mm
|
Height
1.25 mm
|
Pad Dimension
0.6 mm
|
Packaging
7" Tape & Reel
|
Design Kit
–
|
|
|
|
885342208010
|
22 nF, ±10%, 500 V (DC) |
Downloads
8 files
|
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Capacitance
22
nF
|
Capacitance
±10%
|
Rated Voltage
500 V (DC)
|
Size
1206
|
–
|
Dissipation Factor
2.5 %
|
Insulation Resistance
4.545
GΩ
|
Ceramic Type
X7R Class II
|
Length
3.2 mm
|
Width
1.6 mm
|
Height
1.6 mm
|
Pad Dimension
0.6 mm
|
Packaging
7" Tape & Reel
|
Design Kit
–
|
|
|
|
885342214216
|
22 nF, ±10%, 2000 V (DC) |
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Capacitance
22
nF
|
Capacitance
±10%
|
Rated Voltage
2000 V (DC)
|
Size
2220
|
–
|
Dissipation Factor
2.5 %
|
Insulation Resistance
5
GΩ
|
Ceramic Type
X7R Class II
|
Length
5.7 mm
|
Width
5 mm
|
Height
2.8 mm
|
Pad Dimension
0.85 mm
|
Packaging
7" Tape & Reel
|
Design Kit
–
|
|
||
|
885342209004
|
33 nF, ±10%, 630 V (DC) |
Downloads
8 files
|
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Capacitance
33
nF
|
Capacitance
±10%
|
Rated Voltage
630 V (DC)
|
Size
1210
|
–
|
Dissipation Factor
2.5 %
|
Insulation Resistance
3.03
GΩ
|
Ceramic Type
X7R Class II
|
Length
3.2 mm
|
Width
2.5 mm
|
Height
1.6 mm
|
Pad Dimension
0.75 mm
|
Packaging
7" Tape & Reel
|
Design Kit
|
|
|
|
885342208015
|
33 nF, ±10%, 630 V (DC) |
Downloads
8 files
|
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Capacitance
33
nF
|
Capacitance
±10%
|
Rated Voltage
630 V (DC)
|
Size
1206
|
–
|
Dissipation Factor
2.5 %
|
Insulation Resistance
3.03
GΩ
|
Ceramic Type
X7R Class II
|
Length
3.2 mm
|
Width
1.6 mm
|
Height
1.6 mm
|
Pad Dimension
0.6 mm
|
Packaging
7" Tape & Reel
|
Design Kit
|
|
|
|
885342208026
|
47 nF, ±10%, 630 V (DC) |
Simulation
–
|
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Capacitance
47
nF
|
Capacitance
±10%
|
Rated Voltage
630 V (DC)
|
Size
1206
|
–
|
Dissipation Factor
2.5 %
|
Insulation Resistance
2.127
GΩ
|
Ceramic Type
X7R Class II
|
Length
3.2 mm
|
Width
1.6 mm
|
Height
1.6 mm
|
Pad Dimension
0.6 mm
|
Packaging
7" Tape & Reel
|
Design Kit
–
|
|
|
|
885342209005
|
68 nF, ±10%, 630 V (DC) |
Downloads
8 files
|
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Capacitance
68
nF
|
Capacitance
±10%
|
Rated Voltage
630 V (DC)
|
Size
1210
|
–
|
Dissipation Factor
2.5 %
|
Insulation Resistance
1.471
GΩ
|
Ceramic Type
X7R Class II
|
Length
3.2 mm
|
Width
2.5 mm
|
Height
2 mm
|
Pad Dimension
0.75 mm
|
Packaging
7" Tape & Reel
|
Design Kit
|
|
|
|
885342209002
|
100 nF, ±10%, 200 V (DC) |
Downloads
8 files
|
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Capacitance
100
nF
|
Capacitance
±10%
|
Rated Voltage
200 V (DC)
|
Size
1210
|
–
|
Dissipation Factor
2.5 %
|
Insulation Resistance
1
GΩ
|
Ceramic Type
X7R Class II
|
Length
3.2 mm
|
Width
2.5 mm
|
Height
1.6 mm
|
Pad Dimension
0.75 mm
|
Packaging
7" Tape & Reel
|
Design Kit
–
|
|
|
|
885342211002
|
100 nF, ±10%, 200 V (DC) |
Downloads
8 files
|
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Capacitance
100
nF
|
Capacitance
±10%
|
Rated Voltage
200 V (DC)
|
Size
1812
|
–
|
Dissipation Factor
2.5 %
|
Insulation Resistance
1
GΩ
|
Ceramic Type
X7R Class II
|
Length
4.5 mm
|
Width
3.2 mm
|
Height
1.25 mm
|
Pad Dimension
0.5 mm
|
Packaging
7" Tape & Reel
|
Design Kit
|
|
|
|
885342211005
|
100 nF, ±10%, 500 V (DC) |
Downloads
8 files
|
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Capacitance
100
nF
|
Capacitance
±10%
|
Rated Voltage
500 V (DC)
|
Size
1812
|
–
|
Dissipation Factor
2.5 %
|
Insulation Resistance
1
GΩ
|
Ceramic Type
X7R Class II
|
Length
4.5 mm
|
Width
3.2 mm
|
Height
2 mm
|
Pad Dimension
0.5 mm
|
Packaging
7" Tape & Reel
|
Design Kit
|
|
|
|
885342211006
|
100 nF, ±10%, 630 V (DC) |
Downloads
8 files
|
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Capacitance
100
nF
|
Capacitance
±10%
|
Rated Voltage
630 V (DC)
|
Size
1812
|
–
|
Dissipation Factor
2.5 %
|
Insulation Resistance
1
GΩ
|
Ceramic Type
X7R Class II
|
Length
4.5 mm
|
Width
3.2 mm
|
Height
2 mm
|
Pad Dimension
0.5 mm
|
Packaging
7" Tape & Reel
|
Design Kit
|
|
|
|
885342208002
|
100 nF, ±10%, 200 V (DC) |
Downloads
8 files
|
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Capacitance
100
nF
|
Capacitance
±10%
|
Rated Voltage
200 V (DC)
|
Size
1206
|
–
|
Dissipation Factor
2.5 %
|
Insulation Resistance
1
GΩ
|
Ceramic Type
X7R Class II
|
Length
3.2 mm
|
Width
1.6 mm
|
Height
1.6 mm
|
Pad Dimension
0.6 mm
|
Packaging
7" Tape & Reel
|
Design Kit
–
|
|
|
|
885342208004
|
100 nF, ±10%, 250 V (DC) |
Downloads
8 files
|
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Capacitance
100
nF
|
Capacitance
±10%
|
Rated Voltage
250 V (DC)
|
Size
1206
|
–
|
Dissipation Factor
2.5 %
|
Insulation Resistance
1
GΩ
|
Ceramic Type
X7R Class II
|
Length
3.2 mm
|
Width
1.6 mm
|
Height
1.6 mm
|
Pad Dimension
0.6 mm
|
Packaging
7" Tape & Reel
|
Design Kit
–
|
|
|
|
885342214173
|
100 nF, ±10%, 1000 V (DC) |
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Capacitance
100
nF
|
Capacitance
±10%
|
Rated Voltage
1000 V (DC)
|
Size
2220
|
–
|
Dissipation Factor
2.5 %
|
Insulation Resistance
1
GΩ
|
Ceramic Type
X7R Class II
|
Length
5.7 mm
|
Width
5 mm
|
Height
2.5 mm
|
Pad Dimension
0.85 mm
|
Packaging
7" Tape & Reel
|
Design Kit
–
|
|
||
|
885342209003
|
220 nF, ±10%, 250 V (DC) |
Downloads
8 files
|
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Capacitance
220
nF
|
Capacitance
±10%
|
Rated Voltage
250 V (DC)
|
Size
1210
|
–
|
Dissipation Factor
2.5 %
|
Insulation Resistance
0.455
GΩ
|
Ceramic Type
X7R Class II
|
Length
3.2 mm
|
Width
2.5 mm
|
Height
2.5 mm
|
Pad Dimension
0.75 mm
|
Packaging
7" Tape & Reel
|
Design Kit
|
|
|
|
885342214142
|
220 nF, ±10%, 630 V (DC) |
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Capacitance
220
nF
|
Capacitance
±10%
|
Rated Voltage
630 V (DC)
|
Size
2220
|
–
|
Dissipation Factor
2.5 %
|
Insulation Resistance
0.5
GΩ
|
Ceramic Type
X7R Class II
|
Length
5.7 mm
|
Width
5 mm
|
Height
2 mm
|
Pad Dimension
0.85 mm
|
Packaging
7" Tape & Reel
|
Design Kit
–
|
|
||
|
885342211003
|
470 nF, ±10%, 250 V (DC) |
Downloads
8 files
|
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Capacitance
470
nF
|
Capacitance
±10%
|
Rated Voltage
250 V (DC)
|
Size
1812
|
–
|
Dissipation Factor
2.5 %
|
Insulation Resistance
0.213
GΩ
|
Ceramic Type
X7R Class II
|
Length
4.5 mm
|
Width
3.2 mm
|
Height
2 mm
|
Pad Dimension
0.5 mm
|
Packaging
7" Tape & Reel
|
Design Kit
|
|
|
|
885342214002
|
1 µF, ±10%, 250 V (DC) |
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Capacitance
1
µF
|
Capacitance
±10%
|
Rated Voltage
250 V (DC)
|
Size
2220
|
–
|
Dissipation Factor
2.5 %
|
Insulation Resistance
0.1
GΩ
|
Ceramic Type
X7R Class II
|
Length
5.7 mm
|
Width
5 mm
|
Height
2 mm
|
Pad Dimension
0.85 mm
|
Packaging
7" Tape & Reel
|
Design Kit
–
|
|
||
|
885342214001
|
1 µF, ±10%, 630 V (DC) |
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Capacitance
1
µF
|
Capacitance
±10%
|
Rated Voltage
630 V (DC)
|
Size
2220
|
–
|
Dissipation Factor
2.5 %
|
Insulation Resistance
0.1
GΩ
|
Ceramic Type
X7R Class II
|
Length
5.7 mm
|
Width
5 mm
|
Height
2.8 mm
|
Pad Dimension
0.85 mm
|
Packaging
7" Tape & Reel
|
Design Kit
–
|
|
||
|
885342214003
|
2.2 µF, ±10%, 250 V (DC) |
Status
Active
i
| Production is active. Expected lifetime: >10 years.
|
Capacitance
2.2
µF
|
Capacitance
±10%
|
Rated Voltage
250 V (DC)
|
Size
2220
|
–
|
Dissipation Factor
2.5 %
|
Insulation Resistance
0.05
GΩ
|
Ceramic Type
X7R Class II
|
Length
5.7 mm
|
Width
5 mm
|
Height
2.5 mm
|
Pad Dimension
0.85 mm
|
Packaging
7" Tape & Reel
|
Design Kit
–
|
|
Assortments
Articles from this product series can be found in the following assortments:
Videos
#askLorandt explains: What miniaturization means for MLCCs and what alternatives are possible
Videos
#askLorandt explains: Influence of DC-Bias on Ceramic Filter Capacitors
Videos
#askLorandt explains: LTspice DC-Bias Simulation for Capacitors
Videos
#askLorandt explains: DC/DC Converter Voltage Ripple vs. ESR of Different Capacitor Technologies
Videos
How to choose the right capacitor type for a circuit?! || Film vs. Ceramic vs. Electrolytic
Videos
Webinar: Introduction to the capacitor technologies and how to use them
